Products / Imaging /Scientific CMOS Cameras /UV-NIR sCMOS Camera (200-1100nm) /High Sensitivity sCMOS Camera /

High Sensitivity sCMOS Camera

Model Guide 95BSI V2 400BSI V3 400BSI V2 400D/DC Related Products Order Now!

Please check the table below for individual specifications

Product Brochure English: Cooled BSI/FSI sCMOS Camera

Model	Dhyana 400BSI V3	Dhyana 400BSI V2	Dhyana 95BSI V2	Dhyana 400D	Dhyana 400DC
Sensor Model	BSI sCMOS	BSI sCMOS	BSI sCMOS	FSI sCMOS	FSI sCMOS
Sensor Model	Gpixel GSENSE2020BSI	Gpixel GSENSE2020BSI	Gpixel GSENSE400BSI	Gpixel GSENSE2020	Gpixel GSENSE2020s
Shutter Type	Rolling/Global	Rolling/Global	Rolling	Rolling	Rolling
Color / Mono	Mono	Mono	Mono	Mono	Color
Array Diagonal	18.8 mm	18.8 mm	31.9mm	18.8mm	18.8mm
Effective Area	13.3mm x 13.3mm	13.3mm x 13.3mm	22.5mm x 22.5mm	13.3mm x 13.3mm	13.3mm x 13.3mm
Resolution	2048(H) x 2048(V)	2048(H) x 2048(V)	2048(H) x 2048(V)	2048(H) x 2040(V)	2048(H) x 2044(V)
Pixel Size	6.5μm x 6.5μm	6.5μm x 6.5μm	11μm x 11μm	6.5μm x 6.5μm	6.5μm x 6.5μm
QE	95%@600nm	95%@600nm	95%@560nm	72%@595nm	80%@600nm
Full-Well Capacity	45ke-	45ke-	HDR：80ke-； STD：100ke-	45ke-	45ke-
Dynamic Range	90dB	86dB	90dB	86.6dB	86.6dB
Frame Rate	HDR Mode: 74fps@CameraLink/ 40fps@USB3.0 HighSpeed Mode: 100fps@CameraLink	74fps@CameraLink 40fps@USB3.0	24fps@16bit HDR， 48fps@12bit STD	35fps@16bit	22fps@8bit; 16fps@16bit
Readout Noise	CMS: 1.1e-(Median)/ 1.2e-(RMS)	CMS: 1.1e-(Median)/ 1.2e-(RMS)	1.6e-(Median)/ 1.7e-(RMS)	HDR: 2.5e-; HighGain: 2e-	HighGain: 1.7e-
Exposure Time	6.6μs-10s	6.6μs-10s	21μs~10s	13μs-10s	21μs-10s
DSNU	0.2e-	0.2e-	0.2e-	nil	nil
PRNU	0.3%	0.3%	0.3%	nil	nil
Cooling Method	Air & Liquid	Air & Liquid	Air & Liquid	Forced air	Forced air
Cooling Temperature	45℃ below ambient	45℃ below ambient	45°C below ambient	Forced air ( Ambient at +25°C): -10°C	Forced air ( Ambient at +25°C): -10°C
Dark Current	Air: 0.15e-/p/s@-15°C; Liquid: 0.10e-/p/s@-25°C	Air: 0.15e-/pixel/s@-15°C, Liquid: 0.10e-/pixel/s@-25°C	Air: 0.5e-/pixel/s, Liquid: 0. 25e-/pixel/s	0.12 e-/pixel/s @ -10℃	0.12 e-/pixel/s @ -10℃
Binning	2x2, 4x4	2x2, 4x4	2x2, 4x4	2x2	2x2
ROI	Support	Support	2048x1024, 2048x512, 1608x1608, 1200x1200， 1024x1024, 512x512, 256x256	Support	Support
TimeStamp	nil	nil	1μs accuracy	nil	nil
Trigger Mode	Hardware & Software	Hardware & Software	Hardware & Software	Hardware & Software	Hardware & Software
Output Trigger Signals	Exposure, Global, Readout, High level, Low level	Exposure, Global, Readout, High level, Low level	Exposure, Global, Readout, High level, Low level	Exposure, Global, Readout	Exposure, Global, Readout
Trigger Interface	SMA	SMA	SMA	SMA	Hirose
Data Interface	USB3.0/Cameralink	USB3.0/Cameralink	USB3.0/Cameralink	USB3.0	USB3.0
Data Bit Depth	16bit	16bit	16bit	16bit	16bit
Optiona Interface	C-mount	C-mount	C-mount & F-mount	C-mount	C-mount
Power Supply	12V/8A	12V/8A	12V/8A	12V/8A	12V/8A
Power Consumption	45W	60W	60W	60W	50W
Dimensions	85mm x 85mm x 127mm	85mm x 85mm x 125mm	C-mount: 100mm x 118mm x 127mm； F-mount: 100mm x 118mm x 157mm	120mm x 119mm x 121mm	120mm x 119mm x 121mm
Weight	995g	1460g	1613g	1853g	1853g
Software	Mosaic/LabVIEW/Matlab/ Micromanager/ MetaMorph	Mosaic / LabVIEW / Matlab / Micromanager / MetaMorph	Mosaic / LabVIEW / Matlab / Micromanager / MetaMorph	Mosaic / LabVIEW / Matlab / Micromanager	Mosaic / LabVIEW / Matlab / Micromanager
SDK	C/C++/C#	Support	C / C++	Support	Support
Operating System	Windows/Linux	Windows/Linux	Windows/Linux	Windows/Linux	Windows/Linux
Operating Environment	Temperature 0~40°C/ Humidity 10~85%	Temperature 0~40°C / Humidity 10~85%	Temperature 0~40°C / Humidity 10~85%	Temperature 0~40°C / Humidity 10~85%	Temperature 0~40°C / Humidity 10~85%

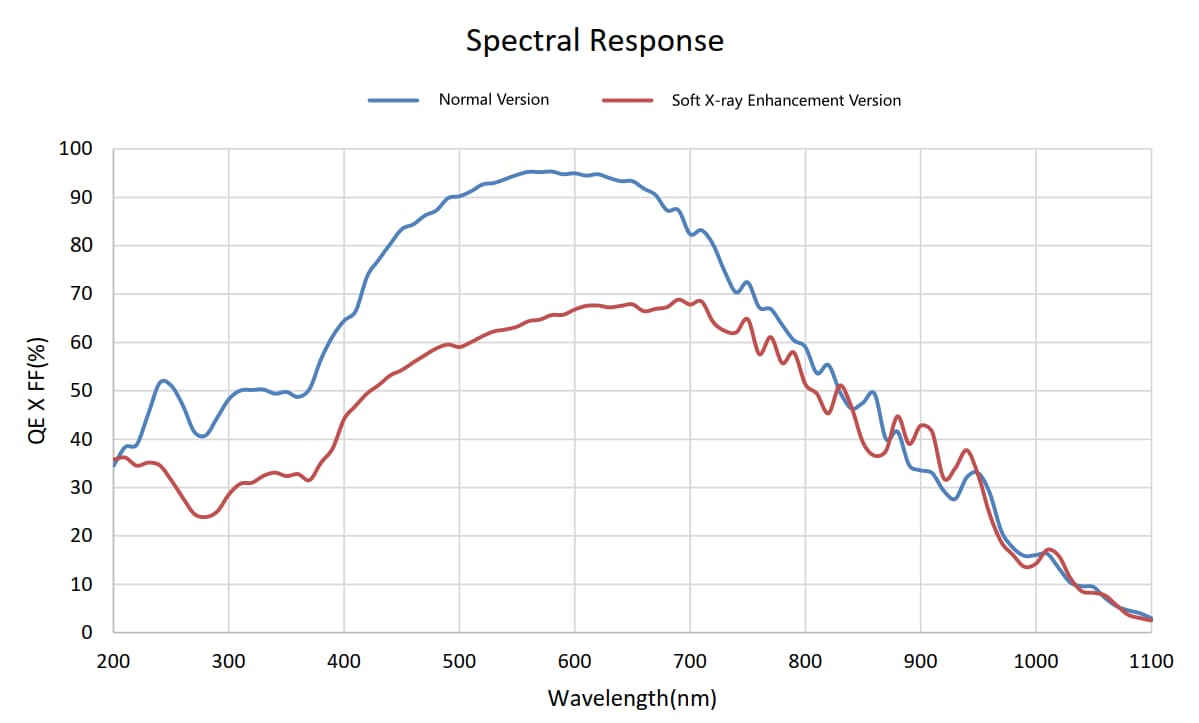

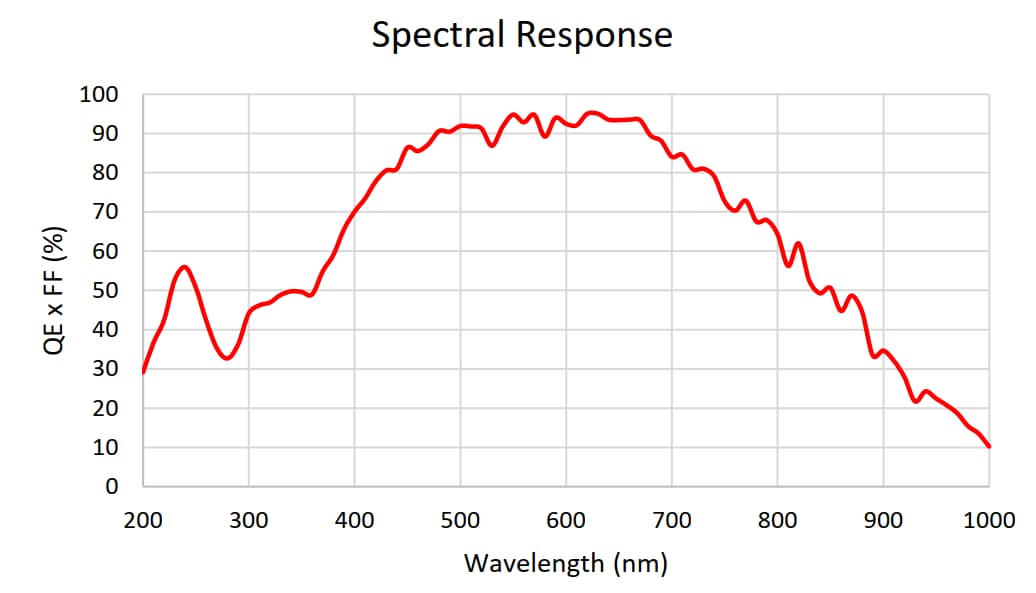

Dhyana 400BSI V3 Quantum Efficiency Graph

Dhyana 400BSI V2 Quantum Efficiency Graph

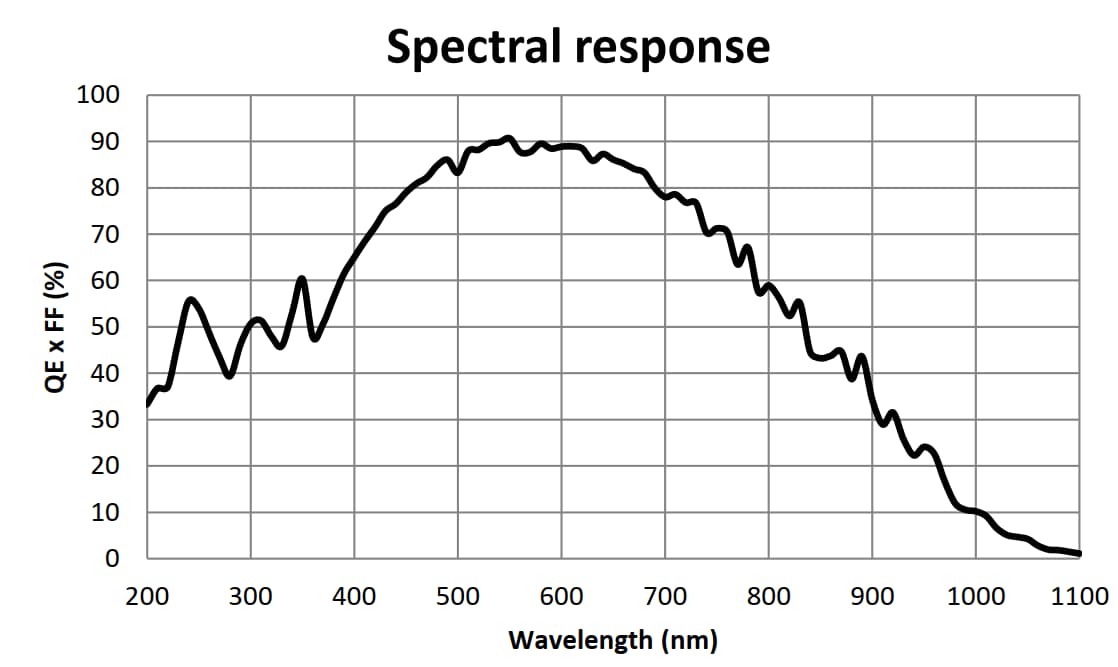

Dhyana 95V2 Quantum Efficiency Graph

Dhyana 400D Quantum Efficiency Graph

Dhyana 400D Quantum Efficiency Graph

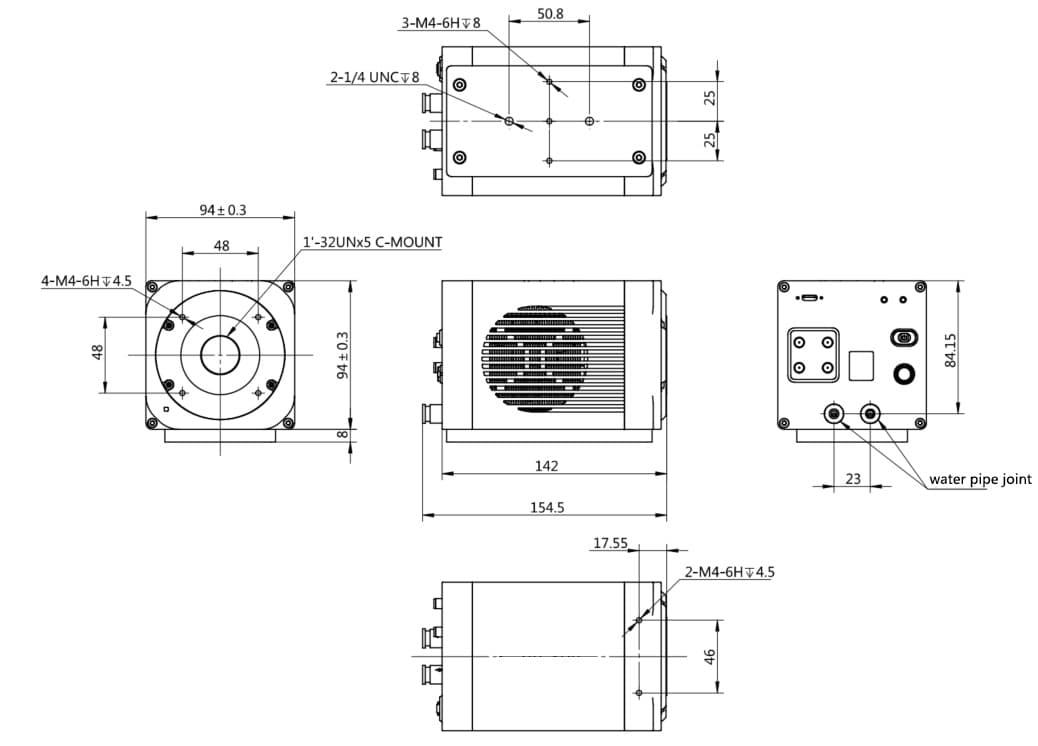

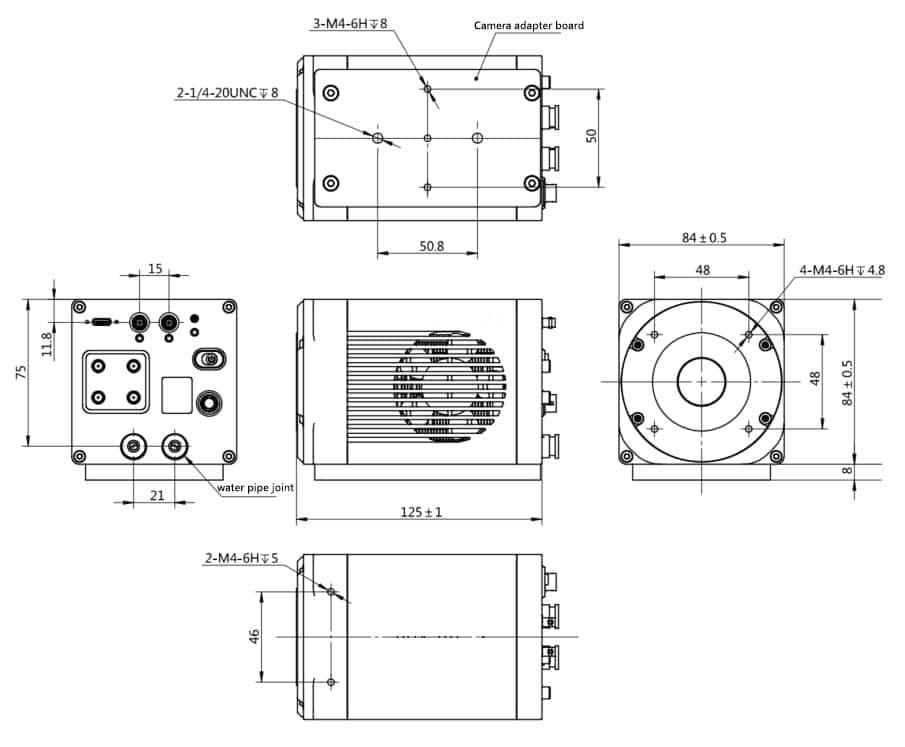

Dhyana 400BSI V3 Structure (unit: mm)

Dhyana 95V2 Structure (unit: mm)

Dhyana 400BSI V2 Structure (unit: mm)

Dhyana 400BSI V2 Structure (unit: mm)

Dhyana 400D Structure (unit: mm)

Dhyana 400D Structure (unit: mm)

Dhyana 400DC Structure (unit: mm)

Dhyana 400DC Structure (unit: mm)

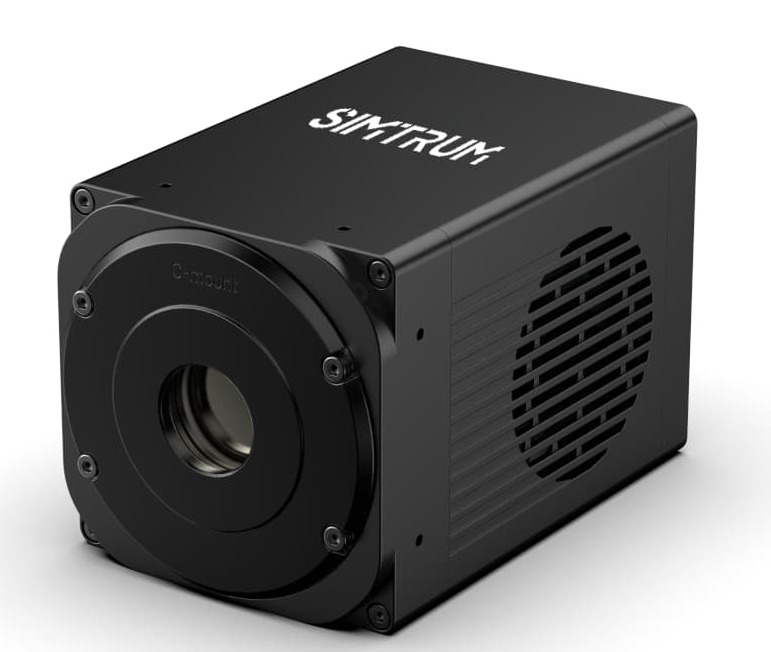

The Dhyana 95BSI V2 is a compact but powerful camera designed to be the industry standard for its applications. Small but powerful, the Dhyana 95 boasts a quantum efficiency of 95%, ultra low readout noise and a 2" sensor size, making it ideal for imaging in lifesciences and material studies. The Dhayana 95 comes with options for Water Cooling or Forced Air Cooling system, USB3.0 or CameraLink.

Discover the Dhyana 95 in the Specifications or Feature Tab above or Contact Us for assistance.

Key Features

95% QE @ 560nm

Ultra-low readout noise

Smaller size but more functions

Faster readout by doubling speed

Superior background with accurate calibration

95% quantum efficiency, and excellent SNR

The Dhyana95 V2 uses backside-illuminated sCMOS thinned chip technology to avoid light interference from the wiring layer. It has excellent response capabilities in the ultraviolet, visible and near-infrared bands, with a peak quantum efficiency of up to 95%@560nm, and when the number of incident photons are more than 3 , it can have a better SNR performance than the typical EMCCD camera of 97% peak QE .

100Ke - Full Well Capacity, High Dynamic Range

Thanks to the 11um large pixel , Dhyana95 V2's full-well capacity can be up to 100,000 electrons. Advanced High Dynamic (HDR) mode, through dual-channel gain conbined, it can present high-quality images with rich details of dark and bright in real time, which is very useful in applications such as life science.

2" Area, Large Field of View

The 2" array can not only adapt to more optical interfaces and deliver a greater field of view, but also results in fewer lens switches to find the area of interest on the sample.

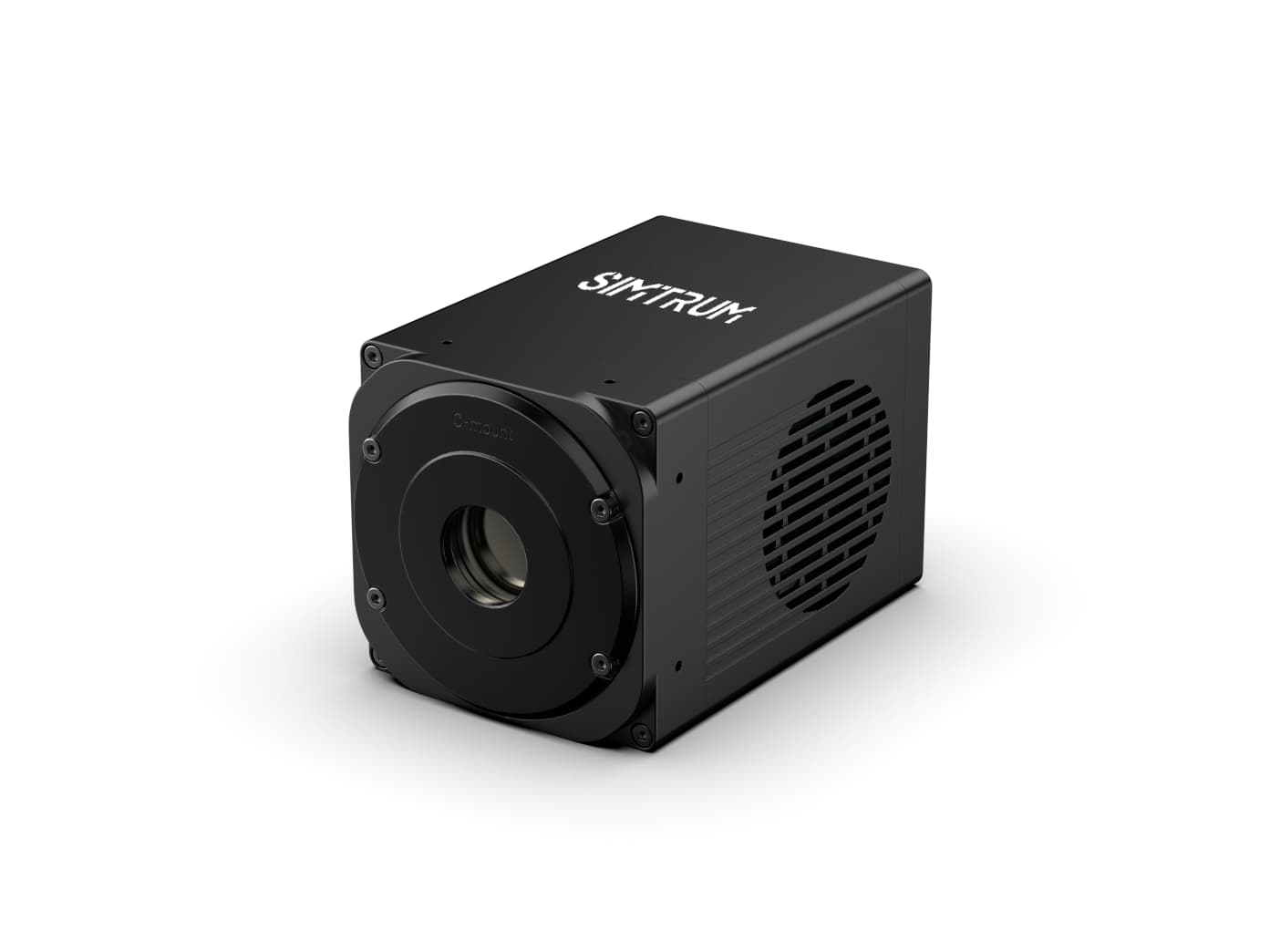

Dhyana400BSI V3 – BSI sCMOS camera is designed lighter and with less power to integrate and fit in small spaces

Dhyana 400BSI V3 is undoubtedly the best camera featuring the Gpixel Gsense2020BSI sensor, being designed so easy to integrate, fit in small spaces, using less power, giving results you can rely on that you or your customers can make the correct decisions.

Feature

- 95%@600nm Peak QE

- 6.5μm x 6.5μm Pixel Size

- 2048 x 2048 Resolution

- 100fps@CL, 40fps@USB3.0

- CameraLink & USB3.0

Product Brochure Link:

Lighter and Less Power The weight is only 995g and the power consumption is only 45W making Dhyana 400BSI V3 the lightest and the least power in its class and so easy to integrate and fit in small spaces.

100fps@4MP Dhyana 400BSI V3 has been upgraded from 74fps to 100fps, reaching the limit readout speed of 4MP resolution at CameraLink mode. You may also get higher frame rate support by ROI function.

Rolling Shutter Control Mode Dhyana 400BSI V3 has developed a new technology named Rolling Shutter Control Mode, which allows users to add defined line time delays or slit heights to synchronize scanning modes in applications such as Light-Sheet Microscopy.

Quantum Efficiency


Typical Applications - Low light imaging: STORM, PALM, SIM, etc. - High-speed imaging: Calcium, FRET, TIRF, high content, etc. - Synchronize scanning: Light-sheet, spinning-disk confocal, spectroscopy, etc.


Dimensions (Unit: mm)

Dhyana 400BSI is a well built sCMOS camera. Utilising a BSI sensor boasting a 95% quantum efficiency, the Dhyana 400 BSI operates at an impressive 74 fps frame rate with ultra low readout noise levels. This makes it ideal for use in imaging systems requiring super resolution imaging and microscopy.The Dhayana 400BSI comes with options for Water Cooling or Forced Air Cooling system, USB3.0 or CameraLink.

Discover the Dhyana 400BSI in the Specifications or Feature Tab above or Contact Us for assistance.

Key Features

95% QE @ 600nm

74fps frame rate

Ultra-low readout noise

Pixel correction, DSNU/PRNU calibration, more accurate quantitative analysis

To improve the overall performance of the camera, the Dhyana 400BSI V2 was calibrated in DSNU (dark signal nonuniformity) and PRNU (photo response non-uniformity) characteristically. After calibration, the DSNU value reduced from 0.3e- to 0.2e-, the PRNU value reduced from 1.6% to 0.3%. Thus the new upgraded camera has a more sophisticated capabilities, making it more suitable for quantitative analysis applications.

Wide spectral response range, high sensitivity

With its ultra-low noise, the advantage of the quantum efficiency in Dhyana 400BSI V2 is very significant. This is a huge breakthrough for scientific applications, not only in the visible region, but also in the ultraviolet and near-infrared.

74fps using CameraLink, 40fps using USB3.0, faster data capture

In addition to the signal to noise ratio advantage, the Dhyana 400BSI V2 has enhanced transmission speeds. The new CameraLink interface meets the needs of high-end imaging research for higher frame rates and increases the USB 3.0 throughput through hardware improvements. These have achieved the ultimate transfer rate of 74fps with CameraLink and 40fps with USB3.0 at 4.2 MP full resolution.

Dhyana 400D is equipped with a brand new 1.2 inch scientific CMOS sensor, which provides 80% quantum efficiency at 600nm. The 1.2 inch sensor size and 6.5μm x 6.5μm pixel size are more suitable for microscopy standard C-mount imaging. When compared to other existing scientific CMOS camera products, Dhyana 400D has a hardware 2x2 binning function which gives it superior sensitivity for low light imaging. Dhyana 400D has advantages of FOV, extremely low noise, high dynamic range, and high frame rate, in addition, the Dhyana 400D is also available with a color sensor.

Key Features

80% QE @ 600nm

Low light Sensitivity with 2x2 binning function

The Dhyana 400D is equipped with a brand new 1.2 inch scientific CMOS sensor, which provides 80% quantum efficiency at 600nm. The 1.2 inch sensor size and 6.5μm x 6.5μm pixel size are more suitable for microscopy standard C-mount imaging.

When compared to other existing scientific CMOS camera products, Dhyana 400D has a hardware 2x2 binning function which gives it superior sensitivity for low light imaging. Dhyana 400D has advantages of FOV, extremely low noise, high dynamic range, and high frame rate, in addition, the Dhyana 400D is also available with a color sensor.

Microscop Cameras

Camera Category	Resolution	Pixel Size	FPS	Wavelength	Note
Microscope TE-Cooling USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera	24MP and 61MP	5.94um and 3.76um	up to 190FPS	380nm -650nm	UV extended available
TE-Cooling USB3.0 CMOS Camera	10MP to 45MP	4.63um to 2.31um	up to 96FPS	380nm - 650nm	IR Cut filter
TE-Cooling USB3.0 CMOS Camera with External Trigger	0.5MP / 0.5MP	6.9um / 9um	20FPS	380nm - 650nm	External Trigger
Microscope USB3.0 CMOS Camera	0.5MP to 45MP	6.9um to 1.55um	upto 520FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced	1.3MP to 10MP	9.7um to 4.6um	upto 86FPS	200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP	1.5MP to 45MP	3.4um to 1.2um	upto 165FPS	380nm - 650nm	IR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera	5MP	2um	30FPS	380nm - 650nm	IR Cut filter
HDMI Color CMOS Camera	2MP to 8MP		60FPS	380 - 1100nm
UV & NIR Enhanced CMOS Camera	4.2/8MP, 2.1/4.1MP		upto 200FPS	200-1100nm	UV or NIR Enhance

Scientific Cameras

Type	Model	Wavelength	Sensor Type	Resolution	Pixel size	Frame Rate	QE
X-RAY sCMOS Camera	XF95	80-1000eV	BSI sCMOS	2048 x 2048	22.5um or 13.3um	48	~100% full range
XUV/VUV Camera	maxCam	1-300nm	BSI/FSI CCD	1024 x 255	26um		Refer to brochures
High Speed sCMOS Camera	Dhyana 2100	200-1100nm	FSI CMOS / Mono	5220(H) x 4096(V)	4.5um x 4.5um	450fps@8bit	63%@520nm
High Speed sCMOS Camera	Dhyana 9KTDI	200-1100nm	BSI sCMOS TDI/Mono	9072	5um x 5um	510kHZ@8bit	82%@550nm,
Cooled High Sensitivity sCMOS Camera	95V2	200-1100nm	BSI sCMOS/Mono	2048(H) x 2048(V)	11μm x 11μm	48fps@12bit STD	95%@560nm
	400BSI V2	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	74fps@CL, 40fps@USB3.0	95%@600nm
	400BSI V3	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	100fps@CL, 40fps@USB3.0	95%@600nm
	400D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2040(V)	6.5μm x 6.5μm	35fps@16bit	72%@595nm
	400DC	200-1100nm	FSI sCMOS/Color	2048(H) x 2044(V)	6.5μm x 6.5μm	22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras	6060BSI	200-1100nm	BSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	26.4fps@12-bit STD	95%@580nm
	4040BSI	200-1100nm	BSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	90%@550nm
	6060FSI	200-1100nm	FSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	44fps@12-bit STD	72%@550nm
	4040FSI	200-1100nm	FSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	74%@600nm
Compact Industry sCMOS Camera	401D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2048(V)	6.5μm x 6.5μm	40fps@16bit, 45fps@8bit	72%@595nm
	401A-G	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	401A-U	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	201D	200-1100nm		2048(H) x 1152(V)	6.5μm x 6.5μm	70fps@16bit, 80fps@8bit	72%@595nm

Intensified CMOS Cameras

Type	Time-Resolved iCMOS	High-speed Gated iCMOS Camera		High-speed Fluorescence iCMOS Camera
Type	Time-Resolved iCMOS	540M/S	1000M/S	FLUO (1000 FPS)	FLUO (2000 FPS)
Product Image
Framerate	162 fps	540 fps	1000 fps	1000 fps - 7500 fps	2000 fps - 6400 fps
Sensor Resolution	1920 x 1200 pixels	1696 x 1710 pixels	1280 x 1024 pixels	1280 x 1024 pixels	1920 x 1080 pixels*
Pixel size	5.86 x 5.86 µm	8 x 8 µm	6.6 x 6.6 µm	6.6 x 6.6 µm	10 x 10 µm
Photon gain (max.)	50000 lm/m^2/lx	11000 lm/m^2/lx	11000 lm/m^2/lx	36000 lm/m^2/lx	36000 lm/m^2/lx
Gating repetition rate	100 or 300Khz	100khz	100khz	100khz	100khz
Intensifier	18mm intensifier	Dual-stage intensifier	Dual-stage intensifier	Single-stage intensifier	Single-stage intensifier
Bit Depth	10 bit and 12 bit	8 bit	8 and 12 bit	8 and 12 bit	8 bit
Minimum exposure time	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)

Imaging Intensified Tube

Type	Time-Resolved Image Intensifier		High-speed Image Intensifier
Type	Model 18	Model 25	Model 18	Model 25
Product Image
Input diameter	18mm	25mm	18mm	25mm
Effective area	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition	100 kHz, 300 kHz or 1 MHz	100 kHz, 300 kHz or 1 MHz	100khz Or 300khz , 2.5 MHz burst mode	100khz Or 300khz, 2.5 MHz burst mode
Min. gate width	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)
Frame Rate	Up to 500 fps	Up to 500 fps	up to 1,000,000 fps	up to 1,000,000 fps
Photon Gain	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000

Short-wave, Mid-wave, Long-wave Infrared Cameras

Product		Spectral Range	Rsolution	Cooling	Feature
SWIR Camera		400-1700nm	1.3MP, 0.3MP	uncooled
MIR Camera	Mid Infrared Detector	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Mid Infrared Camera	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Duel Band Detector	3.7 to 4.8um\|7.7 to 9.5um	320*256px	Cooled
LWIR Camera	Cooled LWIR Detector	7.7um to 9.4um	0.08MP, 0.3MP	Cooled
	Cooled LWIR Camera	7.7um to 9.4um	0.3MP	Cooled
	LWIR Thermography Camera	8 to 14um	0.08MP, 0.3MP,1.5MP	Uncooled	Broad Temperature Range
	Thermography Camera for Skin Screening	8 to 14um	320*256px	Uncooled	Body Temperature
	Thermal Imaging Cameras for Phone	8 to 14um	256*192px	Uncooled	For Smart Phone
	Compact Thermal Imaging Camera	8 to 14um	0.08MP, 0.3MP	Uncooled	For CCTV , Drone
