Acousto-Optic Device
SIMTRUM provide different types of Acousto-Optic Device, including Acousto-optic deflector (AODF), Acousto-optic frequency shifters (AOFS), Acousto-optic modulators (AOM) Fiber, Acousto-optic tunable filter (AOTF) , PHASE MODULATORS, Acousto-optic Q-switch (AOQS), Pockels Cells, below table is a summary of devices specification.
| Product Type |
Wavelength Choice |
Aperture |
Frequency |
Driver |
| Acousto-optic deflector (AODF) |
266, 355, 364 , 405, 488, 515, 532, 561, 813, 1064, 1083nm |
1 to 26mm |
70-230Mhz |
Yes |

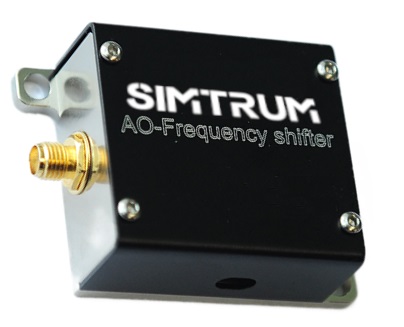

| Acousto-optic frequency shifters (AOFS) |
633, 1064nm |
1 and 3mm |
20-115Mhz |
Yes |
| Acousto-optic modulators (AOM) Free space |
266, 343,355,532,800,1045,1064, 9600,10600nm and 450-900nm |
0.5 to 8mm |
40-200Mhz |
Yes |

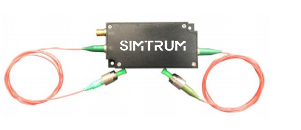

| Acousto-optic modulators (AOM) Fiber |
780,1030,1064,1550nm and 910-940nm |
lost <3dB |
40-300Mhz |
Yes |
| Acousto-optic tunable filter (AOTF) |
640-1100n,400-700nm, 400-1000m |
2 and 2.5mm |
|
Yes |

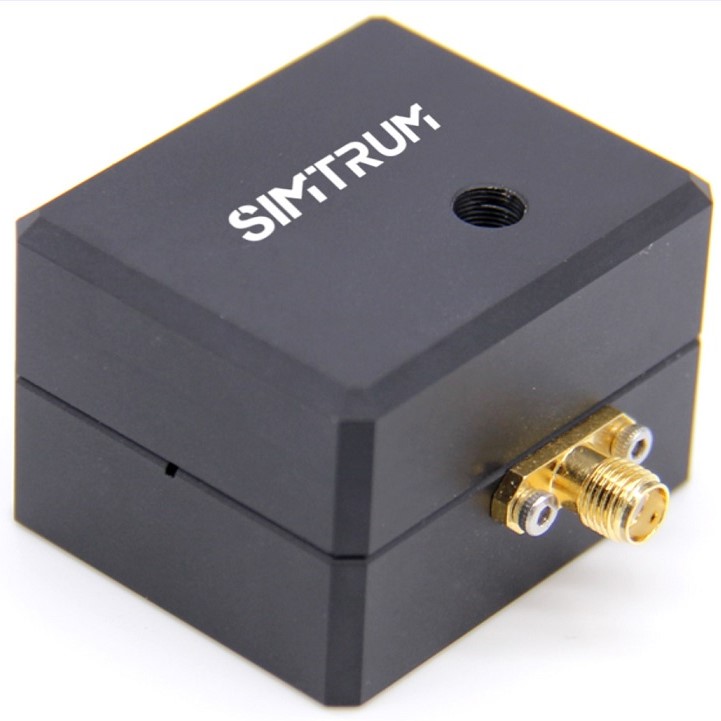

| PHASE MODULATORS |
280, 355, 370, 420, 461, 532, 650,780,935, 960 nm |
2 and 3mm |
1Ghz - 25Mhz |
Yes |
| Acousto-optic Q-switch (AOQS) |
1064, 1342, 1532, 1550, 10600nm |
1 to 11mm |
20 - 80Mhz |
|

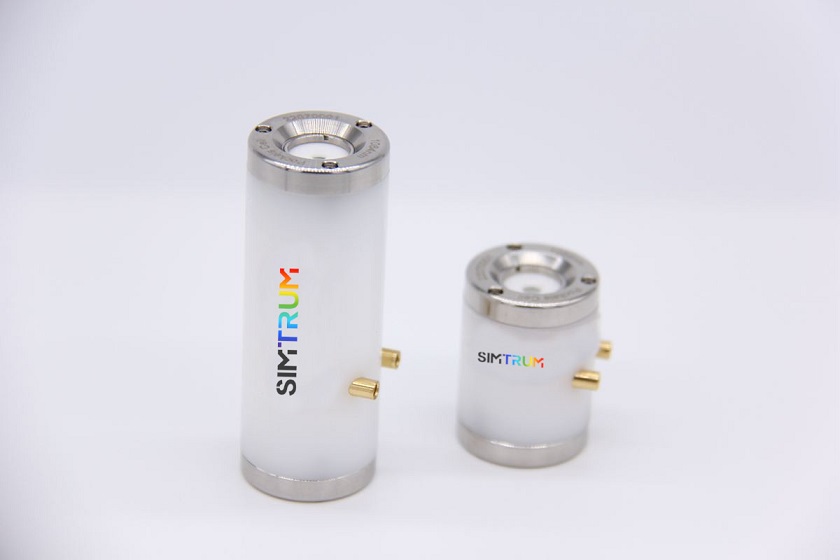

| Pockels Cells |
515, 532, 800, 1030, 1064nm |
3 to 10mm |
|
|
Technical Support Available: Contact us | You can download our full Product Line Card Click Here
