Optical Isolator | SIMTRUM Photonics Store

Products / Optics /Polarization Components /Optical Isolator /
Optical Isolator
Overview Specifications and Graphs Order Now!

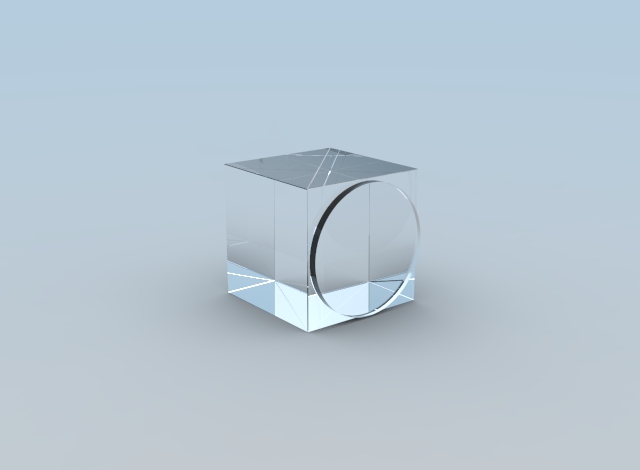

Optical Isolator is made from a combination of Polarizing Beamsplitter Cube and Quarter Waveplate. The incoming light beam will be linearly polarized by the Beamsplitter before converting to a circular polarization due to the quarter waveplate. Any of the outgoing beam that is reflected back into the isolator will be converted by the Quarter Waveplate into linearly polarized beam once again but orthogonal to the incoming beam. Thereafter, the beam will be blocked by the beamsplitter cube and absorbed, not exiting from the input direction.



General Specifications

Type

Optical Isolator

Material

Quartz+BK7

Dimensional Tolerance (mm)

±0.2

Split Ratio

Rs>99% Rp<5%, TP> 95% Ts<1%

Isolation

>20dB

Beam Deviation(arcmin)

<3

Clear Aperture

>90%

Surface Quality

40/20

Transmitted Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>500mJ/cm²(20ns 20Hz @1064nm)






Optical Isolator@ 532nmOptical Isolator@ 633nm





Optical Isolator@ 780nmOptical Isolator@ 1064nm





Optical Isolator@ 1550nm



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Dimension (mm)

Design Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Coating Design Wavelength (nm) Dimension (mm) Split Ratio Availability Reference Price
(USD)
QB-OI-10-1550
Quartz+BK7, Optical Isolator, Dimension=10.0*10.0*10.0mm, Design Wavelength= 1550nm 		R<0.25%@central wavelength on all entrances155010.0*10.0*10.0Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-10-532
Quartz+BK7, Optical Isolator, Dimension=10.0*10.0*10.0mm, Design Wavelength= 532nm 		R<0.25%@central wavelength on all entrances53210.0*10.0*10.0Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-10-633
Quartz+BK7, Optical Isolator, Dimension=10.0*10.0*10.0mm, Design Wavelength= 633nm 		R<0.25%@central wavelength on all entrances63310.0*10.0*10.0Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-10-780
Quartz+BK7, Optical Isolator, Dimension=10.0*10.0*10.0mm, Design Wavelength= 780nm 		R<0.25%@central wavelength on all entrances78010.0*10.0*10.0Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-12.7-1064
Quartz+BK7, Optical Isolator, Dimension=12.7*12.7*12.7mm, Design Wavelength= 1064nm 		R<0.25%@central wavelength on all entrances106412.7*12.7*12.7Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-12.7-1550
Quartz+BK7, Optical Isolator, Dimension=12.7*12.7*12.7mm, Design Wavelength= 1550nm 		R<0.25%@central wavelength on all entrances155012.7*12.7*12.7Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-12.7-532
Quartz+BK7, Optical Isolator, Dimension=12.7*12.7*12.7mm, Design Wavelength= 532nm 		R<0.25%@central wavelength on all entrances53212.7*12.7*12.7Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-12.7-633
Quartz+BK7, Optical Isolator, Dimension=12.7*12.7*12.7mm, Design Wavelength= 633nm 		R<0.25%@central wavelength on all entrances63312.7*12.7*12.7Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-12.7-780
Quartz+BK7, Optical Isolator, Dimension=12.7*12.7*12.7mm, Design Wavelength= 780nm 		R<0.25%@central wavelength on all entrances78012.7*12.7*12.7Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-5-1064
Quartz+BK7, Optical Isolator, Dimension=5.0*5.0*5.0mm, Design Wavelength= 1064nm 		R<0.25%@central wavelength on all entrances10645.0*5.0*5.0Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-5-1550
Quartz+BK7, Optical Isolator, Dimension=5.0*5.0*5.0mm, Design Wavelength= 1550nm 		R<0.25%@central wavelength on all entrances15505.0*5.0*5.0Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-5-532
Quartz+BK7, Optical Isolator, Dimension=5.0*5.0*5.0mm, Design Wavelength= 532nm 		R<0.25%@central wavelength on all entrances5325.0*5.0*5.0Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-5-633
Quartz+BK7, Optical Isolator, Dimension=5.0*5.0*5.0mm, Design Wavelength= 633nm 		R<0.25%@central wavelength on all entrances6335.0*5.0*5.0Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-5-780
Quartz+BK7, Optical Isolator, Dimension=5.0*5.0*5.0mm, Design Wavelength= 780nm 		R<0.25%@central wavelength on all entrances7805.0*5.0*5.0Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote
QB-OI-10-1064
Quartz+BK7, Optical Isolator, Dimension=10.0*10.0*10.0mm, Design Wavelength= 1064nm 		R<0.25%@central wavelength on all entrances106410.0*10.0*10.0Rs>99% Rp<5%, TP> 95% Ts<1% 2-3 Weeks Request for quote

QB-OI-10-1064 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
1064

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
10.0*10.0*10.0

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-5-780 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
780

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
5.0*5.0*5.0

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-5-633 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
633

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
5.0*5.0*5.0

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-5-532 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
5.0*5.0*5.0

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-5-1550 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
1550

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
5.0*5.0*5.0

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-5-1064 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
1064

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
5.0*5.0*5.0

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-12.7-780 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
780

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-12.7-633 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
633

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-12.7-532 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-12.7-1550 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
1550

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-12.7-1064 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
1064

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-10-780 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
780

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
10.0*10.0*10.0

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-10-633 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
633

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
10.0*10.0*10.0

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-10-532 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
10.0*10.0*10.0

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-10-1550 - Parameter

Type
Optical Isolator

Material
Quartz+BK7

Coating
R<0.25%@central wavelength on all entrances

Design Wavelength (nm)
1550

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz @1064nm)

Dimension (mm)
10.0*10.0*10.0

Dimensional Tolerance (mm)
±0.2

Transmitted Wavefront Distortion
<λ/4@633nm

Split Ratio
Rs>99% Rp<5%, TP> 95% Ts<1%

Beam Deviation (arcmin)
<3

Isolation
>20dB

QB-OI-10-1064 - Download

QB-OI-5-780 - Download

QB-OI-5-633 - Download

QB-OI-5-532 - Download

QB-OI-5-1550 - Download

QB-OI-5-1064 - Download

QB-OI-12.7-780 - Download

QB-OI-12.7-633 - Download

QB-OI-12.7-532 - Download

QB-OI-12.7-1550 - Download

QB-OI-12.7-1064 - Download

QB-OI-10-780 - Download

QB-OI-10-633 - Download

QB-OI-10-532 - Download

QB-OI-10-1550 - Download
