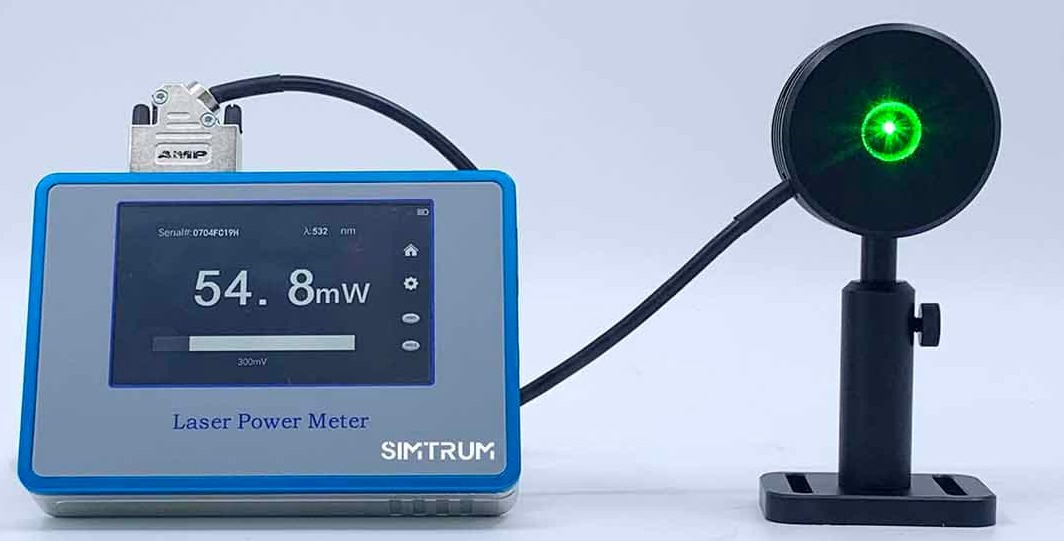

SIMTRUM'S thermoelectric laser power meter is a multi-functional power detection equipment. It can accurately measure a variety of continuous or pulsed laser power, and is equipped with PC software to store measurement data. The product is suitable for industrial production, technology research and development, and academic research, with data recording, remote control, using sampling software to draw trend charts, trend charts, statistics and average functions, long-term stability measurement and other functions. It has the advantages of high repetition rate, wide measurement range and accurate digital display. It can assist users in accurate, simple and multi-faceted optical power measurement.

Features

Wide range of power measurement
High measurement accuracy
Wide wavelength covering 0.19 ~ 25 μm
Long standby time
Large measurement adjustable operating Angle 180°
High damage threshold

Application

Laser processing
Laser sensing
Laser calibration and detection
Calibration and maintenance of laser systems

Mechanical Diagram

PM-HB2/5/15

PM-HB35/50

PM-HB100/200

PM-HP1/5

Wide-Band Type

Model	LA-CC01-PM-HB2	LA-CC01-PM-HB5	LA-CC01-PM-HB15	LA-CC01-PM-HB35	LA-CC01-PM-HB50	LA-CC01-PM-HB100	LA-CC01-PM-HB200	LA-CC01-PM-HB300
Power Range	2 mW - 2 W	2 mW - 5 W	2 mW - 15 W	10 mW - 35 W	10 mW - 50 W	50mW - 100 W	50mW -200 W	50mW - 300 W
Active Area Diameter	22 mm					25 mm
Wavelength Range	0.19-25 μm
Max. Average Power Density	15 kW/cm2			40 kW/cm2		45 kW/cm2
Max. Energy Density	0.15J/cm2,1064nm,1ns					0.3J/cm2,1064nm,7ns		0.3J/cm2, 1064nm, 1ns
Sensitivity	2 mW			10 mW		50mW
Measurement Uncertainty	±2%
Response Time (0-90%)	<1 sec.
Linearity	±1%
Resolution	100μW			1mW		10mW
Accuracy	＜±2%

High Precision Type

Model	LA-CC01-PM-HP1	LA-CC01-PM-HP5
Power Range	100µW - 1 W	100µW - 5 W
Active Area Diameter	9 mm
Wavelength Range	0.19-20μm
Max. Average Power Density	1.5 kW/cm^2
Max. Energy Density	0.3J/cm^2(1 ns Pulse)
Sensitivity	100µW
Measurement Uncertainty	±2%
Response Time (0-90%)	<1 sec.
Linearity	±0.2%
Resolution	10µW
Accuracy	＜±2%

Other Parameters

Probe Coating Film	Broadband coating
Probe Material	Thermopile
Power Supply	18650 (2 batteries)
Cooling Method	Air cooling(TS2/5/15/35/50) Fan cooling(TS100/200/300)
Cooling Method	Air cooling(TS2/5/15/35/50) Fan cooling(TS100/200/300)
Computer Interface	USB 1.1 and USB 2.0
Instrument Power	100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature (Operating)	5°C - 45°C (41°F - 113°F)
Temperature (Storage)	-20°C - 70°C (-4°F - 158°F)
Warranty Period	1 year

Software

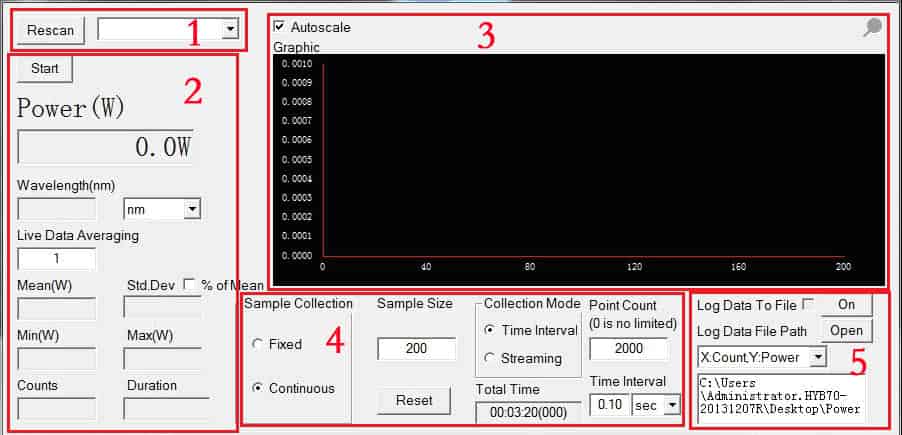

The PC software is divided into 5 areas (as shown below):

1. 1.Status information area - After the TP100 header is connected to the computer, the status information area will identify different headers and display the corresponding information of the header;
2. 2.Real-time display area - Real-time display of power measurement value, test wavelength, average value, maximum value, minimum value, stability, completed sample number, completed time;
3. 3.Curve display area - Display the measurement curve in real time, up to 20,000 samples can be set, and the maximum and minimum values of the display power range can also be changed;
4. 4.Parameter setting area - This area is divided into two modes: "Time Interval" and "Streaming". In the "Time Interval" mode, the number of samples and time interval of the test can be set, and "Streaming" cannot perform the above settings. Just keep measuring, the sample continues to move forward;
5. 5.Data storage area - Customers can freely set the storage path and storagemethod.

Model	Wavelength range	Power range	Resolution	Sensitivity	Accuracy
Thermoelectric laser power meter (0.19-25 μm)	0.19-25 um	100uW-300W	Up to 10uW	Up to 100uW	＜±2%
Handheld thermoelectric laser power meter (0.19-25 μm)	0.19-25 um	0.5W-50W	Up to100uW	Up to 10mW	＜±2%
Photoelectric laser power meter (200-1100nm)	200-1100 nm	1nW-1000mW	Up to1nW	1nW	＜±2%
USB multi-channel laser power meter (0.19-25 μm)	0.19-25 um	1nW-300W	Up to1nW	1nW	＜±2%

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
LA-CC01-PM-HB2 Power Range2 mW - 2 W，Wavelength Range0.19-25 μm，Active Area Diameter22 mm，Max. Average Power Density 15 kW/cm2，Linearity±1%	4-6week	$1729.87
LA-CC01-PM-HB5 Power Range2 mW - 5 W，Wavelength Range0.19-25 μm，Active Area Diameter22 mm，Max. Average Power Density 15 kW/cm，Linearity±1%	4-6week	$1729.87
LA-CC01-PM-HB15 Power Range2 mW - 15 W，Wavelength Range0.19-25 μm，Active Area Diameter22 mm，Max. Average Power Density 15 kW/cm2，Linearity±1%	4-6周	$1729.87
LA-CC01-PM-HB35 Power Range10 mW - 35 W，Wavelength Range 0.19-25 μm，Active Area Diameter22 mm，Max. Average Power Density40 kW/cm2，Linearity±1%	4-6周	$1812.36
LA-CC01-PM-HB100 Power Range50mW - 100 W，Wavelength Range 0.19-25 μm，Active Area Diameter25 mm，Max. Average Power Density45 kW/cm2，Linearity±1%	4-6week	$3295.56
LA-CC01-PM-HB200 Power Range50mW -200 W，Wavelength Range 0.19-25 μm，Active Area Diameter25 mm，Max. Average Power Density45 kW/cm2，Linearity±1%	4-6week	$3295.56
LA-CC01-PM-HP1 Power Range100µW - 1 W，Wavelength Range0.19-20μm，Active Area Diameter9 mm，Max. Average Power Density 1.5 kW/cm2，Linearity±0.2%	4-6week	$2224.00
LA-CC01-PM-HP5 Power Range100µW - 5 W，Wavelength Range0.19-20μm，Active Area Diameter9 mm，Max. Average Power Density 1.5 kW/cm2，Linearity±0.2%	4-6week	$2224.00
