USB Digital Microscope With Platform

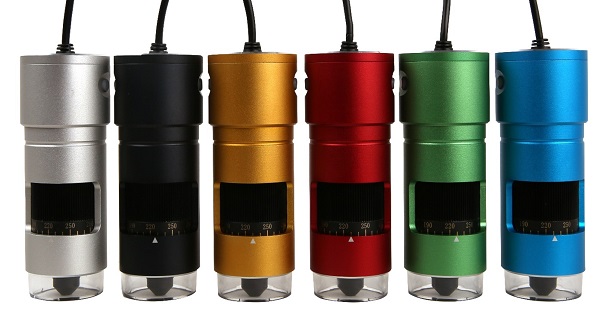

The HP Series Portable USB Digital Microscope is an easy-to-use, high-power scope. With continuous powers from 10x to 280x, it's ideal for viewing stamps, coins, bugs, plants, rocks, skin, gems, circuit boards, and more. With the higher power magnifications, you can even view traditional microscope slides under transmitted illumination.

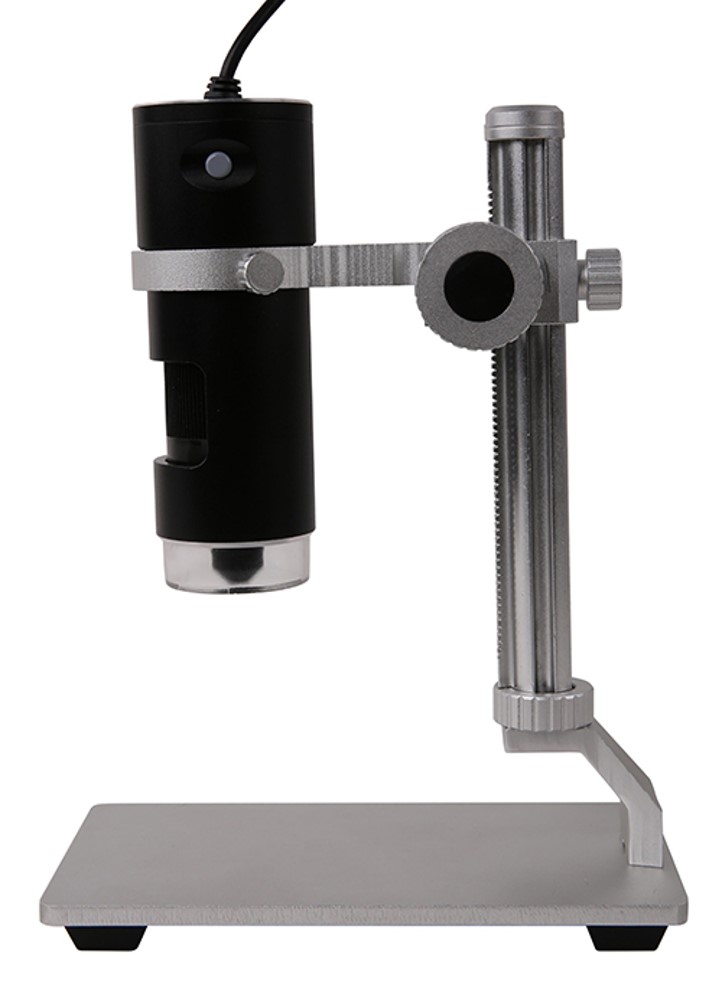

Best of all, you can capture your discoveries using the built-in 2.0MP camera. Press the shutter to save images and high-resolution video directly to your PC. The LED illuminator ensures your specimens are clear and bright. An included metal stand allows for steady shots and comes in handy when viewing at higher powers, minimizing shaking and keeping your specimen in sharp focus.


For teens and adults alike, the HP Series portable USB microscope is a fun, educational tool. It's well suited for hobbyists, quality control inspectors, medical professionals, and scientific researchers.




Features

- USB-powered handheld digital microscope with continuous 10x to 280x magnification;

- Object distance-controlled zoom property;

- Single object distance, single magnification;

- Linear rotation magnification relationship;

- Object distance from 110 to 10 mm corresponding to 10x to 280x magnification;

- 5G high-grade optical glass with multi-layer anti-reflection coating;

- Built-in 2MP(1920x1080) digital camera for capturing images and videos;

- 8 LED ring illuminators with adjustable illumination;

- Use the included Windows software to capture images and videos of your discoveries. Measure your specimens with a built-in measurement tool;

- Computer requirements: CD/DVD drive and USB 2.0 port. UVC plug-and-play with Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit),

  OSx(Mac OS X) and Linux.


Product specifications and Brochures

Product Brochure Link:

Optical Specification for HP Series
Optical Lens5G High Grade Optical Glass with Multi-layer Anti-reflection Coating
Optical Magnification0.1x~3.3x(33x)
Working Distance10mm~110mm
Illumination8 LEDs Illumination
StandM-SD-HM5 with F41mm Holding Ring
Other Specification for HP Series
Spectral Range380-650nm (with IR-cut Filter)
White BalanceAuto White Balance
Color TechniqueUltra-Fine Color Engine
Capture/Control SDKWindows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording SystemStill Picture and Movie
Cooling System*Natural
Operating Environment
Operating Temperature (in Centidegree)-10~ 50
Storage Temperature (in Centidegree)-20~ 60
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDC 5V over PC USB Port
Software Environment
Operating SystemMicrosoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit)
OSx(Mac OS X)
Linux
PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB Port: USB3.0 High-speed Port
Display: 17” or Larger
CD-ROM
Optical Specification for HP Series
Optical Lens5G High Grade Optical Glass with Multi-layer Anti-reflection Coating
Optical Magnification0.1x~3.3x(33x)
Working Distance10mm~110mm
Illumination8 LEDs Illumination
StandM-SD-HM5 with F41mm Holding Ring


Sample Images Captured with HP02000KPA

Figured 1 Black Textile


Figure 4 Alfalfa Stem (CS)




Figured 2 Face Mask Fabric


Figured 5 House Fly Wing




Figured 3 iPhone Pixels


Figured 6 Mature Embryo of Capsella


Packing Information - HP Series


Standard Package
ACarton L:45cm W:45cm H:48cm (20pcs, 17Kg/ carton), not shown   in the photo
BGift box: L:22cm W:22cm H: 9cm (0.8Kg/box)
CHP series microscope
DCD (Driver & utilities software, Ø12cm)

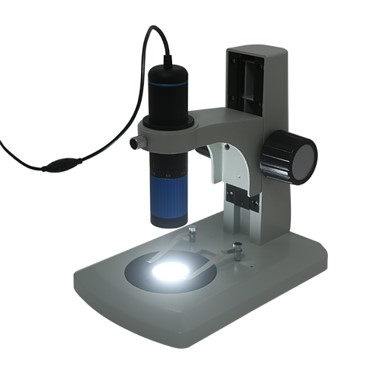

The CZ Series Continuous Zoom Portable Digital Microscope is an easy-to-use, high-power scope. It is a combination of Zoom Lens and a USB Camera you can choose their interested parts and SIMTRUM will install them into a CZ digital microscope.


With Transmission Illumination

With EPI Illumination On


Features

- The CZ stays in focus when magnification/focal length is changed;

- True continuous zoom that most of the handheld USB microscopes do not have;

- Digital microscope with USB2.0 to computer or HDMI interface to HDMI display;

- Compact and professional optical performance;

- With compact inner 8 high power LEDs for the reflective illumination and uniform LED transmission illumination with battery as the power;

- Long and fixed working distance up to 70mm for all zoom positions;

- CNC mechanical body ensures smooth zooming operation;

- Wide range of resolutions from 1.2M~5M;

- Ultra-Fine color engine with perfect color reproduction capability;

- With advanced video & image processing application ToupView/ToupLite;

- Providing Windows/Linux/Mac OS multiple platforms SDK;

- Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

- USB Power, no extra source required.



Product specifications and Brochures

Product Brochure Link:


Other Specification for CZ Series
Spectral Range380-650nm (with IR-cut Filter)
White BalanceAuto White Balance
Color TechniqueUltra-Fine Color Engine/NA for Monochrmatic Sensor
Capture/Control SDKWindows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording SystemStill Picture and Movie
Cooling System*Natural
Operating Environment
Operating Temperature (in Centidegree)-10~ 50
Storage Temperature (in Centidegree)-20~ 60
Operating Humidity30~80%RH
Storage Humidity10~60%RH
Power SupplyDC 5V over PC USB Port
Software Environment
Operating SystemMicrosoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit)
OSx(Mac OS X)
Linux
PC RequirementsCPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB Port: USB3.0 High-speed Port
Display: 17” or Larger
CD-ROM


Dimension




Packing Information - CZ Series


Standard Package
ACarton L:51cm W:31.5cm   H:18cm (1pcs, 2.8Kg/ carton, 0.029m3), not shown in the photo
BCZ series digital microscope
CSolid stand
DHexwrench to install the stand
ECD (Driver &   utilities software, Ø12cm)
Optional Accessory
JUniform transmissive   illumination kit(3 Battery power supply, 3 levels switchable)
KCalibration kit106011/TS-M1 (X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)



HP Series Model Guide


Order CodeSensorSize(mm)SensitivityFPS/ResolutionBinningExposure
HP02000KPA2.0M/IMX290(C)
1/2.8" (5.56x3.13)
2.9 x2.91300mv with 1/30s
0.15mv with 1/30s
17@1920x10801x10.105ms~15s
HP02100KPA2.1M/IMX307(C)
1/2.8" (5.56x3.13)
2.9 x2.91300mv with 1/30s
0.15mv with 1/30s
38@1920x1080
38@960x540

1x1

1x1

0.1-2000 ms
HP05100KPA5.1M/IMX335(C)
1/2.8" (5.18x3.89)
2.0x2.0505mv with 1/30s
0.13mv with 1/30s
26@2592x1944
26@1280x960
26@640x480
1x1
1x1
1x1
0.1-2000 ms

* C: Color; M: Monochrome; Default shutter: Rolling Shutter



CZ Series Model Guide


Order CodeZoom LensCamera Module
CZA05100KPA
ZPA605100A
ZLA
0.25X~1.6X (continues and parfocal)
X05100KPA (5M pixels CMOS camera)
CZA01200KPA
ZPA601200A
ZLA
0.25X~1.6X (continues and parfocal)
X01200KPA (1.2M pixels CMOS camera)
CZB05100KPA
ZPB605100A
ZLB
0.7X~5.6X (continues and parfocal)
X05100KPA (5M pixels CMOS camera)
CZB01200KPA
ZPB601200A
ZLB
0.7X~5.6X (continues and parfocal)
X01200KPA (1.2M pixels CMOS camera)

ZLA: A type zoom lens with 0.25X ~ 1.6X magnification

ZLB: B type zoom lens with 0.7X ~ 5.6X magnification



Zoom Lens for CZ Series Digital Microscope

ParameterModel
ZLAZLB
Zoom Lens0.25X~1.6X (continues and parfocal)0.7X~5.6X(continues and parfocal)
Working Distance67.85mm(From lens to object surface)31.73(from lens to object surface)
MTFDiffraction limitedDiffraction limited
FieldФ28.8~4.5mmФ10.85~1.36mm

Reflection Illumination

(USB power supply)

8 LEDs embedded illumination(adjustable)8 LEDs embedded illumination(adjustable)

Transmission Illumination

(Battery power, Optional)

Uniform illumination(3 levels switchable)Uniform illumination(3 levels switchable)


Camera Modules for CZ Series Digital Microscope


Order CodeSensor & Size (mm)Pixel(μm)G Responsivity

    Dynamic Range

SNRmax

FPS/ResolutionBinningExposure
X05100KPA

5.1M/MT9P001(C)

1/2.5“ (5.7x4.28)

2.2x2.2

0.53 V/lux-sec

66.5dB

40.5dB

5@2592x1944

18@1280x960

  60@640x480
1x1
2x2
4x4
0.294ms~2000ms
X01200KPA1.2M/AR0130(M)
1/3“(4.8x3.6)
3.75 x3.756.5v/lux-sec
85.3dB
44dB
28@1280x960
30@640x480
1x1
 2x2
0.4ms~2000ms



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
HP02000KPA
USB Digital Microscope with Platform - HP Series, sensor 2.0Mega pixels, color mode Polychrome, FPS 17@1920X1080, exposure 0.105ms ~15s
2-3 Weeks Request for quote
HP02100KPA
USB Digital Microscope with Platform, sensor 2.1Mega pixels, color mode Polychrome, FPS 38@1920X1080, exposure 0.1ms ~ 2000ms
2-3 Weeks Request for quote
HP05100KPA
USB Digital Microscope with Platform - HP Series, sensor 5.1Mega pixels, color mode Polychrome, FPS 26@2592X1944, exposure 0.1ms ~ 2000ms
2-3 Weeks Request for quote
CZA05100KPA-ZPA605100A
USB Digital Microscope with Platform - CZ Series, zoom lens 0.25x~1.6x(continues and parfocal), sensor 5.1Mega pixels, color mode Polychrome, FPS 5@2592x1944, exposure 0.294ms ~ 2000ms
In Stock $10.00
CZA01200KPA-ZPA601200A
USB Digital Microscope with Platform - CZ Series, zoom lens 0.1x~1.6x(continues and parfocal), sensor 1.2Mega pixels, color mode Monochrome, FPS 28@1280x960, exposure 0.4ms ~ 2000ms
In Stock $10.00
CZB05100KPA-ZPA605100A
USB Digital Microscope with Platform - CZ Series, zoom lens 0.7x~5.6x(continues and parfocal), sensor 5.1Mega pixels, color mode Polychrome, FPS 5@2592x1944, exposure 0.294ms ~ 2000ms
In Stock $10.00
CZB01200KPA-ZPA601200A
USB Digital Microscope with Platform - CZ Series, zoom lens 0.25x~1.6x(continues and parfocal), sensor 1.2Mega pixels, color mode Monochrome, FPS 28@1280x960, exposure 0.4ms ~ 2000ms
In Stock $10.00
