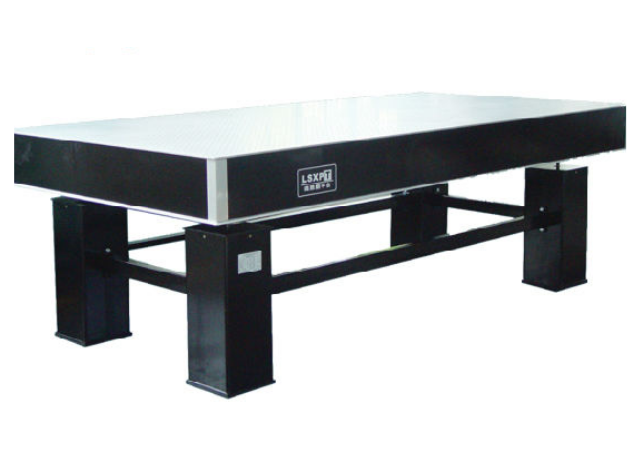

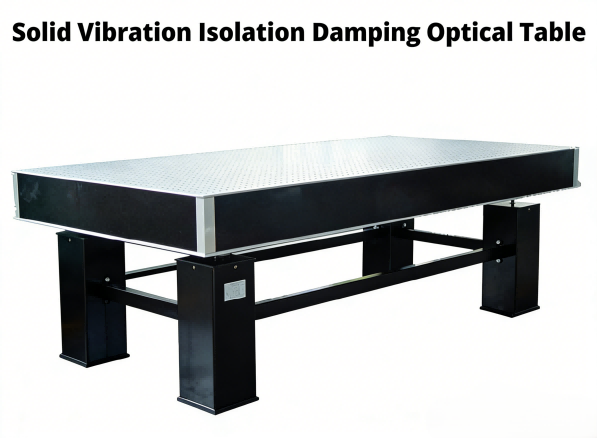

Solid Vibration Isolation Optical Table


• Vibration Isolation damping optical breadboard for surface resonance    elimination

• High density honeycomb structure breadboard

• Manual levelling adjustment

• Optional ordering for castors



 Inherent Frequency6.5-12Hz, Vertical  3.0-8.0Hz, Horizontal
 Isolation Damping Type
Compound Rubber Pads
 Leveling TypeManual
 Total Table Height800mm
 Breadboard Surface Roughness≤0.05mm/m2
 Deflection Under Load ( Stiffness)≤0.8μm
 Isolator Height Adjustment Range±10mm




Choosing the right type of optical table


In research laboratories, it is often necessary to conduct experiments and take measurements in vibration-free environments. Many types of experiments are hindered or even made impossible to perform in the presence of small vibrations. Air conditioners, building ventilation fans and many appliances around a building as well as foot traffic from building users all contribute to vibrations contribute to the vibrations that could have an adverse effect on the experiments conducted with the laboratories. To prevent such undesirable effects from occurring, Simtrum’s optical tables, or table supports specifically, are designed to dampen vibrations to varying degrees based on needs and requirements.  Simtrum offers three levels of optical table supports: rigid, passive, and active.


Rigid Optical Table Supports


Simtrum’s  Solid Vibration Isolation Damping Optical Tables utilize rigid optical table supports which are used predominately when experiments do not need to require the optical table to be isolated from vibrations. Instead, the main purpose of the optical table is to provide a flat and rigid surface for experiments to be carried out. The advantages include high load capacity, excellent horizontal and vertical stability.


Passive Optical Table Supports

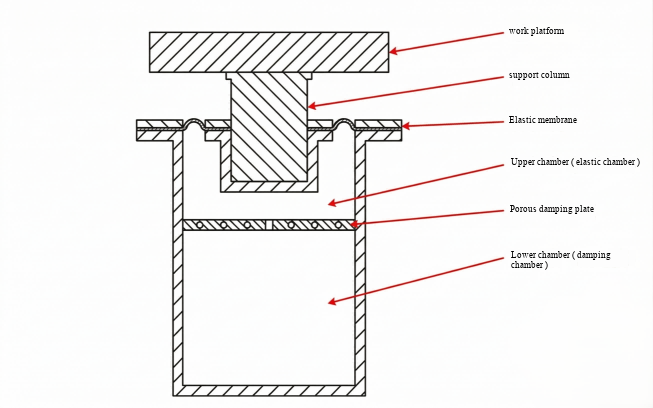

Simtrum’s Solid Vibration Isolation Table with Hollow Cone Structure Isolators utilize passive optical table supports suitable for environments which require minimal vibrations. The deformable air reservoir in the passive optical table supports isolates the optical table from background vibrations. The advantages are effective vertical vibration isolation as well as stability. While the supports are not able to dampen vibrations as well as the active optical table supports, there is also the advantage of requiring less maintenance.


Active Optical Table Supports

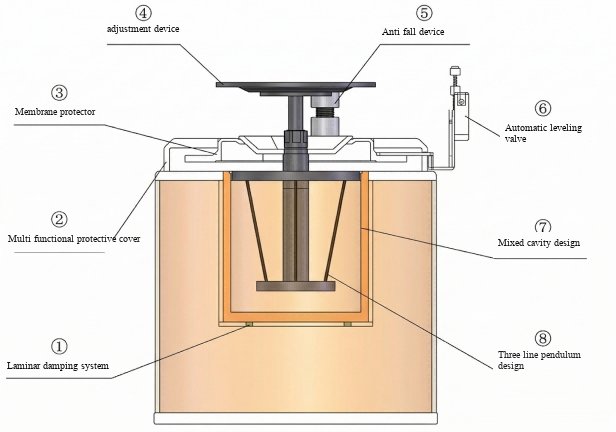

Simtrum’s Pneumatic Air Spring Vibration Isolation Optical Tables make use of active optical table supports that should be used for vibration-sensitive applications and in environments where there is significant vibrations, for instance in labs of upper floors of buildings, which encounter more horizontal and vertical vibrations. Vertical damping is achieved by the pneumatic air springs. The air spring isolators also feature auto levelling and inflating characteristics. The Pneumatic Air Spring Vibration Isolation Optical Tables with Pendulum Rod can achieve much lower inherent frequency in horizontal direction and better load capacity. Overall, the advantages are superior vertical and horizontal vibration isolation, self-leveling features as well as excellent horizontal and vertical stability.
















Simtrum Part No.Optical Breadboard Dimension(mm)Hole TypeDescription
SVI0606600×600×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI075075750×750×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI0906900×600×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI10071000×700×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI10081000×800×80(50)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI12081200×800×100(50/80)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI15091500×900×150(50/80/100)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI15101500×1000×150(50/80/100)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI16091600×900×150(50/80/100)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI18121800×1200×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI20102000×1000×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI20122000×1200×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI24122400×1200×200(80/100/150)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI30103000×1000×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI30123000×1200×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI30153000×1500×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 25mm hole grid

SVI35123500×1200×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 50mm hole grid

SVI35153500×1500×250(150/200)M6,  with 25mm hole grid

Total Table Height: 800mm,

 M6 tapped holes with 50mm hole grid

The information in the chart above is a general guide to choosing the suitable solid vibration isolation optical tables for your optomechanical setup.

Other variations of optical breadboard heights are available and are shown in bold.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.




Optomechanics



Optical Breadboard Dimension (mm)


Search Reset
Compare Model Drawings & Specs Hole Type Optical Breadboard Dimension (mm) Availability Reference Price
(USD)
SVI0606
600x500mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid600×600×80(50) 4-6 Weeks Request for quote
SVI075075
750x750mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid750×750×80(50) 4-6 Weeks Request for quote
SVI0906
900x600mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid900×600×80(50) 4-6 Weeks Request for quote
SVI1007
1000x700mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1000×700×80(50) 4-6 Weeks Request for quote
SVI1008
1000x800mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1000×800×80(50) 4-6 Weeks Request for quote
SVI1208
1200x800mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1200×800×100(50/80) 4-6 Weeks Request for quote
SVI1509
1500x900mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1500×900×150(50/80/100) 4-6 Weeks Request for quote
SVI1510
1500x1000mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1500×1000×150(50/80/100) 4-6 Weeks Request for quote
SVI1609
1600x900mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1600×900×150(50/80/100) 4-6 Weeks Request for quote
SVI1812
1800x1200mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid1800×1200×200(80/100/150) 4-6 Weeks Request for quote
SVI2010
2000x1000mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid2000×1000×200(80/100/150) 4-6 Weeks Request for quote
SVI2012
2000x1200mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid2000×1200×200(80/100/150) 4-6 Weeks Request for quote
SVI2412
2400x1200mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid2400×1200×200(80/100/150) 4-6 Weeks Request for quote
SVI3010
3000x1000mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid3000×1000×250(150/200) 4-6 Weeks Request for quote
SVI3012
3000x1200mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid3000×1200×250(150/200) 4-6 Weeks Request for quote
SVI3015
3000x1500mm Optical Table, M6 tapped holes with 25mm hole grid
M6, with 25mm hole grid3000×1500×250(150/200) 4-6 Weeks Request for quote
SVI3512
3500x1200mm Optical Table, M6 tapped holes with 50mm hole grid
M6, with 25mm hole grid3500×1200×250(150/200) 4-6 Weeks Request for quote
SVI3515
3500x1500mm Optical Table, M6 tapped holes with 50mm hole grid
M6, with 25mm hole grid3500×1500×250(150/200) 4-6 Weeks Request for quote

SVI3515 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
3500×1500×250(150/200)

SVI3512 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
3500×1200×250(150/200)

SVI3015 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
3000×1500×250(150/200)

SVI3012 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
3000×1200×250(150/200)

SVI3010 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
3000×1000×250(150/200)

SVI2412 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
2400×1200×200(80/100/150)

SVI2012 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
2000×1200×200(80/100/150)

SVI2010 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
2000×1000×200(80/100/150)

SVI1812 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1800×1200×200(80/100/150)

SVI1609 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1600×900×150(50/80/100)

SVI1510 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1500×1000×150(50/80/100)

SVI1509 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1500×900×150(50/80/100)

SVI1208 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1200×800×100(50/80)

SVI1008 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1000×800×80(50)

SVI1007 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
1000×700×80(50)

SVI0906 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
900×600×80(50)

SVI075075 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
750×750×80(50)

SVI0606 - Parameter

Hole Type
M6, with 25mm hole grid

Optical Breadboard Dimension (mm)
600×600×80(50)
