Products / Imaging /Scientific CMOS Cameras /UV-NIR sCMOS Camera (200-1100nm) /High-Speed sCMOS Camera /

High-Speed sCMOS Camera

Dhyana2100 Dhyana9KTDI Specifications Downloads & Drivers Related Products Order Now!

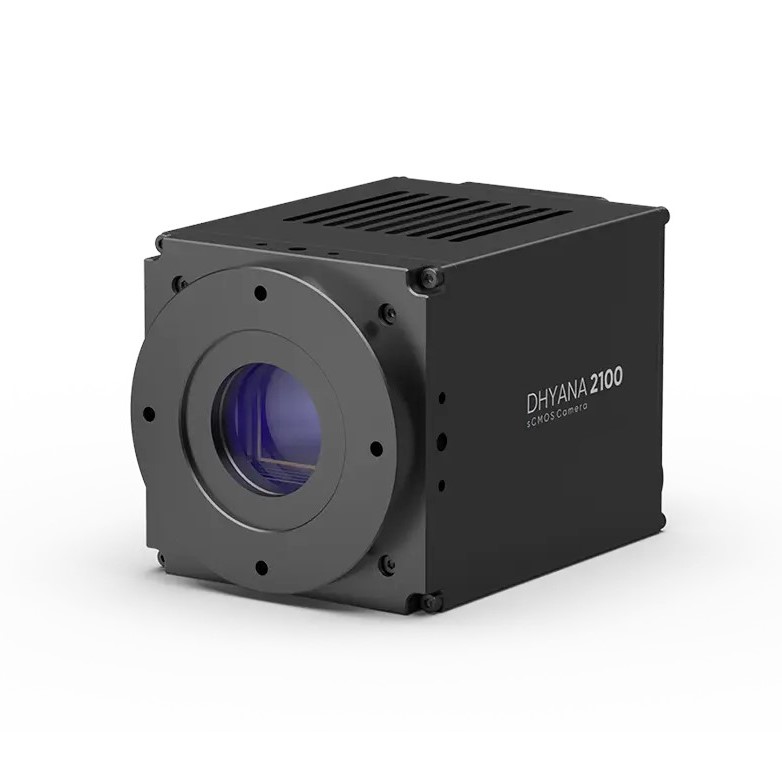

Dhyana2100 – 21MP High-Speed sCMOS Camera

The Dhyana 2100 is designed to deliver the maximum speed and maximum resolution combination seen yet with an sCMOS sensor. Achieving an amazing 450 frames per second when running in full resolution of 5120 x 4096, it provides amazing high-speed data even with low-light signals.

Features

- 450fpx@21MP

- CXP12 Data Interface

- 29.5mm Diagonal FOV

- Global Shutter

- GenicamTM Compliant

- Air & Liquid Cooling

High Speed at High Resolution Achieving 450 frames per second at 21 million pixels resolution, it allows the observation of fine details without distortion. The Dhyana 2100 achieves this while maintaining image quality standards with the global shutter.

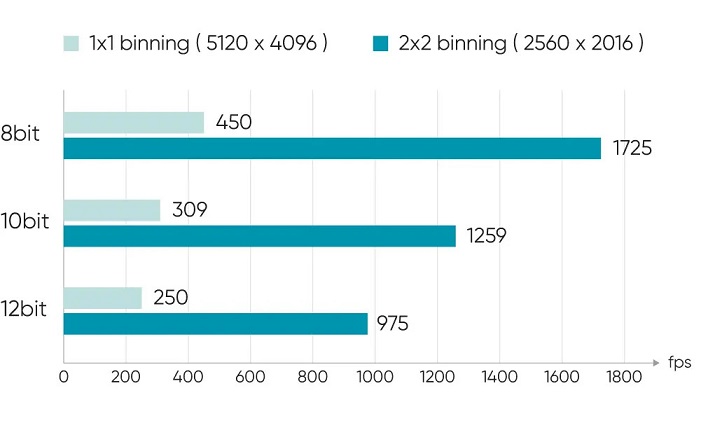

1725fps@5MP Fast Binning Mode It is designed for the detection of low signals at higher speed, not only with higher sensitivity and higher dynamic range, but also improving frame rate, achieving 1725 frames per second with a resolution of 5 million pixels.

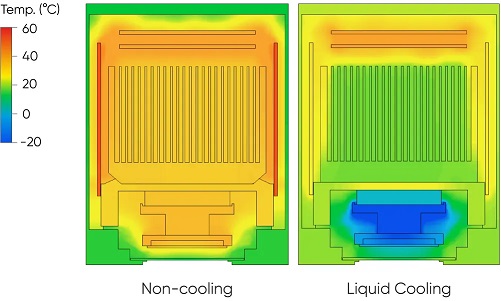

Advanced Cooling Technology The Dhyana 2100 has two cooling methods, liquid, or air, ensuring low dark current and thermal stability. Cooling is essential when running large format cameras at speed due to the immense amount of heat being generated which can cause not only dark current but measurement variations across the sensor and also over time as sensor temperature changes.

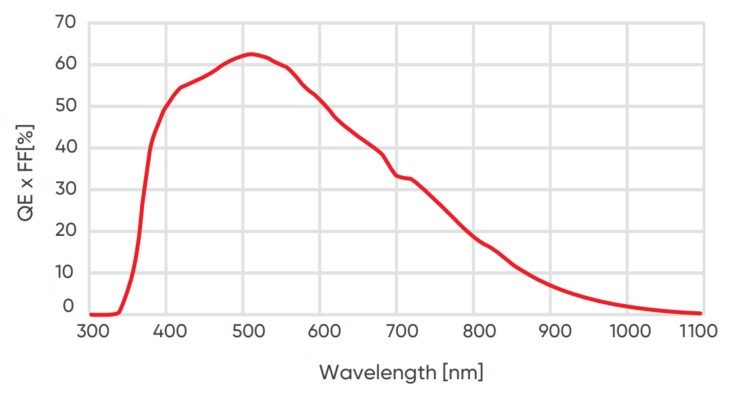

Quantum Efficiency

Applications

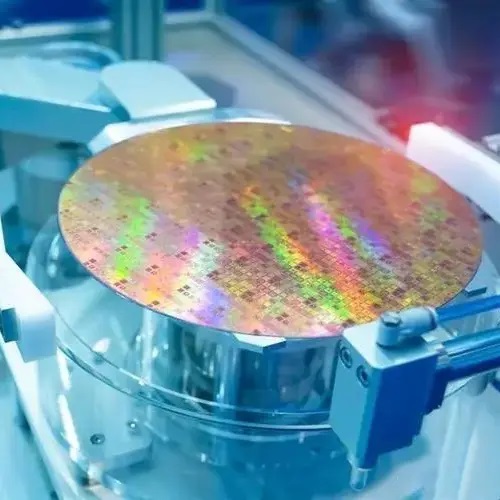

Semiconductor & Wafer	Aerial Photograph	SMT Inspection	Voltage Sensitive Imaging

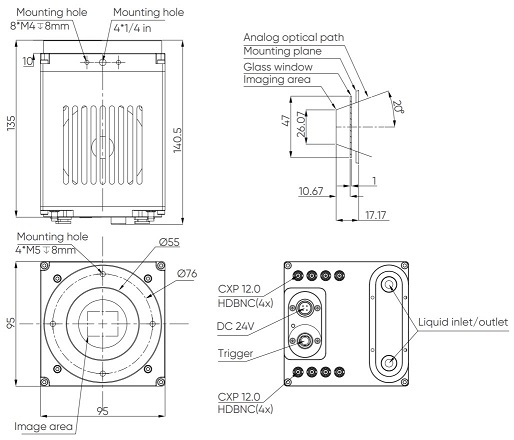

Dimensions (Unit: mm)

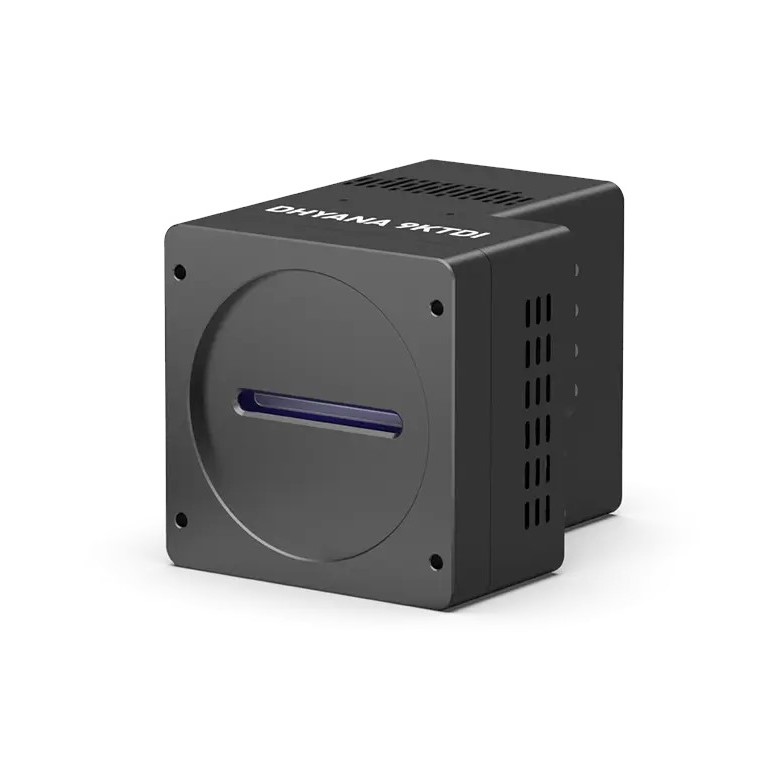

Dhyana 9KTDI – 9K Line Scan BSI TDI Camera

The Dhyana 9KTDI adopts a new generation of back-illuminated TDI CMOS technology, with a spectral response capability of 200-1100nm, which can be used in the fields of ultraviolet, visible and near-infrared imaging; TDI technology brings extremely high SNR in low light applications, and the high-speed line frequency of up to 510kHz@9K can greatly improve the visual detection efficiency.

Features

- 82%@550nm Peak QE

- 5μm x 5μm Pixel Size

- 9072 Resolution

- 510kHz@9K

- CoaXPress2.0

82% High QE/Wide spectrum The Dhyana 9KTDI adopts back-illuminated sCMOS technology and has a wide spectral response capability of 200nm-1100nm. Combined with 256-level TDI and cooling technology, it can be better used in low-light imaging fields such as ultraviolet, visible light and near-infrared.

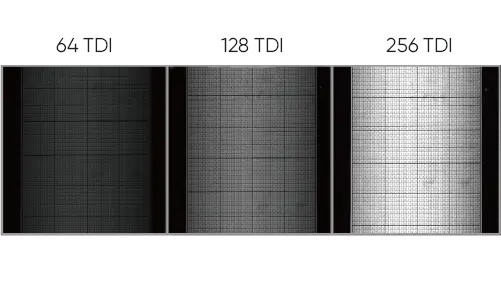

256 TDI Stage Provides High SNR The Dhyana 9KTDI supports 16~256 levels of TDI (time delay integration) imaging, which can increase the signal integration per unit time to obtain images with a higher signal-to-noise ratio under limited lighting conditions.

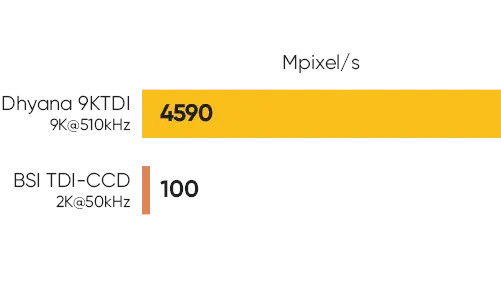

High Throughput up to 510kHz @ 9K The Dhyana 9KTDI is equipped with the latest CXP-12 high-speed interface. The 9K@510kHz line frequency means a data throughput of 4590Mpixel per second, which is almost 6 times that of the current mainstream 8K line scan cameras and more than 50 times that of the back-illuminated TDI-CCD cameras.

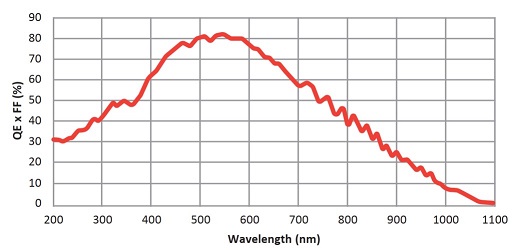

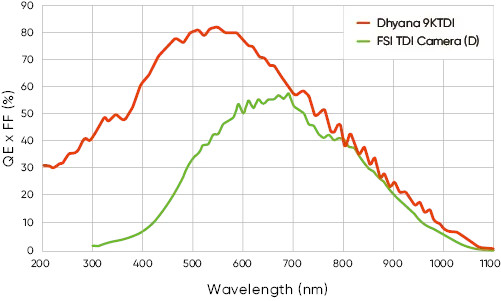

Quantum Efficiency

Applications

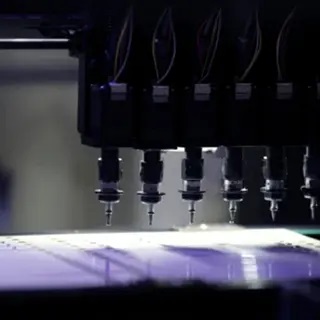

Semiconductor & Wafer	FPD Inspection

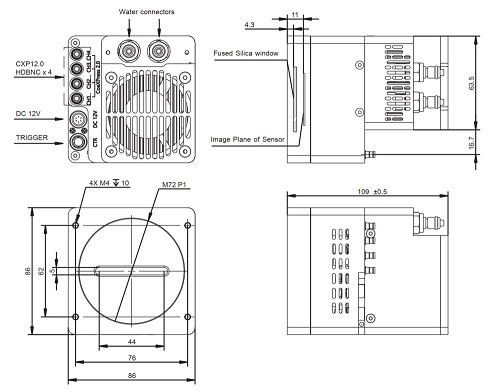

Dimensions (Unit: mm)

Dhyana2100 Product specifications and Brochures

Product Brochure Link:

Model	Dhyana 2100
Sensor Type	FSI CMOS
Sensor Model	Gpixel GSPRINT4521
Peak QE	63%@520nm
Color/Mono	Mono
Array Diagonal	29.5mm
Effective Area	23.04mm (H) x 18.43mm (V)
Resolution	5120 (H) x 4096 (H)
Pixel Size	4.5μm x 4.5μm
Full-Well Capacity	28ke- (12-bit Gain 0), 16.5ke- (12-bit Gain 2) 120ke- (binned)
Dynamic Range	68.8dB (12-bit Gain 2)
Frame Rate	450fps@8bit (CXP12 x 8); 300fps@10bit; 250fps@12bit; 225fps@8bit (CXP12 x 4)
Readout Noise	3.5e-@12bit
Shutter Type	Global
Exposure Time	4ps~10s
DSNU	2.0e-
PRNU	0.12%
Cooling Method	Air & Liquid
Max. Cooling Temperature	30°C below ambient
Dark Current	0.02e-/pixel/s@-10°C chip temperature
Binning	2x2, 4x4, 8x8
ROI	Support
Trigger Mode	Hardware & Software
Output Trigger Signals	Exposure start, Readout end
Trigger Interface	HIROSE
Data Interface	CXP12 (x4/x8)
Data Bit Depth	8bit/10bit/12bit
Optical Interface	M52/F-Mount/user Customization
Power Supply	DC 24V/6A
Power Consumption	s120W
Dimensions	95mm x 95mm x 140.5mm
Weight	1816g
Software	SamplePro
SDK	C/C++/C#
Operating System	Windows/Linux
Operating Environment	Temperature 0~40°C/Humidity 10~85%

Dhyana9KTDI Product specifications and Brochures

Product Brochure Link:

Model	Dhyana 9KTDI
Sensor Type	BSI sCMOS TDI
Sensor Model	Gpixel GLT5009BSI
Color/Mono	Mono
Array Diagonal	45.4mm
Resolution	9072
Pixel Size	5μm x 5μm
Effective area	45.36mm x 1.28mm
QE	82%@550nm；50%@350nm；38%@800nm
Max. Line Rate	300kHZ@12bit; 345kHZ@10bit; 510kHZ@8bit
Operation Mode	TDI/Area
TDI Stage	4/8/16/32/64/128/192/256
Scan Direction	Forward/Reverse/Trigger Control
CTE	≥0.99993
Data Bit Depth	12bit/10bit/ 8bit
Full-Well capacity	15.5ke-@12bit; 14ke-@10bit
Dynamic Range	68.7dB@12bit; 63.6dB@10bit
Readout noise	7.2e-@12bit; 11.4e-@10bit
DSNU:	1.5e-@12bit; 3.5e-@10bit
PRNU	0.30%
Binning	2x1; 4x1; 8x1
Data Interface	CoaXPress 2.0
Cooling Method	Air & Liquid cooling
Cooling temperature	40℃ below ambient
Dark Current	950e-/p/s@Chip temperature -10℃
ROI	Support
Trigger Mode	Trigger Input, Scan Direction Input
Output Trigger Signals	Strobe out
Trigger Interface	HR10A-7R-4S
Timestamp Accuracy	8 ns
Gain	Analog Gain: x2 ~ x8; Digital Gain: x0.5 ~ x10
Optical Interface	M72/User customization
Power Supply	12V/8A
Power Consumption	< 60W
Dimensions	86mm x 86mm x 109mm
Weight	1100g
Software	Samplepro/Matlab
SDK	GenICamTM
Operating System	Windows/Linux
Certification	CE/RoHS
Operating Environment	Working Environment: Temperature 0~40°C/Humidity 0~85% Storage Environment: Temperature 0~60°C/Humidity 0~90%
