MIR QCL Turn-Key System (3-13μm)

MIR QCL Turn-Key System (3-13μm)

SIMTRUM offers 3 turn-key solutions for MIR QCL, 2 for wide wavelength tuning of MIR QCLs (3-13 μm), namely Glider and SperTune; 1 for MIR alignment needs, namely Pointer(3-12 μm). Glider features an external cavity design that accommodates up to 4 chips (CW and pulsed), along with a Web-based graphical user interface, which facilitates an ultra-wide tuning range of ~2200 cm–1 and provides convenient operation. SuperTune offers the most cost-effective turn-key solution for wavelength tuning of MIR laser sources in the market. Both support customization on demand and are suitable for diverse applications, including infrared material characterization, spectroscopy, and medical analysis. Poiner, equipped with a customized (wavelength & power) Quantum Cascade Laser (QCL) or Interband Cascade Laser (ICL), combines a ruggedized opto-mechanic system, co-linear VIS guidance beam for alignment, driver, and temperature controller for optimal efficiency and precision.

Product Wavelength Avg. Power Tuning Range Output Mode

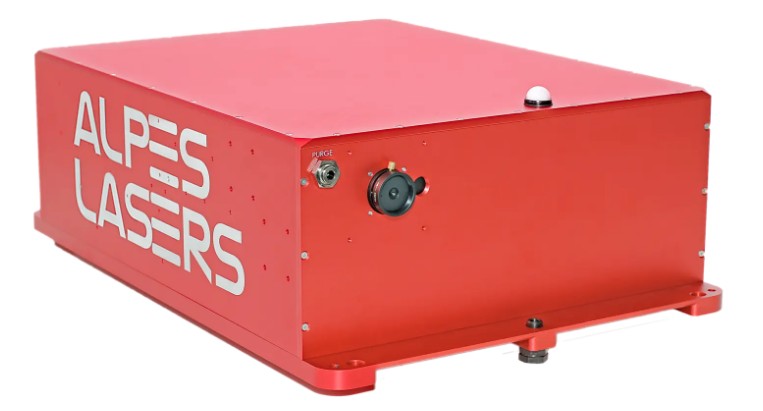

MIR Multi-Channel Widely Tunable External Cavity QCL-Glider 3-13μm Up to 30 mW >2200cm-1
(Max. 4 chips loaded)
Free Space/Fibered
MIR Single-Channel Wide Spectrum Tunable Laser – SuperTune 4-5μm
(5-12μm customizable)
Up to 20 mW >96cm-1@2197.8cm-1
(>200nm@4.55μm)
Free Space

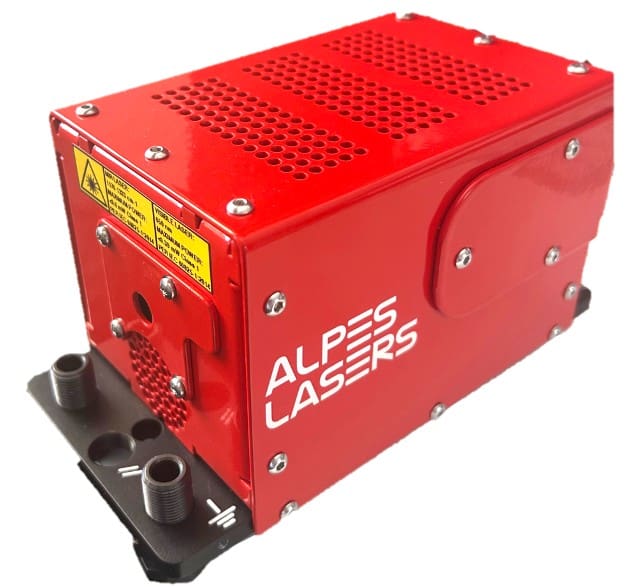

co-linear VIS Guided MIR QCL & ICL Alignment System-Pointer
3-12μm
customizable
Up to 40 mW
Not Tunable
Free Space
