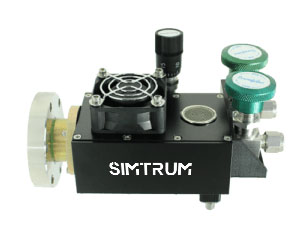

Simtrum's EUV windowless source is an RF excited flow lamp with a capillary bore in an EMI shielded enclosure. This lamp mounts to a 33.78 mm or larger CF type flange. The lamp assembly has an integral RF exciter which is powered by a small wall plug power supply. This supply is sufficient to produce emissions from the principal neutral rare gas species in the range of 10^15 photons per second per steradian. When coupled with a Resonance VM series monochromator, this will work as a tunable light source from 58 nm to up to 800 nm.

Features

Greater than 10^15 photons/sec/ster for major spectral lines
Provides EUV light down to 58nm
<1kg mass
Easy connection to a monochromator for use as an EUV tunable light source
Low astigmatism

Application

Semiconductor Manufacturing
Materials Science
Optoelectronic Devices
Biomedical Applications

Specification

Power In	110-240V
Power Supply	28W RF
Current	0.5A @110V typical
Mass	800g
Intensity	>10^15 ph/sec/str(for major spectral lines)
Vacuum Adapter	2 3/4" CF flange standard
Wavelength Reproducibility	±0.2nm

Gas Specifications

Species	He	Ne	Ar	H	O	N	Cl	N2
Wavelength	58.43	73.59 & 74.37	104.82 & 106.67	102.57 & 121.57	130.22, 130.48 & 130.61	120	118	LBH Bands

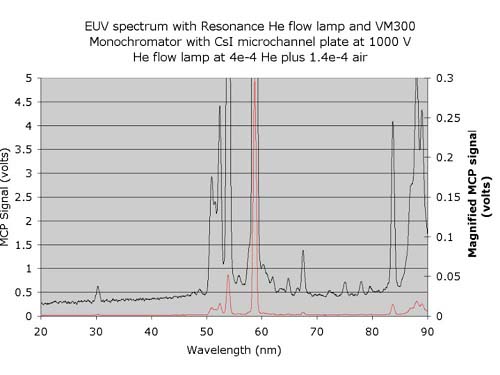

Spectral Curve

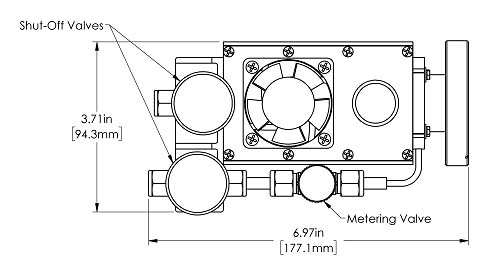

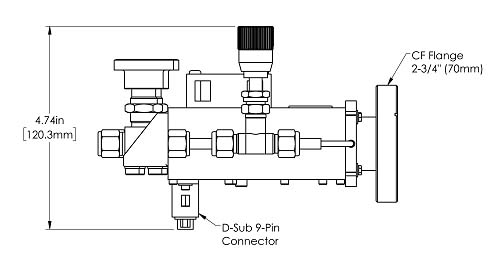

Mechanical Diagram

Microscope Light & Lamp (185 - 5500nm)

Product Type	Wavelength Range	Power output	Color Temperature	Lifespan	Bulb Voltage / Power
Deuterium Light Source	185 - 600 nm	25W-30W (deuterium lamp)	N/A	1,500 hours	Lighting voltage 580 V@20 ℃
Halogen Light Source	360 - 2500 nm	1.7-8.5 mW	2330K - 3000K	2,000 - 10,000 hours	3.5 V - 12 V
Deuterium & Halogen Light Source	360 - 2500 nm	3.0-8.5 mW	2800K - 3000K	2,000 - 10,000 hours	5 - 20 W
Infrared Tungsten Light Source	450 - 5500 nm	7.5 W	1900k	≥ 5,000 hours	N/A
Calibration Light Source - Mercury Argon	253 - 1700 nm	N/A	N/A	≥ 6,000 hours	N/A
Calibration Light Source - Neon	540 - 754 nm	N/A	N/A	N/A	N/A
Calibration Light Source - Xenon Lamp	916 - 1984 nm	3 W	N/A	3,000 hours	N/A
Xenon Light Source	200 - 2000 nm	8.0 mW	N/A	≥ 1,000 hours	50 W

Single Wavelength LED Source(240-980nm）

Link

Un-collimated LED Sources (240-980nm) / 50mW to 900mW Level

Collimated LED Sources (240-980nm) / 15mW to 10,000mW Level

High Power Fiber-Coupled LED (240-980nm) / uW to 40mW Level

Filtered High Power Fiber-Coupled LED (265 - 940nm) / uW to 10mW Level

Lightguide-Coupled LED Source (240-980nm) / 10mW to 2500mW Level

LED Source Controllers

Multi-wavelength LEDs Source (240-980nm)

Link

Fiber-Coupled Multi-Wavelength LED（365nm to 980nm)

Collimated Multi-Wavelength LED（365nm to 980nm)

Wavelength-Switchable LED (340nm to 980nm)

LED Source Controllers

ASE Light Sources (830-2000nm)

Type	Spectral Range (nm)	Output Optical Power(mW)
C-Band Broadband ASE Light Source	1528 - 1563	10/20/50/100/200/400
L-Band Broadband ASE Light Source	1567 - 1603	10/20/50/100
C+L Band Boardband ASE Light Source	1528 - 1603	10/20/50/100/200
C++ Band Boardband ASE Light Source	1524 - 1572	10/20/50/100/200
1060nm Broadband ASE Light Source	1030 - 1080	10/20/30/50
2000nm Broadband ASE Light Source	1850 - 2000	10

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
LL-RE01-EUV-He-L Wavelength：58.43nm，Wavelength Reproducibility：±0.2nm，Intensity：>10^15 ph/sec/str(for major spectral lines)，Power Supply：28W RF	4-6week	$17552.31
LL-RE01-EUV-Ne-L Wavelength：73.59 & 74.37nm，Wavelength Reproducibility：± 0.2nm，Intensity：>10^15 ph/sec/str(for major spectral lines)，Power Supply：28W RF	4-6week	$17552.31
LL-RE01-EUV-Ar-L Wavelength：104.82 & 106.67nm，Wavelength Reproducibility：±0.2nm，Intensity：>10^15 ph/sec/str(for major spectral lines)，Power Supply：28W RF	4-6week	$17552.31
LL-RE01-EUV-H-L Wavelength：102.57 & 121.57nm，Wavelength Reproducibility：±0.2nm，Intensity：>10^15 ph/sec/str(for major spectral lines)，Power Supply：28W RF	4-6week	$17552.31
LL-RE01-EUV-N-L Wavelength：120nm，Wavelength Reproducibility：±0.2nm，Intensity：>10^15 ph/sec/str(for major spectral lines)，Power Supply：28W RF	4-6week	$17552.31
LL-RE01-EUV-N-L Wavelength：120nm，Wavelength Reproducibility：±0.2nm，Intensity：>10^15 ph/sec/str(for major spectral lines)，Power Supply：28W RF	4-6week	$17552.31
LL-RE01-EUV-Cl-L Wavelength：118nm，Wavelength Reproducibility：± 0.2nm，Intensity：>10^15 ph/sec/str(for major spectral lines)，Power Supply：28W RF	4-6week	$17552.31
LL-RE01-EUV-N2-L Wavelength：LBH Bands，Wavelength Reproducibility：+/- 0.2nm，Intensity：>10^15 ph/sec/str(for major spectral lines)，Power Supply：28W RF	4-6week	$17552.31
