Microscope CMOS Camera (UV-NIR)

SIMTRUM Provides different type of CMOS camera,



Camera Category Resolution Pixel Size FPS Wavelength Note

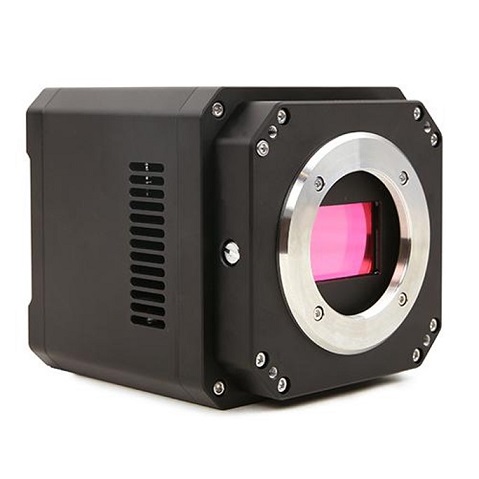

Large Format TC-Cooling USB3.0 CMOS Camera 24MP and 61MP  5.94um and 3.76um upto 190FPS 380nm -650nm
UV extended available

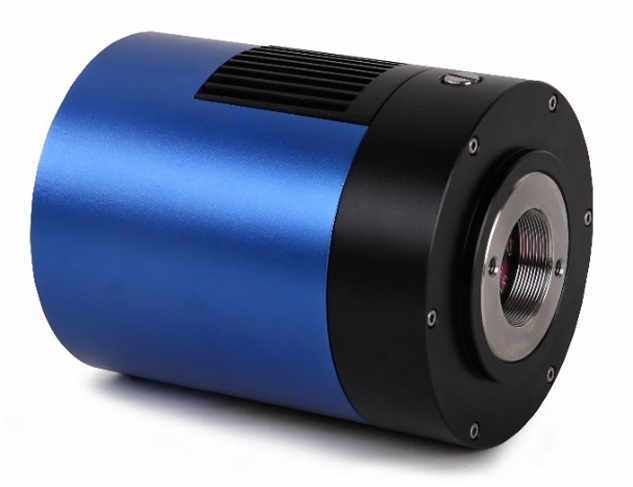

TE-Cooling USB3.0 CMOS Camera 10MP to 45MP 4.63um to 2.31um upto 96FPS 380nm - 650nm IR Cut filter

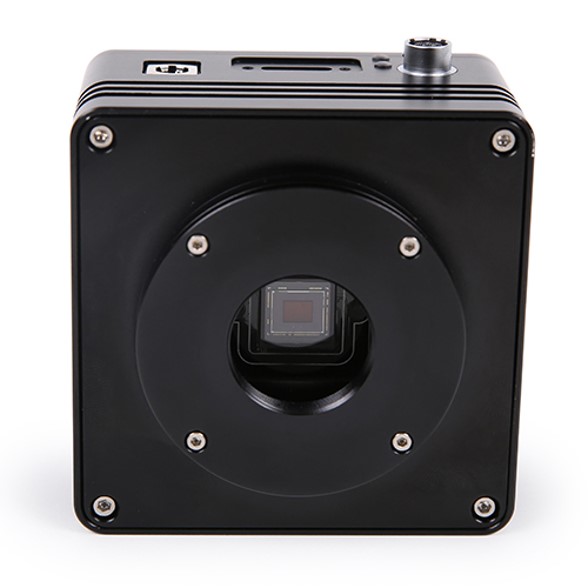

TE-Cooling USB3.0 CMOS Camera with  External Trigger 0.5MP / 0.5MP 6.9um / 9um 20FPS 380nm - 650nm
External Trigger
Microscope USB3.0 CMOS Camera 0.5MP to 45MP
6.9um to 1.55um upto 520FPS 380nm - 650nm IR Cut filter

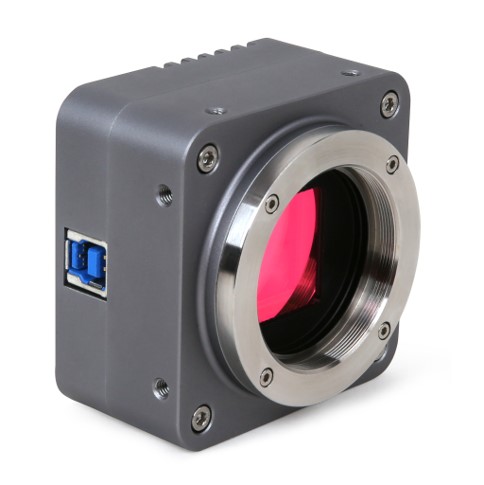

Microscope USB3.0 CMOS Camera UV Enhanced 1.3MP to 10MP 9.7um to 4.6um upto 86FPS 200nm - 1100nm

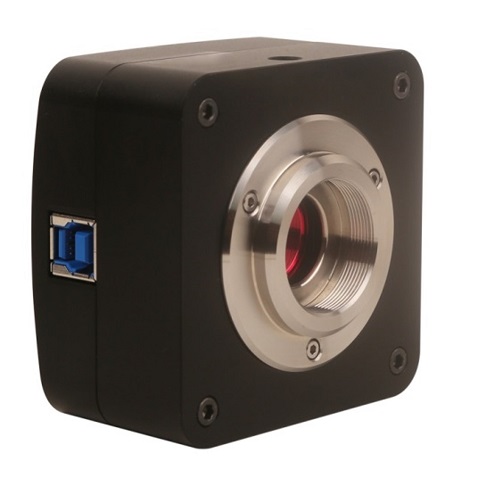

Microscope USB3.0 CMOS Camera with ISP 1.5MP to 45MP
3.4um to 1.2um upto 165FPS 380nm - 650nm IR Cut filter / ISP

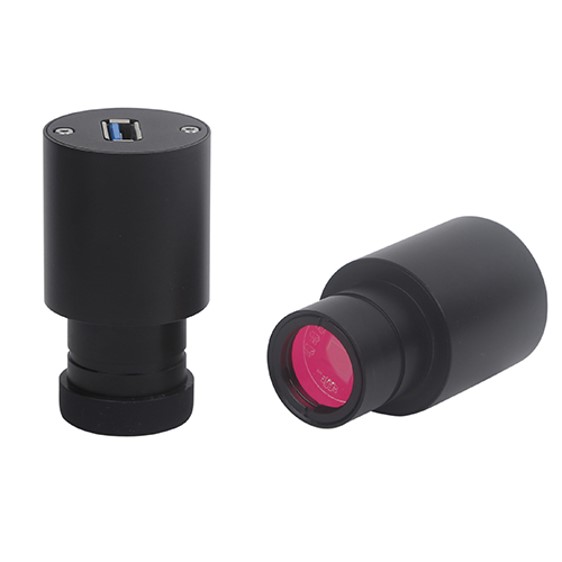

Eyepiece USB3.0 CMOS Camera 5MP 2um 30FPS 380nm - 650nm IR Cut filter

Technical Support Available: Contact us  You can download our full Product Line Card Click Here
