Telecentric Lens Series

Simtrum's Telecentric lenses offer precise imaging with minimal distortion across various magnifications, working distances, and sensor sizes, ideal for high-accuracy applications.They include standard telecentric lenses, high-resolution telecentric lenses, F-mount big FOV telecentric lenses, macro telecentric lenses, and double magnification bi-telecentric lenses.

Model Magnification Working Distance (mm) Resolution (μm) Max Sensor Size Mount

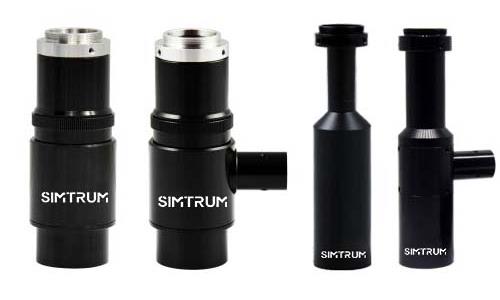

 Standard Telecentric Lens 0.5 - 2.0X 9.4 - 230  1.1 - 22.37 1/4",1/3",1/2"1/1.8'',2/3'' C-Mount
High Resolution Telecentric Lens 0.2 - 2.0X 65 - 150 5.59 - 20.14 2/3",1/2",1",1.1" C-Mount
F Mount Big FOV Telecentric Lens 0.106 - 1X 127 - 468 10.82 - 34.95 35mm Film/4/3'' F-Mount
Macro Telecentric Lens 0.3X-1.0X 80 -185  6.71-13.98 2/3" C-Mount

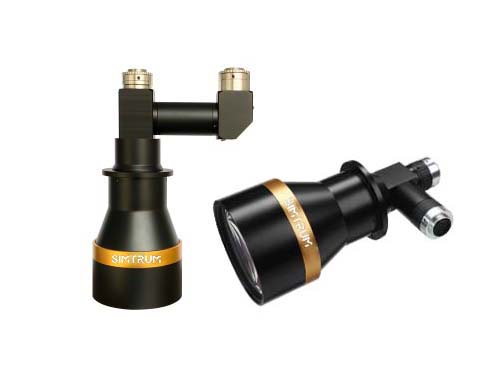

Double Magnification Bi-Telecentric Lens 0.16X & 0.7X
0.088X & 0.176X
120 25.81/7.63/30.5 1/1.8'',2/3'',1'' C-Mount

Technical Support Available: Contact us  You can download our full Product Line Card Click Here
