Industrial Plan Objective
SIMTRUM provides industrial plan objectives for bright feld or bright and dark field.
| Name |
Observation Method |
Magnification |
NA |
WD(MM) |
F(MM) |
R(um) |

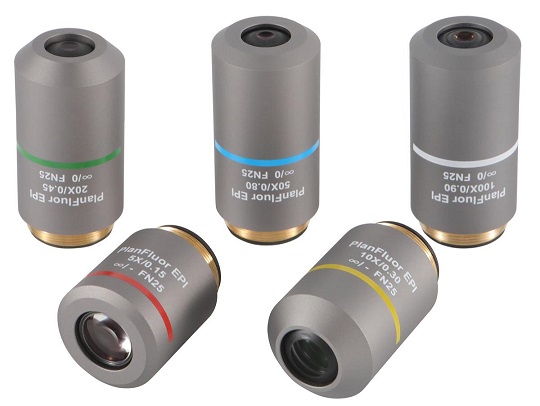

| Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field |
Bright Field |
5X,10X,20X,100X |
0.15, 0.3, 0.45, 0.8, 0.9 |
1, 3, 11, 20 |
2, 4, 10 ,20, 40 |
0.31, 0.34, 0.6, 0.9, 1.8 |
| Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field |
Bright Field |
20X,50X,100X |
0.4, 0.5, 0.8 |
3.1, 10.4, 12 |
2, 4, 10 |
0.34, 0.55 ,0.7 |
| Plan Objective Bright Field |
Bright Field |
5X,10X,20X,100X |
0.13, 0.3 ,0.4, 0.55, 0.8 |
2, 6.8, 8.2, 11.1, 11.5 |
2, 4, 10, 20, 40 |
0.34, 0.5, 0.7, 0.9, 2.1 |

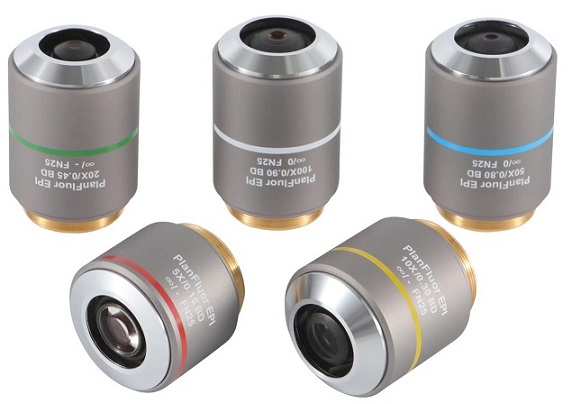

| Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field |
Bright and Dark Field |
5X,10X,20X,100X |
0.15, 0.3 ,0.45, 0.8, 0.9 |
1, 3, 11, 20 |
2, 4, 10, 20, 40 |
0.31, 0.34, 0.6, 0.9, 1.8 |
| Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field |
Bright and Dark Field |
20X,50X,100X |
0.4, 0.5, 0.8 |
3.1, 10.4, 12 |
2, 4, 10 |
0.34, 0.55, 0.7 |
| Plan Objective Bright and Dark Field |
Bright and Dark Field |
5X,10X,20X,100X |
0.13, 0.3, 0.46, 0.75, 0.9 |
1.4, 1.8, 3.6, 6, 11 |
2, 4, 10, 20, 40 |
0.31, 0.37, 0.6, 0.9, 2.1 |
