Fiber Optic Plates (FOP)

Fiber Optic Plates- FOP

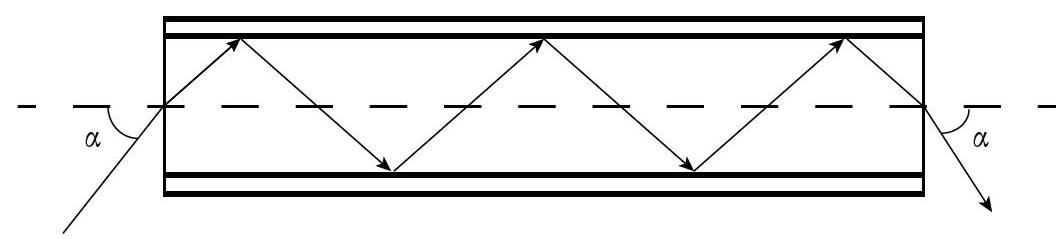

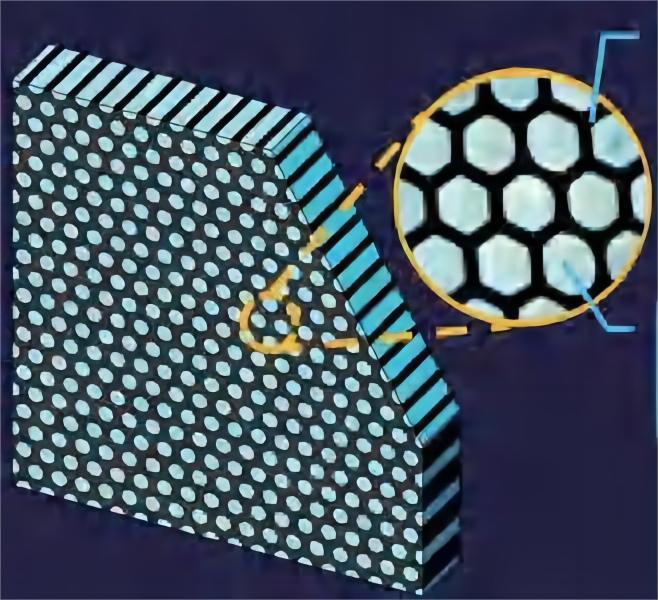

Fiber optic plates based on the principle of total reflection of light, which is composed of two or more specific optical fibers arranged in a angular way to transmit images from the input end face to the out end face.

Feature

Fiber Optic Plate

The size and direction of the images on the input and output surfaces remain unchanged

Fiber Optic Inverter

The size of the image on the input and output surfaces is unchanged and the direction is inverted

Fiber Optic Taper

The direction of the image on the input and output surfaces remains unchanged and the size changes

Fiber Optic Plate

Fiber Optic Inverter Fiber Optic Taper

Application

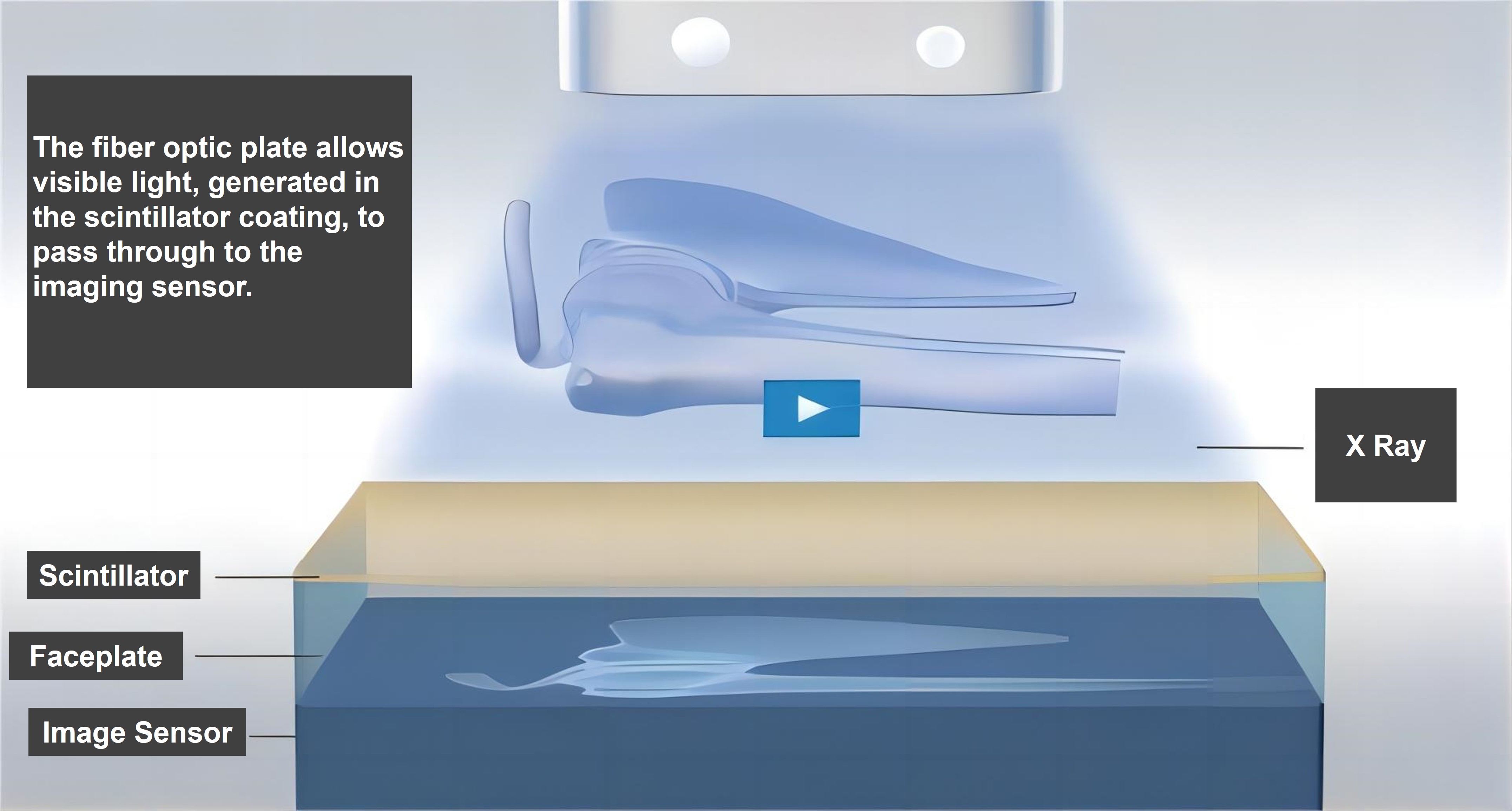

Military Equipment, Security Check, Communication, Aerospace Navigation, Medical treatment

Product Specifications and Brochures

Product Brochure Link:

Parameters	Fiber Optic Plate	Fiber Optic Inverter	Fiber Optic Taper
Fiber Center Distance	≤4μm	≤4μm	4μm-100μm
Theoretical Numerical Aperture	≥1.0
Transmission Ration of Collimating Light	≥65%
Lambert Transmittance	≥58%		/
Coefficient of Linear Expansion	( 87 ± 2 )x10⁷/ ℃	( 87 ± 7 )x10⁷/ ℃
Vacuum Tightness	≤2×10-12Pa·M3·S^-1		/
Shear Distortion	≤30μm
Serpentine Distortion	≤20μm	≤40μm
As the Displacement	≤100μm	≤200μm	≤500μm
Other	Shape:Circle、Square、Plane、Concave	/	Magnification Ration: 1.5:1 - 5:1

Product	Parameter
Micro-Channel Plate (MCP)	Effective Area: 10.5-100mm \| 90-200° \| ≥47mm×47mm；Channel Dia.:6-21μm; Thickness:0.325-1.2mm
Micro-Channel Plate Assembly (MCP)	Diameter:25-50mm; Channel Dia.:6-12mm; Effective Area:18-44mm
Fiber Optic Plates- FOP	Fiber Center Distance:≤4μm,4-100μm; Theoretical Numerical Aperture:≥1.0; Transmission Ration of Collimating Light:≥65%
Micro Pore Optics	Aperture:10-100μm(Customizable); Boundary Dimension:≤50mm×50mm \| Φ≤60mm; Thickness :1-3mm(Customizable)
X-Ray Collimators	Aperture:10-100μm(Customizable); Thickness：0.5-5mm(Customizable)

Photomultipliers Tube (PMT)

Model	Spectral Response Range	Peak Wavelength	QE Typ.	Effective Area(mm)	Cathode Luminous Sensitivity Typ.	Anode Sensitivity Typ.
Photomultipliers Tube Head-On (Tube Only)	290 - 650nm	380 - 500nm	12% -,28%	Φ10 - Φ58	40 - 100μA/lm	30 - 2000A/lm
Photomultipliers Tube Side On(Tube Only)	160 - 900nm	/	/	8×24	40 - 250μA/lm	400 - 2500A/lm
Photomultipliers Tube (Module)	160 - 900nm	400nm, 420nm	/	Φ22 - Φ25 \| 8×24	60 - 250μA/lm	/
Microchannel Plate - Photomultiplier (MCP-PMT)	115 - 650nm	250nm, 380nm	30%@410nm, 15%@250nm	/	70μA/lm	900A/lm
Scintillator Probe	/	/	/	Φ25×25 - Φ75×75	/	/
β Detector	/	/	/	Φ10, Φ25	/	/

Assemblies and Counting Unit


High Voltage Tube Socket	High Voltage Tube Socket for Side Window	Voltage Power Supply	Counting Unit

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
Fiber Optic Plate Fiber Optic Plate, Fiber Center Distance ≤4μm, Theoretical Numerical Aperture ≥1.0, Transmission Ration of Collimating Light ≥65%, Lambert Transmittance ≥58%, Coefficient of Linear Expansion ( 87 ± 2 )x10^7/ ℃, Vacuum Tightness ≤2×10^-12Pa·M^3·S^-1, Shear Distortion ≤30μm, Serpentine Distortion ≤20μm, As the Displacement ≤100μm, Shape Circle, Square, Plane, Concave	6-8 weeks	Request for quote
Fiber Optic Inverter Fiber Optic Inverter, Fiber Center Distance ≤4μm, Theoretical Numerical Aperture ≥1.0, Transmission Ration of Collimating Light ≥65%, Lambert Transmittance ≥58%, Coefficient of Linear Expansion ( 87 ± 7 )x10^7/ ℃, Vacuum Tightness ≤2×10^-12Pa·M^3·S^-1, Shear Distortion ≤30μm, Serpentine Distortion ≤40μm, As the Displacement ≤200μm	6-8 weeks	Request for quote
Fiber Optic Taper Fiber Optic Taper, Fiber Center Distance 4μm-100μm, Theoretical Numerical Aperture ≥1.0, Transmission Ration of Collimating Light ≥65%, Coefficient of Linear Expansion ( 87 ± 7 )x10^7/ ℃, Shear Distortion ≤30μm, Serpentine Distortion ≤40μm, As the Displacement ≤500μm, Magnification Ration 1.5:1 - 5:1	6-8 weeks	Request for quote
