Rack and Pinion Stages
Overview Related Products Selection Guide Technical Drawings Order Now!



• A combination of tracks and single knob carriers

• Products differ based on carrier travel distance and number of carriers

• Dovetail guide rail enables strong load capacity




Optomechanics



Simtrum Part No.CombinationType of DrivePlatform Dimensions (mm)Travel (mm)Guide SystemMaximum LoadStraight Line Accuracy (µm)Material
LDTRPS80Track & One Knob Carrier SetRack and Pinion25 x 4280Dovetail

Parallel: 29.4 N;

Vertical: 14.7 N

30Aluminium, black anodized treatment
LDTRPS130Track & One Knob Carrier SetRack and Pinion25 x 42130Dovetail

Parallel: 29.4N;

Vertical: 14.7 N

30Aluminium, black anodized treatment
LDTRPS180Track & One Knob Carrier SetRack and Pinion25 x 42180Dovetail

Parallel: 29.4 N;

Vertical: 14.7 N

30Aluminium, black anodized treatment
LDTRPS1382Track & One Knob Carrier SetRack and Pinion25 x 42138Dovetail

Parallel: 29.4 N;

Vertical: 14.7 N

30Aluminium, black anodized treatment
The information in the chart above is a general guide to choosing the suitable rack and pinion stages for your optomechanical setup.

 Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

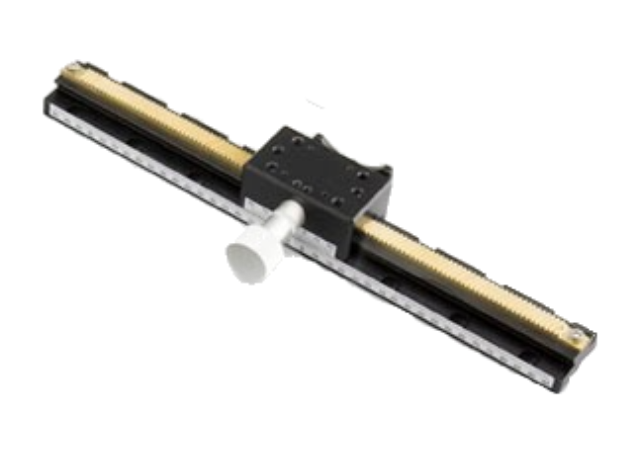

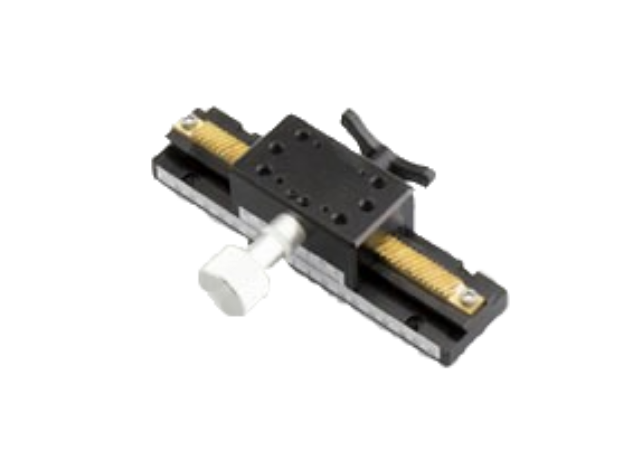

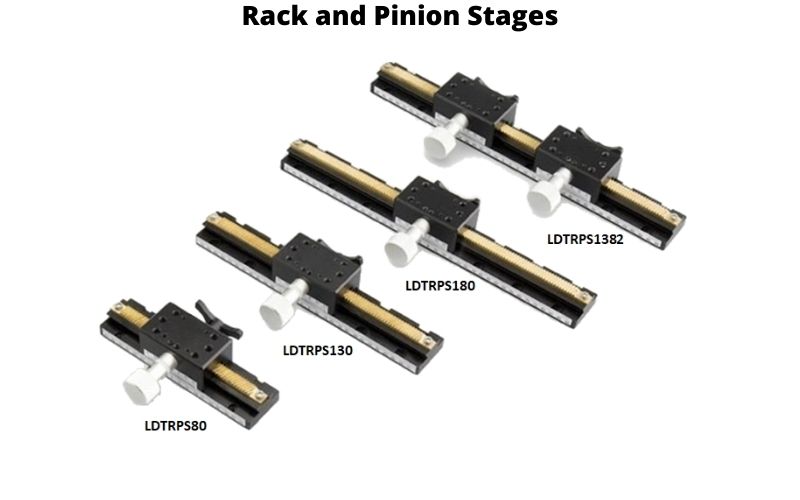

 LDTRPS80

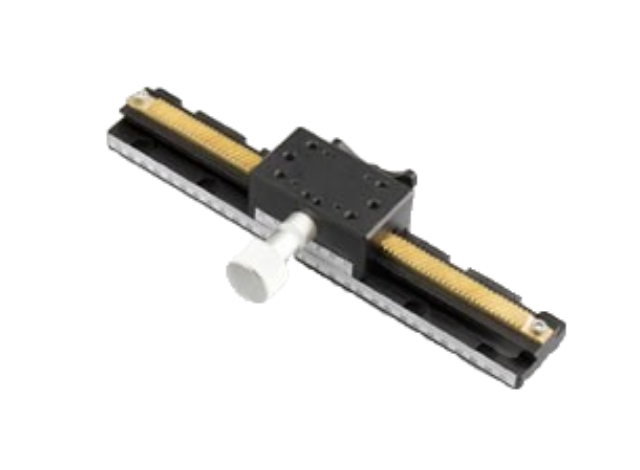

 LDTRPS130


 LDTRPS180


 LDTRPS1382






We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Travel (mm) Platform dimensions (mm) Availability Reference Price
(USD)
LDTRPS80
80 mm Long Distance Travel Rack and Pinion Stage, Platform Dimensions = 25 x 42 mm 		25 x 42 4-6 Weeks $124.18
LDTRPS130
130 mm Long Distance Travel Rack and Pinion Stage, Platform Dimensions = 25 x 42 mm 		25 x 42 4-6 Weeks $127.46
LDTRPS180
180 mm Long Distance Travel Rack and Pinion Stage, Platform Dimensions = 25 x 42 mm 		25 x 42 4-6 Weeks $144.78
LDTRPS1382
138 mm Long Distance Travel Rack and Pinion Stage, Platform Dimensions = 25 x 42 mm 		25 x 42 4-6 Weeks $167.76

LDTRPS1382 - Parameter
