Products / Imaging /Scientific CCD Cameras /Large Format In-vacuum CCD Cameras /

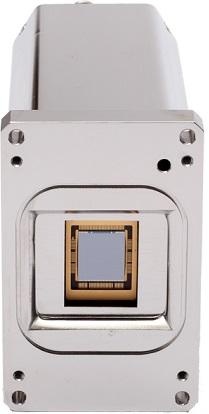

Large Format In-vacuum CCD Cameras

Overview Specifications Selection Guide Order Now!

In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy-

Scientific in-vacuum CCD cameras

Large format in-vacuum CCD cameras

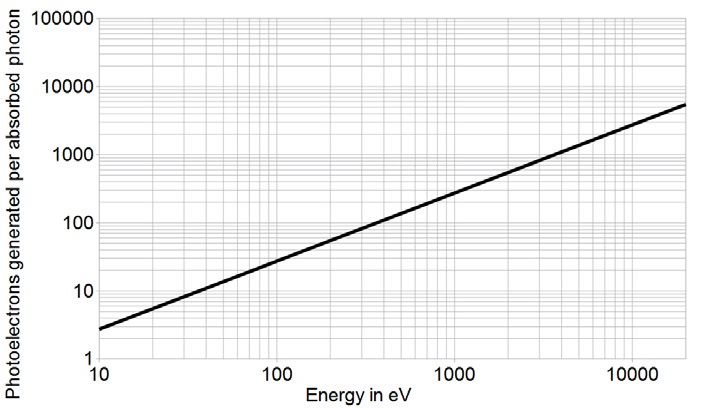

These in-vacuum CCD cameras for VUV, EUV, X-Ray imaging and spectroscopy are the GE-VAC series,including scientific in-vacuum CCD cameras and large format in-vacuum CCD cameras. It is suitable for Photon Energy Range 5 eV - 20 keV.

We offers a portfolio of scientific in-vacuum cameras for imaging and spectroscopy in the VUV, EUV, soft and hard X-ray range. They are fabricated in stainless steel or aluminium providing excellent vacuum compatibility. A single additional flange integrates electrical and water cooling feedthroughs. Incoming photons are directly detected by the CCD sensor. No external controller is required to operate the detectors.

Camera common feature

-Compact size

-16-bit digitization

-Flexible binning and crop modes

-Software adjustable gain settings

-Scientific low-noise CCD sensors

-Single flange for feedthroughs

-Vision software include

-Optimised for UHV compatibility

-Temperature monitoring

-SDK for developers included

-Quantum efficiency up to 98%

-Ext. trigger, shutter, sync signals

-EPICS, LabVIEW or Linux integration

Camera types

Scientific in-vacuum CCD cameras

-Full well capacity up to 700 keˉ

-Deep cooling down to -80°C

Large format in-vacuum CCD camera

-Full well capacity up to 150 keˉ

-Deep cooling down to -70°C

Spectral ranges

Scientific in-vacuum CCD cameras

-Vacuum-Ultraviolet (VUV)

-Extreme-Ultraviolet (EUV)

-Soft X-ray

-Hard X-ray

-NIR, VIS, UV

Large format in-vacuum CCD cameras

-Vacuum-Ultraviolet (VUV)

-Extreme-Ultraviolet (EUV)

-Soft X-ray

-Hard X-ray

-Near-infrared (NIR)

-Visible (VIS)

-Ultra-Violet (UV)

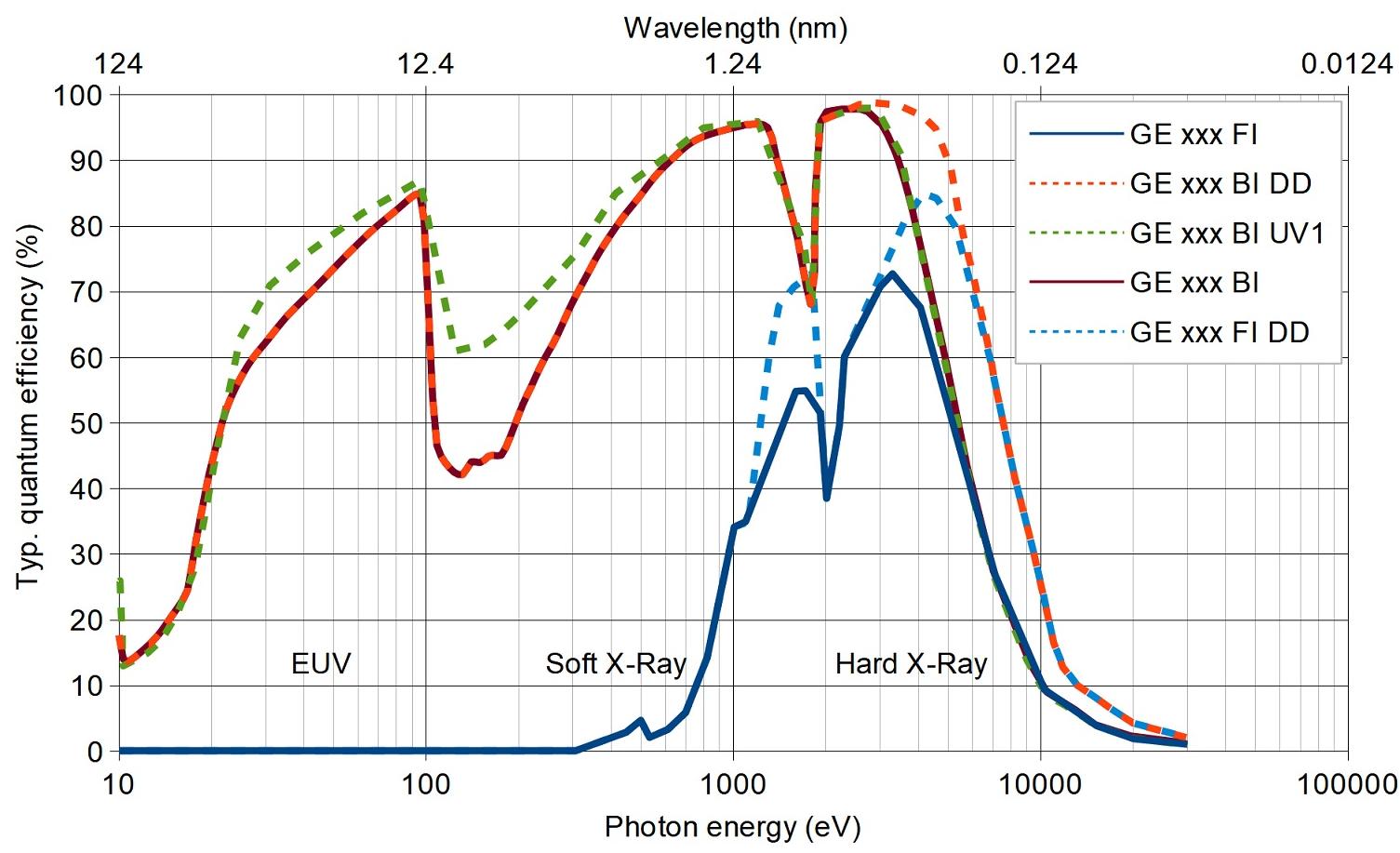

Quantum efficiency curves

QE of the GE-VAC series

Vision Software

Vision software suite provides access to all camera functionalities. It includes comprehensive visualization, analysis and storage options and supports important features such as wavelength and geometric calibration, crop and burst modes and various file formats. The software runs on 32/64-bit Windows systems. For integration into other systems, a software development kit and drivers are available.

Software Features
- Supports crop and burst readout modes for higher frame rates and precise time resolution - Various file formats: JPG, BMP, TXT, TIFF (16-bit), DAT raw data - Comprehensive visualization and image manipulation routines - Supports flexible horizontal and vertical binning		- Many drivers available for integration into other systems - Runs on 32/64-bit Windows systems - Wavelength and geometric calibration - Language support in English and German

Product specifications and Brochures

Product Brochure Link:

Parameter	Scientific In-vacuum CCD Cameras	Large Format In-vacuum CCD Cameras
Pixel readout frequency	500 kHz,1 MHz,3 MHz
AD converter resolution	16-bit, 18-bit (optional)
Linearity	Better than 99%
CCD epitaxial thickness	15 µm standard, 40 µm for deep depletion models
Feedthrough flange	CF DN63 with integrated electrical feedthroughs sub-D 15pin and sub-D 9pin (male/male) plus feedthrough tubes for water cooling with VCR 1/4″ female connectors on vacuum side
Vacuum compatibility	from 1 x 10-3 mbar to 1 x 10-8 mbar
Bakeout temperature	Max. +80°C
Distance flange - focal plane	10.0 mm	9.0 mm
CCD sensor cooling	min. -80°C to 20°C, liquid cooling	Min. -70°C to 20°C, liquid cooling
Temperature monitoring	CCD sensor and heat dissipation system	Temperature monitoring
Data link	USB 2.0
Software	Vision software for Windows 7 / 10
SDK and drivers	DLL for Windows 7 / 10; LabVIEW, EPICS, Linux driver (optional)
TTL interface signals	Sync out, shutter out, external trigger in
Power supply	110-240 VAC, 50-60 Hz, max. 1 A
Certification	CE
Dimensions	6.2 cm (2.44″) x 10.0 cm (3.94″) x 13.2 cm (5.20″) (W x H x L)
Weight	2300g
Blemish specifications	Grade 0 or grade 1 (standard) as specified by sensor manufacturer

Items delivered together with each camera

Code	Description	Code	Description
GE-InFl	CF DN63 flange with feedthroughs sub-D 15pin (male/male) + sub-D 9pin (male/male) and feedthrough tubes for water cooling with VCR female 1/4″ on vacuum side	GE-CabSp	Air side cable from Sub-D 9pin female to USB and BNC trigger-in + sync output Air side cable from Sub-D 15pin female to Sub-D 15pin male for power supply box
GE-VacP or GE-VacP2	2 x in-vacuum hoses, formed bellow 1/4″, VCR male/female, 305 mm or 1200 mm length	GE-VacCab	2 x in-vacuum PTFE cables Sub-D 15pin and Sub-D 9pin, each male/female, lengthadapted to in-vacuum hoses
GE-POW01	Camera power supply	GE-ManCam	Camera instruction manual on storage device

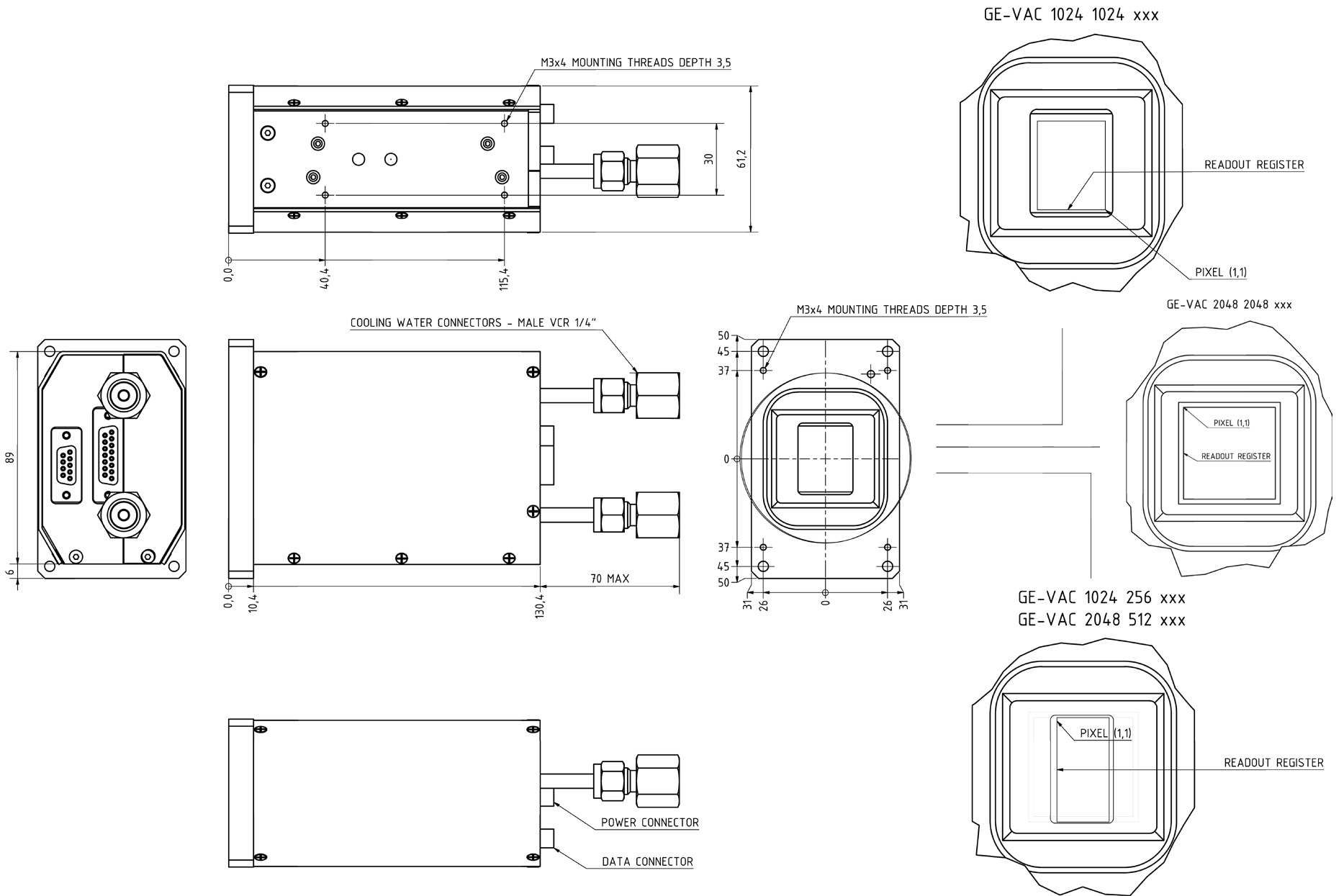

Technical drawings

In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy

Choose your camera model

Model

Image area(mm)

Pixel format

Pixel size(µm)

Gain(counts/e-)

CCD sensor type

Typ. read noise (e¯)

Full well capacity( ke-)

Dark current @ -80°C

Quantum efficiency

Sensitive range

Low
capacity
mode

High capacity mode

@ 500
kHz

@ 1
MHz

@ 3
MHz

Scientific in-vacuum CCD cameras

GE-VAC 1024 1024

series

GE-VAC 1024 1024 FI

13.3×3.3

1024×1024

13×13

0.4

FSI

5.2

6.6

9.7

100 k e-

400 keˉ

0.0003 eˉ/pixel/s

Up to 72%

X-ray 500 eV to 10 keV

GE-VAC 1024 1024 BI

0.4

BSI

5.2

6.6

9.7

100 k e-

400 keˉ

0.0003 eˉ/pixel/s

Up to 96%

VUV to X-ray

GE-VAC 1024 1024 BI UV1

0.4

BSI, enhanced process

5.2

6.6

9.7

100 k e-

400 keˉ

0.0003 eˉ/pixel/s

Up to 96%

VUV to X-ray

GE-VAC 1024 1024 BI DD

0.4

BSI, deep depletion, fringe suppression

5.2

6.6

9.7

120 k e-

400 keˉ

0.017 eˉ/pixel/s

Up to 98%

VUV to X-ray,up to 20 keV

GE-VAC 1024 256

series

GE-VAC 1024 256 FI

26.6×6.7

1024×256

26×26

0.2

FSI

7.5

10.7

17.3

500 k e-

1 000 keˉ

0.0005 eˉ/pixel/s

Up to 72%

X-ray 500 eV up to 10 keV

GE-VAC 1024 256 FI DD

0.2

FSI, deep depletion

9.0

11.6

700 k e-

1 400 keˉ

0.08 eˉ/pixel/s

Up to 85%

X-ray 500 eV up to 20 keV

GE-VAC 1024 256 BI UV1

0.2

BSI, enhanced process

9.7

12.1

19.2

500 keˉ

1 000 keˉ

0.0005 eˉ/pixel/s

Up to 96%

VUV to X-ray

GE-VAC 2048 512

series

GE-VAC 2048 512 FI

27.6×6.9

2048×512

13.5×13.5

0.4

FSI

5.7

6.9

10.3

100 k e-

400 keˉ

0.0003 eˉ/pixel/s

Up to 72%

X-Ray: 500 eV bis 10 keV

GE-VAC 2048 512 BI

0.4

BSI

5.7

6.9

10.3

100 k e-

400 keˉ

0.0003 eˉ/pixel/s

Up to 96%

VUV to X-ray

GE-VAC 2048 512 BI UV1

0.4

BSI, enhanced process

5.7

6.9

10.3

100 k e-

400 keˉ

0.0003 eˉ/pixel/s

Up to 96%

VUV to X-ray

Large format in-vacuum CCD cameras

GE-VAC 2048 2048 series

GE-VAC 2048 2048 FI

27.6×27.6

2048×2048

13.5 ×13.5

0.4

FSI

6.3

8.5

14.1

100 k e-

400 keˉ

0.0003 eˉ/pixel/s

Up to 72%

X-Ray 500 eV bis 10 keV

GE-VAC 2048 2048 BI

0.4

BSI

6.3

8.5

14.1

100 k e-

400 keˉ

0.0003 eˉ/pixel/s

Up to 96%

VUV to X-ray

GE-VAC 2048 2048 BI DD

0.4

Deep depletion fringe suppression

6.3

8.5

14.1

150 keˉ

600 keˉ

0.05 eˉ/pixel/s

Up to 98%

VUV to X-ray

GE-VAC 2048 2048 BI UV1

0.4

BSI, enhanced process

6.3

8.5

14.1

150 keˉ

600 keˉ

0.05 eˉ/pixel/s

Up to 96%

VUV to X-ray

Note:BSI=back-side illumination,FSI=front-side illumination

Choose your accessories and software

Order code	Description
A) Subpixel resolution enhancement
New GE-S xxx xxx series	Increased spatial resolution
B) Accessories for cooling
GE-CR01	Compact recirculator operating at room temperature for deep camera cooling
GE-CR02	Recirculating water chiller, temperature range -5°C to 30°C for ultra-deep camera cooling
C) Software development kit (SDK) and drivers
GE-SDK01	SDK for Windows compatible (based on C/C++)
GE-LAB01	LabVIEW driver
GE-EP	EPICS driver
GE-LX01	Linux driver
