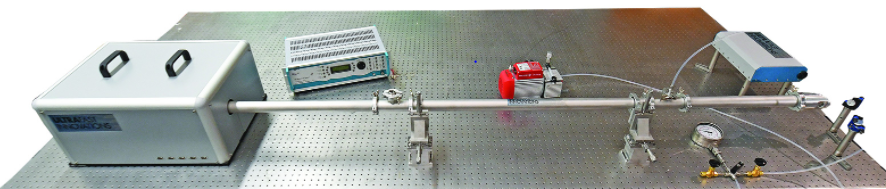

The hollow core fiber compressor spectrally broadens high-energy femtosecond input pulses by nonlinear
interactionwith a noble gas of adjustable gas pressure inside a hollow fiber. Ultra-broadband chirped
mirrors compress the white light pulses after the fiber, and the increased spectral width supports shorter
pulse durations than the original input. Effectively, the device compresses the input pulses temporally by
increasing their spectral bandwidth. Our device draws on extensive expertise in the generation of intense
few-cycle pulses for attosecond research and combines high transmission with unique ultra-broadband
compression. Besides pulse compression the extremely broadband fiber output addresses also state-of-
the-art spectroscopy experiments.
Savanna
PC70
Savanna+
PC1332
Key Product Features
Input Pulse Duration:up to 60 fs
Input pulse energy: 0.5-2 mJ (optimum: 1-1.5 mJ)
Repetition rate: 1-10 kHz
Typical compression factor: 5-6 x
Fiber transmission: up to 70%
White light spectral bandwidth:
• 270-1000 nm (achievable with perfect input)
• 400-900 nm (with commercial 25 fs laser)
Extremely broadband fiber output for spectroscopy
Footprint: 300 x 60 cm2
Customization Options
Active beam pointing stabilization unit
Variable spectrum selection
Flexible dispersion management
References
[1] Broadband 7-fs diffractive-optic-based 2D electronic spectroscopy using hollow-core fiber compressionX. Ma, J. Dostál, T. Brixner Optics Express 24, 268867 (2016)
[2] Synthesized Light TransientsA. Wirth, M. Th. Hassan, I. Grguraš, J. Gagnon, A. Moulet, T. T. Luu, S. Pabst, R. Santra, Z. A. Alahmed, A. M. Azzeer, V. S. Yakovlev, V. Pervak, F. Krausz, E. Goulielmakis Science 334, 195 (2011)
[3] Intense 1.5-cycle near infrared laser waveforms and their use for the generation of ultra-broadband soft-x-ray harmonic continuaA. L. Cavalieri, E. Goulielmakis, B. Horvath, W. Helml, M. Schultze, M. Fieß, V. Pervak, L. Veisz, V. S. Yakolev, M. Uiberacker New Journal of Physics 9, 242 (2007)
[4] Powerful 170-atoosecond XUV pulses generated with few-cycle pulses and broadband multilayer opticsM. Schultze, E. Goulielmakis, M. Uiberacker, M. Hofstetter, J. Kim, F. Krausz, U. Kleineberg New Journal of Physics 9, 243 (2007)
Fiber Output Spectrum
The extremely broadband fiber output spectrum
(before the spectral mirror shaping) facilitates
spectroscopy experiments from 400 nm up to the
NIR at 1200 nm.
Ultra-broadband Chirped Mirror Technology:
Our double-angle chirped mirrors are a key component of the
hollow core fiber compressor. Building onextensive
experience in ultrafast coating design these mirrors provide
unprecedented broadband compression with the proven
capability to produce pulses with <4 fs duration. Custom
solutions for specific spectral coverage and selection are
available.
Characterized pulse duration after SAVANNA+. Characterized pulse duration after SAVANNA+.
