High-speed Thick Tissue Line Scan Confocal Microscope (System)

LSFMM is a high-speed, high-contrast multi-dimensional imaging microscope. Customized option is available please contact us


High-speed Thick Tissue Confocal Imaging Platform

Features & Benefits


High-speed acquisition

Strong optical sectioning

Single molecule imaging

Multi-color fluorescence

High sensitivity

Large field of view

Low photobleaching and phototoxicity

Super-resolution

Intuitive software

Brochure Download


-English Version PDF

-中文版 PDF


Request for Demo or

Sample measurement

Please contact us:

info@simtrum.com




LSFMM is a high-speed, high-contrast multi-dimensional imaging platform capable of three key imaging advantages. At its core is a focal modulation module for high-contrast imaging. It significantly reduces the background signal caused by multiple scattering and effectively picks up the high-resolution signal related to the ballistic excitation light. Consequently, the signal to background ratio and the spatial resolution can be maintained to a deeper penetration depth, which is about two to four times deeper than conventional confocal microscopes. High acquisition speed is the second feature of LSFMM. Capturing at speeds at least 100x faster than conventional confocal technology, LSFMM is the optimal solution for live cell and tissue imaging, providing low phototoxicity and photobleaching, or perfect for fast volume acquisition of fixed samples and even small live animals.

The third characteristic is large field of view (FOV) available. Our scientific CMOS camera can offer up to 5.5 Megapixel sensor, yielding the largest available field of view with 60x objectives(0.36 mm) and 40x objectives(0.54 mm). Maximizing view in fluorescence microscopy is of increasing relevance across a wide range of applications, including high content screening of large fields of cells, imaging of the developing embryo, neuron mapping and tissue imaging.

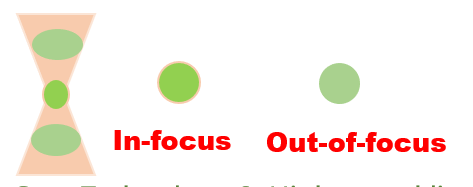

Core technology 1: Focal modulation

The combination of electro-optic modulator and self-designed liquid crystal phase plate only modulates the intensity of signal fluorescence at the focal point, while stray light and background light are not modulated. Through the principle of modulation and demodulation technology, a strong focal area signal is extracted, thereby increasing the signal-to-noise ratio and signal-to-background ratio of the image by 20-30dB, as well as the imaging depth

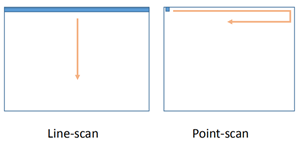

Core Technology 2: High-speed line scanning

The microscope system uses a cylindrical lens to form a line focus, thus replaces the traditional confocal point scanning method with line scan, which greatly increases the scanning speed and thus the imaging frame rate. Traditional point-scanning confocal microscopes generally take a few seconds to acquire a large-field fluorescence image; under the same field of view, line scanning can collect dozens of images per second, which can capture high-dynamic biological images of cells or tissues.





Product Model Comparison:


Hardware Feature

Hardware Feature

LSFMM Premium
  (FP-10-P)

LSFMM Advance
  (FP-10-A)

LSFMM Standard
  (FP-10-S)

High-speed line-scan laser confocal imaging

Up to 600 fps for fast cell dynamics

At least 100 x faster than   conventional confocal

FMM image contrast enhancement

Imaging deeper in cells and tissue

At least 2-4 times deeper than conventional confocal 20-40 dB

enhancement in image signal-to-background ratio

Large field of view

Capture more in a single image

Matches large sCMOS sensors

Low noise level

Acquire noise-free images with weak   fluorescence

-

16-bit dynamic range

Capture both weak and bright signals without   saturation

-

-

Multi-color fluorescence imaging

Choice of 4 wavelengths up to 640 nm

Any two colours simultaneously - match   penetration depth of two labelled targets instantly

Optional

Optional

Super-resolution

Acquire higher resolution images than   the diffraction limit

-

-

Z-motorized stage

Acquire volumetric images   automatically

-


Technical Data:



LSFMM   premium
  (FP-10-P)

LSFMM   Advance
  (FP-10-A)

LSFMM   Standard
  (FP-10-S)

Laser combiner

405nm, 488nm,561nm, 640nm (original configuration);
Laser wavelengths are optional according to user requirement.

488nm,  561nm (original configuration);
Laser wavelengths are optional according to user requirement.

488nm (original configuration);
Laser wavelengths are optional according to user requirement.

Laser power

50 mW   maximum for combined wavelengths

Frame rate

42 fps   (2560 x 500 pixels)
210 fps (2560 x 100 pixels)
Fast scan mode:
168 fps (2560 x 500 pixels)

8 fps   (1936 x 500 pixels)
40 fps (1936 x 100 pixels)
Fast scan mode:
32 fps (1936 x 500 pixels)
160 fps (1936 x 100 pixels)

60 fps   (1280 x 1024 pixels)
600 fps (1280 x 100 pixels)

Image resolution

100 x   100 pixels to 2560 x 2560 pixels

100 x   100 pixels to 1936 x 1936 pixels

100 x   100 pixels to 1280 x 1024 pixels

Image format

8/16   bit

8/12-bit

10 bit

Noise level

0.9e-

6.2e-

12e-

Noise level(count in photons)

1.5   photons

8.8   photons

20   photons

FMM modulation

line-by-line

frame-by-frame

Lateral resolution

1.2-1.4   fold over optical diffration limit

Optical   diffration limit

Number of fluorescence channel

>4

>2

>1

Microscope stage

Fully-motorized   and automated stage with piezo z scanner

Semi-motorized   stage with piezo z scanner

Mechanical   stage with focal spiral(can upgrade to piezo z scanner)


Applications

LSFMM is a novel microscopy method that has been developed to achieve a deeper penetration depth on the basis of confocal microscopy. Equivalently selective excitation is achieved by modulating the light intensity at the focal point only. Fluorescence emission or backscattered light are collected and demodulated. As a result, only focal signals are decoded and thus significantly reducing the background signals. Specially, we add a cylindrical lens to generate a line-focus at the sample and achieve line-scan imaging. Therefore, the imaging acquisition speed is improved significantly compared with conventional point-scan confocal microscopes.

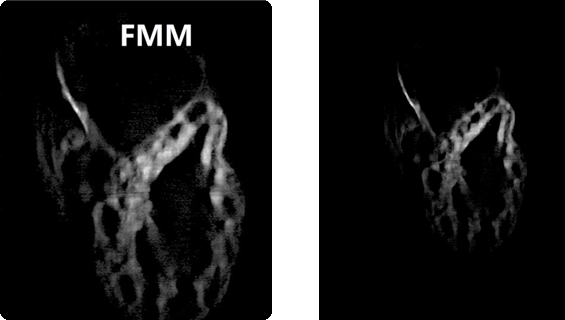

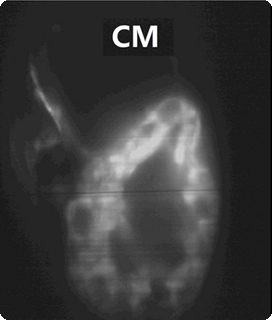

3-day post-fertilized zebrafish heart labelled by EGFP



Conventional confocal microscoe Our focal modulation microscope

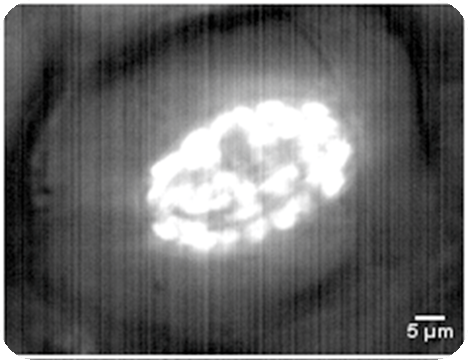

Autofluorescence of leaf chloroplasts



Conventional confocal microscoe Our focal modulation microscope

3D rendering of zebrafish neurons from spinal cone labelled with GCamp6



Conventional confocal microscoe

Our focal modulation microscope
