Industrial Plan Objective( Bright Field) | SIMTRUM Photonics Store

Products / Microscopes /Objective Lens /Industrial Plan Objective /Industrial Plan Objective( Bright Field) /
Industrial Plan Objective( Bright Field)
Plan Fluor EPI L Plan Fluor EPI Plan Related Products Order Now!

Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field

Plan Fluor EPI (Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field ) is bright-field objective for coaxial illumination and for industrial use, with an infinite conjugate parfocal distance of 45mm.It also has plan semi-apochromatic design.



Feature

• An industrial objective with an infinite conjugate parfocal distance of 45mm

• Bright-field objective for coaxial illumination

• Plan semi-apochromatic design

• High imaging contrast

• From 5x to 100x, entering pupil position of this series is uniform, which is convenient for DIC observation



Product Specifications and Brochures

Product Brochure Link:

Name Plan Fluor EPI
5X 10X 20X 50X 100X
Optical System Characteristics Infinite Correction
Observation Method Bright Field
Level of Chromatic Aberration Correction Semi-apochromatism
Magnification [X] 5 10 20 50 100
Focal Length [mm] 40 20 10 4 2
Numerical Aperture(NA) 0.15 0.3 0.45 0.8 0.9
Working Distance(WD)[mm] 20 11 3 1 1
Field Number of The Objective [mm] 25
Resolution [um] 1.8 0.9 0.6 0.34 0.31
Depth of Focus ±D.F [um] 12 3.1 1.4 0.43 0.34
Parfocalizing Distance [mm] 45
Thread W4/5''X1/36''
Weight [g] 57 65 77 89 90

Note:The resolution and depth of focus of the objective are calculated from the reference wavelength(λ=550nm)

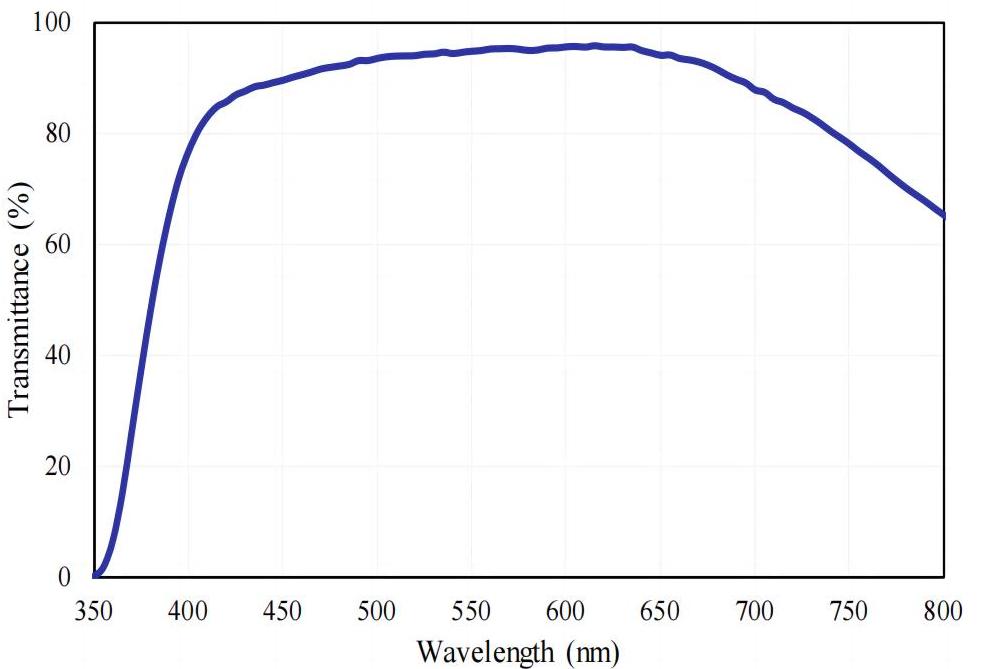

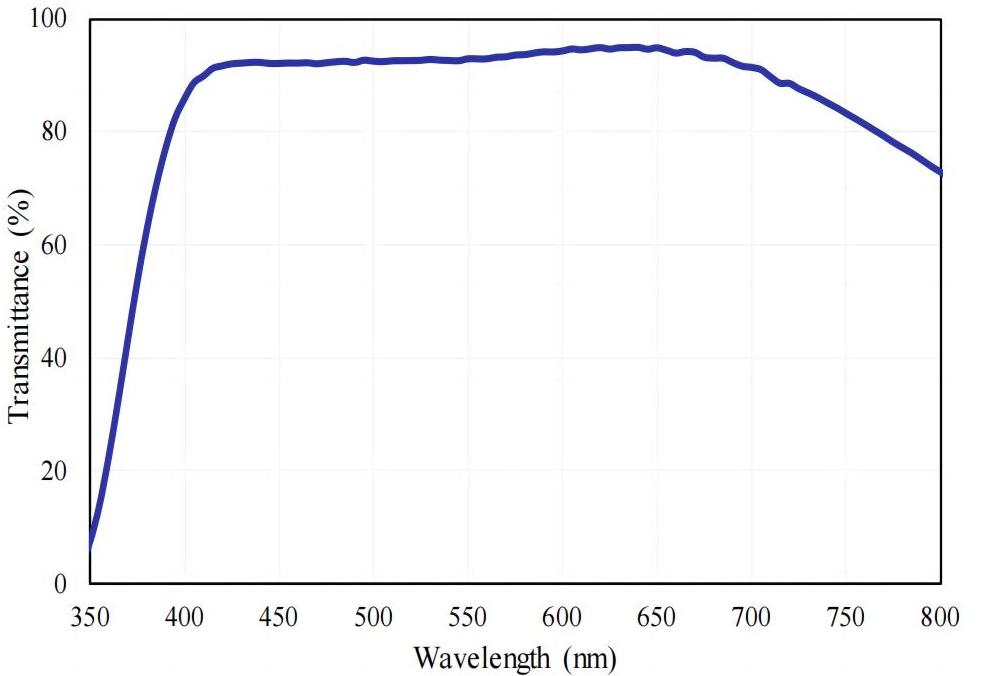

Transmittance/Wavelength

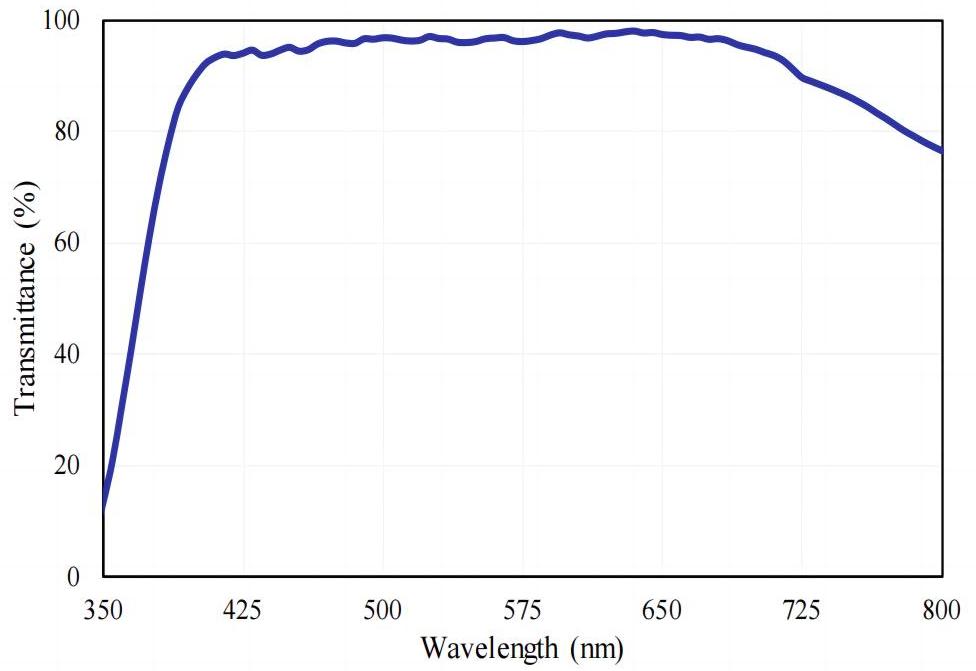

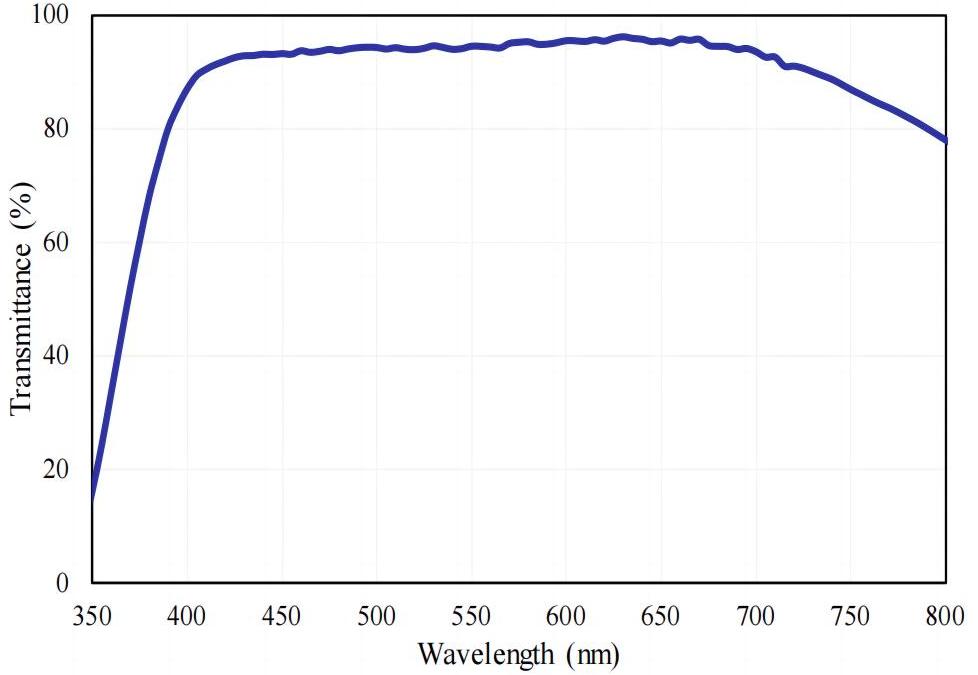

                                 Plan Fluor EPI 5X                                                               Plan Fluor EPI 10X                                                            Plan Fluor EPI 20X

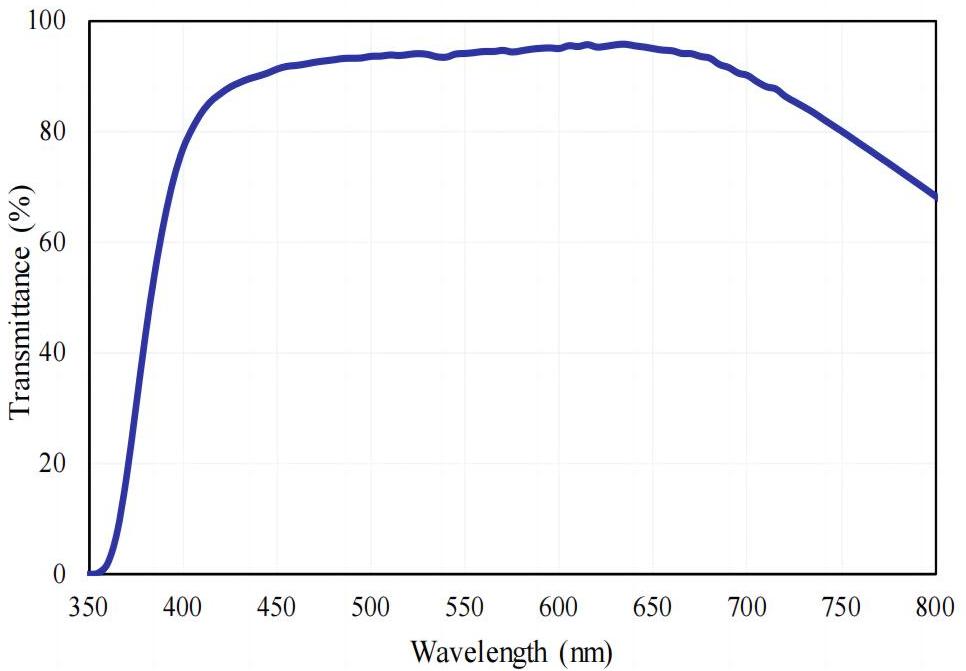

                                                                                  Plan Fluor EPI 50X                                                               Plan Fluor EPI 100X

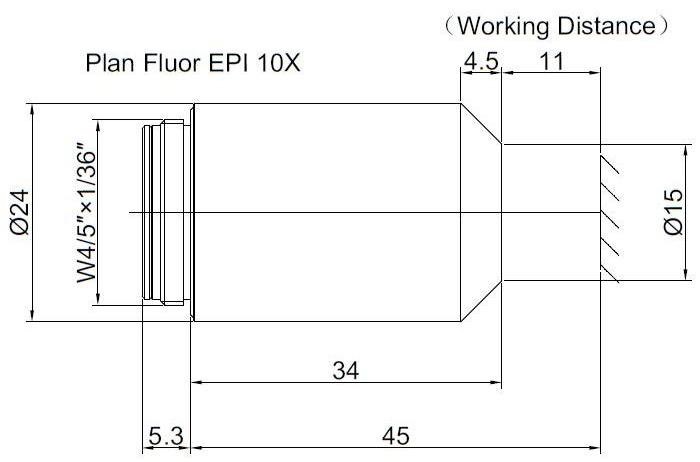

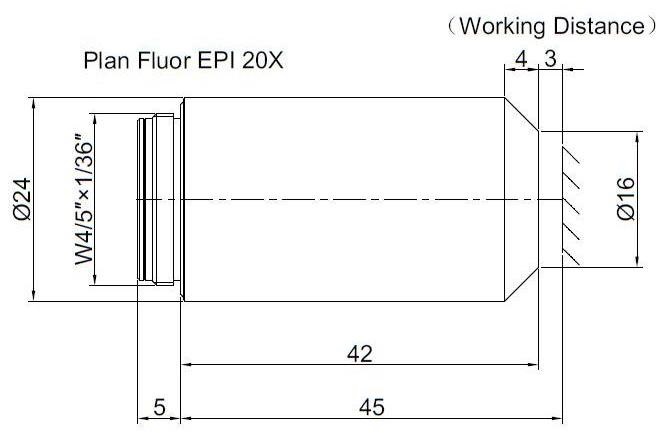

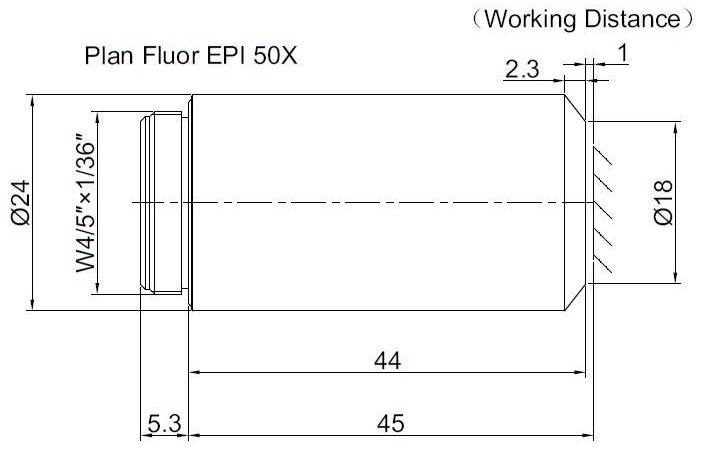

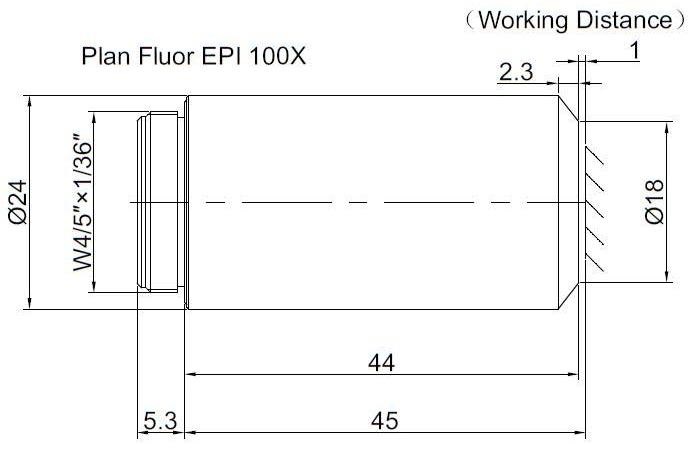

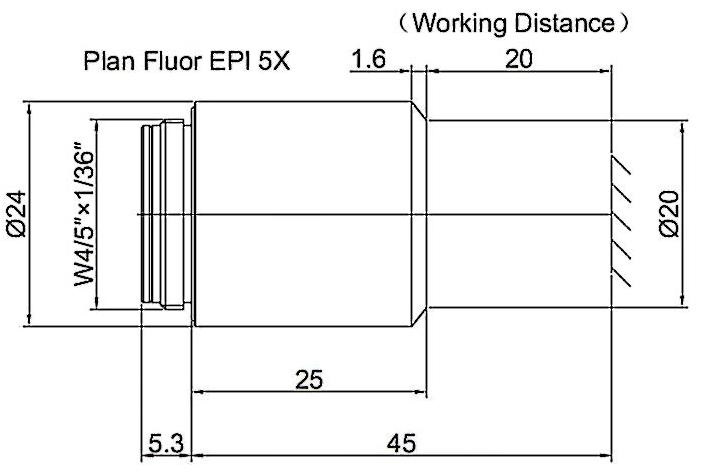

Drawings

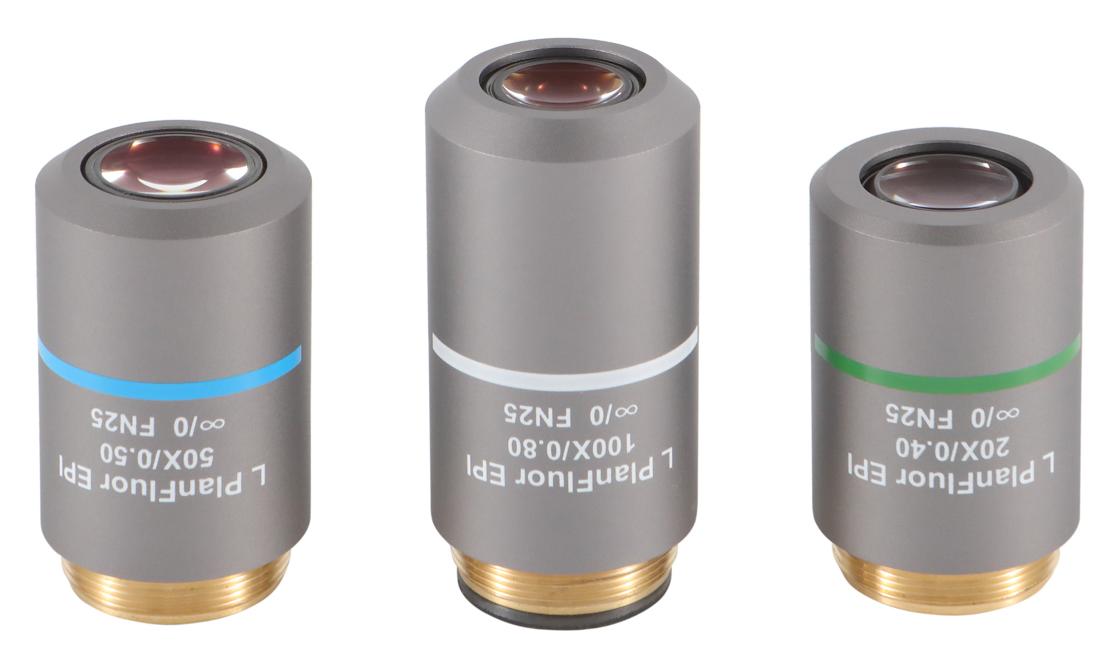

Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field

L Plan Fluor EPI(Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field) is bright-field objective for coaxial illumination and for industrial use, with an infinite conjugate parfocal distance of 45mm.It also has plan semi-apochromatic and Long working distance design.



Feature

• An industrial objective with an infinite conjugate parfocal distance of 45mm
• Bright-field objective for coaxial illumination
• Plan semi-apochromatic design
• High imaging contrast

• Long working distance



Product Specifications and Brochures

Product Brochure Link:

Name L Plan Fluor EPI
20X 50X 100X
Optical System Characteristics Infinite Correction
Observation Method Bright Field
Level of Chromatic Aberration Correction Semi-apochromatism
Magnification [X] 20 50 100
Focal Length [mm] 10 4 2
Numerical Aperture(NA) 0.4 0.5 0.8
Working Distance(WD)[mm] 12 10.4 3.1
Field Number of The Objective [mm] 25
Resolution [um] 0.7 0.55 0.34
Depth of Focus ±D.F [um] 1.7 1.1 0.43
Parfocalizing Distance [mm] 45
Thread W4/5''X1/36''
Weight [g] 65 68 88

Note:The resolution and depth of focus of the objective are calculated from the reference wavelength(λ=550nm)

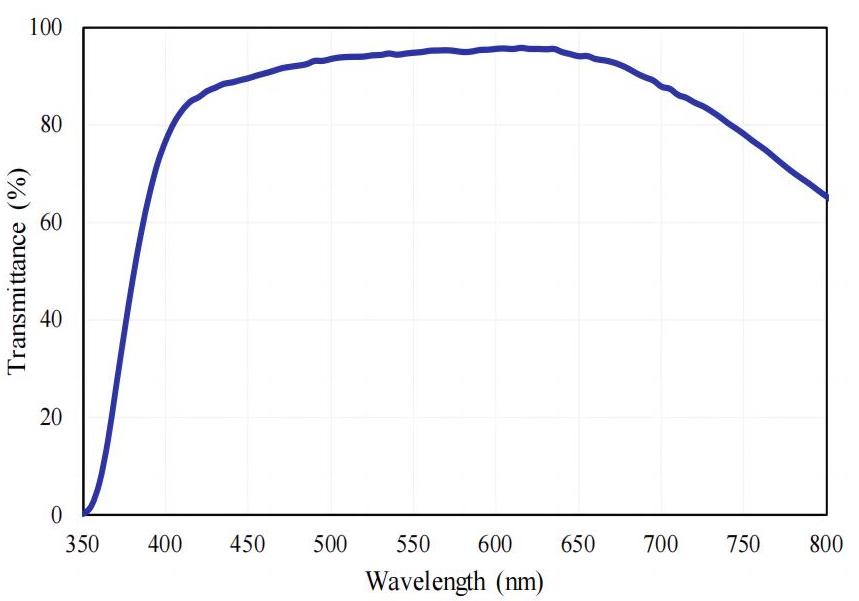

Transmittance/Wavelength

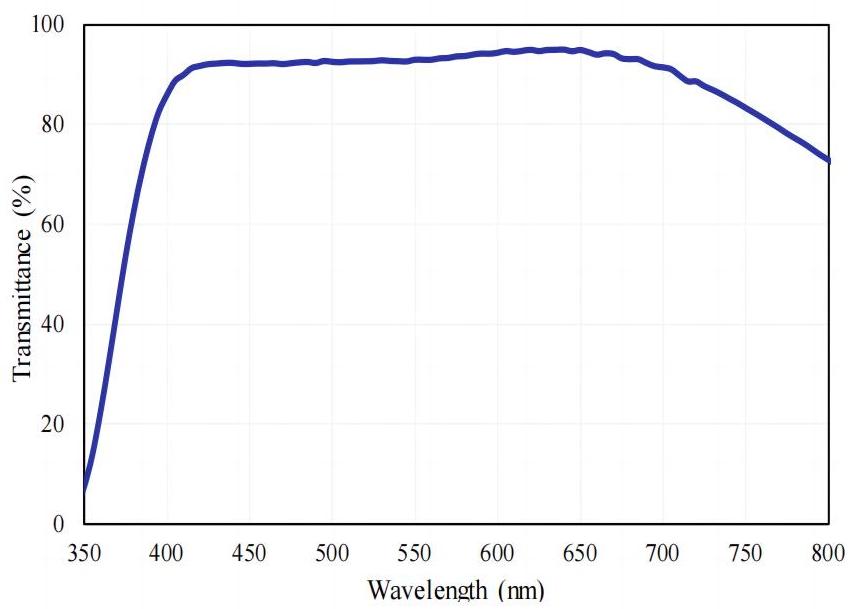

                                       L Plan Fluor EPI 20X                                                        L Plan Fluor EPI 50X                                                      L Plan Fluor EPI 100X

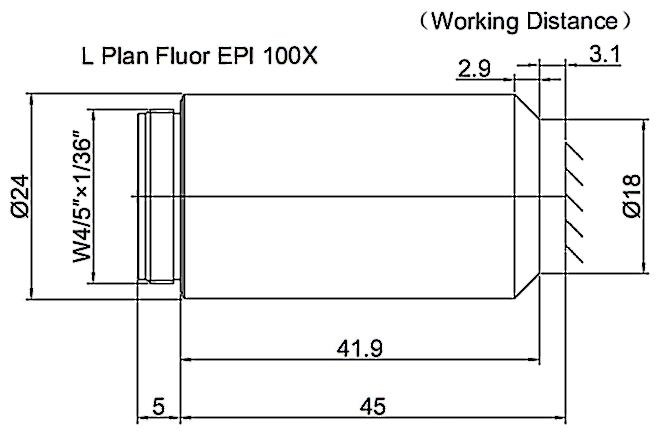

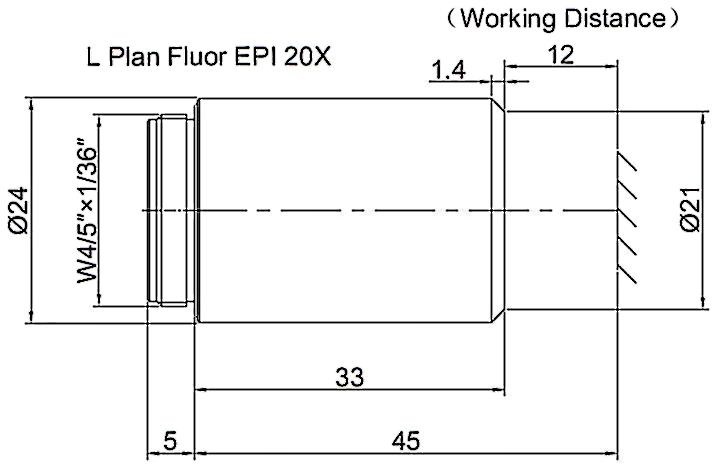

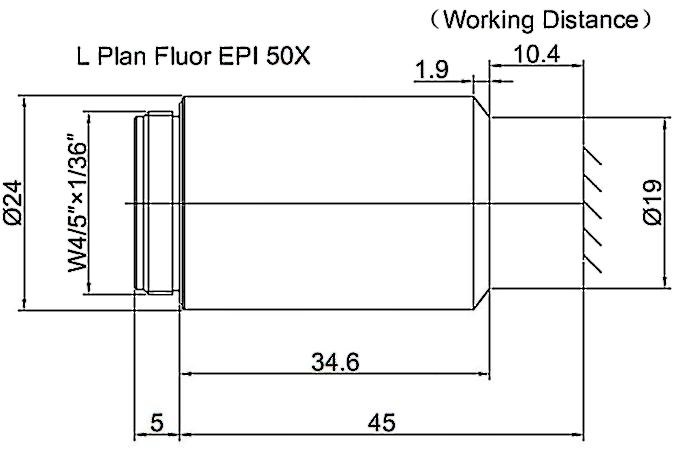

Drawings

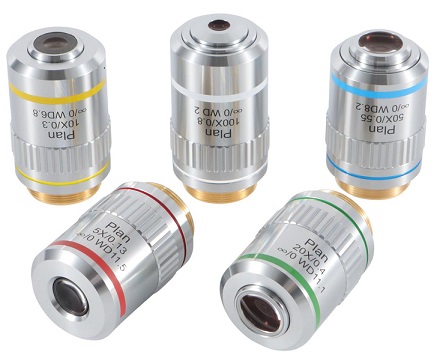

Plan Objective Bright Field

Plan (Plan Objective Bright Field) is industrial objective with an infinite conjugate parfocal distance of 45mm.It is designed for bright field applications , with flat-field achromatic correction to provide excellent image flatness across the entire field of view.



Feature

• An industrial objective with an infinite conjugate parfocal distance of 45mm
• Designed for bright field applications

• Flat-field achromatic correction to provide excellent image flatness across the entire field of view



Product Specifications and Brochures

Product Brochure Link:

Name Plan
5X 10X 20X 50X 100X
Optical System Characteristics Infinite Correction
Observation Method Bright Field
Level of Chromatic Aberration Correction Achromatism
Magnification [X] 5 10 20 50 100
Focal Length [mm] 40 20 10 4 2
Numerical Aperture(NA) 0.13 0.3 0.4 0.55 0.8
Working Distance(WD)[mm] 11.5 6.8 11.1 8.2 2
Field Number of The Objective [mm] 25
Resolution [um] 2.1 0.9 0.7 0.5 0.34
Depth of Focus ±D.F [um] 16.3 3.1 1.7 0.9 0.43
Parfocalizing Distance [mm] 45
Thread W4/5''X1/36''
Weight [g] 103 105 98 98 119

Note:The resolution and depth of focus of the objective are calculated from the reference wavelength(λ=550nm)

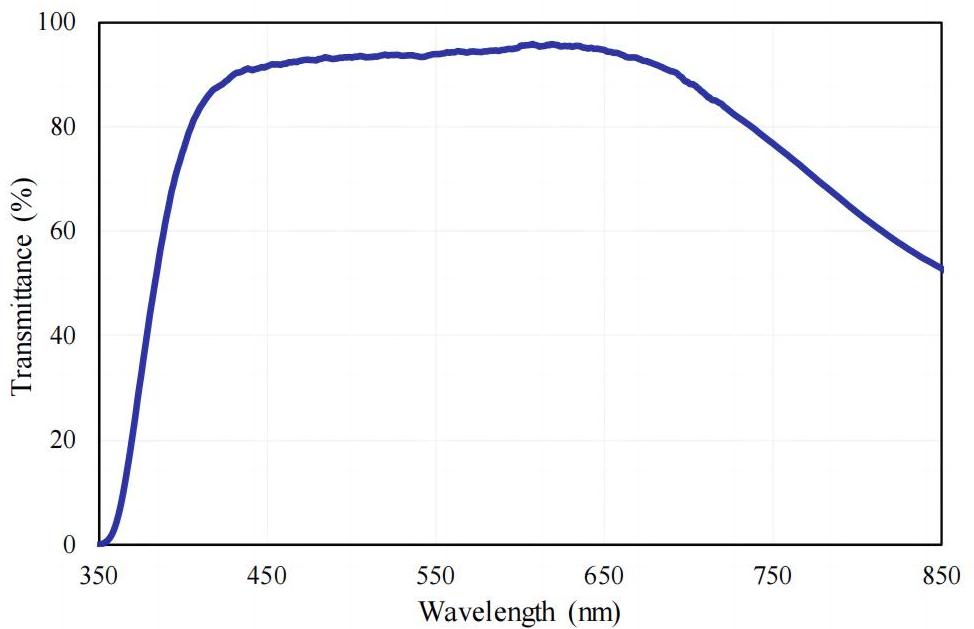

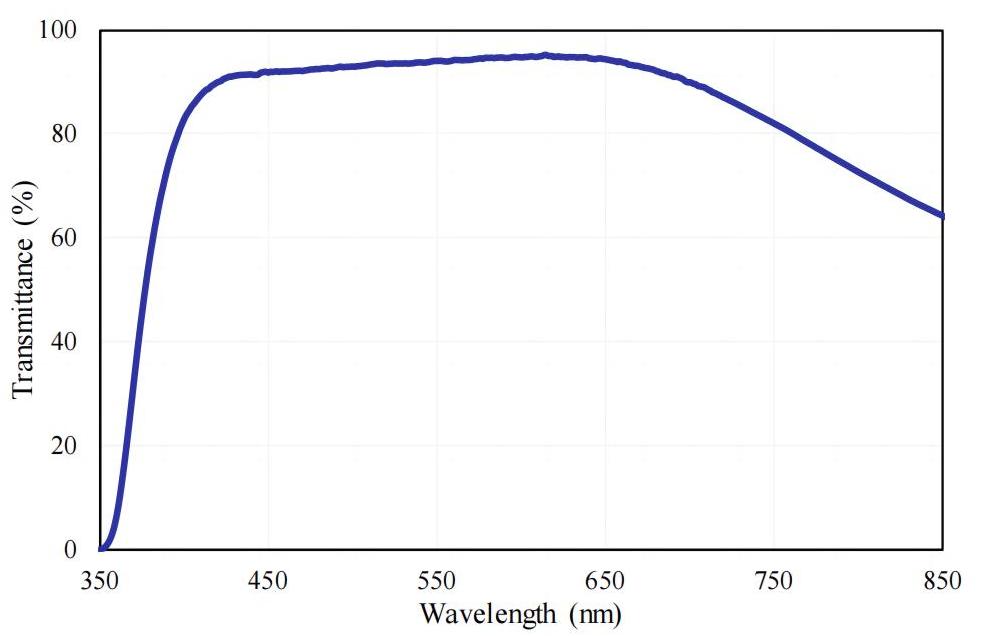

Transmittance/Wavelength

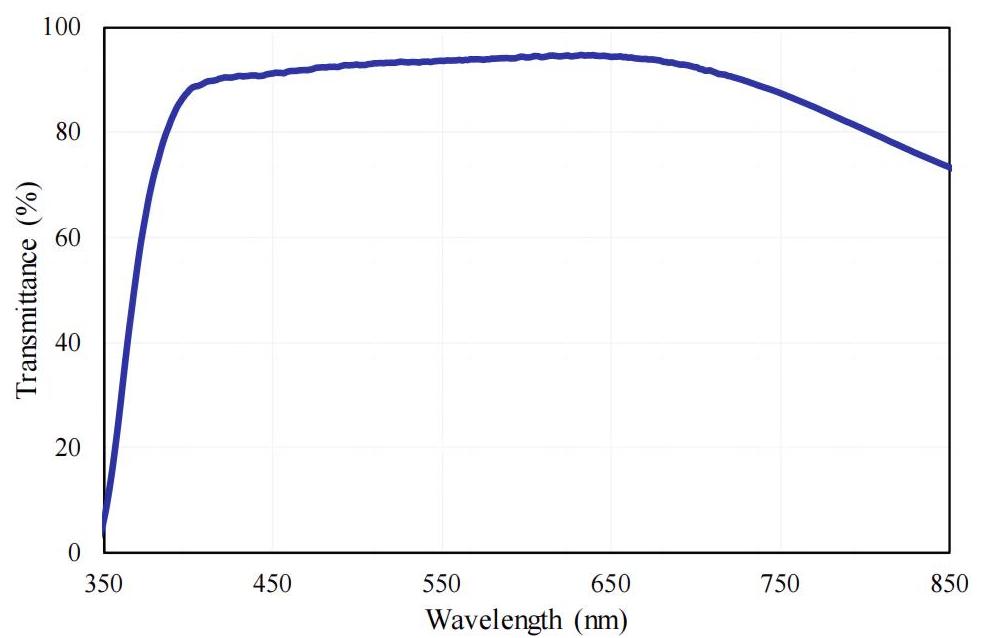

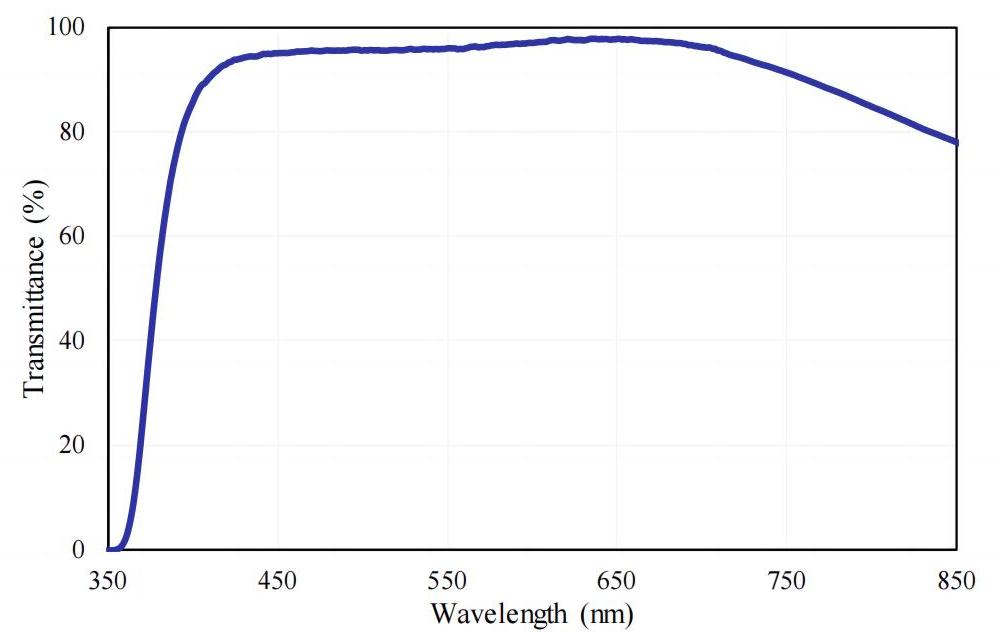

                                      Plan 5X                                                                 Plan 10X                                                              Plan 20X







                                                                                             Plan 50X                                                                    Plan 100X

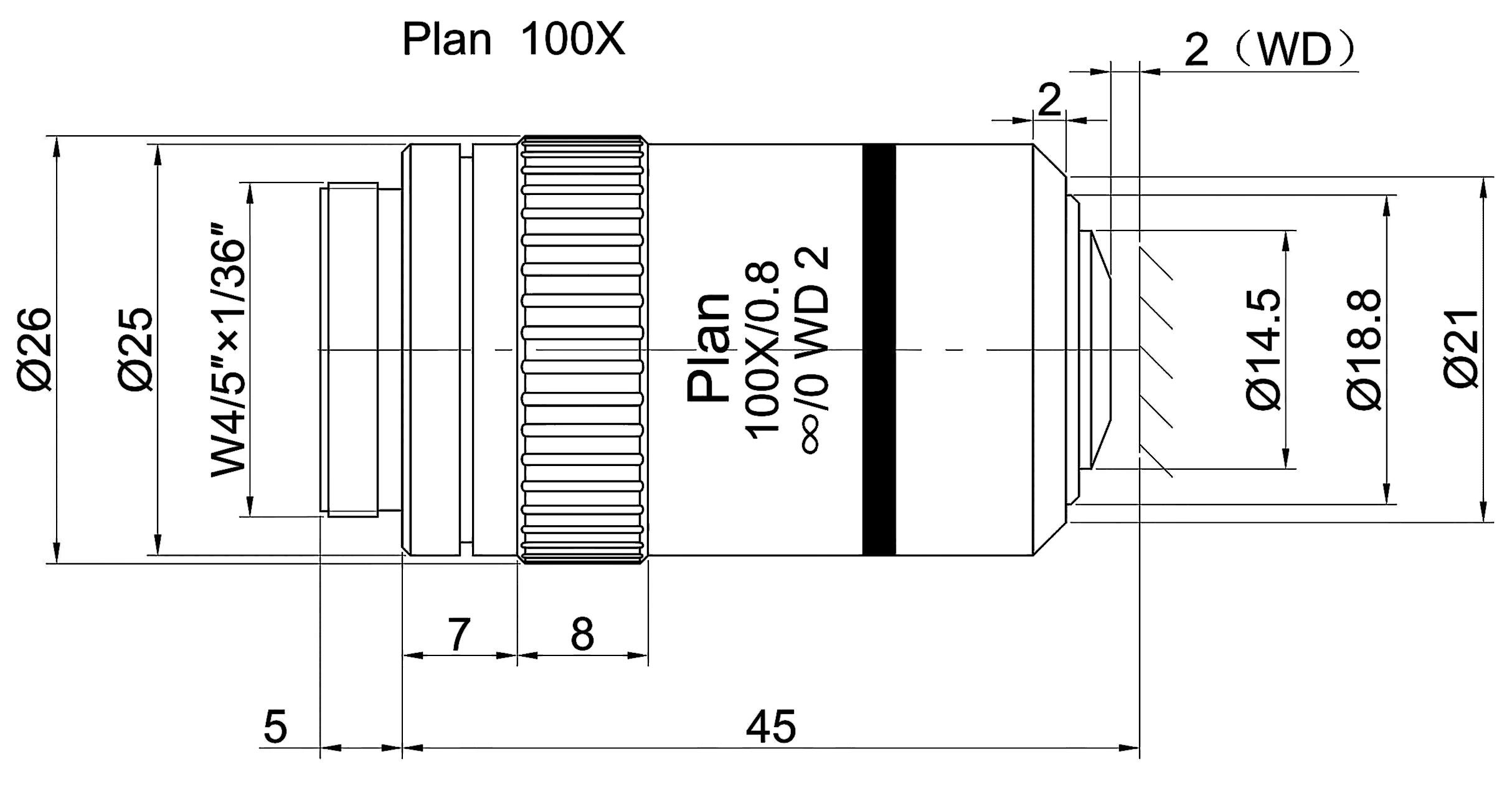

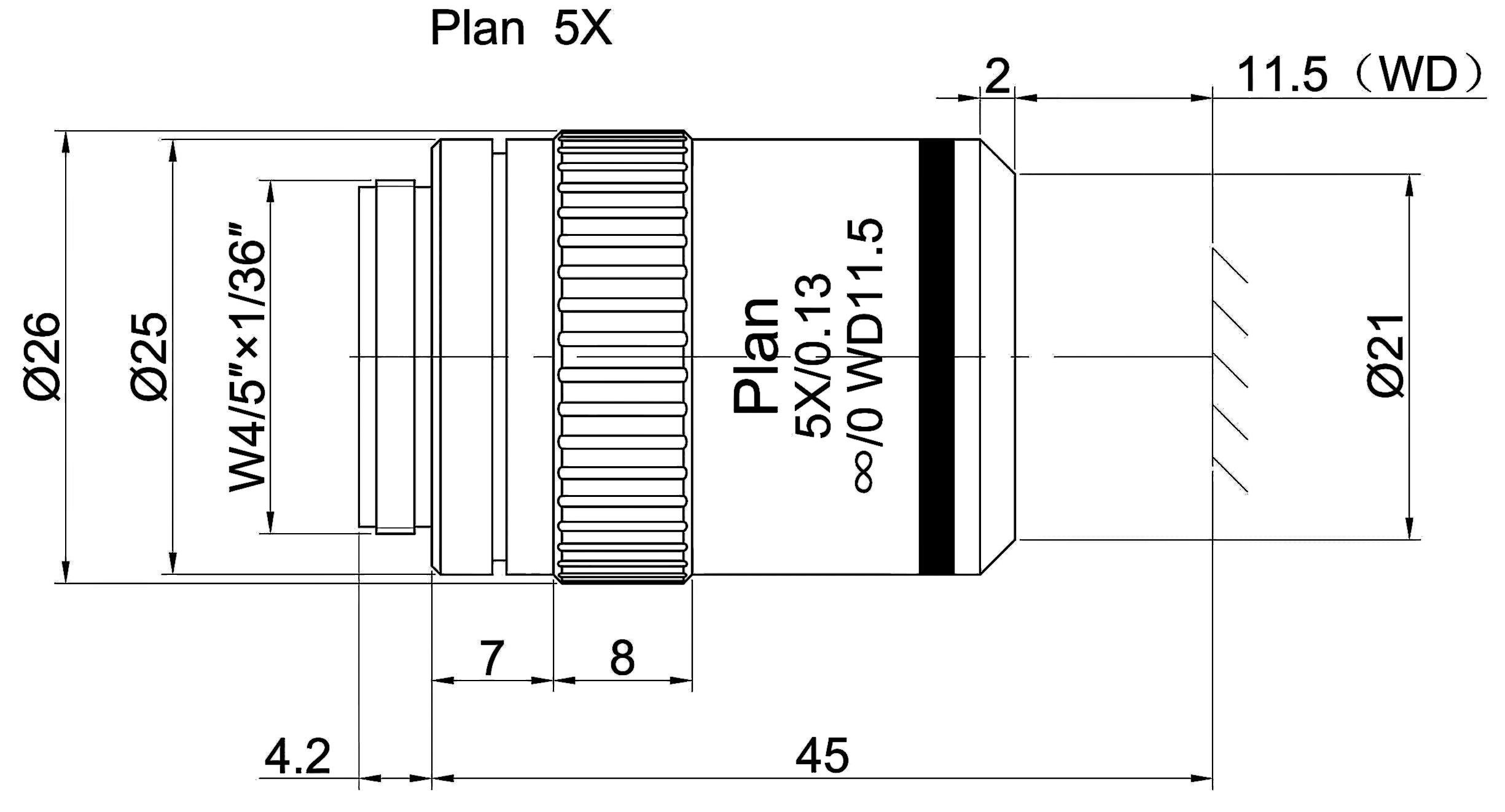

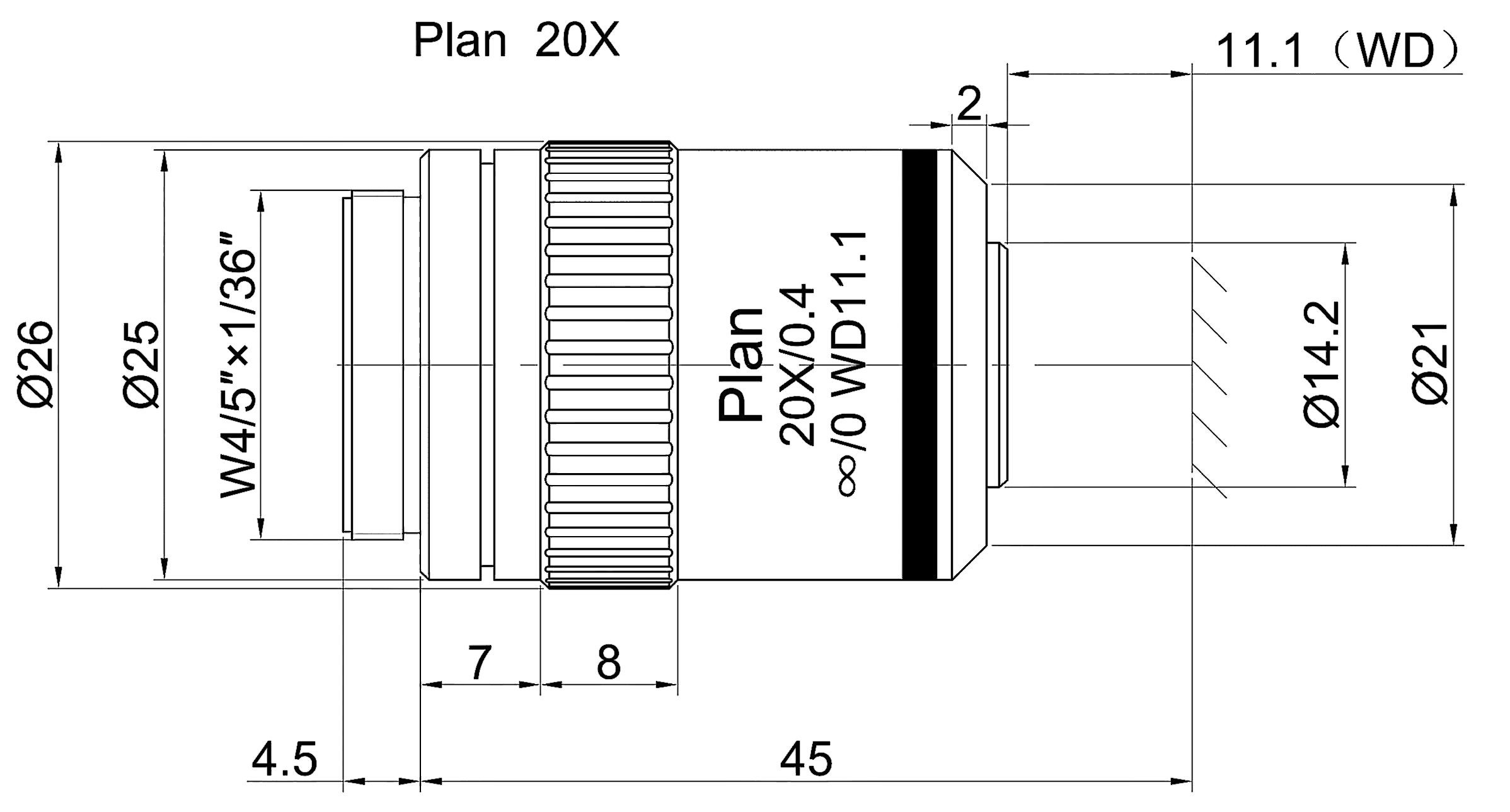

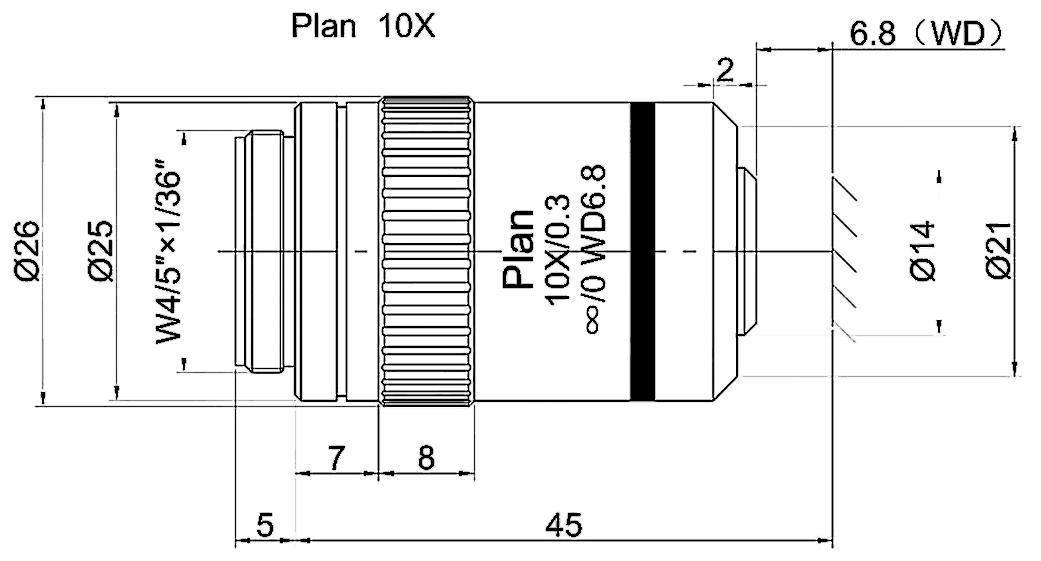

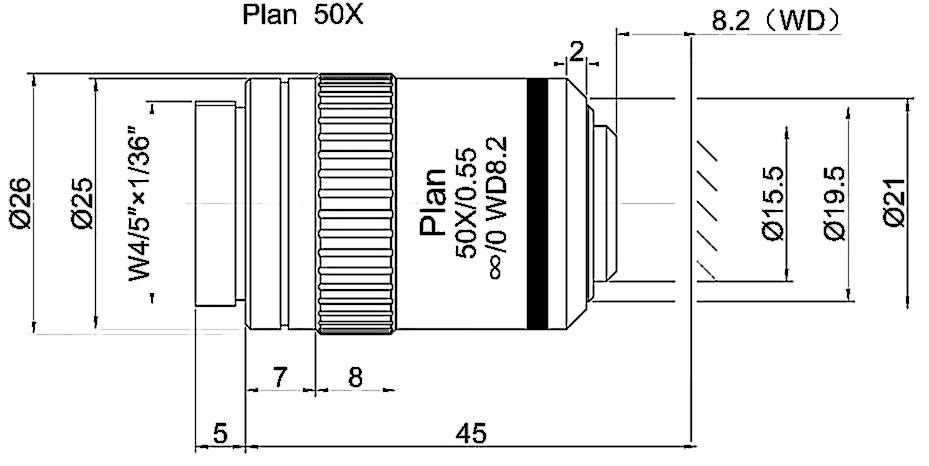

Drawings












Plan Apochromatic Objective

Name Wavelength Magnification NA WD(MM) F(MM) R(um)
Plan Apochromatic Objective VIS VIS 1X to 50X 0.025 to 0.55 13 to 41 4 to 200 0.5 to 11
Plan Apohromatic Objective High Resolution VIS VIS 5X,10X,20X,100X 0.21, 0.42, 0.6, 0.9 9.5, 14, 15, 25 2, 10, 20, 40 0.3, 0.5, 0.7, 13
Plan Apochromatic Objective Super Long Working Distance VIS VIS 20X,50X,100X 0.29, 0.42, 0.55 13, 20, 30 2, 4, 10 0.5, 0.7, 0.9
Plan Apochromatic Objective NIR NIR 20X,50X 0.42, 0.55 13, 20 4, 10 0.5, 0.65
Plan Apochromatic Objective High Resolution NIR NIR 20X,50X 0.6, 0.67, 0.75 0.4, 0.95, 10 4, 10 0.37, 0.41, 0.46
Liquid Crystal Display Plan Apochromatic Objective NIR NIR 20X,50X 0.4, 0.45 15, 20 4, 10 0.6, 0.7
Plan Apochromatic Objective NUV NUV 20X 0.42 17 10 0.65
Plan Apochromatic Objective NUV High Resolution NUV 50X 0.65 10 4 0.42
Liquid Crystal Display Plan Apochromatic Objective NUV NUV 20X,50X 0.4, 0.45 15, 20 4, 10 0.6, 0.7



Industrial Plan Objective

Name Observation Method Magnification NA WD(MM) F(MM) R(um)
Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field Bright Field 5X,10X,20X,100X 0.15, 0.3, 0.45, 0.8, 0.9 1, 3, 11, 20 2, 4, 10 ,20, 40 0.31, 0.34, 0.6, 0.9, 1.8
Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field Bright Field 20X,50X,100X 0.4, 0.5, 0.8 3.1, 10.4, 12 2, 4, 10 0.34, 0.55 ,0.7
Plan Objective Bright Field Bright Field 5X,10X,20X,100X 0.13, 0.3 ,0.4, 0.55, 0.8 2, 6.8, 8.2, 11.1, 11.5 2, 4, 10, 20, 40 0.34, 0.5, 0.7, 0.9, 2.1
Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field Bright and Dark Field 5X,10X,20X,100X 0.15, 0.3 ,0.45, 0.8, 0.9 1, 3, 11, 20 2, 4, 10, 20, 40 0.31, 0.34, 0.6, 0.9, 1.8
Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field Bright and Dark Field 20X,50X,100X 0.4, 0.5, 0.8 3.1, 10.4, 12 2, 4, 10 0.34, 0.55, 0.7
Plan Objective Bright and Dark Field Bright and Dark Field 5X,10X,20X,100X 0.13, 0.3, 0.46, 0.75, 0.9 1.4, 1.8, 3.6, 6, 11 2, 4, 10, 20, 40 0.31, 0.37, 0.6, 0.9, 2.1



Biology Plan Objective

Name Observation Method Magnification NA WD(MM) F(MM) Level of Chromatic Aberration Correction
Plan Apochromatic Objective Bright Filed / Fluorescence 2X,4X,10X,20X 0.1, 0.2, 0.45, 0.75 0.6, 4, 8.5, 20 10, 20, 50, 100 Apochromatism
Plan Fluorite Objective Bright Filed / Fluorescence 4X,10X,20X,40X,60X 0.13, 0.3, 0.45. 0.6, 0.7 1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5 3.3, 5, 10, 20, 50 Semi-apochromatism
Plan Fluorite Objective Phase-contrast Bright Field / Dark Field / Fluorescence 4X,10X,20X,40X,60X 0.13, 0.3, 0.45. 0.6, 0.7 1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5 3.3, 5, 10, 20, 50 Semi-apochromatism
