Snapshot Hyperspectral Camera for Microscope (450-950nm)
Most Flexible Spectral Microscopy HIS Camera

The FireflEYE 185 brings hyperspectral imaging to microscopy, and also enables endoscopy, in life sciences the time-saving advantage of the snapshot technology (thanks to no-scanning) really makes itself known, as saving time saves patients. The camera can also monitor real-time processes, such as samples in petri dishes for example.


The relay lens also allows for a lens change without camera re-calibration. And a close-up lens set allows a macroscopic scale view of a spot size of just a few mm.







Features

- 3D hyperspectral snapshot image (x, y, λ)

- VNIR coverage (450-950 nm)

125 spectral bands

12-bit / 14-bit version

25 Hz max frame rate

Compatible with microscopes



For All Scenarios


UAS Mapping - The FireflEYE 185 was the first-ever lightweight hyperspectral snapshot camera used for aerial mapping from a UAS. The user has a choice of lenses, enabling different fields of view for different tasks.


In the lab use the FireflEYE can be equipped with close-up lenses, allowing a macroscopic scale view with a spot size of only a few mm to cm.


Attaching a relay lens to the FireflEYE provides full interchangeability to C-mount lenses. Mount the camera on your microscope or endoscope without the need of an additional calibration.


The latest improvements to the FireflEYE include upgrading the main sensor to a modern CMOS sensor. The 14-bit version has 2x higher signal-to-noise-ratio and 4x higher dynamic range compared to the S185 (needing 4 times longer integration times)



Assessing hyperspectral microscopy

in real-time

FireflEYE 185 mounted on UAS

Hyperspectral Mapping

with the FireflEYE 185



Application


Scientific Research

The FireflEYE can be equipped with close-up lenses, allowing a macroscopic scale view with a spot size of only a few mm to cm. attaching a relay lens to the FireflEYE provides full interchangeability for C-mount lenses. Mount the camera on your microscope or endoscope without the need for additional calibration.


Biomedical Imaging

Biomedical imaging supports physicians in their work with the best available imaging information. With hyperspectral measurement methods, the industry can use another dimension of image analysis to open up new fields of application. The Firefleye 185 delivers superior spectral quality, where resolution is not key. With the relay adapter it can be attached to conventional endoscopes and microscopes.


Food Quality

The Food Industry’s Appetite for hyperspectral imaging Grows. Hyperspectral imaging enables the contact free analysis of food quality on the processing line. The Firefleye 185 is integrated in a high number of sorting applications and delivers high quality spectral results, where resolution is not the highest priority.


Aerial Mapping

The FireflEYE 185 was the first-ever light-weight hyperspectral snapshot camera used for aerial mapping from a UAS. The user has a choice of lenses, enabling different fields of view for different tasks.



Software Surface

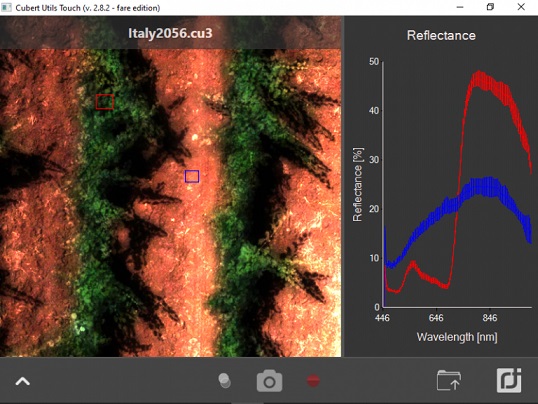

with Cuvis

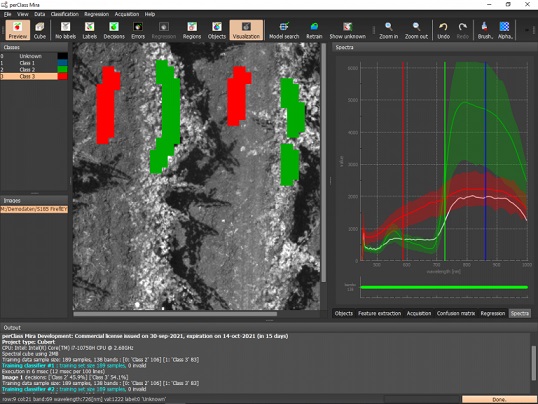

with perClass Mira









Product specifications and Brochures

Product Brochure Link:

ParametersFireflEYE 185
TechnologyMultipoint Spectrometer
Number of Sensors2
Wavelength Range450 - 950 nm
Spectral Bands125
Spectral Sampling4 nm
Spectral Resolution  (FWHM)8 nm @ 532 nm
Spatial Resolution50 x 50 pixel
Spatial Resolution 2nd  Sensor1000 x 1000 pixel
Total Spectra / Image2500
Total Data Points / Cube0.3 Million
Data Depths12 bit / 14 bit
ReadoutGlobal shutter
Max Frame Rate25 Hz
Integration Time0.1 – 1000 ms
Field of View (FOV)30°, 20°, 13°, 7°, Lens selectable
Power Consumption7 W
Data Link2 GigE
Weight490 g
Size200 x 67 x 60 mm

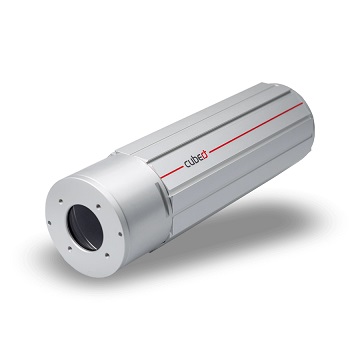

Model Housing Guide



Standard Lightweight Housing IP40


Industrial Housing IP65


Waterproof Housing IP68

Weighing Less than 490g, the camera is perfectly suited for mobile applications, such as deployment on a UAV.



To meet the requirements of harsh industrial environments. a special rugged, robust housing is available, ensuring optimal protection.


Upgrade the FireflEYE185 to IP68 and use it underwater to a depth of 10m for 10h




Model Housing Guide

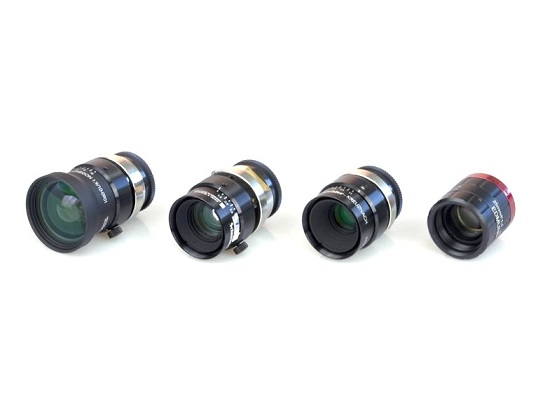

For the FireflEYE different lenses are possible, ranging from 10 mm focal length up to 50 mm focal length. Attaching a Relay Lens to the FireflEYE provides full interchangeability for C-mount lenses. Mount the camera on your microscope or endoscope without the need for additional calibration. In lab use the FireflEYE can be equipped with Close-Up Lenses, allowing a macroscopic scale view with a spot size of only a few mm to cm.




Hyperspectral CameraTypeSpectral RangeResolutionSpectral Resolution

Blue Eye (UV)

Hyperspectral

Camera Line Scan

(220 nm - 4.2 um)


200 to 380 nm

2048 x 2048 px

1056 x 1027 px

< 2 nm or < 1 nm
Green Eye (VIS - NIR)
400 to 1000 nm 1312 x 1082px<10 nm (with 80 µm slit)
Orange Eye (VIS - NIR)580 to 1000 nm1312 x 1082 px<10 nm (with 80 µm slit)
Red Eye (NIR)950 to 1700 nm

320 x 256 px

640 x 512 px

<10 nm (with 80 µm slit)
1200 to 2200 nm

320 x 256 px

640 x 512 px

<10 nm (with 80 µm slit)
Black Eye (MWIR)
2900 to 4200 nm320 x 256 px<18 nm (with 80 µm slit)
Ultris X20

Hyperspectral

Camera Snap Shot

(350 nm - 1 um)

350 to 1000 nm410 x 410 pxConstant 10 nm
Ultris X20 Plus

350 to 1000 nm

410 x 410 px

1880 x 1880 px

Constant 10 nm
Ultris 5
450 to 850 nm
250 x 250 px26 nm @ 532 nm

We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
FireflEYE185-IP40 Housing
SnapShot Hyperspectral Camera for Microscope (450-950nm), wavelength 450-950 nm, Spatial resolution 50 X 50px, Spectral sampling 4nm, Spectral resolution 8nm@532nm, with standard lightweight housing IP40
4-6 Weeks Request for quote
FireflEYE185-IP65 Housing
SnapShot Hyperspectral Camera for Microscope (450-950nm), wavelength 450-950 nm, Spatial resolution 50 X 50px, Spectral sampling 4nm, Spectral resolution 8nm@532nm, with industrial housing IP65
4-6 Weeks Request for quote
FireflEYE185-IP68 Housing
SnapShot Hyperspectral Camera for Microscope (450-950nm), wavelength 450-950 nm, Spatial resolution 50 X 50px, Spectral sampling 4nm, Spectral resolution 8nm@532nm, with waterproof housing IP68
4-6 Weeks Request for quote

FireflEYE185-IP68 Housing - Parameter

FireflEYE185-IP65 Housing - Parameter

FireflEYE185-IP40 Housing - Parameter

FireflEYE185-IP68 Housing - Download

FireflEYE185-IP65 Housing - Download

FireflEYE185-IP40 Housing - Download
