Notch Filters

Overview Specifications Related Product Order Now!

Chroma's state-of-the-art magnetron sputtering coating process ensures that the coater runs continuously and accurately for more than 30 hours, enabling high transmittance, ultra-wide transmittance range, high cut-off depth/high reflectivity, narrow bandwidth and high damage threshold notch filters and dichroic mirrors.

It is suitable for a variety of laser systems, such as laser-induced fluorescence, Raman, laser-induced breakdown spectroscopy, and biophotonics. There are two types of Chroma notch filters: Notch Filter and TopNotchTM Filter. TopNotchTM Filter is a high-end notch filter for Chroma that offers the following features:

Ultra-wide transmittance range (350 - 1600 nm)
Narrow bandwidth (3% of Notch CWL)
High cut-off depth (OD > 6)
Wide cut-off range (> 6 nm)
5. High damage threshold (1.75J/cm2 @ 532 nm, 10 ns, 10 HZ)

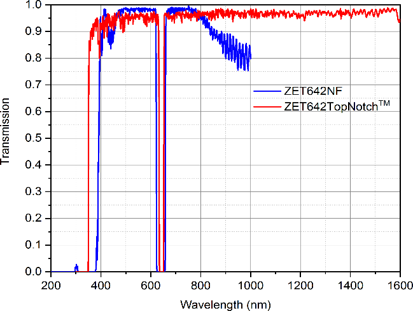

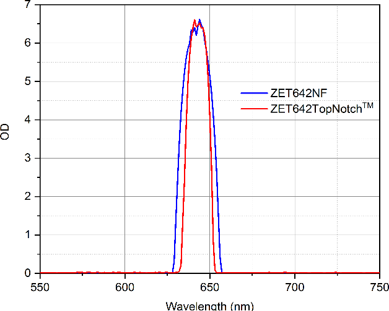

Measured transmittance and OD curves for two types of notch filters (ZET642NF and ZET642TopNotchTM)

Notch filters

Spectral Transmission Curves

Laser wavelength（nm)	Notch filters	Notch bandwidth（Typical)nm	Laser cut-off depth	Operating band range（nm)
457	ZET457NF	22	OD >/= 6	410 - 750
473	ZET473NF	25	OD >/= 6	415 - 750
488	ZET488NF	23	OD >/= 6	410 - 800
488	ZET488TopNotch™	< 17	OD >/= 6	350 - 1600
514	ZET514TopNotch™	< 18	OD >/= 6	350 - 1600
532	ZET532TopNotch™	< 19	OD >/= 6	350 - 1600
561	ZET561NF	27	OD >/= 6	410 - 800
561	ZET561TopNotch™	< 20	OD >/= 6	350 - 1600
594	ZET594TopNotch™	</= 21	OD >/= 6	350 - 1600
633	ZET633TopNotch™	</= 22	OD >/= 6	350 - 1600
635	ZET635NF	32	OD >/= 6	410 - 800
642	ZET642NF	37	OD >/= 6	412 - 800
642	ZET642TopNotch™	</= 22	OD >/= 6	350 - 1600
647	ZET647NF	34	OD >/= 6	410 - 800
685	ZET685NF	36	OD >/= 5.5	435 - 850
785	ZET785NF	38	OD >/= 5	485 - 1000
785	ZET785TopNotch™	</= 27	OD >/= 6	350 - 1600

*Note Prices do not include any shipping, tax or customs clearance charges

Notch Dichroic Mirror

Spectral Transmission Curves

Dichroic Mirror Model	Notch Center Wavelength	Center Wavelength reflectivity	Operating Band Range
ZT442dcrb	442 nm	>/= 98%	350 - 700 nm
ZT457dcrb	457 nm	>/= 98%	360 - 700 nm
ZT473dcrb	473 nm	>/= 98%	385 - 800 nm
ZT488dcrb	488 nm	>/= 98%	365 - 750 nm
ZT532dcrb	532 nm	>/= 98%	405 - 830 nm
ZT543dcrb	543 nm	>/= 98%	410 - 850 nm
ZT550dcrb	550 nm	>/= 98%	450 - 680 nm
ZT561dcrb	561 nm	>/= 98%	350 - 800 nm
ZT594dcrb	594 nm	>/= 98%	400 - 700 nm
ZT635dcrb	635 nm	>/= 98%	410 - 780 nm
ZT656dcrb	656 nm	>/= 98%	400 - 1100 nm

*Note Prices do not include any shipping, tax or customs clearance charges

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
ZET457NF Filter ZET457NF Notch filter,Laser wavelength 457 nm,Notch bandwidth 22 nm	4-6 Weeks	$495.00
ZET473NF Filter ZET473NF Notch filter,Laser wavelength 473 nm,Notch bandwidth 25 nm	4-6 Weeks	$495.00
ZET488NF Filter ZET488NF Notch filter,Laser wavelength 488 nm,Notch bandwidth 23 nm	4-6 Weeks	$495.00
ZET488TopNotch™Notch Filter ZET488TopNotch™Notch filter,Laser wavelength 488 nm,Notch bandwidth < 17 nm	4-6 Weeks	$825.00
ZET514TopNotch™ Filter ZET514TopNotch™ Notch filter,Laser wavelength 514 nm,Notch bandwidth < 18 nm	4-6 Weeks	$825.00
ZET532TopNotch™Filter ZET532TopNotch™Notch filter,Laser wavelength 532 nm,Notch bandwidth < 19 nm	4-6 Weeks	$825.00
ZET561NF Filter ZET561NF Notch filter,Laser wavelength 561 nm,Notch bandwidth 27 nm	4-6 Weeks	$495.00
ZET561TopNotch™Filter ZET561TopNotch™Notch filter,Laser wavelength 561 nm,Notch bandwidth < 20 nm	4-6 Weeks	$825.00
ZET594TopNotch™ Filter ZET594TopNotch™Notch filter,Laser wavelength 594 nm,Notch bandwidth	4-6 Weeks	$825.00
ZET633TopNotch™ Filter ZET633TopNotch™ Notch filter,Laser wavelength 633 nm,Notch bandwidth	4-6 Weeks	$825.00
ZET635NF Filter ZET635NF Notch filter,Laser wavelength 635 nm,Notch bandwidth 32 nm	4-6 Weeks	$495.00
ZET642NF Filter ZET642NF Notch filter,Laser wavelength 642 nm,Notch bandwidth 37 nm	4-6 Weeks	$495.00
ZET642TopNotch™ Filter ZET642TopNotch™ Notch filter,Laser wavelength 642 nm,Notch bandwidth	4-6 Weeks	$825.00
ZET647NF Filter ZET647NF Notch filter,Laser wavelength 647 nm,Notch bandwidth 34 nm	4-6 Weeks	$495.00
ZET685NF Filter ZET685NF Notch filter,Laser wavelength 685 nm,Notch bandwidth 36 nm	4-6 Weeks	$495.00
ZET785NF Filter ZET785NF Notch filter,Laser wavelength 785 nm,Notch bandwidth 38 nm	4-6 Weeks	$495.00
ZET785TopNotch™ Filter ZET785TopNotch™ Notch filter,Laser wavelength 785 nm,Notch bandwidth	4-6 Weeks	$825.00
ZT442dcrb ZT442dcrb Notch Dichroic Mirror,Notch Center Wavelength 442 nm,Center Wavelength reflectivity >/= 98%	4-6 Weeks	$550.00
ZT457dcrb ZT457dcrb Notch Dichroic Mirror,Notch Center Wavelength 457 nm,Center Wavelength reflectivity >/= 98%	4-6 Weeks	$650.00
ZT473dcrb ZT473dcrb Notch Dichroic Mirror,Notch Center Wavelength 473 nm,Center Wavelength reflectivity >/= 98%	4-6 Weeks	$730.00
ZT488dcrb ZT488dcrb Notch Dichroic Mirror,Notch Center Wavelength 488 nm,Center Wavelength reflectivity >/= 98%	4-6 Weeks	$550.00
ZT532dcrb ZT532dcrb Notch Dichroic Mirror,Notch Center Wavelength 532 nm,Center Wavelength reflectivity >/= 98%	4-6 Weeks	$550.00
ZT543dcrb ZT543dcrb Notch Dichroic Mirror,Notch Center Wavelength 543 nm,Center Wavelength reflectivity >/= 98%	4-6 Weeks	$730.00
ZT550dcrb ZT550dcrb Notch Dichroic Mirror,Notch Center Wavelength 550 nm,Center Wavelength reflectivity >/= 98%	4-6 Weeks	$730.00
ZT561dcrb ZT561dcrb Notch Dichroic Mirror,Notch Center Wavelength 561 nm,Center Wavelength reflectivity >/= 98%	4-6 Weeks	$550.00
ZT594dcrb ZT594dcrb Notch Dichroic Mirror,Notch Center Wavelength 594 nm,Center Wavelength reflectivity >/= 98%	4-6 Weeks	$550.00
ZT635dcrb ZT635dcrb Notch Dichroic Mirror,Notch Center Wavelength 635 nm,Center Wavelength reflectivity >/= 98%	4-6 Weeks	$550.00
ZT656dcrb ZT656dcrb Notch Dichroic Mirror,Notch Center Wavelength 656 nm,Center Wavelength reflectivity >/= 98%	4-6 Weeks	$550.00
