Macro Infrared Thermal Imaging Camera
Overview Specifications Related Products Order Now!

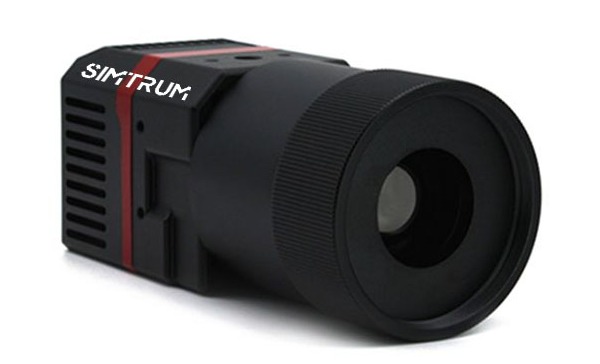

SIMTRUM'S Macro Infrared Thermography Camera adopts chips from mainstream domestic and foreign manufacturers, and is equipped with self-developed denoising and temperature measurement algorithms. It is highly reliable, provides more accurate temperature measurement, and can clearly display image details.

Multiple resolutions and different detection ranges are available for selection. The magnification of the macro lens can be customized, making it more adaptable.

Features

  • Temperature measurement range is 0 to 1600℃
  • Multiple resolutions are available, with the highest being 1280×1024
  • Self-developed denoising algorithms ensure clearer image details
  • Independent macro lens, with flexible customization of magnification

Applications

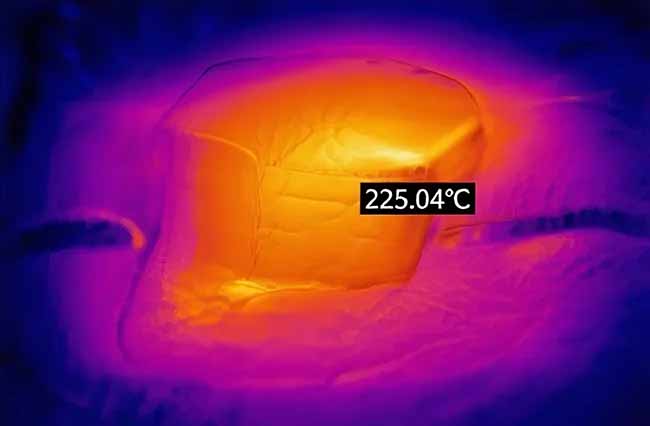

Detection of heating ceramics for electronic cigarettes

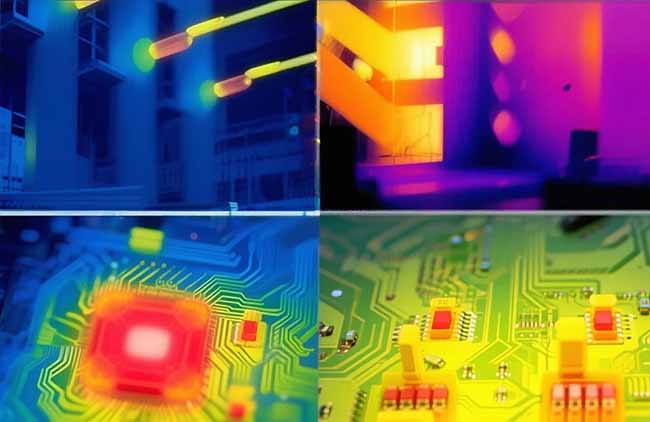

Chip heat detection

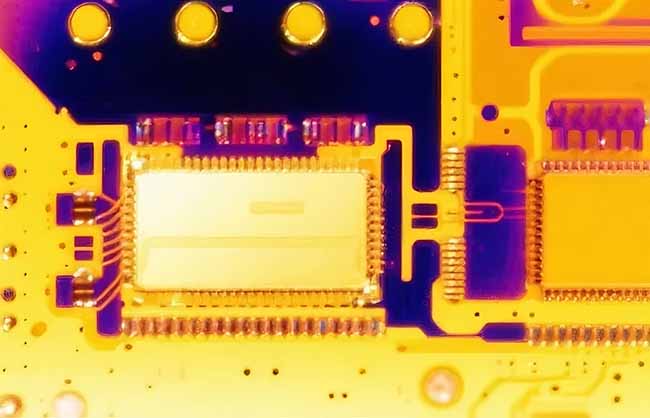

Circuit board inspection


General Specifications

Model HJ01-MCIR-
K43M25		 HJ01-MCIR-K43M23 HJ01-MCIR-K43M6 HJ01-MCIR-K46M25 HJ01-MCIR-K46M23 HJ01-MCIR-K46M6
Detector Type Non - cooled focal plane microbolometer
Pixel Pitch 12μm
Resolution 384×288 384×288 384×288 640×512 640×512 640×512
Minimum Resolvable Size 25 40 23 28 6 25 40 23 28 6
Magnification 0.5 0.3 0.5 0.43 2 0.5 0.3 0.5 0.43 2
Detection Range (mm) 9.5×7 16.5×12.5 9×7 11×8 2.5×2 16×12.5 25×20 15×12 18×14 4×3
Detection Distance (mm) 57 102 103 122 73 57 102 103 122 73
Wavelength Range 8 - 14μm
Thermal Sensitivity (NETD) <40mK(@25℃)
Frame Rate 50Hz, 100Hz (Customizable)
Color Palettes Multiple color palettes, including white hot, black hot, iron hot, red hot, rainbow, etc.
Contrast and Brightness Automatic / Manual
Data Format 16bit full - frame temperature data, H.264/H.265 compressed bitstream
Temperature Measurement Accuracy ±2℃ or ±2%
Temperature Measurement Range Normal temperature range: -20℃~+200℃
Medium temperature range: +150℃~+650℃


Other Specifications

Data Interface RJ45
Network Standard Gigabit Network
Protocol Support IPv4/IPv6, TCP, UDP, NTP, HTTP, RTSP, RTP, ICMP, WebSocket, ONVIF
Power Interface 2EDGKO - 3.81mm/2P
Power Supply Voltage 12Vdc
Steady - State Power Consumption <2.5W
Operating Temperature -20°C - 60°C
Storage Temperature -40°C - 70°C
Temperature Shock Resistance 5°C/min (-20°C - 60°C)
Vibration Resistance 4.3g, x, y, z - axis, 2 hours per axis
Shock Resistance 30g acceleration, half - sine wave, 6ms pulse width, three axes each
Client Supports real - time temperature display, multiple temperature - measuring objects, recording, snapshot, alarm and other functions
SDK SDK development supports win32, x64, Linux (x86, ARM)


Model Pixels Spectral Range Temperature Range
SWIR Thermal Imaging Camera 384*288/512*384/640*480/768*576/1280*1024 0.8~2μm 600-3000℃
MWIR Thermal Imaging Camera 640*480 3~5μm/4.8~5.2μm 200-700℃
MWIR Thermal Imaging Camera
For Flame Temperature		 640*480/640*512 3.9μm/4.5μm 600-1600℃/1000-2000℃
Cooling MWIR Thermal Imaging Camera 640*512 3.7~4.8μm/1.5~5.2μm -10~1200℃（extended to 2000℃）
LWIR Thermal Imaging Camera 384*288/640*480/640*512 8~14μm -20~650 ℃
High-temperature range：350~1600℃
Cooling LWIR Thermal Imaging Camera 640*512 7.7~9.5μm -10~1200℃（extended to 2000℃）
Macro Infrared Thermal Imaging Camera 384*288/640*512 8~14μm Normal temperature range：-20~200℃
Medium temperature range：150~650℃




Sale Guide
If you need our technical team for guidance on product selection or customization,please help to provide below technical information, it helps to speed up the process.
Items Detail Unit Remark
 What is your application scenario?      Power inspection, monitoring the operating status of high-temperature   equipment,  fire early warning, etc
 What is the required spectral response   range?      SW/MW/LWIR
 What is the temperature range you need to  measure?   ℃  eg: -20~500℃
 What is the required resolution?      384*288/640*480/640*512/1280*1024, etc. For specific resolutions, please refer   to the detail page
 What is the required thermal sensitivity   (NETD) ?   mK  NETD represents the instrument's ability to detect minute temperature   differences. A NETD<50mK indicates that a temperature difference of 0.05℃ can   be identified, and it is suitable for the detection of precision electronic instruments
 What are the requirements for the focusing   function?      Manual or automatic, manual focusing is suitable for fixed distance measurement   in simple scenes. Autofocus is suitable for rapid scanning in complex scenes
 What is the motion state of the measured  object?      Whether stationary or moving, the moving target requires a high frame rate to   avoid image trailing
 Lens options?      Telephoto, macro and other lenses are available for selection
 Selection suggestions      If high-temperature targets need to be measured or high precision is required, it   is recommended to give priority to shortwave measurement. For medium-   temperature targets or those with anti-interference requirements, medium-wave   should be selected.If it is a normal-temperature target and all-weather detection   is required, long-wave detection should be given priority.
 What's the difference between an infrared   pyrometer and an infrared thermal imager?      Infrared pyrometers can only measure the temperature at a single point. By   detecting the infrared radiation energy at a certain point on the surface of an   object, it is converted into a temperature value through an algorithm, and the   measurement result is directly presented in digital form.
 Infrared thermal imagers can measure surface temperature and generate a   thermal map of the temperature distribution on the surface of the object being   measured. They scan the infrared radiation energy at each point on the object to     form a two-dimensional thermal image, with each pixel corresponding to a   temperature value. The measurement results are presented.as pseudo-color or   grayscale images and superimposed with temperature data.
 What's the difference between an infrared   thermal imager and an infrared camera?      Infrared thermal imagers receive the infrared radiation emitted by objects through   infrared detectors and generate thermal images of the temperature distribution on   the surface of the reflected objects, which can be displayed intuitively.The   temperature distribution on the surface of an object cannot present the detailed   features of the object; only the thermal profile of the object can be seen.
 Infrared cameras are divided into passive infrared cameras and active infrared   cameras. The images they output are similar to those taken by ordinary cameras.   With the appearance and infrared features of black and white or color images, they   can present the general shape, outline and some detailed information of objects.
