Near-infrared region II (1000 - 1700 nm) optical imaging has great potential in the field of tumor diagnosis due to its advantages of extremely low tissue autofluorescence, low light absorption and scattering, high tissue penetration depth, high resolution and high signal-to-noise ratio.

Chroma NIR filters use an advanced magnetron sputtering coating process with high transmittance, high cut-off depth, and high spectral steepness to provide the best signal-to-noise ratio for NIR imaging.

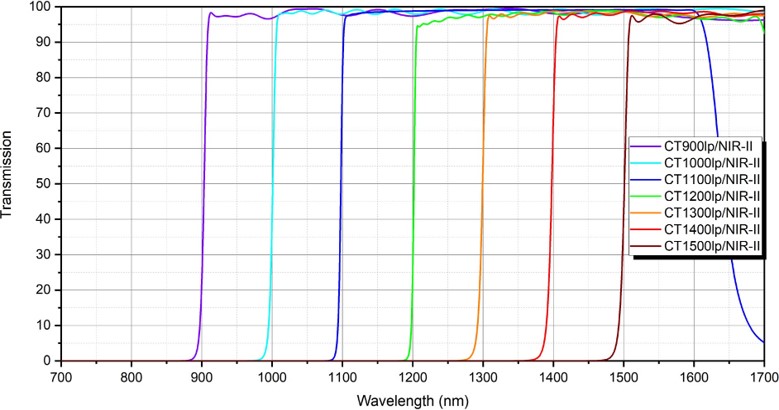

Near-infrared long-pass filters

Near-infrared Filters

Filter model	Transmittance	Cut-off depth
CT900lp/NIR-II	> 90% avg @ 915 - 1700 nm	>/= OD5 abs @ 785, 808 nm (0 deg AOI)
		>/= OD2 abs @ 785, 808 nm (45 deg AOI, by design)
CT1000lp/NIR-II	> 90% avg @ 1010 - 1700 nm	>/= OD5 abs @ 785, 808 nm (0 deg AOI)
		>/= OD3 abs @ 785, 808 nm (45 deg AOI, by design)
CT1100lp/NIR-II	> 90% avg @ 1110 - 1600 nm	>/= OD5 abs @ 785, 808, 980 nm (0 deg AOI)
		>/= OD2 abs @ 785, 808, 980 nm (45 deg AOI, by design)
CT1200lp/NIR-II	> 90% avg @ 1210 - 1700 nm	>/= OD5 abs @ 785, 808, 980, 1064 nm (0 deg AOI)
		>/= OD3 abs @ 785, 808, 980, 1064 nm (45 deg AOI, by design)
CT1300lp/NIR-II	> 90% avg @ 1310 - 1700 nm	>/= OD5 abs @ 785, 808, 980, 1064 nm (0 deg AOI)
		>/= OD3 abs @ 785, 808, 980, 1064 nm (45 deg AOI, by design)
CT1400lp/NIR-II	> 90% avg @ 1410 - 1700 nm	>/= OD5 abs @ 785, 808, 980, 1064 nm (0 deg AOI)
		>/= OD3 abs @ 785, 808, 980, 1064 nm (45 deg AOI, by design)
CT1500lp/NIR-II	> 90% avg @ 1510 - 1700 nm	>/= OD5 abs @ 785, 808, 980, 1064 nm (0 deg AOI)
		>/= OD3 abs @ 785, 808, 980, 1064 nm (45 deg AOI, by design)

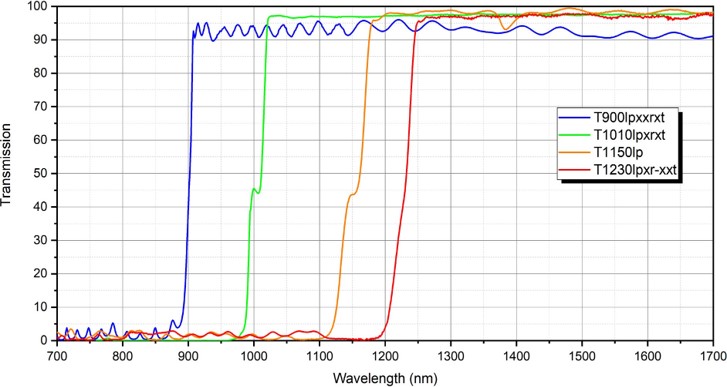

Near-infrared dichroic mirrors

Filter model	Transmittance	Reflectance
T900lpxxrxt	>/= 90% avg @ 910 - 1700 nm	>/= 90% avg @ 450 - 890 nm
T1010lpxrxt	>/= 90% avg @ 1025 - 1700 nm	>/= 95% avg @ 770 - 985 nm
T1150lp	>/= 95% avg @ 1200 - 1700 nm	>/= 95% avg @ 720 - 1100 nm
T1230lpxr-xxt	>/= 93% avg @ 1250 - 1700 nm	>/= 95% avg @ 680 - 1200 nm

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
T412lpxt Dichroic beamsplitters (mirrors),Wavelength (CWL): 412 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
AT415DC Dichroic beamsplitters (mirrors),Wavelength (CWL): 415 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$175.00
AT440DC Dichroic beamsplitters (mirrors),Wavelength (CWL): 440 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$175.00
T510lpxrxt Dichroic beamsplitters (mirrors),Wavelength (CWL): 510 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$300.00
T525lpxr Dichroic beamsplitters (mirrors),Wavelength (CWL): 525 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T550lpxr Dichroic beamsplitters (mirrors),Wavelength (CWL): 550nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T560lpxr Dichroic beamsplitters (mirrors),Wavelength (CWL): 560 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T562lpxr Dichroic beamsplitters (mirrors),Wavelength (CWL):562 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T570lp Dichroic beamsplitters (mirrors),Wavelength (CWL): 570 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T570lpxr Dichroic beamsplitters (mirrors),Wavelength (CWL): 570 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T585lpxr Dichroic beamsplitters (mirrors),Wavelength (CWL): 585 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T588lpxr Dichroic beamsplitters (mirrors),Wavelength (CWL): 588 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T590lpxr Dichroic beamsplitters (mirrors),Wavelength (CWL): 590 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T635lpxr Dichroic beamsplitters (mirrors),Wavelength (CWL): 635 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T425lpxr Dichroic beamsplitters (mirrors),Wavelength (CWL): 425 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T455lp Dichroic beamsplitters (mirrors),Wavelength (CWL): 455 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
AT505DC Dichroic beamsplitters (mirrors),Wavelength (CWL): 505 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$175.00
T515lp Dichroic beamsplitters (mirrors),Wavelength (CWL): 515 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
T565lpxr Dichroic beamsplitters (mirrors),Wavelength (CWL): 565 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$250.00
AT600DC Dichroic beamsplitters (mirrors),Wavelength (CWL): 600 nm,Type :BS,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$175.00
