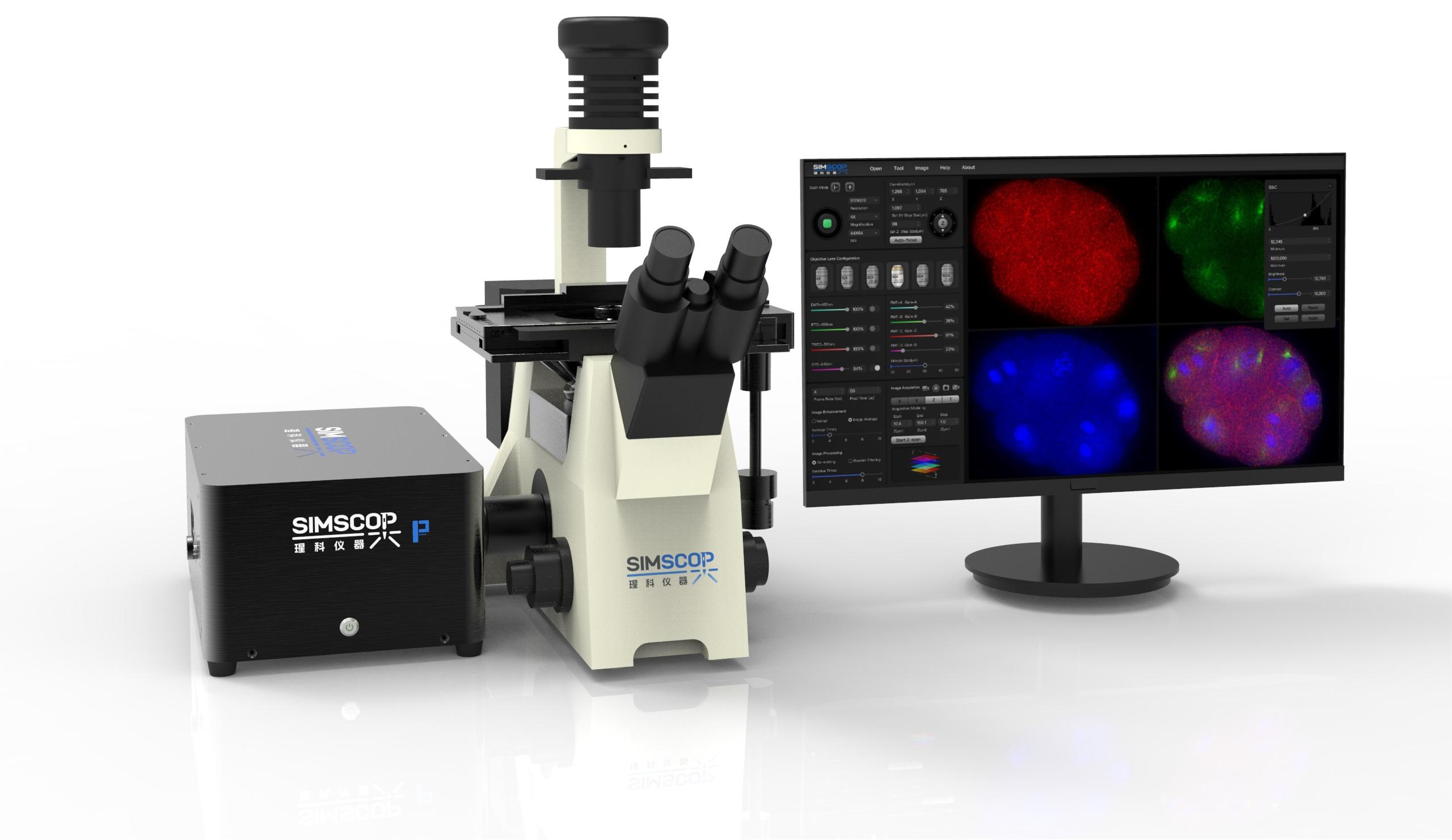

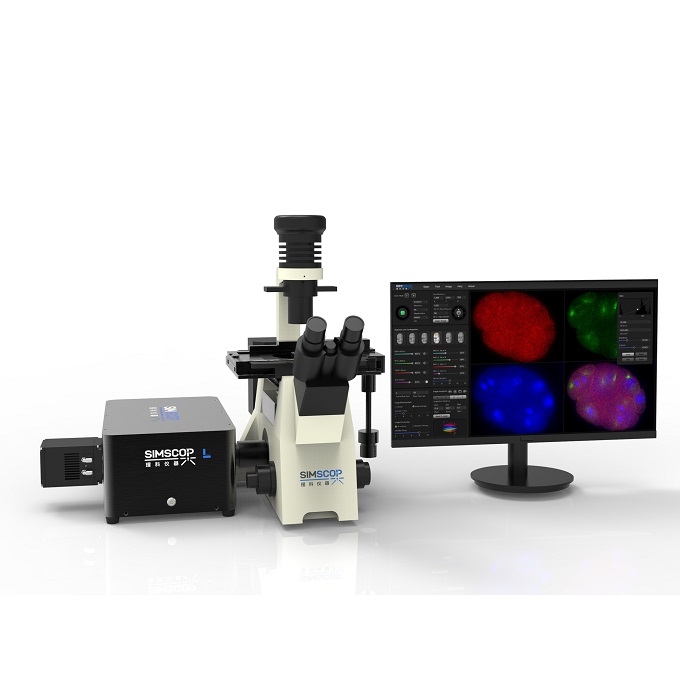

It’s a pleasure to have your support for SIMTRUM. We are pleased to announce that we have launched our first Laser Scanning Confocal Microscope – The SIMSCOP Series.
Confocal Microscopy is an optical imaging technique for increasing the Optical Resolution and Contrast of a Micrograph by using a Spatial Pinhole to block out-of-focus in image formation. This technology is widely adopted in scientific and industrial, for life science, material, or semiconductor inspection. We see the needs of the customer to have a robust confocal microscope system at a reasonable cost. Our SIMSCOP Series offers and outstanding balance between functionality, price, and flexibility.
 |
The SIMSCOP Series Key Advantage-:
● Professional software UI with great features for imaging analysis
● Single or Multi laser channel, laser power control accuracy up to 0.01%
● Silicon PMT detector enabling higher photon dynamic range and less noise
● Support high-speed scanning: 30fps@512x512 Pixels (resonant scanner)
● Compact Modular design, able to adapt to most microscope system
● Multiple upgrade options for future capability expansion with low cost
Click here for more info.
|
| General Specifications
Laser Light Source -
405 nm (20 mW ); 488 nm (20 mW );
561 nm (20 mW ); 640 nm (20 mW );
Analog /TTL level modulation ,
intensity adjustable (0-100%);
Single-mode fiber , FC/APC connector.
Scan Module -
Dual-axis XY high-speed optical scanning galvanometer
Field of view 15mm X 15mm,
scanning pixels 512 x 512 ~ 4096 x 4096
Pixel time 0.5 μs -100 μs ,
standard scan speed: up to 4fps ( 512 x 512)
Scan Mode - XY, XYT, XYZ, XYZT
Pinhole Choice - Diameter: 10/20/30/40/50um
|

|
Furthermore, the SIMSCOP Seriex is scalable, providing a low-cost way to expand capabilities in the future.
 |
Upgrade to Confocal Raman Microscope
● 532,785,1064 Raman
● Upright Microscope setup
● High Resolution with Raman image mapping
|
 |
Upgrade to Confocal Spectral Microscope (Near IR I/II Confocal)
● Wavelength Range UV to NIR (200nm-2.5nm)
● Spectral resolution up to 0.2nm
● Large NA setup for high-sensitivity application
|
 |
Upgrade to High-Speed Lines Scan Confocal Microscope
● Frame Rate 210fps
● Resolution: 150 nm over the optical diffraction limit
● Imaging Depth of 500 to 1000 microns
● Image Contract enhancement 20-30 dB
|
 |
Upgrade to Terahertz Confocal Microscope System
● 100GHz, output power: 80mW
● Spatial resolution 150-200um
|
|
Upgrade to Super Resolution Re-scan Confocal Microscope (RCM) |
Additionally, we have updated the SIMTRUM Product Line Card, which can be found Here.
We have custom solutions available for Microscopy solutions | Spectroscopy solutions, to learn more about SIMTRUM's own products, click Here.
Please feel free to Contact Us for any requirements or inquiries.
