Universal Analog Driver/Controller

Overview BLS-Series High-Current BLS-Series High-Speed SLA/SLB-Series Order Now!

BLS_Series High Current

BLS-13000-1E and BLS-18000-1 LED controllers are designed for driving Mightex Type-H Super High Power LED Sources. The controllers have two operation modes:

Manual Mode: the output current can be controlled by manually turning the knobs; or
Trigger Mode: the output current can be controlled via an external analog input signal between 0-5V.

The control mode is selected with a slide switch on the front panel, and the factory default is “Manual” mode. BLS-13000-1E and BLS-18000-1 have a maximum current setting of 13,000mA and 18,000mA, respectively.

When the controller is set to “Trigger” mode, the output current is fully controlled by the input analog signal (0-5V).

Features:

· Dual Control Modes: manual or analogue voltage- input controlled

· High output current- up to 18A

· BNC connectors for analogue voltage inputs

· Simple, tool-free connectors

· Capable of driving variable loads

Applications:

· Optogenetics

· Fluorescence excitation

· Microscopy

· Testing instruments

· Medical instruments

BLS-Series High Speed

BLS-1000-2 and BLS-3000-2 LED controllers are designed for driving LED sources. The controllers have two operation modes:

Manual Mode: the output current can be controlled by manually turning the knobs; or
Trigger Mode: the output current can be controlled via an external analogue input signal between 0-5V.

The control mode is selected with a slide switch on the front panel, and the factory default is “Manual” mode. BLS-1000-2 and BLS-3000-2 provide Maximum Current Selection DIP switches on the rear panel, which allow the user to set the maximum output current of the channel to 500/750/1,000mA for BLS-1000-2, and 1,000/2,000/3,000mA for BLS-3000-2, respectively. The factory default is set to 500mA for BLS-1000-2 and 1,000mA for BLS-3000-2, respectively.

Features:

· Dual Control Modes: manual or analogue voltage- input controlled

· High modulation speed- up to 100kHz

· BNC connectors for analogue voltage inputs

· Simple, tool-free connectors

· Capable of driving variable loads

Applications:

· Optogenetics

· Fluorescence excitation

· Microscopy

· Testing instruments

· Medical instruments

SLA-Series / SLB-Series

SLA-series two-channel universal LED drivers are designed to drive a broad range of LED light sources. These LED drivers have two control modes:

Manual Knob Control Mode: the current output of each channel can be adjusted manually
Analog Input Control Mode: the current output of each channel can be controlled via 0~5V analogue input.

The control mode is set via a DIP switch, and the factory default setting is “Manual Knob Control Mode”. The drivers also have a Maximum Current Setting DIP Switch, which allows user to set the maximum current to different levels, to prevent LED damage due to overdriving. The factory default setting is 30mA for SLA-0100-2, and 350mA for both SLA-1000-2 and SLA-1200-2. When the Maximum Current Setting DIP Switch is set at a smaller value (e.g.350mA), the LED driver has a finer resolution for the output current.

Features:

· Dual Control Modes: manual or analogue voltage- input

· Universal - suitable for any LED

· Tiered maximum output current settings to prevent overdrive

· Capable of driving variable loads

Applications:

· Microscopy

· Lighting

· Machine vision

· Displays

· Semiconductor equipment

· Testing instruments

· Medical instruments

Product Brochure: BLS-Series High-Current

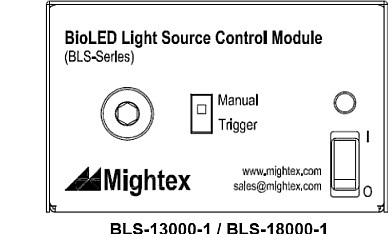

Front and rear panels:

The front and rear panel has a power switch and a power indicator. Each channel has its own slide switch (for selecting Manual or Trigger mode) and a turning knob (for adjusting output current).

The Rear Panel has a DC input plug. LED+ and LED- connectors for LED power. A BNC connector for external trigger/analogue voltage signal. 12V DC output (2-pin Aero connector) for the LED cooling fan.

Specifications

Parameters	Model Number			Unit
Parameters	BLS-13000-1*	BLS-13000-1E	BLS-18000-1
Power Supply Input Voltage (DC), Vdc	48	12	12	V
Power Supply Input Current (DC)	< 2.5A	13.75A	13.75A
Channel Driving Voltage (Max)	5.5	7.5	7.5	V
Current Accuracy	±3%			mA
Output Driving Current Range	0 ~ 13,000	0 ~ 13,000	0 ~ 18,000	mA
Channel Output Power Limit	< 72	< 95	< 135	W
Channel Frequency Response	< 3	< 3	< 3	KHz
External Analog Input	0 ~ 5**			V

Mechanical Specifications:

Dimensions: 221mm (L) x 156mm (W) x 96mm (H)
Weight: 1300g

Product Brochure: BLS_Series High-Speed

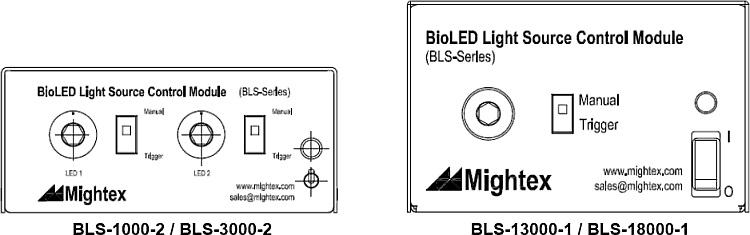

Front and rear panels:

The front and rear panel has a power switch and a power indicator. Each channel has its own slide switch (for selecting Manual or Trigger mode) and a turning knob (for adjusting output current).

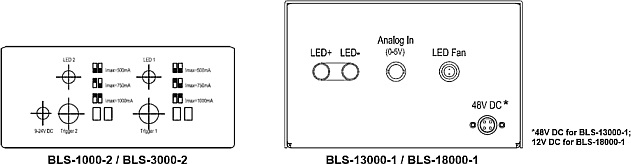

The Rear Panel has a DC input plug. Each channel has a BNC connector for external trigger/analogue voltage signal, a two-pin LED aero connector. For BLS-1000-2 and BLS-3000-2 only, each channel has a pair of DIP switches to set maximum current.

Specifications

Parameters	Model Number		Unit
Parameters	BLS-1000-2	BLS-3000-2
Power Supply Input Voltage (DC), Vdc	9 ~ 12*	9	V
Power Supply Input Current (DC)	> total/combined channel currents**		mA
Channel Driving Voltage (Max)	Vdc - 4.5	Vdc - 4.5	V
Current Accuracy	±3%		mA
Output Driving Current Range	0 ~ 1,000	0 ~ 3,000	mA
Channel Output Power Limit	< 20	< 15	W
Channel Frequency Response	< 100	< 50	KHz
External Analog Input	0 ~ 5***		V

Mechanical Specifications:

Dimensions: 221mm (L) X 156mm (W) X 96mm (H)

Weight: 1300g

Product Brochure: SLA Series Specifications

Parameters	SLA-0100-2	SLA-1000-2	SLA-1200-2	Unit
Number of Channels	2	2	2
Power Supply Input Voltage (Vdc)	9 ~ 24	9 ~ 24	9 ~ 24	V
Maximum Output Voltage (Vmax ) 1	< 21	< 21	< 21	V
Maximum Per Channel Output Current (Imax ) 2	100	1000	1200	mA
Maximum Per Channel Output Power (Pmax ) 3	2	10	10	W
Max Modulation Frequency	50	1	1	KHz
Tiered Max. Current Settings	30, 50 and 100	350, 500 and 1,000	350, 750 and 1,200	mA

1. Maximum Output Voltage is 3V less than the Power Supply Input Voltage, i.e. Vmax = Vdc – 3V. For instance, with a Power Supply Input Voltage of Vdc= 24V, the Maximum Output Voltage Vmax would be (Vdc- 3V) = 21V; and
2. If the channel output voltage is Vd and the output current is Id, they must simultaneously satisfy: (1) Vd <= Vmax ; (2) Id <= Imax; and (3) Vd * Id <= Pmax.
3. With both switches flipped on top, Imax is 1,200mA for SLA-1200-2, 1,000mA for SLA-1000-2 and 100mA for SLA-0100-2. With both switches flipped bottom, Imax is 30mA for SLA-0100-2, and 350mA for both SLA-1200-2 and SLA-1000-2. With one switch flipped on top and the other at bottom Imax is 50mA for SLA-0100-2, 500mA for SLA-1000-2 and 750mA for SLA-1200-2.

Channel I/O pin definition

Each channel has four pins, defined as follows:

Pin Label	LED+	LED-	Analog Signal	Analog Input GND
Description	LED Anode	LED Cathode	0~5V Analog Input	Analog Input Ground

Mechanical Specifications:

Dimension: 80mm (L) x 64.3mm (W) x 23.7mm (H) Weight: 60g

Product Brochure: SLB Series Specifications

Parameter	SLB-1200-1	Unit
Number of Channels	1
Power Supply Input Voltage (Vdc )	9 ~ 24	V
Maximum Output Voltage (Vmax)	Vdc – 3	V
Maximum Per Channel Output Current (Imax)*	1200	mA
Maximum Per Channel Output Power (Pmax)**	10	W
* The maximum output current can be set to 1200, 750 or 350 mA using the DIP switch. ** If the channel output voltage is Vd and the output current is Id, they must simultaneously satisfy: (1) Vd <= Vmax ; (2) Id <= Imax; and (3) Vd * Id <= Pmax.

Channel I/O pin definition

Each channel has four pins, defined as follows:

Pin Label	LED+	LED-	Analog Signal	Analog Input GND
Description	LED Anode	LED Cathode	0~5V Analog Input	Analog Input Ground

Mechanical Specifications:

Dimension: 150mm (L) x 106mm (W) x 55mm (H) Weight: 250g
