DFB/FP Picosecond Laser (370-1550nm)

ID 3000 Series – Picosecond Lasers

The ID 3000 Series is a cost-effective solution offering high-quality picosecond-pulsed laser light under long-term and maintenance-free operation. Both free space and fibre-coupled versions are available to handle virtually any optical application. An ID 3000 Series laser can be used with IDQ single-photon detectors and Time Controller Series to enrich a range of high-speed and highsensitivity time-correlated single-photon counting (TCSPC) applications, from quantum photonics and quantum information, super-resolution microscopy, time-resolved spectroscopy, to the field-testing of optical fibres. Use the ID 3000 Series Picosecond Laser to enhance your experiments today.


These lasers are based on high-reliability semiconductor laser diodes operated in gain-switched mode, emitting laser pulses typically shorter than 30 ps across a broad segment of the electromagnetic spectrum (UV to telecom C-band, 375 nm to 1550 nm). Each ID 3000 laser source operates as a laser head working in tandem with a laser controller, where multiple laser heads can be interchanged with a single controller. The laser head is pre-tuned to a particular wavelength (see Table 1), and can be operated out-of-the-box within minutes through the controller’s user-friendly interface. The on-demand picosecond pulses of the laser head — combined with the ultra-low timing jitter of the ID3000’s laser controller — allow for unparalleled precision and control in your experimental setup within such a compact device

DFB/FP Picosecond Laser (370-1550nm) picture 1


Key features and Benefits:

- Optical pulses typically shorter than 30 ps (at least < 50 ps)

- Continuously tuneable repetition rate, from pulse- on-demand

  up to 40 MHz

- Ultra-low timing jitter < 4 ps rms

- Remote operation available via RS-232 or USB 2.0

  connection

- Maintenance-free 24/7 operation

- Free space or fibre-coupled laser emission

- In-stock models: 1550 nm and 1310 nm sources

- Available wavelengths: 375 nm to 1550 nm




New:

- Even shorter laser pulses, on demand

- Available in a range of wavelengths, from UV to the telecom C-band


Applications:

- QKD and quantum communication

- Quantum computing and quantum optics

- TCSPC, photoluminescence and spectroscopy

- Fluorescence Lifetime IMaging (FLIM)

- Single-photon detector characterization

- Optical Time Domain Reflectometry (OTDR)

- Light Detection And Ranging (LIDAR)

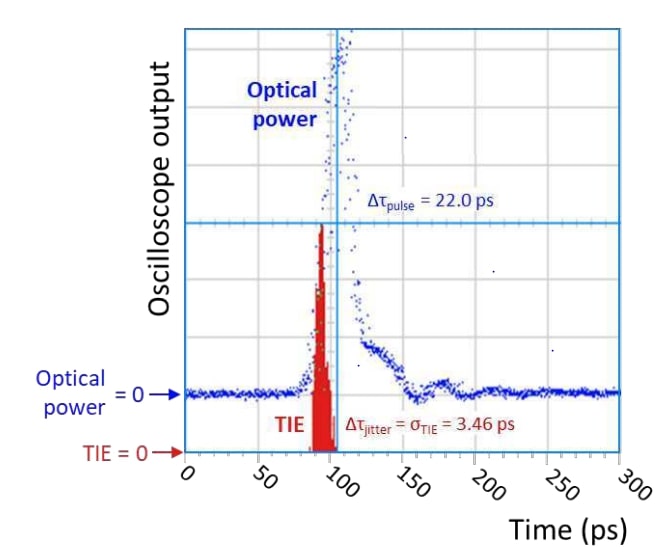

Ultra-Low Jitter

- The ID 3000’s timing jitter is ultra-low: typically lower than 4 ps

- This ultra-low measured jitter is only an upper limit of the timing jitter, as it

   includes jitter contributions from the measuring electronics

- Pulse-tuning mode minimizes the effects of after- pulsing


Versitile Design

- Pulse-on-demand operation up to

- 40 MHz Remote operation: you can control via RS-232 or

  USB 2.0 connection

- Robust design: functions maintenance-free under 24/7

  industrial operation


Ultrafast Laser Pulses

The gain-switched operation of the semiconductor laser diode allows

emission of ultrafast optical pulses from 20 to 110 ps pulse width with

ultra-low timing jitter.

DFB/FP Picosecond Laser (370-1550nm) picture 2



Laser Specifications

TypeOutputWavelengthSpectral widthPulse widthPeak powerAvg. power
DFBFC/APC1550 ± 10 nm375 ± 10 nm< 50 ps(a)> 20 mW> 0.02 mW
DFBFree space1550 ± 10 nm375 ± 10 nm< 50 ps(a)> 40 mW> 0.04 mW
DFBFC/APC1310 ± 10 nm375 ± 10 nm< 50 ps(a)> 20 mW> 0.02 mW
DFBFree space1310 ± 10 nm375 ± 10 nm< 50 ps(a)> 40 mW> 0.04 mW
FPFC/APC1060 ± 20 nm< 10 nm< 50 ps> 200 mW> 0.5 mW
FPFree space940 ± 20 nm< 10 nm< 50 ps> 80 mW> 0.2 mW
FPFC/APC940 ± 20 nm< 10 nm< 50 ps> 200 mW> 0.5 mW
FPFree space850 ± 15 nm< 7 nm< 50 ps> 80 mW> 0.2 mW
FPFC/APC850 ± 15 nm< 7 nm< 50 ps> 200 mW> 0.5 mW
FPFree space690 ± 15 nm< 7 nm< 50 ps> 80 mW> 0.2 mW
FPFC/APC690 ± 15 nm< 7 nm< 50 ps
> 200 mW> 0.6 mW
FPFree space665 ± 15 nm< 7 nm< 45 ps> 80 mW> 0.3 mW
FPFC/APC665 ± 15 nm< 7 nm< 45 ps> 200 mW> 0.6 mW
FPFree space635 ± 15 nm< 7 nm< 70 ps> 80 mW> 0.3 mW
FPFC/APC635 ± 15 nm< 7 nm< 70 ps> 200 mW> 0.8 mW
FPFree space510 ± 15 nm< 10 nm< 110 ps> 40 mW> 0.2 mW
FPFC/APC510 ± 15 nm< 10 nm< 110 ps> 100 mW> 0.6 mW
FPFree space480 ± 20 nm< 10 nm< 80 ps> 60 mW> 0.3 mW
FPFC/APC480 ± 20 nm< 10 nm< 80 ps> 150 mW> 0.8 mW
FPFree space440 ± 20 nm< 5 nm< 70 ps> 100 mW> 0.3 mW
FPFC/APC440 ± 20 nm< 5 nm< 70 ps> 250 mW> 0.7 mW
FPFree space405 ± 15 nm< 5 nm< 45 ps> 160 mW> 0.4 mW
FPFC/APC405 ± 15 nm< 5 nm< 45 ps> 400 mW> 1.0 mW
FPFree space375 ± 10 nm< 5 nm< 45 ps> 160 mW> 0.3 mW
FPFC/APC375 ± 10 nm< 5 nm< 45 ps> 400 mW> 0.6 mW



Product Brochure: ID 3000 Series Picosecond Lasers_Brochure


General Specifications


Optical
Pulse repetition rate (b)
Pulse-on-demand (0 Hz to 40 MHz)
Frequency resolution1 @ 50 Hz
Beam quality, TEMM2 < 1.2
Polarization extinction ratio> 20 dB (unpolarized fibre)
Timing jitter, rms< 4 ps
Mechanical/Electrical/Environmental
Laser outputFree-space or single-mode fibre
Output fibre length1 m FC/APC
Warm-up time< 10 minutes
Operation temperature15 – 35 °C
Storage temperature-15 – 60 °C
On/off cycles> 10,000
Lifetime> 10,000 hours
Power supply requirements12 VDC/3A or 100-264 VAC, 47-63 Hz
Power consumption< 30 W
Laser head dimensions (W x H x L)95 mm x 31 mm x 181 mm
Laser head weight0.45 kg
Control unit dimensions (W x H x L)326 mm x 88 mm x 235 mm
Control unit weight2.5 kg
Interface
Trigger in (b)TTL or ± 5 V @ 50 Ω (BNC)
Trigger in delayFree space: < 50 ns Fibre: < 60 ns
Trigger out (synchronization)+ 5 V @ 50 Ω (BNC)
Interlock2.5 mm mono TS (jack connector)
External communicationUSB 2.0 or RS-232



TypeAverage PowerPulse EnergyPulse wdith Rep Rate
515/532nm Picosecond Pulse Laser (<200mW)  1-200mW<20nj10-100ps15-100Mhz
532/1064 Duel Output Picosecond laser (<1W)  <1W
<15ps20-50Mhz
532/1064nm High Power Picosecond Laser (>2W) >2W / >5W>60uJ<10ps1Mhz
1030/1064 Picosecond Pulse Laser (<1W)  10-2000mW>1 nJ10-100ps15-100Mhz
1035nm High Power Picosecond Laser (>10W)  >30W / >10W>375nJ<10ps80Mhz
1550nm High Speed Ps laser (Pulse & CW)  Pulse 1.5mW
CW -48 to -13dBm

30ps1 - 1250Mhz
10Mhz
1560nm Picosecond Pulse Laser  1-120mW>1nJ1-100ps80Mhz
2000nm Picosecond Laser  >15mW>0.18nJ<10ps80Mhz
DFB/FP Picosecond Laser (370-1550nm)  >0.5mW
<50ps0-40Mhz
