Microscopic Hyperspectral Imager
Overview Specifications Light source accessories Related Products Order Now!
SIMTRUM'S HY-50 series microscopic hyperspectral imagers are integrated precision devices specially launched for microscopic measurement applications. The device combines an automatic push-broom hyperspectral system with a microscope. With the help of the optical path system of the microscope, it can realize the imaging spectrum acquisition of samples within the microscopic field of view without pushing and sweeping the samples. It can obtain high-spectral information while acquiring fine spatial images of samples. It will have extremely broad application prospects in various microscopic measurement application fields such as biomedicine, material analysis, life sciences, and evidence analysis.

Features
  • Enables high-magnification observation and hyperspectral imaging in combination with objectives of different magnifications
  • Equipped with a full-spectrum lighting source, it is universal for both transmission and reflection, meeting the requirements of high-spectrum professional lighting
  • Standard microscope interfaces and adapters enable connection with any trinocular microscope
  • Boasts high spatial and spectral resolutions
  • Eyepiece observation, visible-light camera, and hyperspectral share the same field of view, allowing clear observation of the measurement area for quick focusing, and simultaneous acquisition of visible-light photos and hyperspectral images, what you see is what you get



Applications

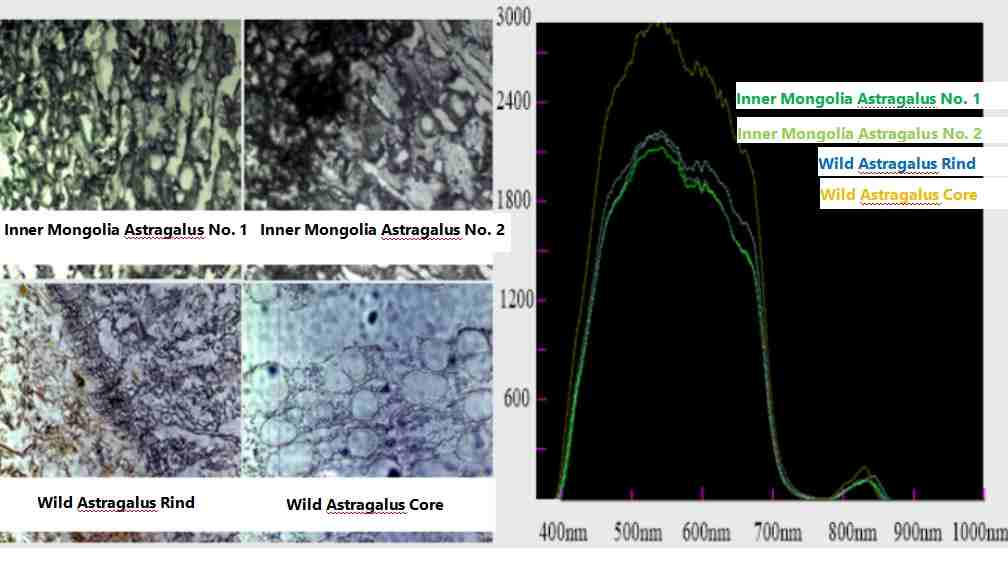

  • Life medicine: Cell classification, cancer tissue screening, drug research and development, pathological research
  • Biology: Bacterial and cellular analysis
  • Materials science: Microscopic detection and identification of materials
  • Forensic industry: Trace evidence and document examination
  • Electronics industry: Semiconductor detection, screen inspection, etc

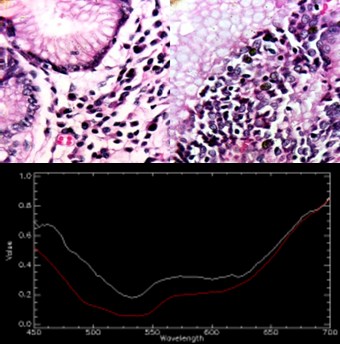

Pathological analysis and pathological research

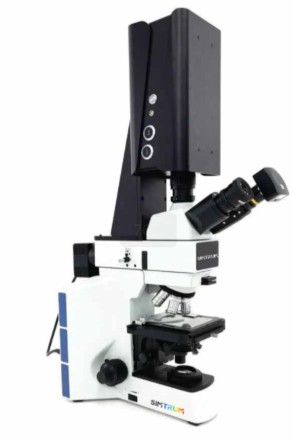

Physical Module

Module Name Function Description
1 Built - in Push - Broom Hyperspectral Imaging Module Realize automatic push - broom acquisition of hyperspectral data
2 High - Definition Camera Used to observe the focusing situation of samples within the microscopic field of view, and simultaneously acquire 5 - million - pixel high - definition images
3 Microscope According to the combination of different eyepieces and objectives, realize the function of magnifying samples at different magnifications
4 Halogen Light Source Provide full - spectrum illumination
5 Laptop Computer Realize data acquisition and storage of the equipment



Indicators LA-HY01-5010-U LA-HY01-5030-U
Spectral Range 400 - 1000 nm 900-1700 nm
Spectral Resolution Better than 2.8 nm Better than 6 nm
Spatial Resolution Better than 1 μm
Spatial Channels 480 640
Spectral Channels 300 512
Slit 25 μm 30 μm
Detector Type CMOS InGaAs(TE Cooled)
Detector Interface GigE/USB3.0 GigE
Frame Rate 50 fps/128 fps 140fps
Pixels 500 w 500w
Full Spectrum 12V/100W halogen lamp,
transmission/reflection universal
Host Upright metallurgical microscope Near-infrared microscope
Field of View Range 0.22 mm - 4.4 mm 1.92mm-0.192mm
（Varies with the magnification of the objective lens） （Varies with the magnification of the objective lens）
High - Eyepoint Wide - Field Flat - Field Eyepiece PL10×22 mm PL10×22mm
Objective Lens Flat - field infinite - conjugate long - working - distance achromatic metallurgical objective lens Planar semi-compound cancellation infrared objective lens
Double - layer Mechanical Stage 76 mm*42 mm 445mm*240mm

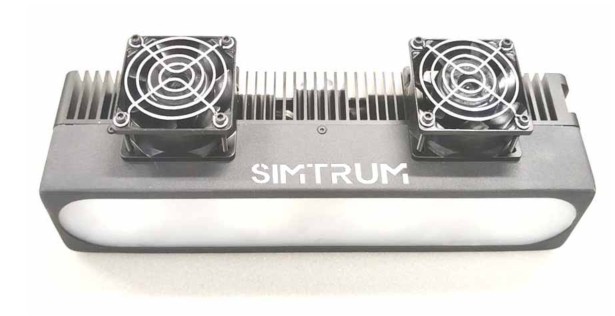

The HX-1130/HL-1150 standard light source is a bilateral halogen light source designed and manufactured based on the supplementary lighting requirements for hyperspectral imaging. Combined with hyperspectral cameras and relying on industry-leading hyperspectral technology, it can be widely applied in various fields such as education and scientific research, and industrial online detection.
Features
  • Wide spectral coverage of 350-2500 nm
  • High power stability, with illuminance fluctuation within 0.5%
  • High compatibility, voltage support 80~264 VAC/113~370 VDC, frequency support 47~63 Hz
  • High uniformity: When hung at a height of 70 cm, the uniformity of illuminance in the measurement area is over 90%



Specifications

Parameter LA-HY01-HL-1130 LA-HY01-HL-1150

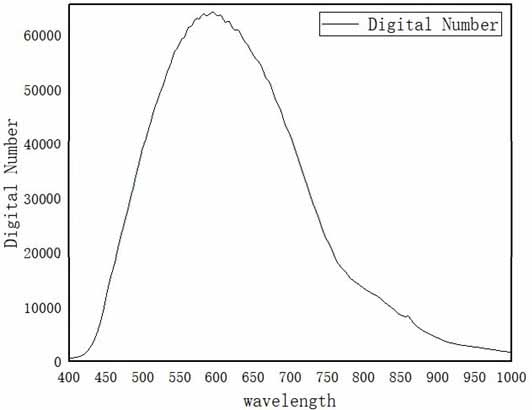

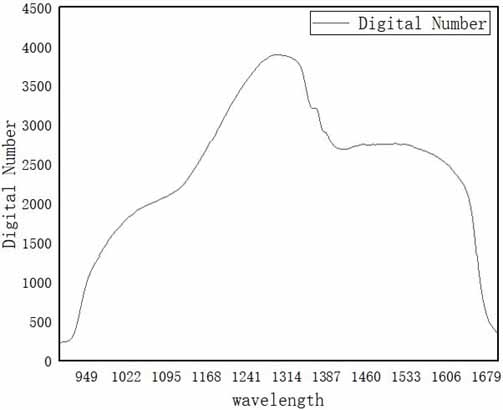

Spectral range 350-2500nm
Color temperature 3000K
Uniformity >90% >80%
Illumination area 35cm 55cm
Stability The 12-hour attenuation is less than 0.5%
Preheating time 1min
Input voltage 80~264 VAC 113~370 VDC
Frequency range 47~63 Hz
Efficiency 93%
Alternating current 6.4A/115VAC 3.2A/230VAC
Power consumption 280~500W
Operating temperature -20~50℃
Size 300mm*90mm*90mm 500mm*90mm*90mm
External control Independent switch
Switch life ≥100000次
Typical service life ≥4000H

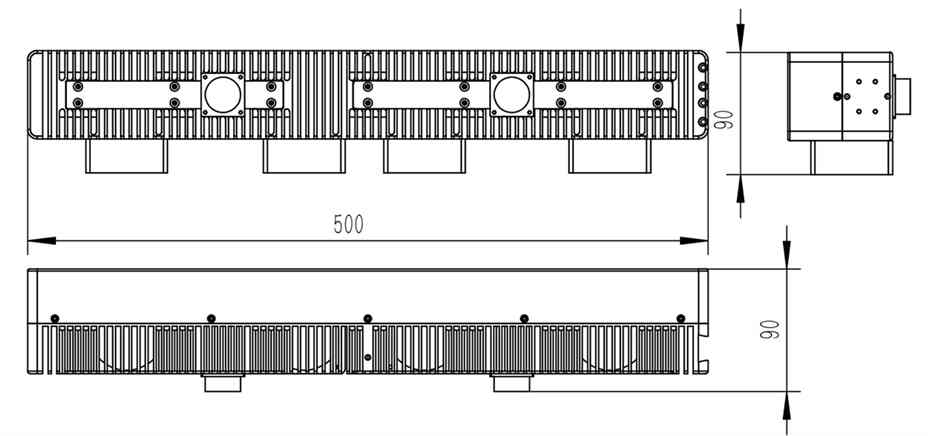

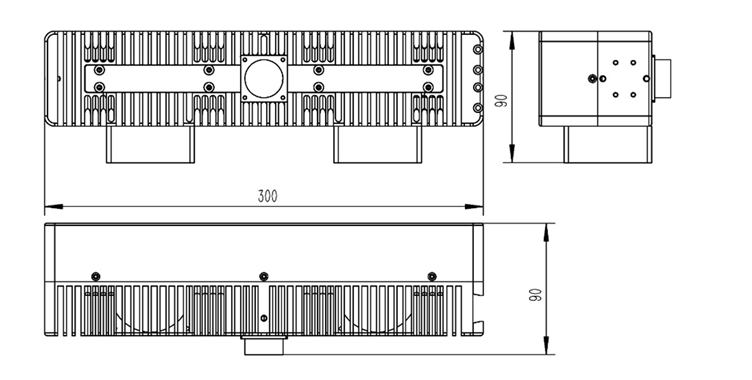

Dimension
LA-HY01-HL-1130

LA-HY01-HL-1150







Model Link
Line Scan Hyperspectral Camera https://www.simtrum.com/WebShop/ProductList5.aspx?pid=692
Snapshot Multispectral Camera https://www.simtrum.com/WebShop/ProductList5.aspx?pid=1964
Multispectral Imaging Systems https://www.simtrum.com/WebShop/ProductList5.aspx?pid=1966
Multispectral Camera for Microscope https://www.simtrum.com/WebShop/ProductList5.aspx?pid=1967
Multispectral Drone Cameras https://www.simtrum.com/WebShop/ProductList5.aspx?pid=1965

Technical Guide

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items Detail Remark
Application? Agriculture/Mining/Food safety/Industrial sorting/Environmental monitoring
What is the required spectral range? UV/VIS/NIR/MIR/LWIR
What spectral resolution is required? eg:2nm
What spatial resolution is required?
What is the size of the field of view? eg:18°
What is the motion state of the object being measured? Motion/static?
What is the required frame rate? Moving objects require a high frame rate; otherwise, there will be ghosting when shooting
What is the required data interface? USB /GigE port
Is a lighting source needed?



The core of hyperspectral imaging is to obtain the reflection information of the target object at different wavelengths. Under low-light conditions, an external light source is required for illumination. Meanwhile, external light source illumination can provide more uniform and stable light, avoiding the dark differences and spectral distortion of the image caused by uneven illumination. The lighting source can be selected as: halogen lamp /LED light source
Is a reflectance board needed?



The function of a reflectance board is to provide a calibration reference for hyperspectral data, ensuring the accuracy and traceability of spectral reflectance data.Since there are usually certain differences in reflectance measured by different devices and at different times, after calibration with a reflectance board, the spectral data of the same target collected by different cameras/times can be directly compared. That is: The function of the reflectance board is to enable the quantification of hyperspectral data.







We are here for you!





Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LA-HY01-5010-U
Spectral range: 400-1000nm； Spectral resolution: Better than 2.8nm； Number of spatial channels: 480； Number of spectral channels: 300； Frame rate: 128fps 		4-6周 $25330.00
LA-HY01-5030-U
Spectral range: 900-1700nm； Spectral resolution: Better than 6nm； Number of spatial channels: 640； Number of spectral channels: 512； Frame rate: 140fps 		4-6周 $58673.00

LA-HY01-5030-U - Parameter

LA-HY01-5010-U - Parameter

LA-HY01-5030-U - Download

LA-HY01-5010-U - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
