Near Infrared Single Photon Detector STRSPD-305

Products / Light Analysis /Photodetectors /Infrared Single Photon Detector(SPD) /NIR Single Photon Detector (900-1700) /
NIR Single Photon Detector (900-1700)
NIR Single Photon Detector Free-running NIR Single Photon Detector Gated Related Product Order Now!

NIR Single Photon Detector (900-1700)-STSPD-305 workin pulse gated mode. Extremely weak light detection module, SPAD based on InGaAs/InP process, can achieve single photon level.Optical pulse detection and counting, with high detection efficiency, low dark counting rate, low post-pulse probability and othercharacteristics point. The module is small and beautiful, with a simple and easy-touse interface. It uses the USB serial port as the host computer data.

The communication interface can also be used directly to detect the output pulse signal and be connected to the system or counter for use. Supports up to 100MHz external trigger frequency.







Features
• Modular type, compact and beautiful, stable performance
• Maximum 100MHz gate repetition frequency
• Gate control synchronization output interface
• Extremely low dark count rate and post-pulse probability
• Up to 4 devices can work in cascade



Application
• Quantum optics, quantum secure communication
• Quantum imaging, quantum entanglement
• Photon number calibration of pulse light source
• Laser ranging, lidar (LIDAR)
• Fluorescence spectroscopy, time-resolved single molecule measurements





Effective gate width(Gate width = 1ns)

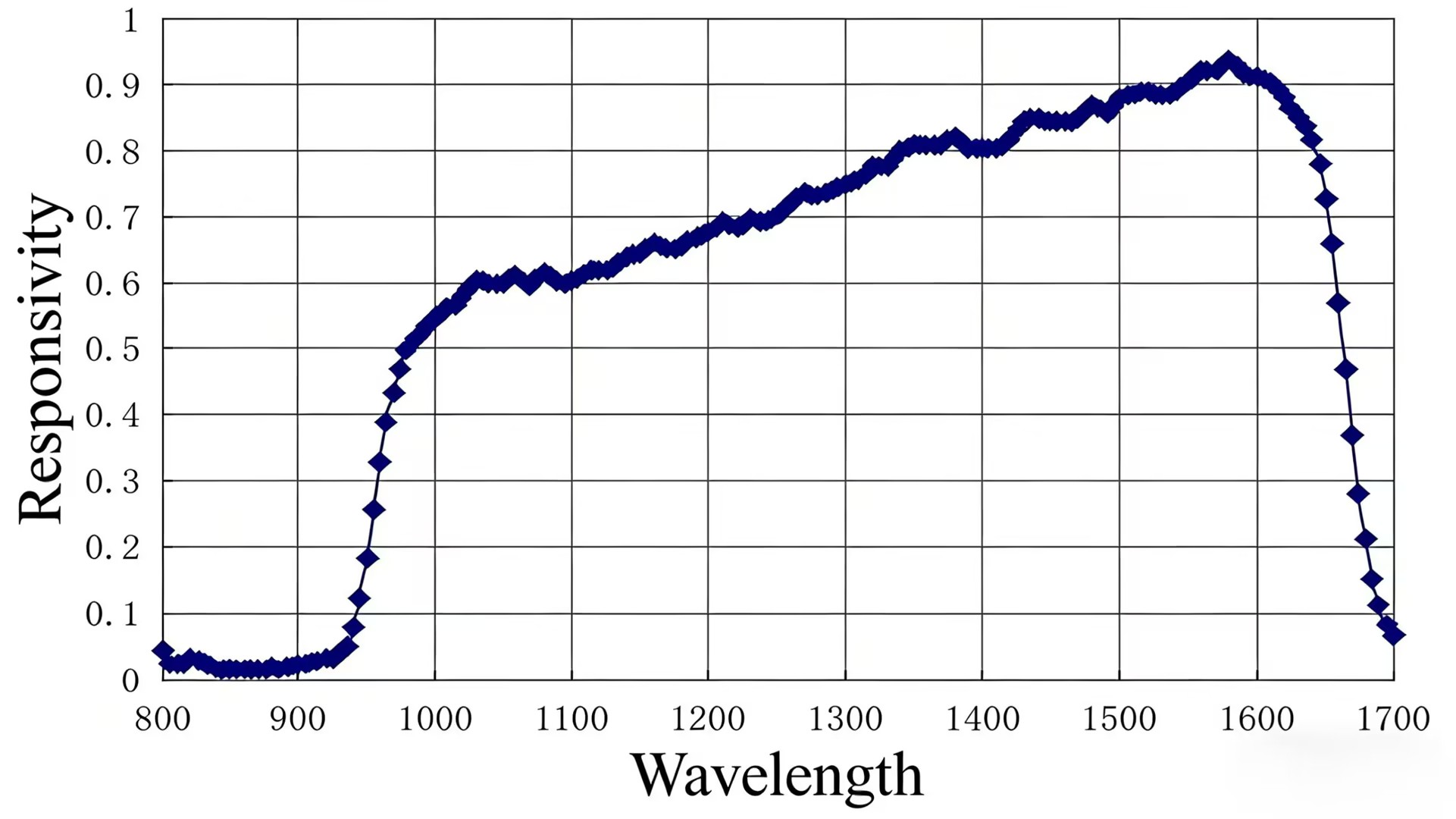

Detection efficiency vs gating frequency
(SPDE=10%, 20% @1550nm)


Dark count rate vs gate frequency
(SPDE=10%, 20% @1550nm)

Postpulse probability vs gating frequency
(SPDE=10%, 20% @1550nm)



Product Specifications and Brochures

Product Brochure Link:

Technical Parameters
 Detection Wavelength Range 900~1700nm
 Trigger Frequency Outside 0.1-100MHz
 Gate width 1ns type.
 Effective Detection Width[1]  230ps type.
 Single Photon Detectione Ficiency [2] 5%,10%,15%, 20% optional
 Dark Count Rate ≤2e-6/gate @10%SPDE
 Postpulse Probability ≤3% @10% SPDE
 Cooling Time ≤5min
Other Parameters
 Recommended Operating Temperature [3]  -10~40℃
 Extreme Operating Temperature [4] -20~45℃
 Voltage 11.5V~12.5VDC
 Power Dissipation Cooling maximum power consumption <36W
Stable maximum power consumption <15W
 Dimensions(WxDxH) 72.4 x 152x 57.5mm
 Net Weight 0.8Kg

Note:
[1]The detection count drops to half of the photon count peak corresponding to the gated to photon relative time width.
[2]Single photon detection efficiency calibrated at 1550nm wavelength at room temperature 25°C.
[3]SPAD cooling works normally, and the photon count fluctuation range does not exceed 20% of the calibrated value.
[4]SPAD cooling works normally, and the photon count fluctuation range does not exceed 50% of the calibrated value.

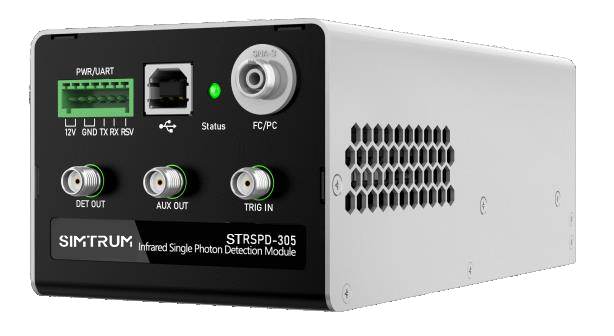

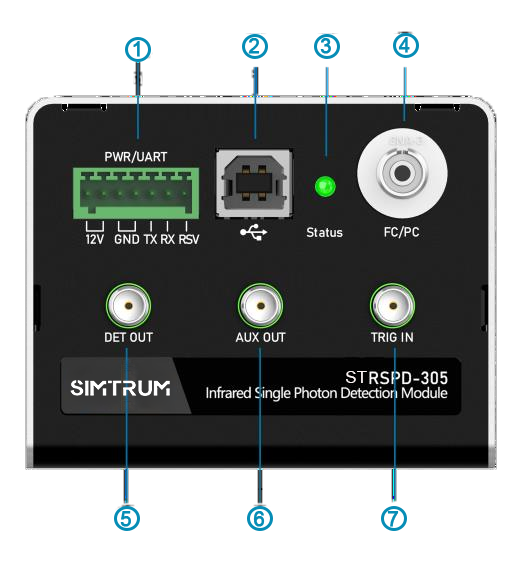

Interface Definition

• PWR/UART power supply and communication cascade interface
• USB USB host computer communication interface
• Status status indicator light, red - cooling, green - cooling completed
• FC/PC Detection fiber input interface,FC/PC
• DET OUT detection output interface, LVCMOS levely
• AUX OUT synchronization/auxiliary output interface, LVCMOS Levely
• TRIG IN external gate trigger input interface, AC coupling 50y, 0.1~3.3Vpp input

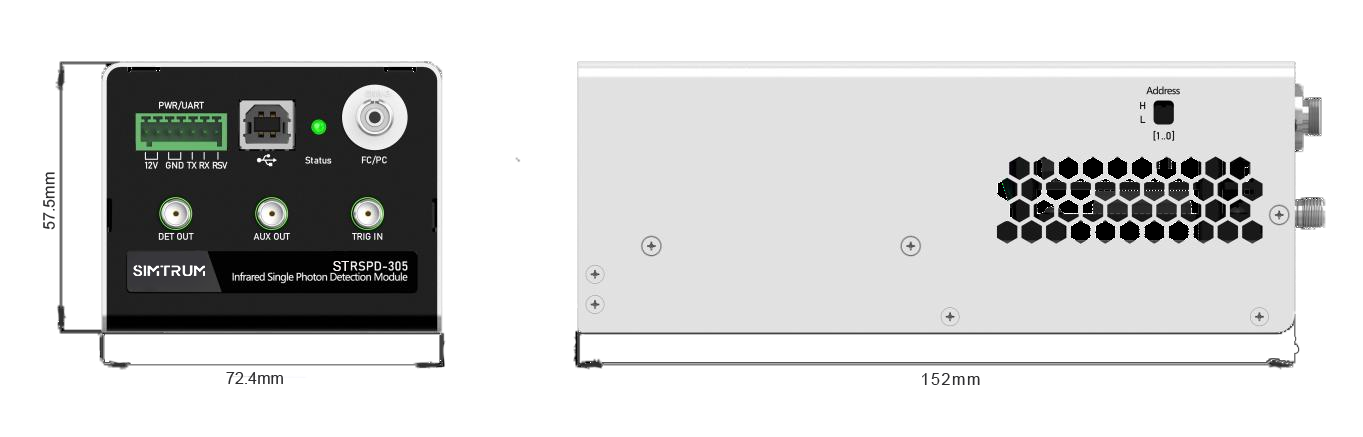

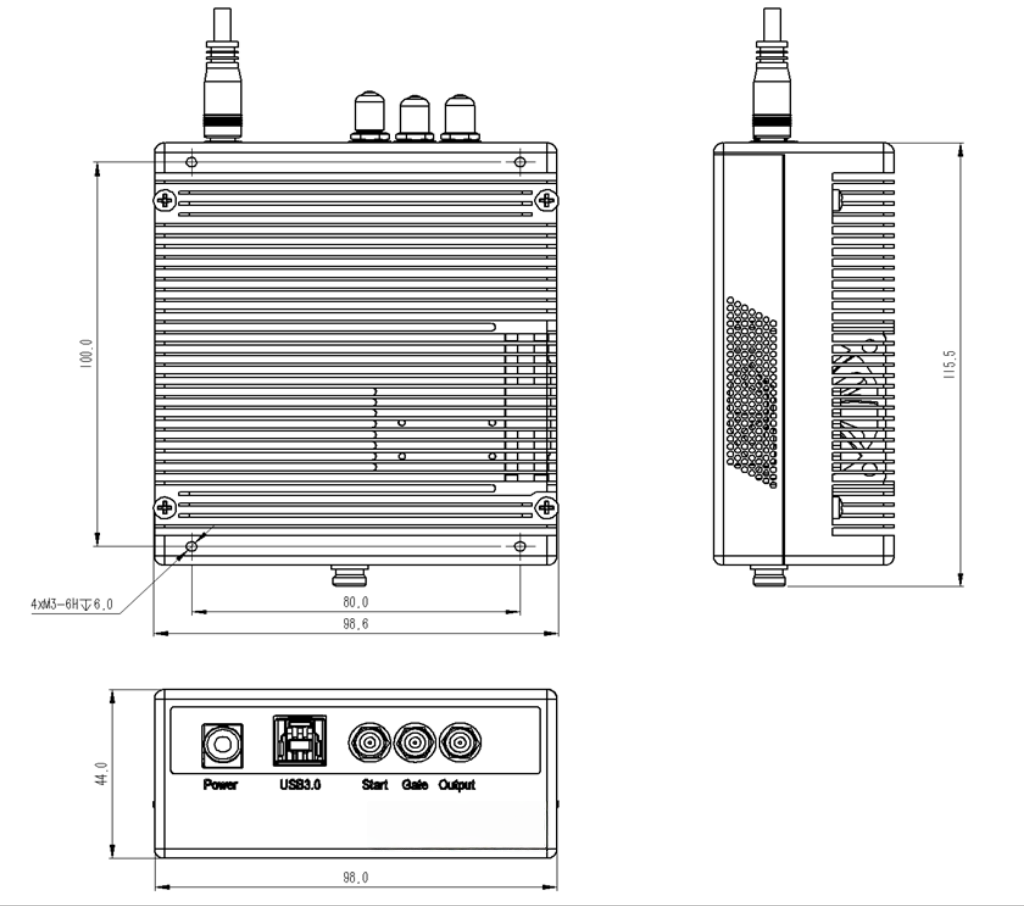

Product Size (unit: mm)

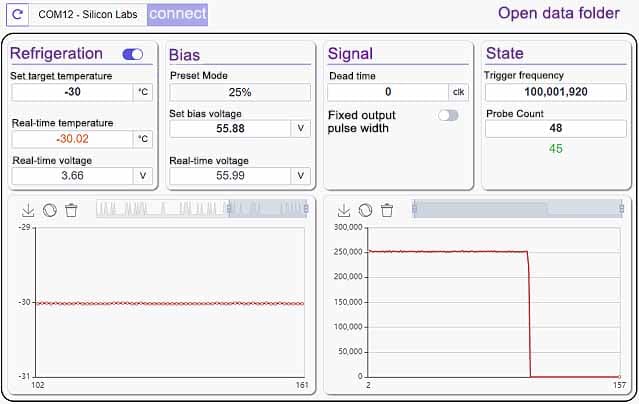

Software Interface

Ordering Information

STRSPD-305: Near-infrared single photon detector (module type)

All information given here is reliable to the best of our knowledge. However, no liability is assumed for possible errors or omissions. Specifications and appearance are subject to change without notice. Trademarks or company names are used for explanation and identification tothe benefit of the owner and do not constitute infringement.




NIR Single Photon Detector (900-1700)-STSPD-305 workin pulse gated mode. Extremely weak light detection module, SPAD based on InGaAs/InP process, can achieve single photon level.Optical pulse detection and counting, with high detection efficiency, low dark counting rate, low post-pulse probability and othercharacteristics point. The module is small and beautiful, with a simple and easy-touse interface. It uses the USB serial port as the host computer data.

The communication interface can also be used directly to detect the output pulse signal and be connected to the system or counter for use. Supports up to 100MHz external trigger frequency.







Features
• Modular type, compact and beautiful, stable performance
• Maximum 100MHz gate repetition frequency
• Gate control synchronization output interface
• Extremely low dark count rate and post-pulse probability
• Up to 4 devices can work in cascade



Application
• Quantum optics, quantum secure communication
• Quantum imaging, quantum entanglement
• Photon number calibration of pulse light source
• Laser ranging, lidar (LIDAR)
• Fluorescence spectroscopy, time-resolved single molecule measurements

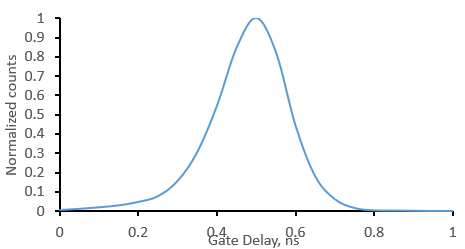

Effective gate width(Gate width = 1ns)

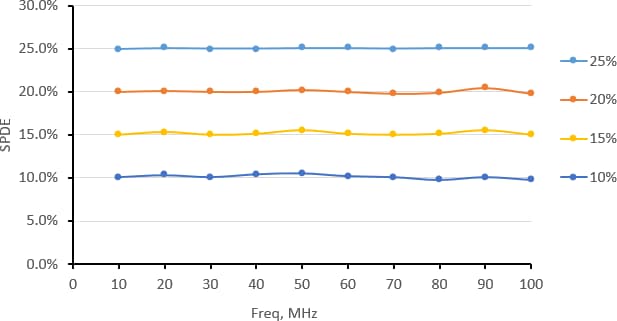

Detection efficiency vs Gating frequency
(SPDE=10%,15%,20%,25%  @1550nm)

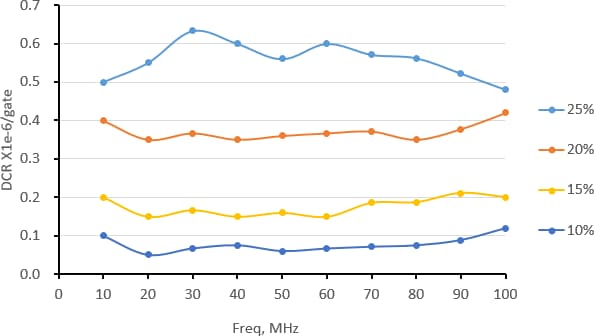

Dark count rate vs Gate frequency
(SPDE=10%,15%,20%,25% @1550nm，ULN)

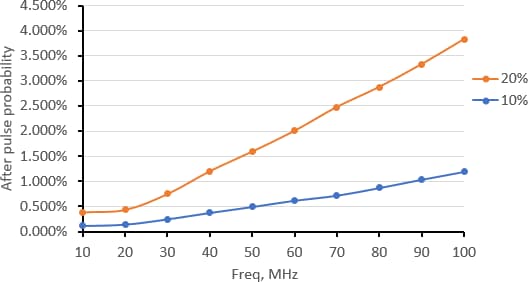

Postpulse probability vs gating frequency
(SPDE=10%, 20% @1550nm)



Product Specifications and Brochures

Product Brochure Link:

Technical Parameters
 Detection Wavelength Range 900~1700nm
 Trigger Frequency Outside 1-100MHz
 Gate width 1ns type.
 Effective Detection Width[1]  170ps type.
 Single Photon Detectione Ficiency [2]

10% 15% 20%(default) 25% (±1%)

(30% per request)
 Dark Count Rate

STD: ≤ 6.0e-6/gate @ 20%SPDE

ULN: ≤ 0.5e-6/gate @ 20%SPDE
 Postpulse Probability@50MHz

≤ 1% @10%SPDE

≤ 2% @20%SPDE

≤ 5% @25%SPDE
 Cooling Time ≤5min
Other Parameters
 Recommended Operating Temperature [3]  -10~35℃
 Extreme Operating Temperature [4] -15~40℃
 Voltage 11.5V~12.5VDC
 Power Dissipation Cooling maximum power consumption <36W
Stable maximum power consumption <15W
 Dimensions(WxDxH) 72.4 x 152x 57.5mm
 Net Weight 0.95Kg

Note:
[1]The detection count drops to half of the photon count peak corresponding to the gated to photon relative time width.
[2]Single photon detection efficiency calibrated at 1550nm wavelength at room temperature 25°C.
[3]SPAD cooling works normally, and the photon count fluctuation range does not exceed 20% of the calibrated value.
[4]SPAD cooling works normally, and the photon count fluctuation range does not exceed 50% of the calibrated value.

Interface Definition

• PWR/UART power supply and communication cascade interface
• USB USB host computer communication interface
• Status status indicator light, red - cooling, green - cooling completed
• FC/PC Detection fiber input interface,FC/PC
• DET OUT detection output interface, LVCMOS levely
• AUX OUT synchronization/auxiliary output interface, LVCMOS Levely
• TRIG IN external gate trigger input interface, AC coupling 50y, 0.1~3.3Vpp input

Product Size (unit: mm)

Software Interface

Ordering Information

STRSPD-305-STD: Near-infrared single photon detector (Standard)

STRSPD-305-ULN: Near-infrared single photon detector (Low noise)

All information given here is reliable to the best of our knowledge. However, no liability is assumed for possible errors or omissions. Specifications and appearance are subject to change without notice. Trademarks or company names are used for explanation and identification tothe benefit of the owner and do not constitute infringement.




Infrared Single Photon Detector(SPD)

Model Wavelength Range Jitter  QE  Dark Count Rate
NIR Single Photon Detector (Dual Channels)
 900-1700nm <100ps    ≤2e-6/gate @10% SPDE
Super Conducting Nanowire System 780 - 1625nm 20- 40ps >80% over min 100nm <1Hz  to <100Hz
NIR Single Photon Detector (900-1700) 900 - 1700nm   10%, 20% @1550nm ≤2e-6/gate @10% SPDE
NIR Single Photon Detector Free Running/Gated 900 - 1700nm <150ps
 up to 35% 0.8 to 6 Khz

NIR Single Photon Detector Low Dark Count

 900 - 1700nm <150ps
 25% 50 t0 200 Hz



Timing Tagging Devices

Ultra-fast Pulse Generator for TCSPC
Time-Correlated Single-Photon Counting System
ID1000 Timing Controller
