Plan Apochromatic Objective (VIS)

M Plan Apo M Plan Apo HR M Plan Apo SL Related Products Order Now!

Plan Apochromatic Objective (VIS)

M Plan Apo(M Plan Apochromatic Objective) is long working distance objective with an infinite conjugate parfocal distance of 95mm.It can be used for coaxial observation and convergence of visible light, with correction of chromatic aberration within 400~700nm of visible spectrum.

Feature

• A long working distance objective with an infinite conjugate parfocal distance of 95mm

• Correction of chromatic aberration within 400~700nm of visible spectrum

• Full field curvature correction，sharp edge imaging

• It can be used for coaxial observation and convergence of visible light

Product Specifications and Brochures

Product Brochure Link:

Name	NA	WD(mm)	F(mm)	R(um)	±D.F(um)	Angular Field of View		Weight(g)
Name	NA	WD(mm)	F(mm)	R(um)	±D.F(um)	Φ24 Eyepiece	1''Camera	Weight(g)
M Plan Apo 1X	0.025	13	200	11	440	24	9.6×12.8	240
M Plan Apo 2X	0.055	34	100	5	91	12	4.8×6.4	206
M Plan Apo 3.5X	0.1	41	57.14	2.8	28	6.9	2.7×3.6	218
M Plan Apo 5X	0.14	35	40	2	14	4.8	1.92×2.56	212
M Plan Apo 7.5X	0.21	34	26.67	1.3	6.2	3.6	1.28×1.7	247
M Plan Apo 10X	0.28	34	20	1	3.5	2.4	0.96×1.28	217
M Plan Apo 15X	0.35	22	13.33	0.8	2.2	1.8	0.64×0.85	240
M Plan Apo 20X	0.42	20	10	0.7	1.6	1.2	0.48×0.64	271
M Plan Apo 50X	0.55	13	4	0.5	0.9	0.48	0.19×0.26	298

Note:The resolution and depth of focus of the objective are calculated from the reference wavelength(λ=550nm),NA=Numerical Aperture,WD=Working Distance, F=Focal Length R=Resolution,±D.F =Depth of Focus

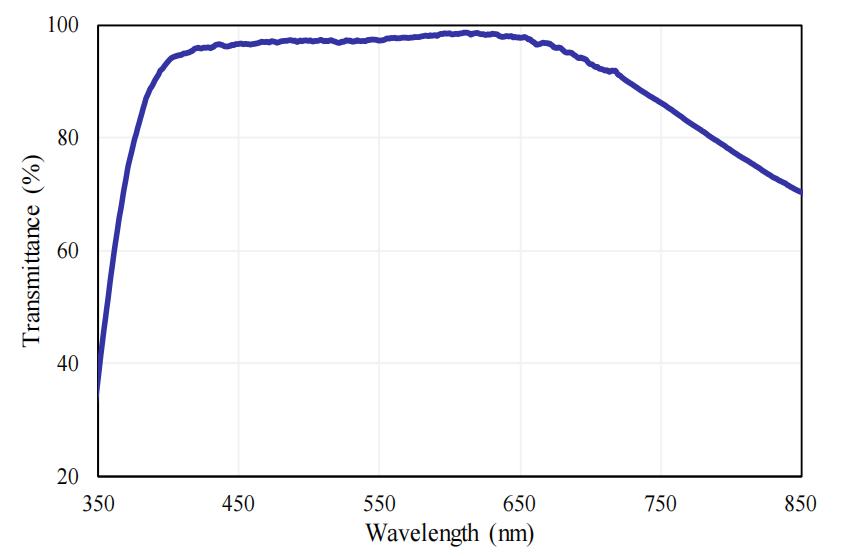

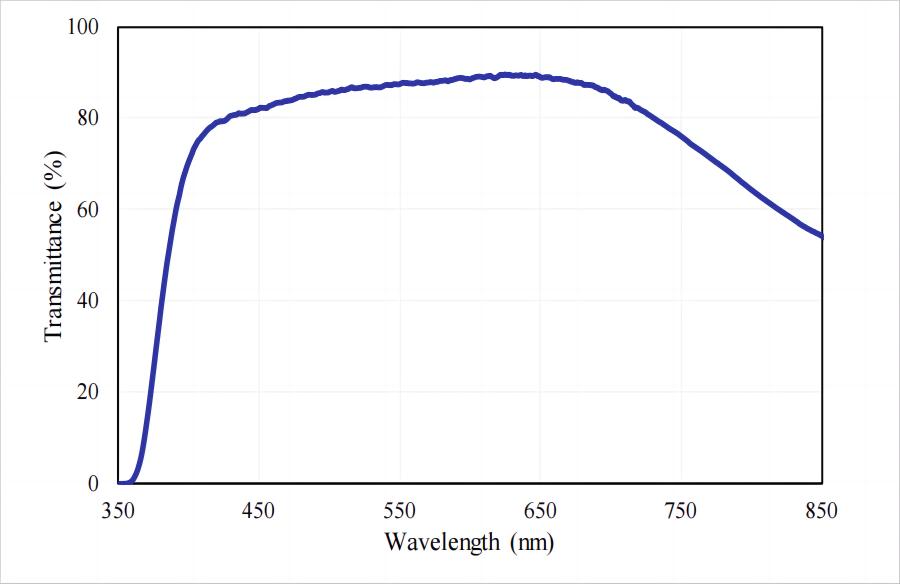

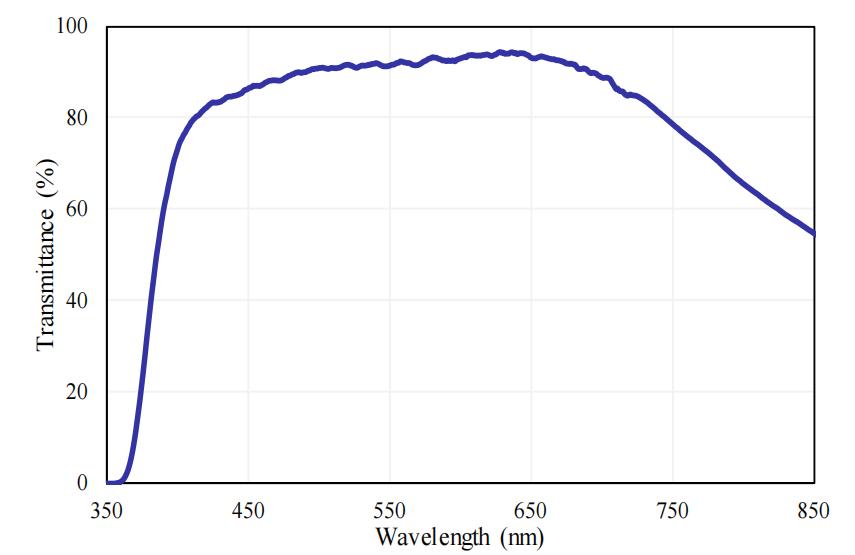

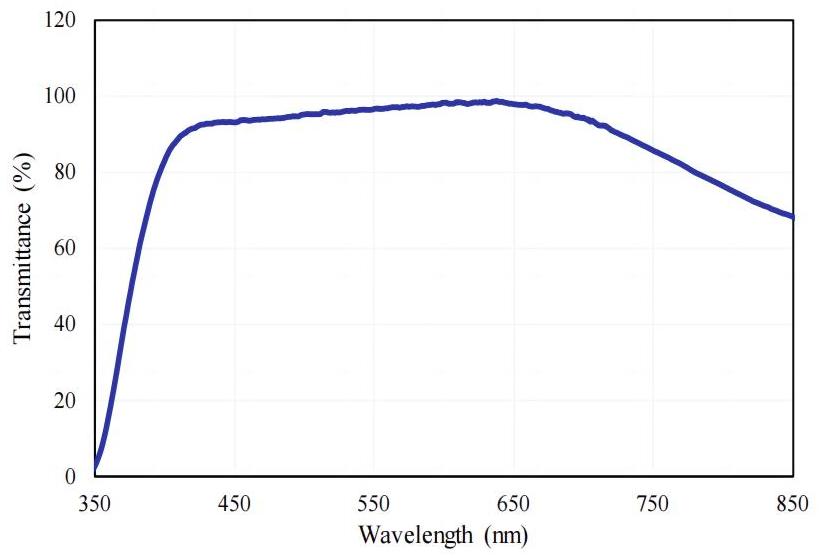

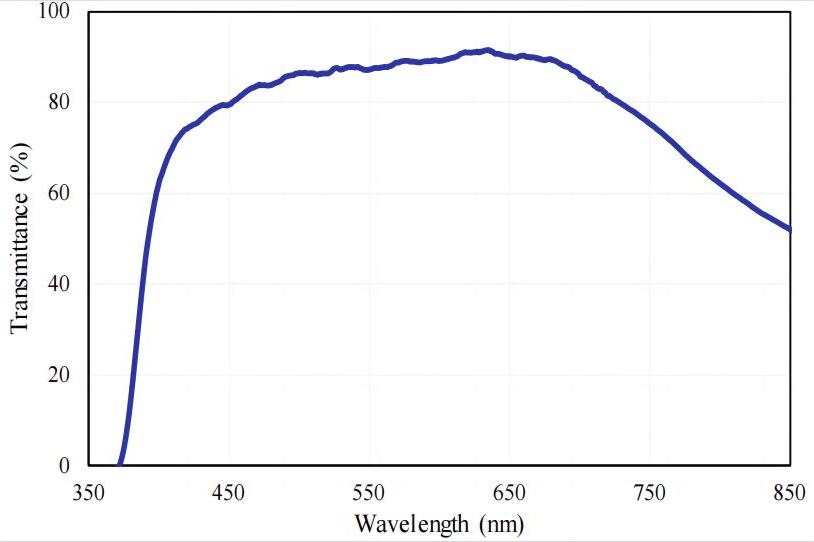

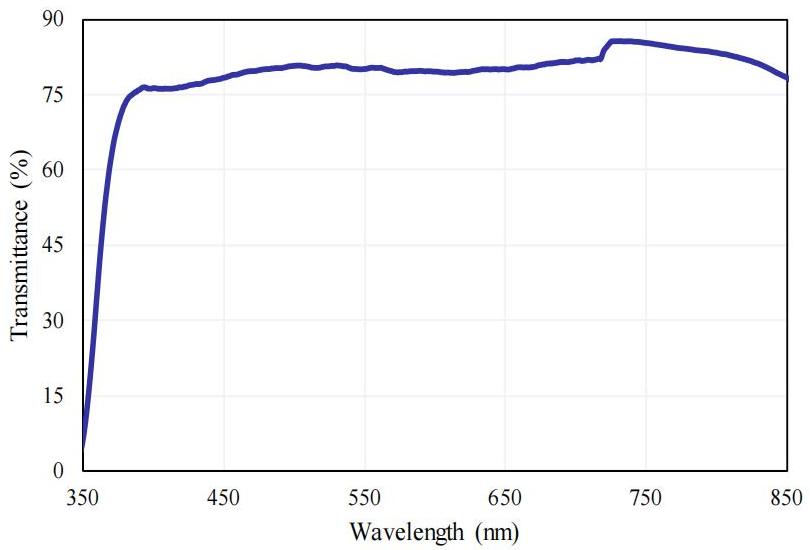

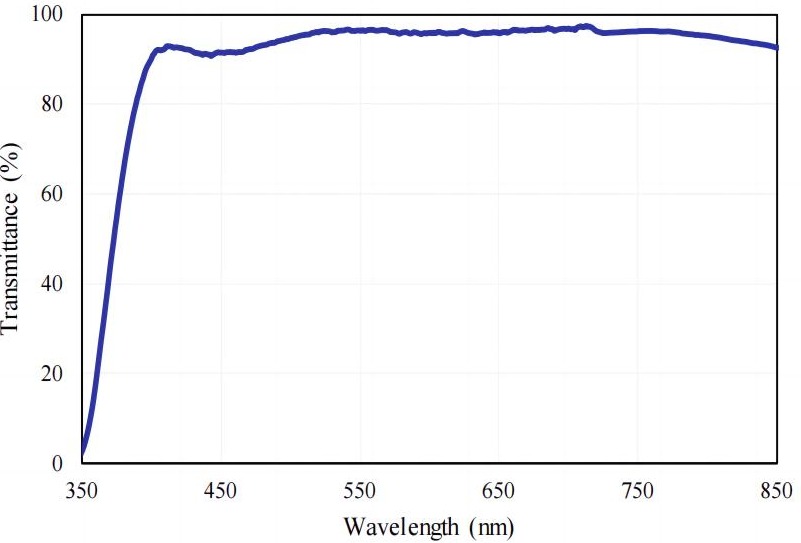

Transmittance/Wavelength
M Plan Apo 1X	M Plan Apo 2X	M Plan Apo 3.5X


M Plan Apo 5X	M Plan Apo 7.5X	M Plan Apo 10X


M Plan Apo 15X	M Plan Apo 20X	M Plan Apo 50X

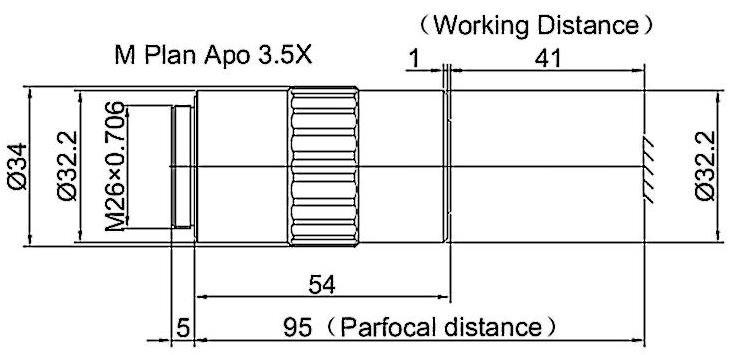

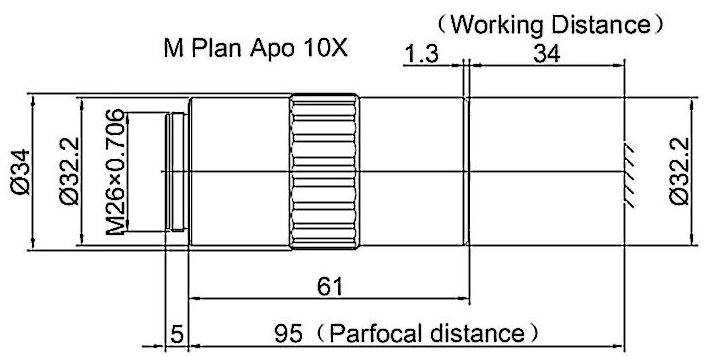

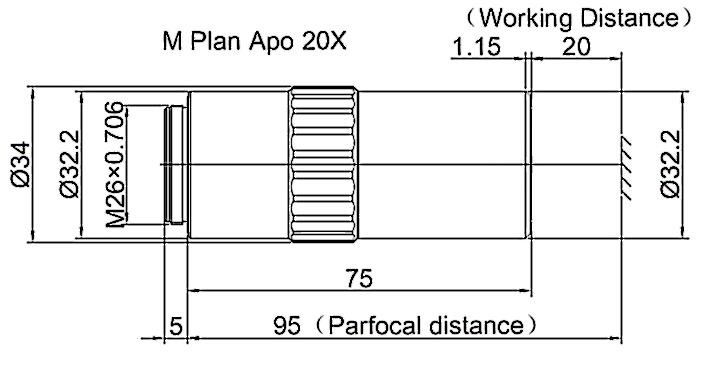

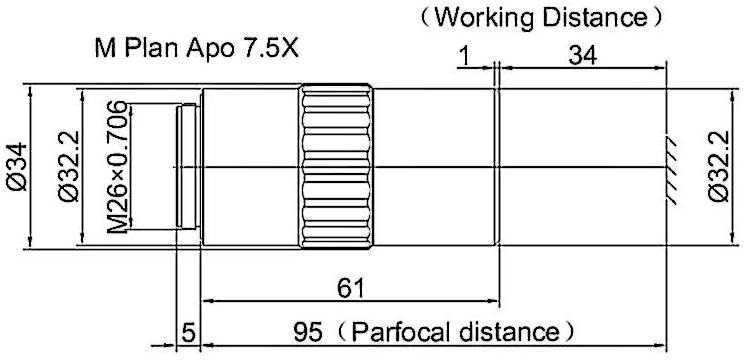

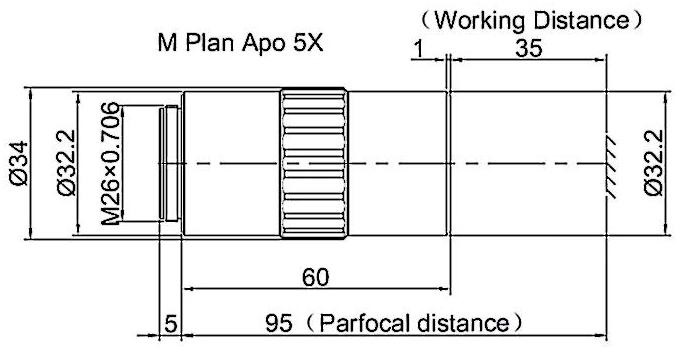

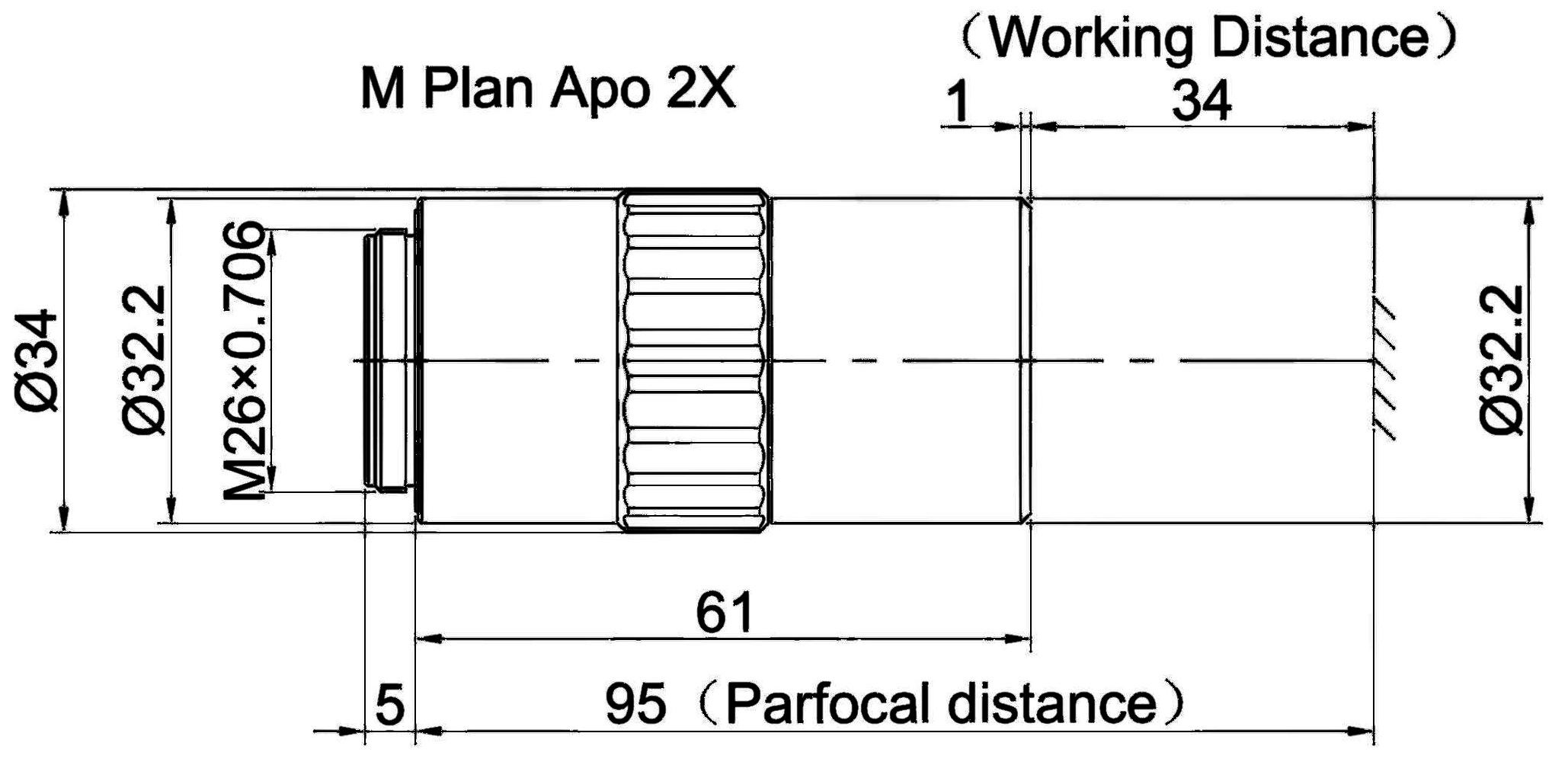

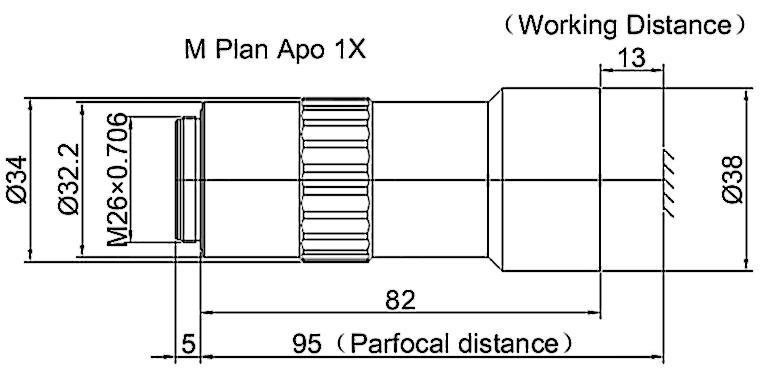

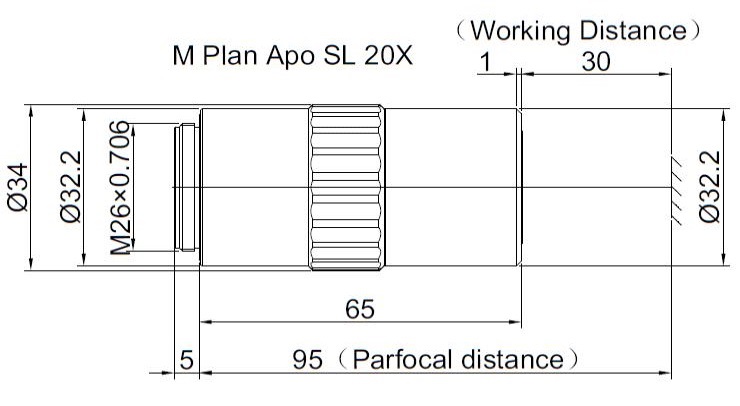

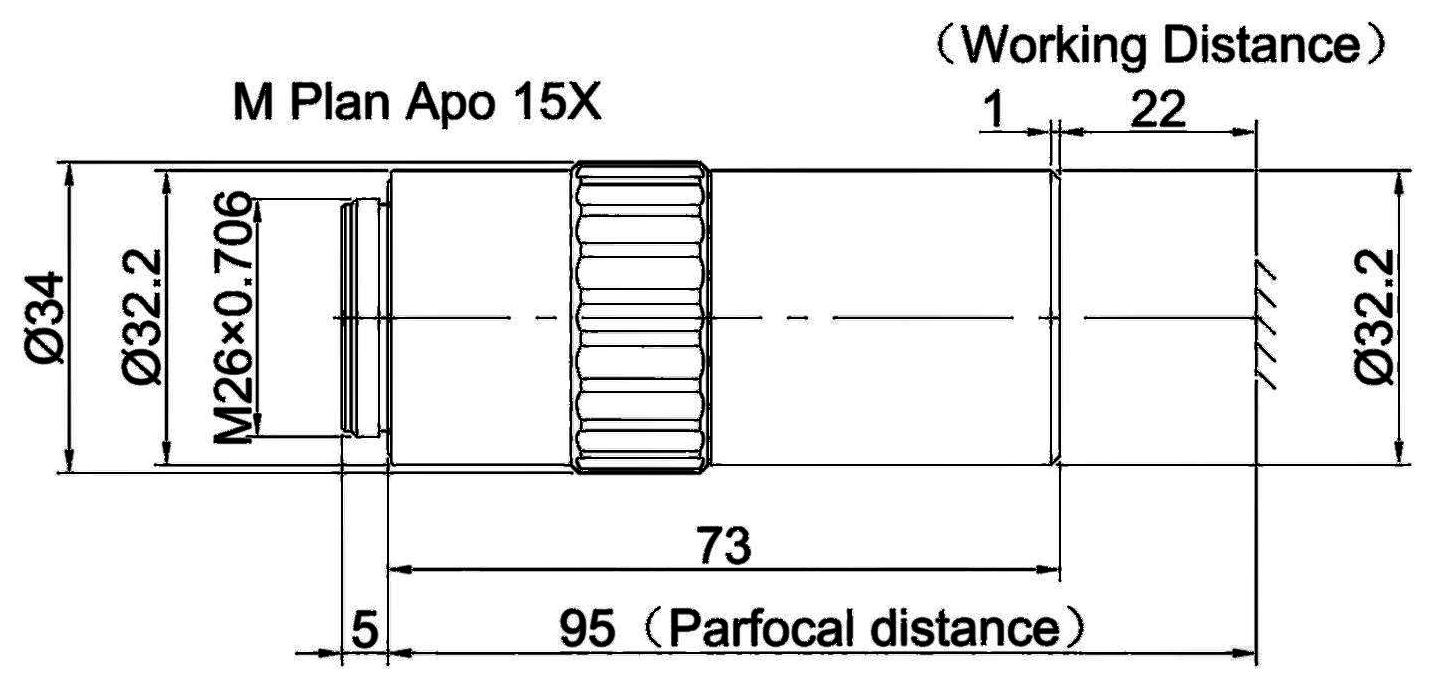

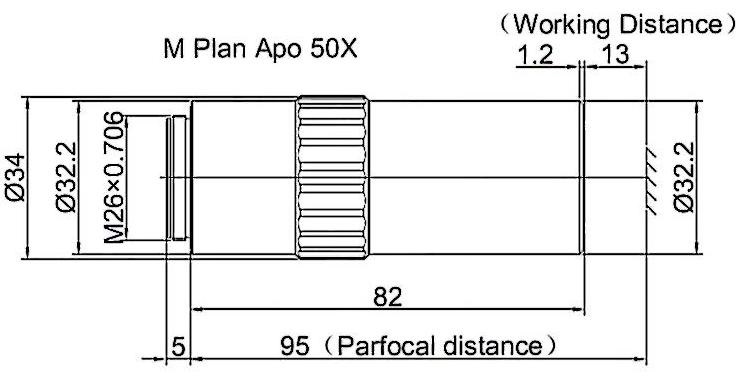

	Drawings

Plan Apohromatic Objective High Resolution(VIS)

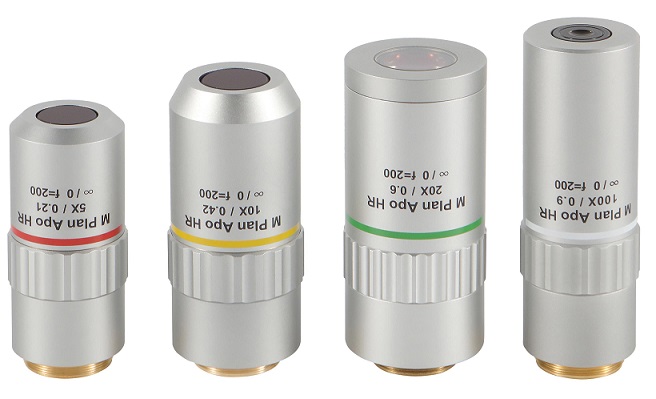

M Plan Apo HR(M Plan Apohromatic Objective High Resolution) is ultra-high resolution objective with an infinite conjugate parfocal distance of 95mm.It can be used for coaxial observation and convergence of visible light, with correction of chromatic aberration within 400~700nm of visible spectrum.

Feature

• Ultra-high resolution objective lens with an infinite conjugate parfocal distance of 95mm

• Correction of chromatic aberration within 400~700nm of visible spectrum

• Full field curvature correction，sharp edge imaging

• It can be used for coaxial observation and convergence of visible light

Product Specifications and Brochures

Product Brochure Link:

Name	NA	WD(mm)	F(mm)	R(um)	±D.F(um)	Angular Field of View		Weight(g)
Name	NA	WD(mm)	F(mm)	R(um)	±D.F(um)	Φ24 Eyepiece	1''Camera	Weight(g)
M Plan Apo HR 5X	0.21	25	40	1.3	6.2	4.8	1.92×2.56	251
M Plan Apo HR 10X	0.42	15	20	0.7	1.6	2.4	0.96×1.28	382
M Plan Apo HR 20X	0.6	9.5	10	0.5	0.76	1.2	0.48×0.64	563
M Plan Apo HR 100X	0.9	14	2	0.3	0.34	0.24	0.1×0.13	362

Note:The resolution and depth of focus of the objective are calculated from the reference wavelength(λ=550nm),NA=Numerical Aperture,WD=Working Distance, F=Focal Length, R=Resolution,±D.F =Depth of Focus

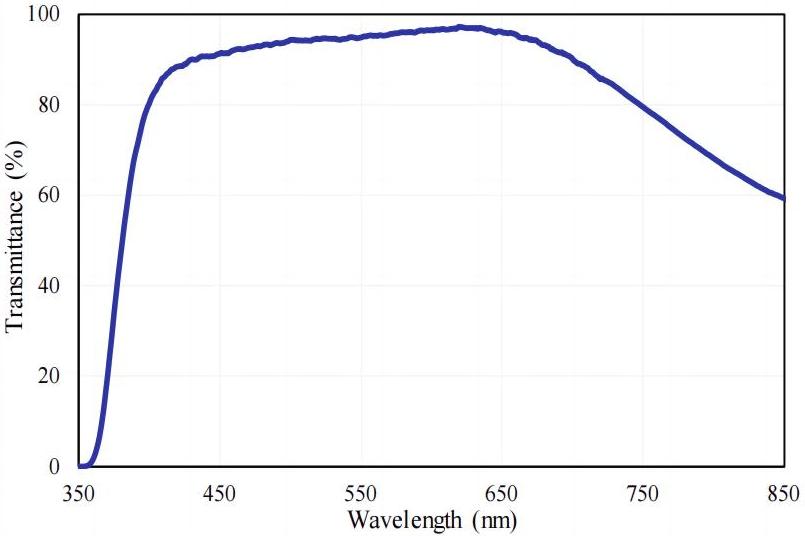

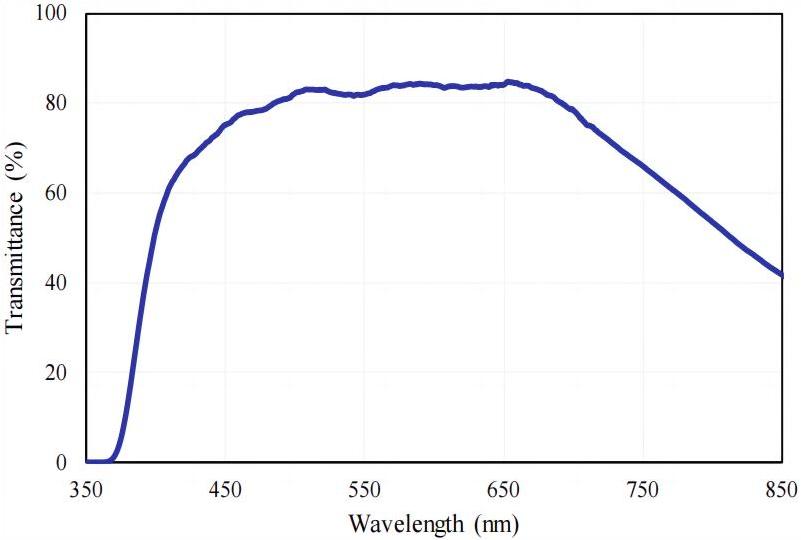

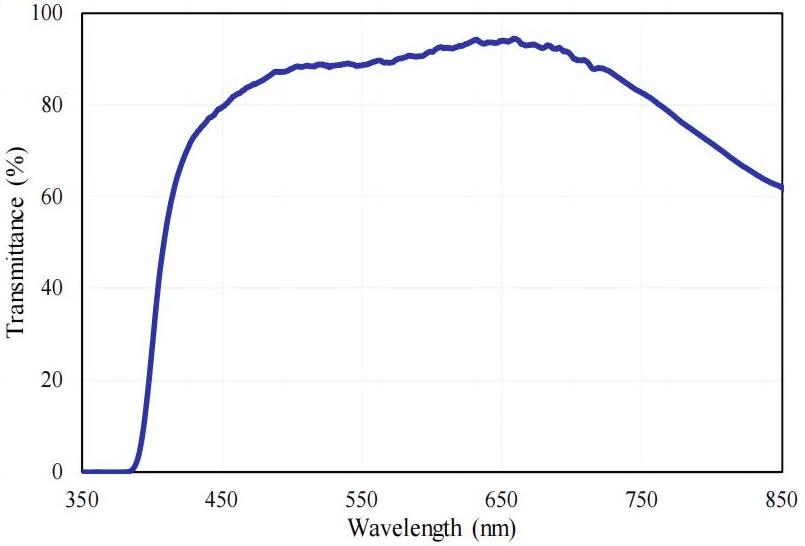

	Transmittance/Wavelength
M Plan Apo HR 5X	M Plan Apo HR 10X	M Plan Apo HR 100X

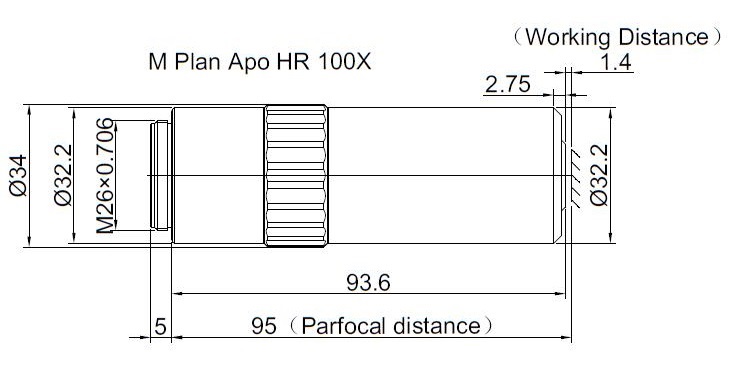

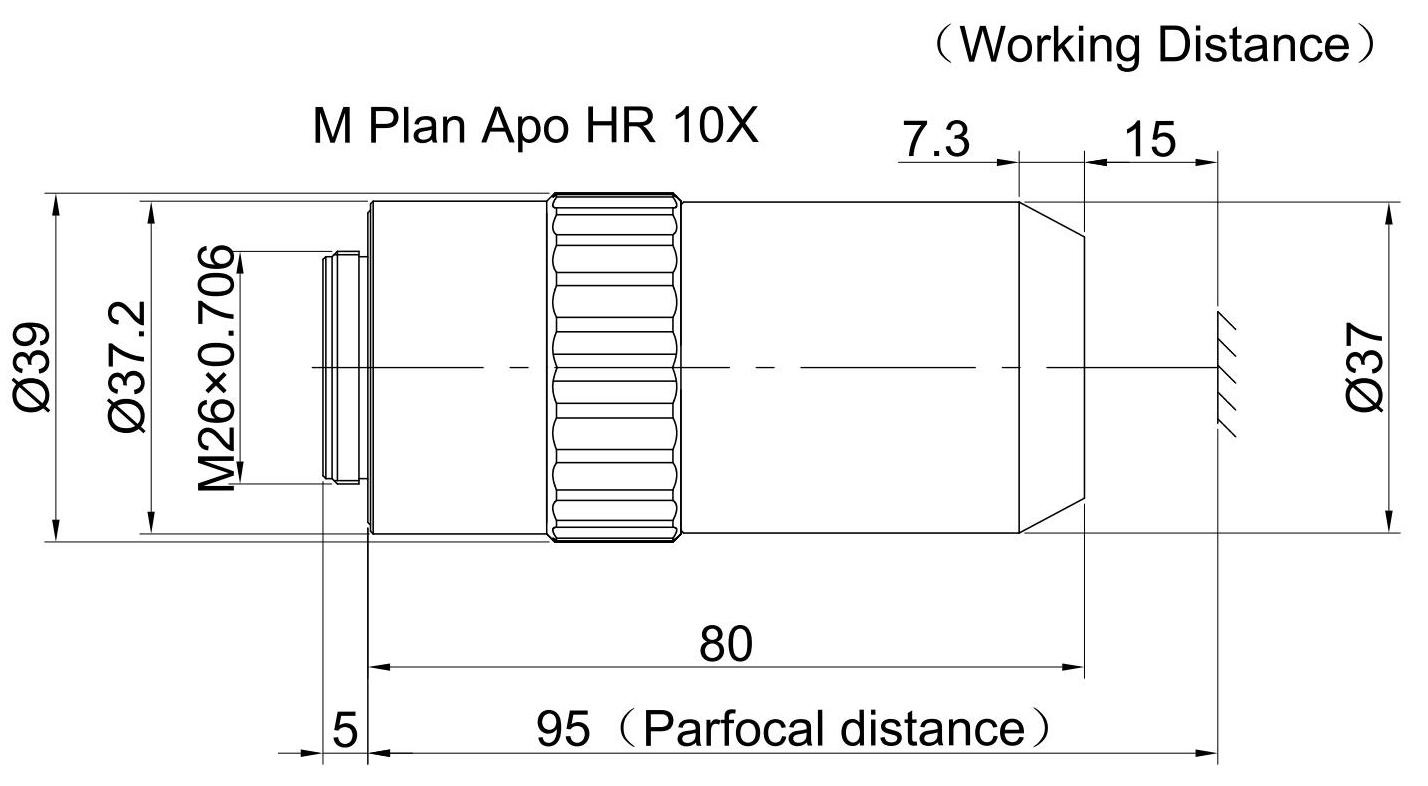

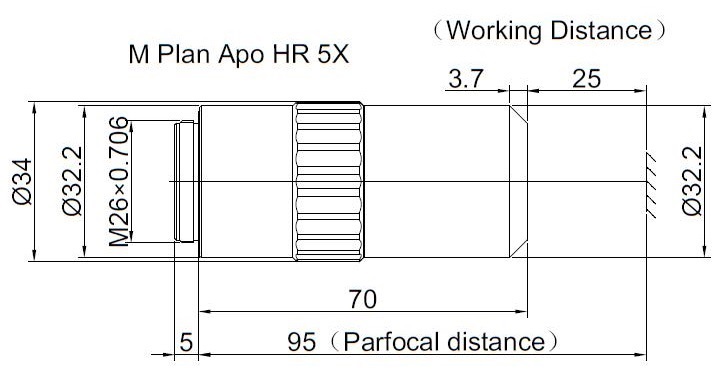

Drawings

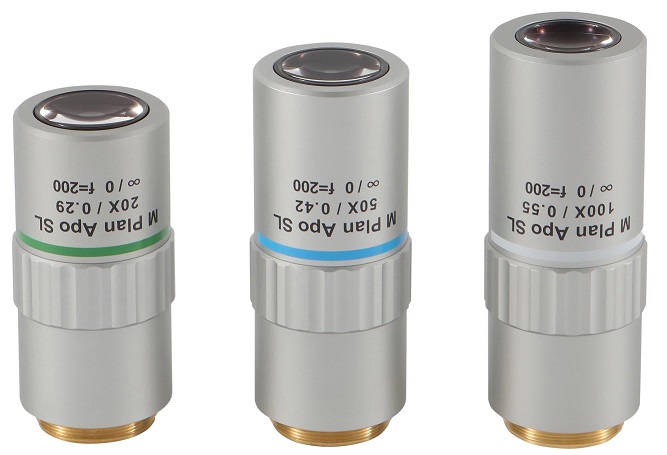

Plan Apochromatic Objective Super Long Working Distance (VIS)

M Plan Apo SL(M Plan Apochromatic Objective Super Long Working Distance) is ultra-long working distance objective with an infinite conjugate parfocal distance of 95mm.It can be used for coaxial observation and convergence of visible light, with correction of chromatic aberration within 400~700nm of visible spectrum.

Feature

Ultra-long working distance objective with an infinite conjugate parfocal distance of 95mm
Correction of chromatic aberration within 400~700nm of visible spectrum
Full field curvature correction，sharp edge imaging
It can be used for coaxial observation and convergence of visible light

Product Specifications and Brochures

Product Brochure Link:

Name	NA	WD(mm)	F(mm)	R(um)	±D.F(um)	Angular Field of View		Weight(g)
Name	NA	WD(mm)	F(mm)	R(um)	±D.F(um)	Φ24 Eyepiece	1''Camera	Weight(g)
M Plan Apo SL 20X	0.29	30	10	0.9	3.3	1.2	0.48×0.64	236
M Plan Apo SL 50X	0.42	20	4	0.7	1.6	0.48	0.19×0.26	286
M Plan Apo SL 100X	0.55	13	2	0.5	0.9	0.24	0.1×0.13	302

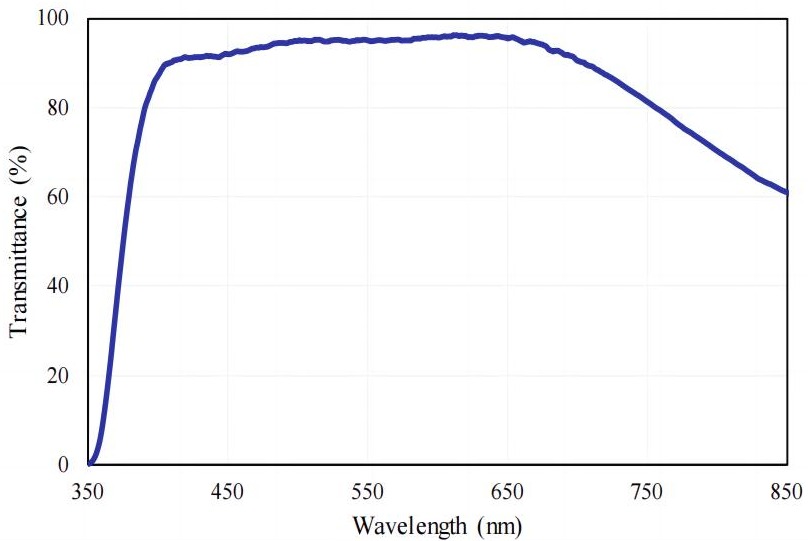

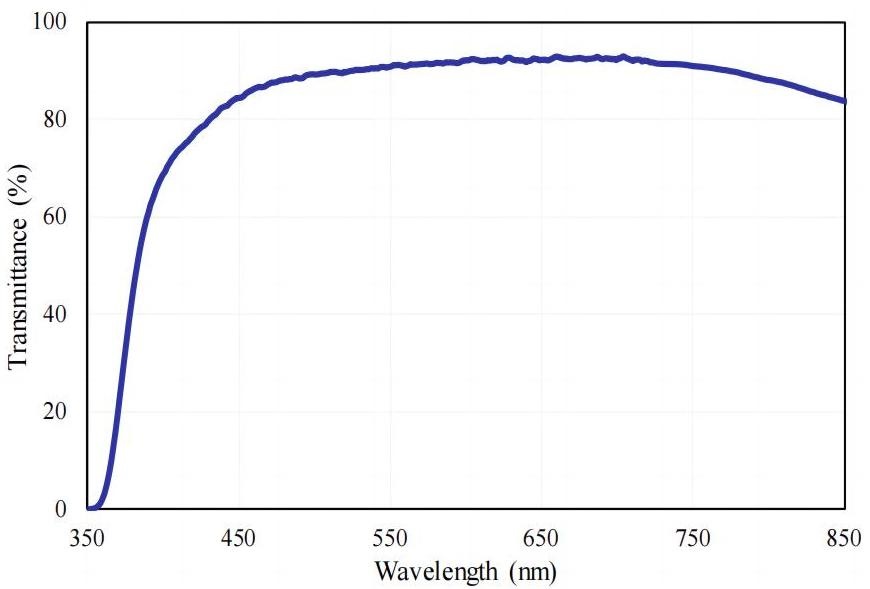

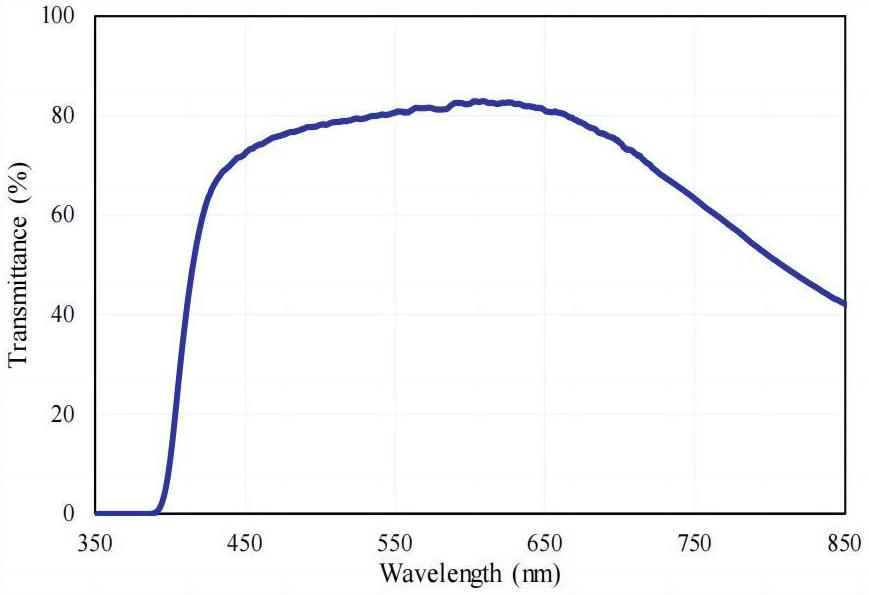

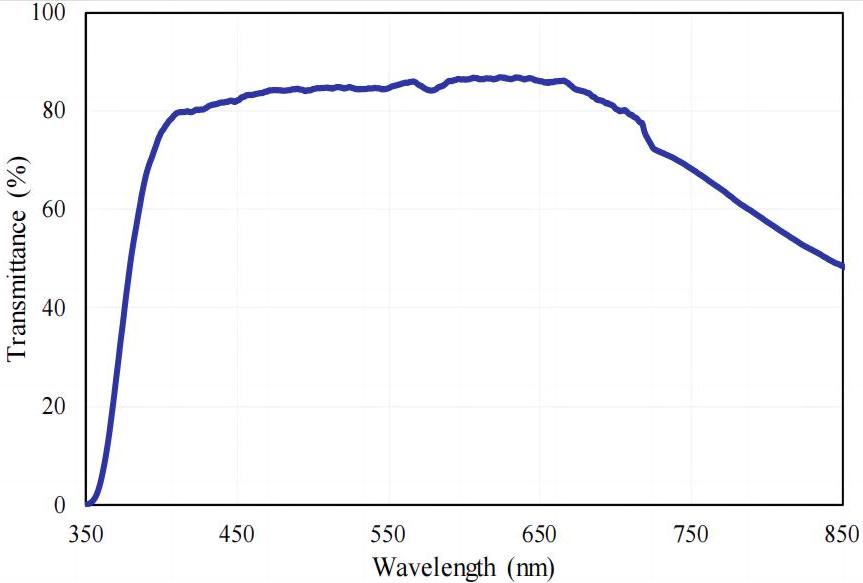

	Transmittance/Wavelength
M Plan Apo SL 20X	M Plan Apo SL 50X	M Plan Apo SL 100X

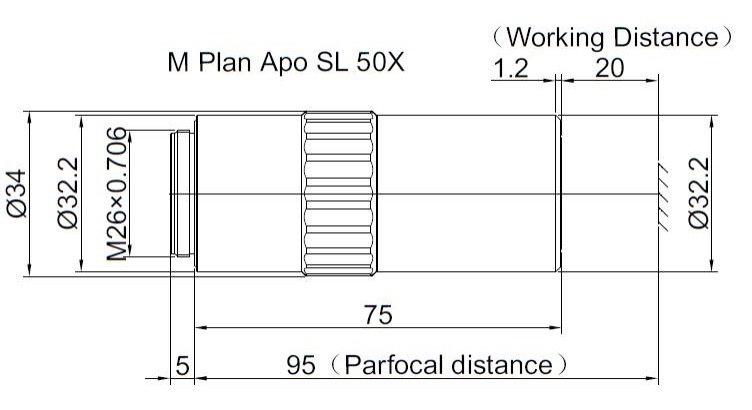

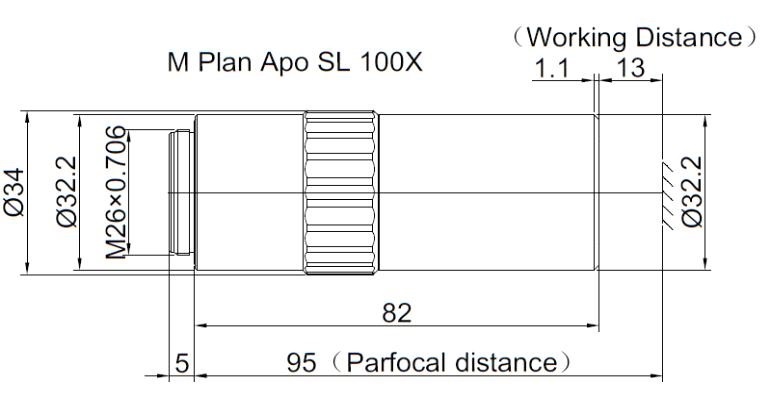

Drawings

Plan Apochromatic Objective

Name	Wavelength	Magnification	NA	WD(MM)	F(MM)	R(um)
Plan Apochromatic Objective VIS	VIS	1X to 50X	0.025 to 0.55	13 to 41	4 to 200	0.5 to 11
Plan Apohromatic Objective High Resolution VIS	VIS	5X,10X,20X,100X	0.21, 0.42, 0.6, 0.9	9.5, 14, 15, 25	2, 10, 20, 40	0.3, 0.5, 0.7, 13
Plan Apochromatic Objective Super Long Working Distance VIS	VIS	20X,50X,100X	0.29, 0.42, 0.55	13, 20, 30	2, 4, 10	0.5, 0.7, 0.9
Plan Apochromatic Objective NIR	NIR	20X,50X	0.42, 0.55	13, 20	4, 10	0.5, 0.65
Plan Apochromatic Objective High Resolution NIR	NIR	20X,50X	0.6, 0.67, 0.75	0.4, 0.95, 10	4, 10	0.37, 0.41, 0.46
Liquid Crystal Display Plan Apochromatic Objective NIR	NIR	20X,50X	0.4, 0.45	15, 20	4, 10	0.6, 0.7
Plan Apochromatic Objective NUV	NUV	20X	0.42	17	10	0.65
Plan Apochromatic Objective NUV High Resolution	NUV	50X	0.65	10	4	0.42
Liquid Crystal Display Plan Apochromatic Objective NUV	NUV	20X,50X	0.4, 0.45	15, 20	4, 10	0.6, 0.7

Industrial Plan Objective

Name	Observation Method	Magnification	NA	WD(MM)	F(MM)	R(um)
Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field	Bright Field	5X,10X,20X,100X	0.15, 0.3, 0.45, 0.8, 0.9	1, 3, 11, 20	2, 4, 10 ,20, 40	0.31, 0.34, 0.6, 0.9, 1.8
Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field	Bright Field	20X,50X,100X	0.4, 0.5, 0.8	3.1, 10.4, 12	2, 4, 10	0.34, 0.55 ,0.7
Plan Objective Bright Field	Bright Field	5X,10X,20X,100X	0.13, 0.3 ,0.4, 0.55, 0.8	2, 6.8, 8.2, 11.1, 11.5	2, 4, 10, 20, 40	0.34, 0.5, 0.7, 0.9, 2.1
Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field	Bright and Dark Field	5X,10X,20X,100X	0.15, 0.3 ,0.45, 0.8, 0.9	1, 3, 11, 20	2, 4, 10, 20, 40	0.31, 0.34, 0.6, 0.9, 1.8
Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field	Bright and Dark Field	20X,50X,100X	0.4, 0.5, 0.8	3.1, 10.4, 12	2, 4, 10	0.34, 0.55, 0.7
Plan Objective Bright and Dark Field	Bright and Dark Field	5X,10X,20X,100X	0.13, 0.3, 0.46, 0.75, 0.9	1.4, 1.8, 3.6, 6, 11	2, 4, 10, 20, 40	0.31, 0.37, 0.6, 0.9, 2.1

Biology Plan Objective

Name	Observation Method	Magnification	NA	WD(MM)	F(MM)	Level of Chromatic Aberration Correction
Plan Apochromatic Objective	Bright Filed / Fluorescence	2X,4X,10X,20X	0.1, 0.2, 0.45, 0.75	0.6, 4, 8.5, 20	10, 20, 50, 100	Apochromatism
Plan Fluorite Objective	Bright Filed / Fluorescence	4X,10X,20X,40X,60X	0.13, 0.3, 0.45. 0.6, 0.7	1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5	3.3, 5, 10, 20, 50	Semi-apochromatism
Plan Fluorite Objective Phase-contrast	Bright Field / Dark Field / Fluorescence	4X,10X,20X,40X,60X	0.13, 0.3, 0.45. 0.6, 0.7	1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5	3.3, 5, 10, 20, 50	Semi-apochromatism
