Plan Apochromatic Objective (NIR)

LCD Plan Apo NIR M Plan Apo NIR/ NIR HR Related Products Order Now!

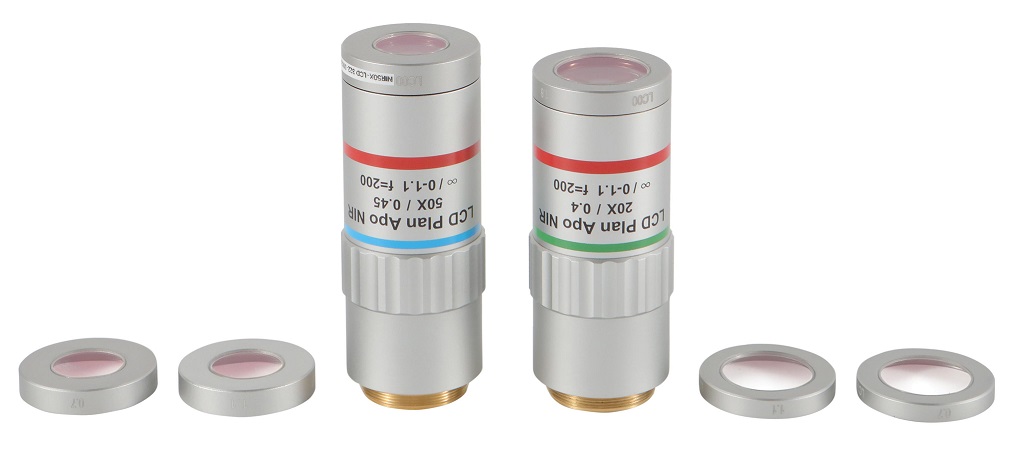

Liquid Crystal Display Plan Apochromatic Objective NIR

LCD Plan Apo NIR(Liquid Crystal Display Plan Apochromatic objective NIR) is long working distance objective with an infinite conjugate parfocal distance of 95mm. The thickness of the corresponding cover glass is t=0, t=0.7, t=1.1, which can be achieved by replacing the corresponding protective lens holder. This objective can be used for 532nm，1030~1064nm laser processing.

Feature

• A long working distance objective with an infinite conjugate parfocal distance of 95mm

• Chromatic aberration of the visible spectrum is corrected,and the processing surface can be observed coaxially

with the laser beam

• Can be used for 532nm，1030~1064nm laser processing

• The thickness of the corresponding cover glass is t=0, t=0.7, t=1.1, which can be achieved by replacing the

corresponding protective lens holder

Product Specifications and Brochures

Product Brochure Link:

Name	NA	WD(mm)	F(mm)	R(um)	±D.F(um)	Angular Field of View		Weight(g)
Name	NA	WD(mm)	F(mm)	R(um)	±D.F(um)	Φ24 Eyepiece	1''Camera	Weight(g)
LCD Plan Apo NIR 20X(t0)	0.4	20	10	0.7	1.7	1.2	0.48×0.64	260
LCD Plan Apo NIR 20X(t0.7)	0.4	20	10	0.7	1.7	1.2	0.48×0.64	259
LCD Plan Apo NIR 20X(t1.1)	0.4	20	10	0.7	1.7	1.2	0.48×0.64	258
LCD Plan Apo NIR 50X(t0)	0.45	15	4	0.6	1.4	0.48	0.19×0.26	300
LCD Plan Apo NIR 50X(t0.7)	0.45	15	4	0.6	1.4	0.48	0.19×0.26	299
LCD Plan Apo NIR 50X(t1.1)	0.45	15	4	0.6	1.4	0.48	0.19×0.26	298

Note:The resolution and depth of focus of the objective are calculated from the reference wavelength(λ=550nm),NA=Numerical Aperture,WD=Working Distance, F= Focal Length, R=Resolution,±D.F =Depth of Focus

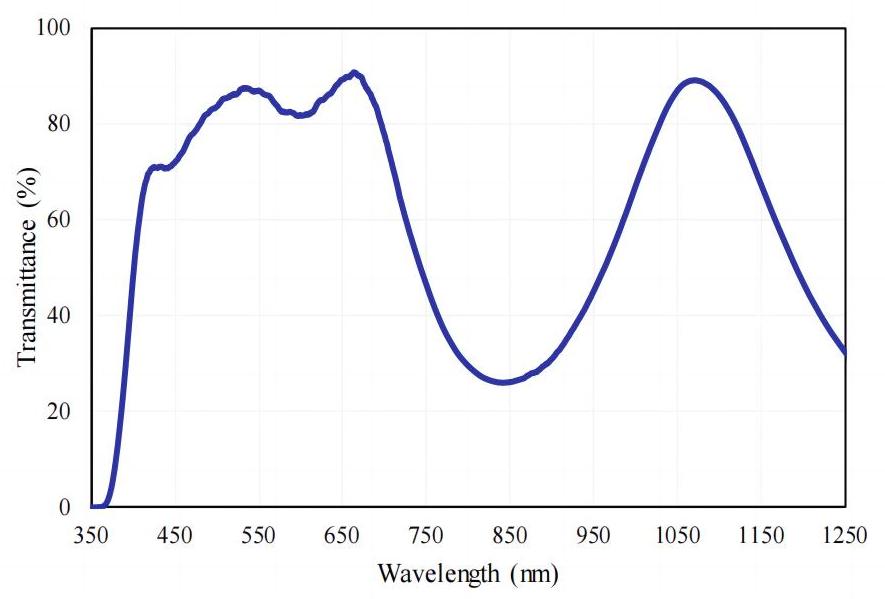

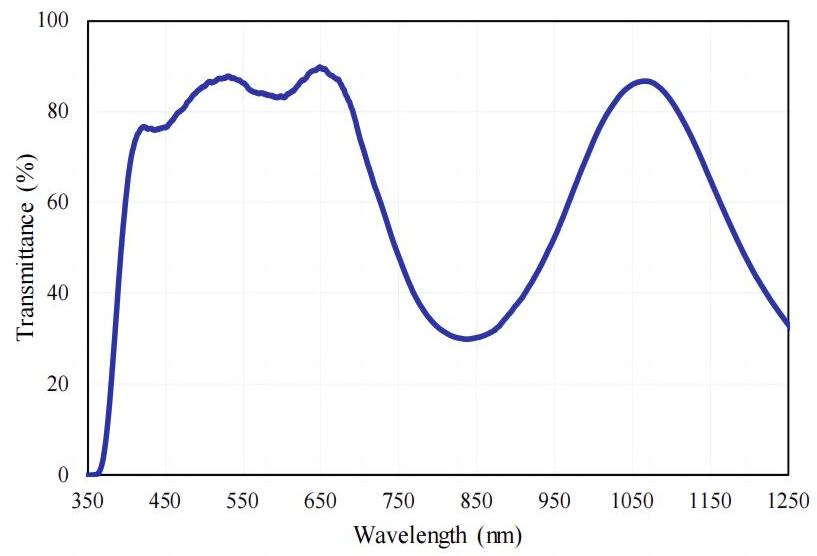

	Transmittance/Wavelength
LCD Plan Apo NIR 20X		LCD Plan Apo NIR 50X

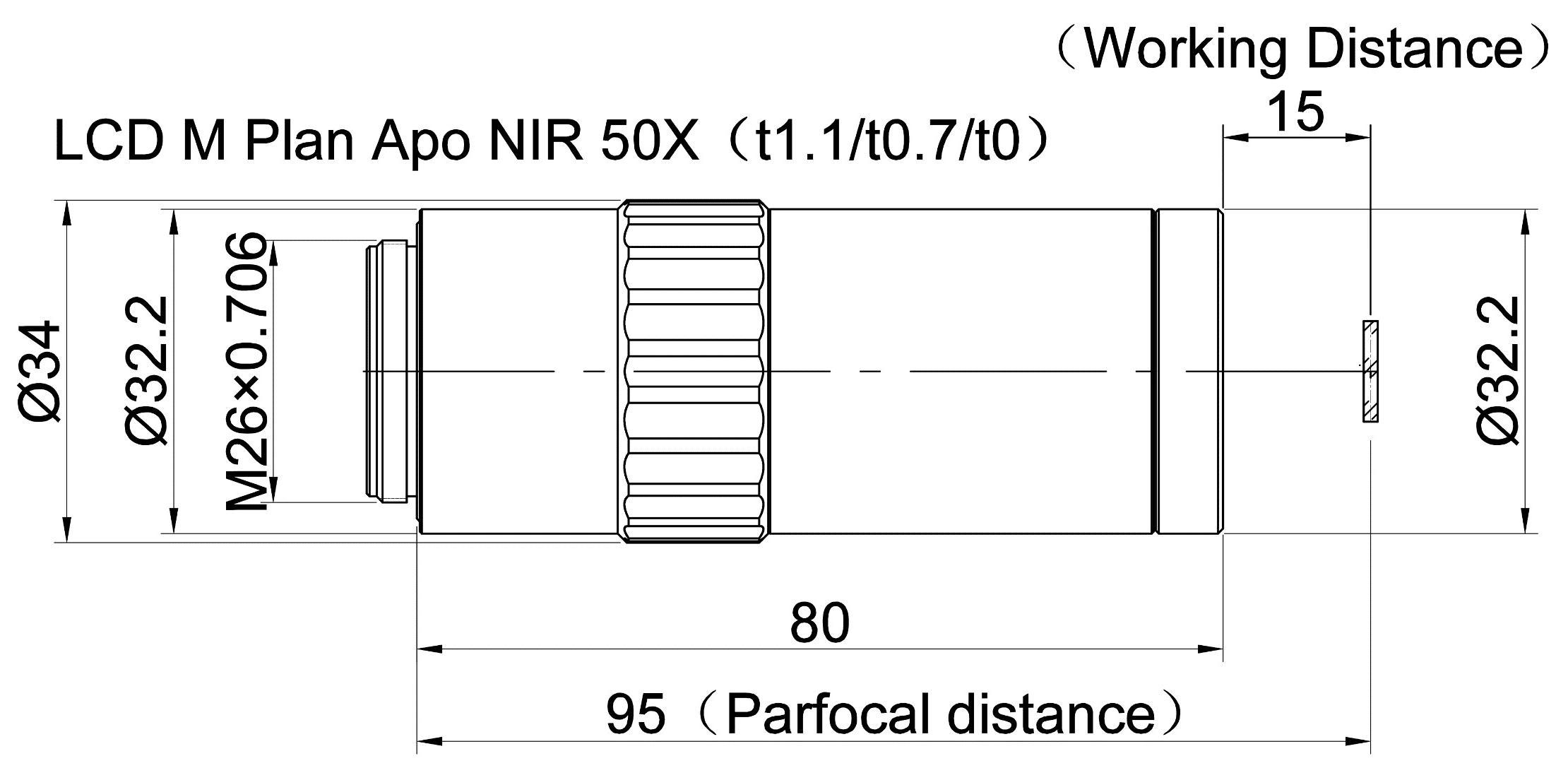

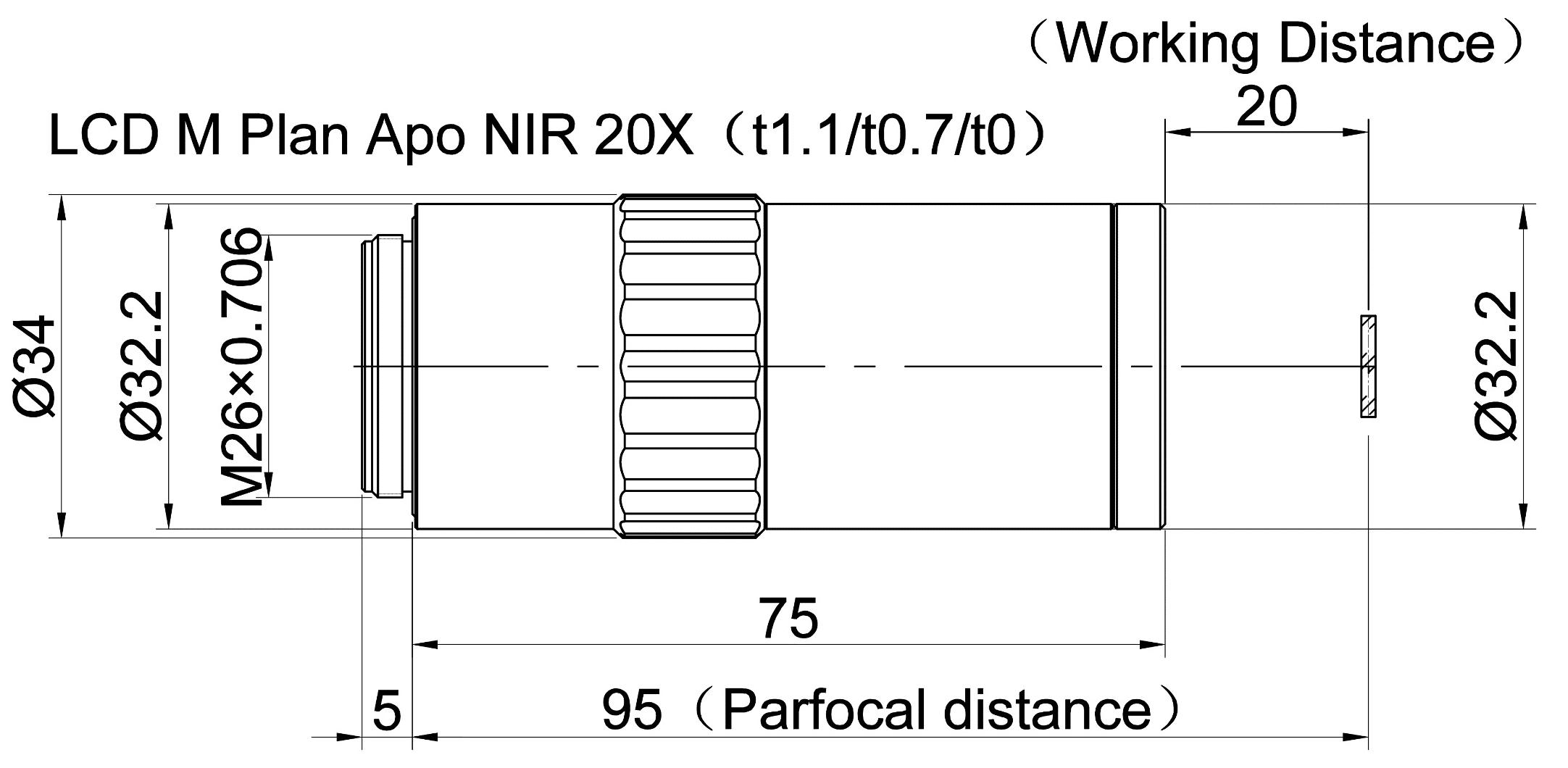

Drawings

Plan Apochromatic Objective NIR /

Plan Apochromatic Objective High Resolution NIR

M Plan Apo NIR / M Plan Apo NIR HR(Plan Apochromatic Objective NIR/ Plan Apochromatic Objective High Resolution NIR) are long working distance objectives with an infinite conjugate parfocal distance of 95mm.These objectives can be used for 532nm, 1030~1064nm laser processing.

Feature

• A long working distance objective with an infinite conjugate parfocal distance of 95mm

• Corrected the chromatic aberration of the visible spectrum, and the processing surface can be observed

coaxially with the laser beam

• Can be used for 532nm, 1030~1064nm laser processing

• HR-type objective lens is attached with 1.8mm-thick replaceable protective glass

Product Specifications and Brochures

Product Brochure Link:

Name	NA	WD(mm)	F(mm)	R(um)	±D.F(um)	Angular Field of View		Weight(g)
Name	NA	WD(mm)	F(mm)	R(um)	±D.F(um)	Φ24 Eyepiece	1''Camera	Weight(g)
M Plan Apo NIR 20X	0.42	20	10	0.65	1.56	1.2	0.48×0.64	377
M Plan Apo NIR 50X	0.55	13	4	0.5	0.91	0.48	0.19×0.26	394
M Plan Apo HR NIR 20X	0.6	9.5	10	0.46	0.76	1.2	0.48×0.64	563
i Plan Apo HR NIR 50X	0.67	10	4	0.41	0.61	0.48	0.19×0.26	470
M Plan Apo HR NIR 50X	0.75	4	4	0.37	0.49	0.48	0.19×0.26	582

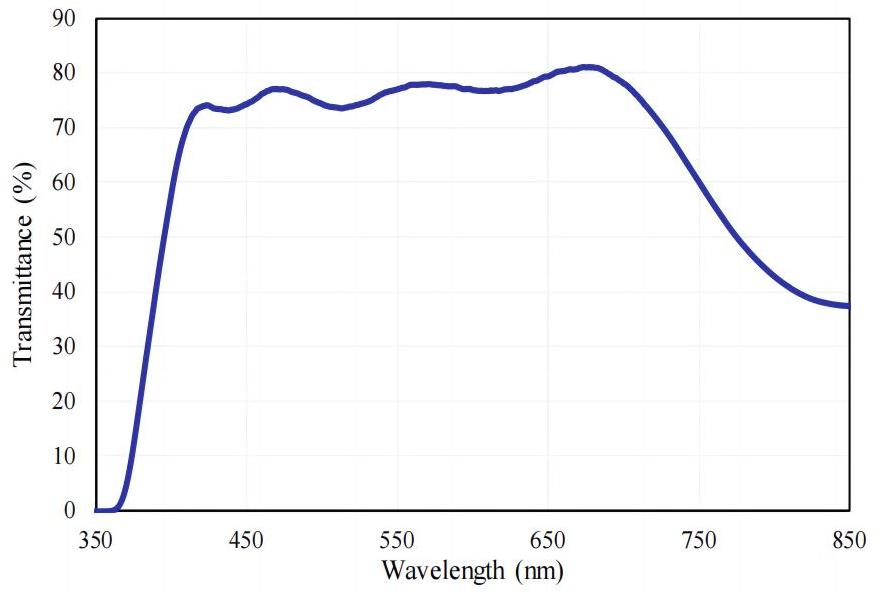

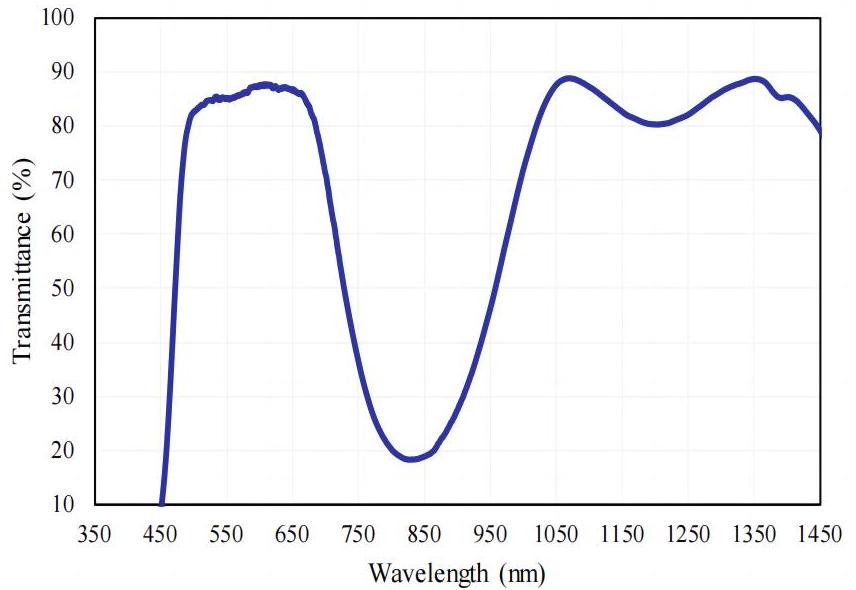

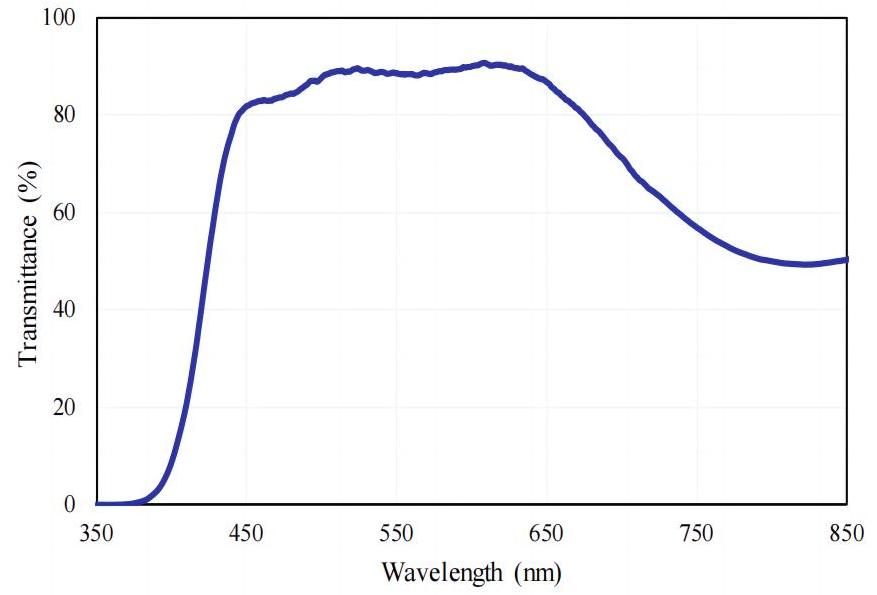

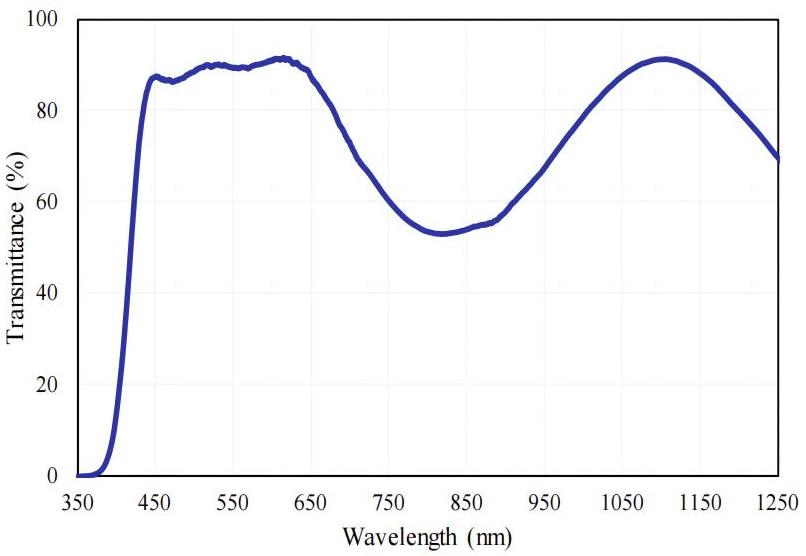

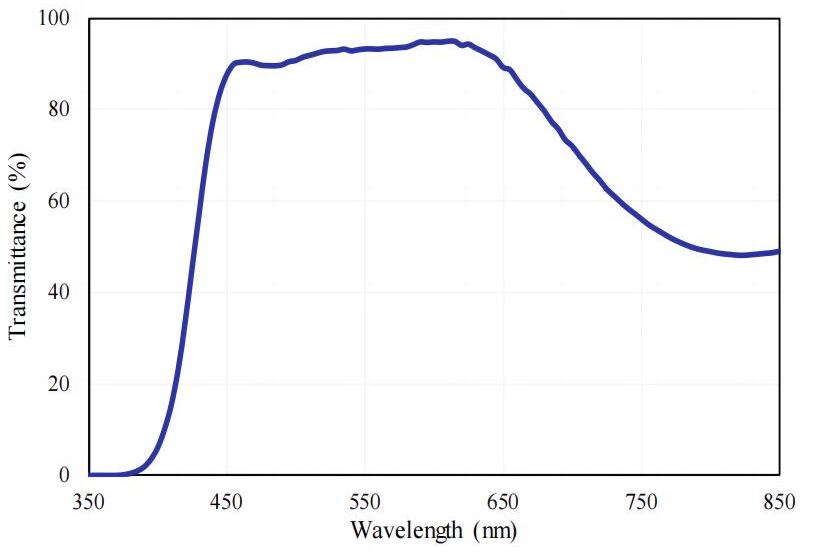

	Transmittance/Wavelength
M Plan Apo NIR 20X	M Plan Apo NIR 50X	i Plan Apo HR NIR 50X

	M Plan Apo HR NIR 20X		M Plan Apo HR NIR 50X

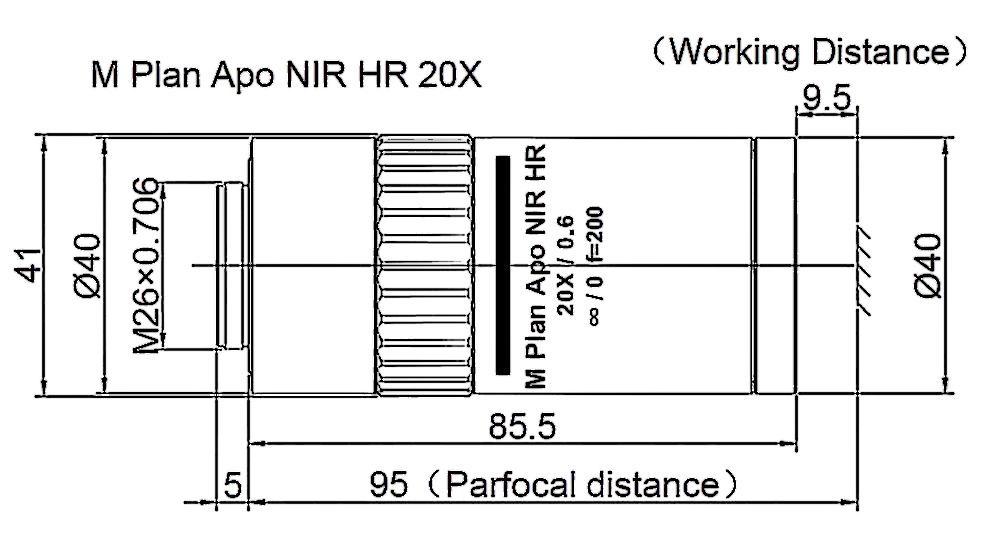

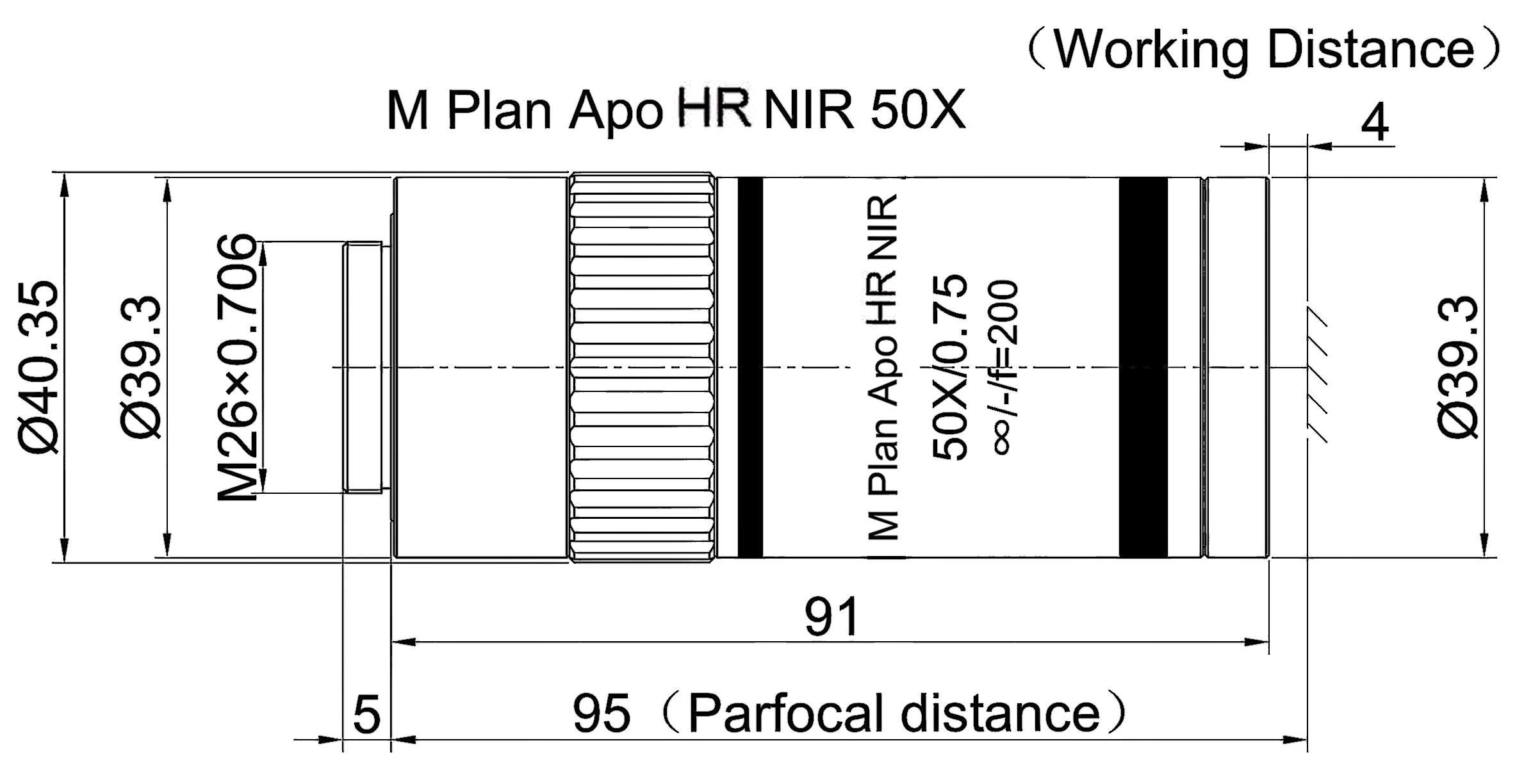

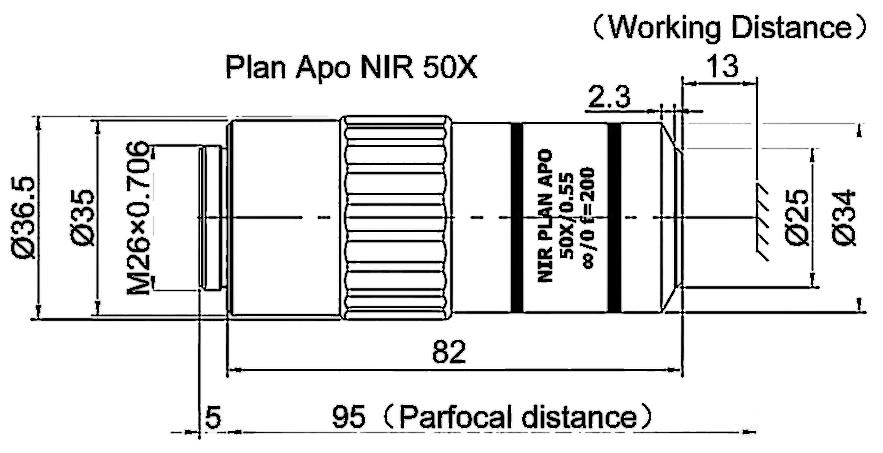

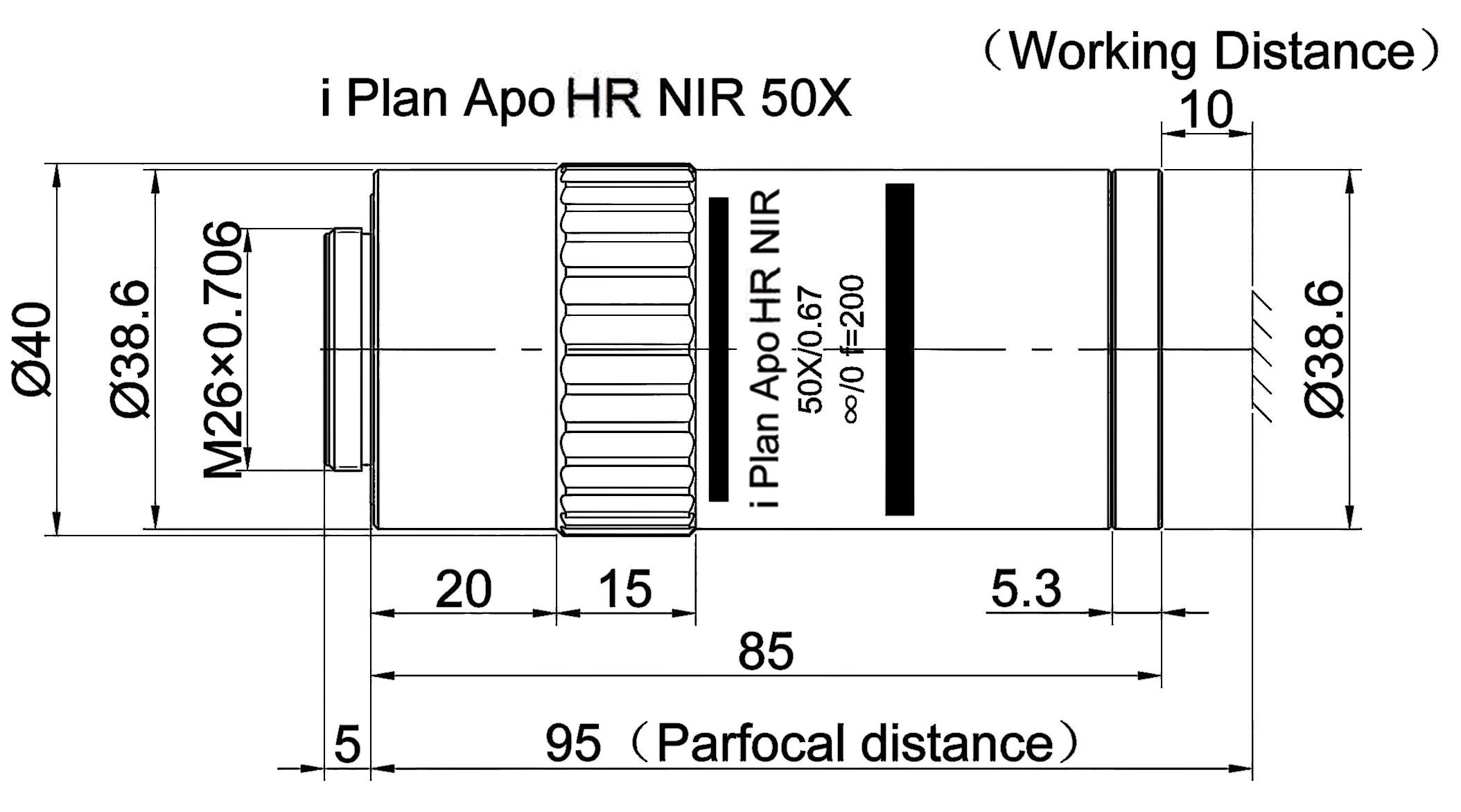

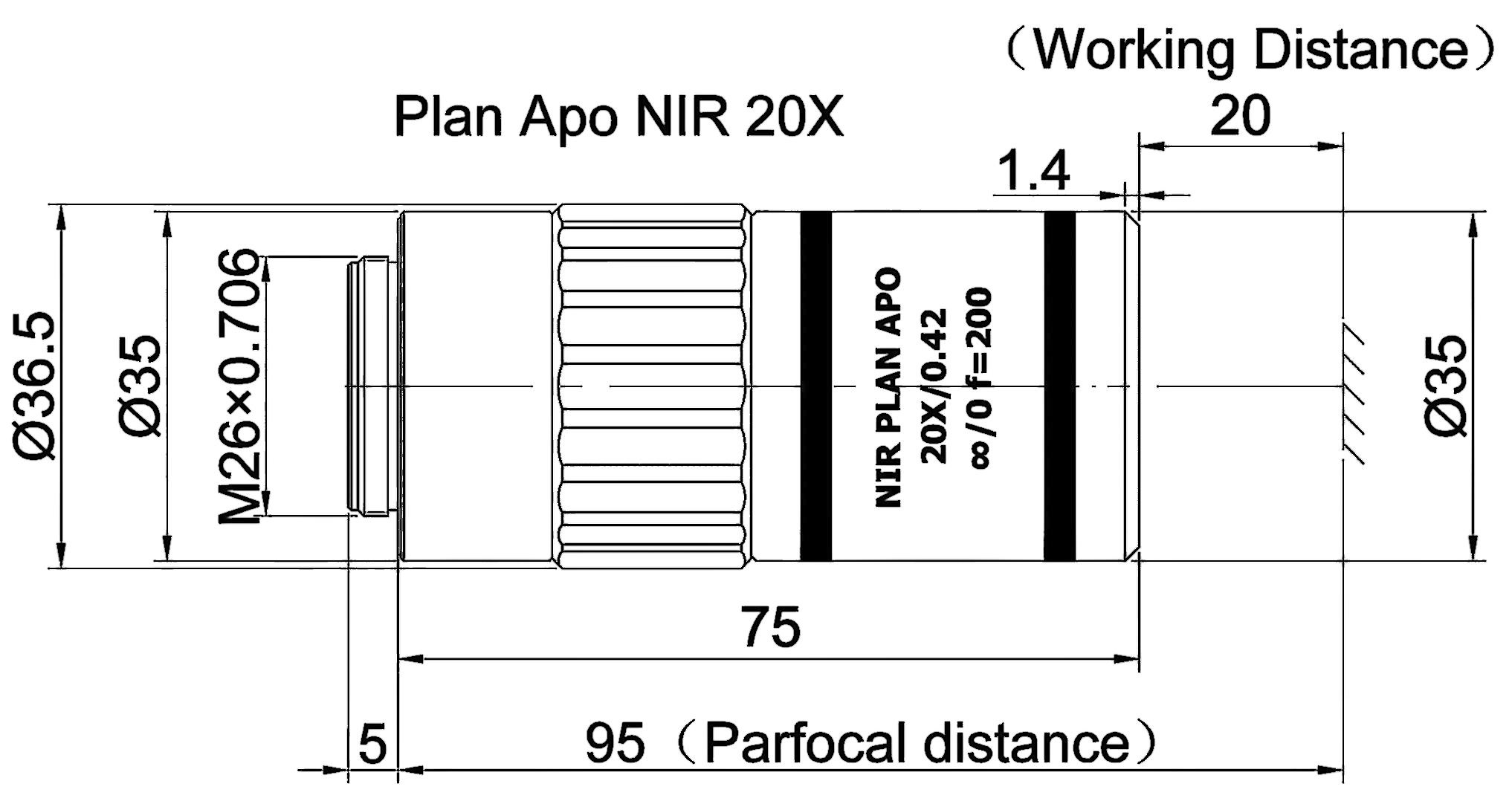

	Drawings

Plan Apochromatic Objective

Name	Wavelength	Magnification	NA	WD(MM)	F(MM)	R(um)
Plan Apochromatic Objective VIS	VIS	1X to 50X	0.025 to 0.55	13 to 41	4 to 200	0.5 to 11
Plan Apohromatic Objective High Resolution VIS	VIS	5X,10X,20X,100X	0.21, 0.42, 0.6, 0.9	9.5, 14, 15, 25	2, 10, 20, 40	0.3, 0.5, 0.7, 13
Plan Apochromatic Objective Super Long Working Distance VIS	VIS	20X,50X,100X	0.29, 0.42, 0.55	13, 20, 30	2, 4, 10	0.5, 0.7, 0.9
Plan Apochromatic Objective NIR	NIR	20X,50X	0.42, 0.55	13, 20	4, 10	0.5, 0.65
Plan Apochromatic Objective High Resolution NIR	NIR	20X,50X	0.6, 0.67, 0.75	0.4, 0.95, 10	4, 10	0.37, 0.41, 0.46
Liquid Crystal Display Plan Apochromatic Objective NIR	NIR	20X,50X	0.4, 0.45	15, 20	4, 10	0.6, 0.7
Plan Apochromatic Objective NUV	NUV	20X	0.42	17	10	0.65
Plan Apochromatic Objective NUV High Resolution	NUV	50X	0.65	10	4	0.42
Liquid Crystal Display Plan Apochromatic Objective NUV	NUV	20X,50X	0.4, 0.45	15, 20	4, 10	0.6, 0.7

Industrial Plan Objective

Name	Observation Method	Magnification	NA	WD(MM)	F(MM)	R(um)
Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field	Bright Field	5X,10X,20X,100X	0.15, 0.3, 0.45, 0.8, 0.9	1, 3, 11, 20	2, 4, 10 ,20, 40	0.31, 0.34, 0.6, 0.9, 1.8
Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field	Bright Field	20X,50X,100X	0.4, 0.5, 0.8	3.1, 10.4, 12	2, 4, 10	0.34, 0.55 ,0.7
Plan Objective Bright Field	Bright Field	5X,10X,20X,100X	0.13, 0.3 ,0.4, 0.55, 0.8	2, 6.8, 8.2, 11.1, 11.5	2, 4, 10, 20, 40	0.34, 0.5, 0.7, 0.9, 2.1
Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field	Bright and Dark Field	5X,10X,20X,100X	0.15, 0.3 ,0.45, 0.8, 0.9	1, 3, 11, 20	2, 4, 10, 20, 40	0.31, 0.34, 0.6, 0.9, 1.8
Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field	Bright and Dark Field	20X,50X,100X	0.4, 0.5, 0.8	3.1, 10.4, 12	2, 4, 10	0.34, 0.55, 0.7
Plan Objective Bright and Dark Field	Bright and Dark Field	5X,10X,20X,100X	0.13, 0.3, 0.46, 0.75, 0.9	1.4, 1.8, 3.6, 6, 11	2, 4, 10, 20, 40	0.31, 0.37, 0.6, 0.9, 2.1

Biology Plan Objective

Name	Observation Method	Magnification	NA	WD(MM)	F(MM)	Level of Chromatic Aberration Correction
Plan Apochromatic Objective	Bright Filed / Fluorescence	2X,4X,10X,20X	0.1, 0.2, 0.45, 0.75	0.6, 4, 8.5, 20	10, 20, 50, 100	Apochromatism
Plan Fluorite Objective	Bright Filed / Fluorescence	4X,10X,20X,40X,60X	0.13, 0.3, 0.45. 0.6, 0.7	1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5	3.3, 5, 10, 20, 50	Semi-apochromatism
Plan Fluorite Objective Phase-contrast	Bright Field / Dark Field / Fluorescence	4X,10X,20X,40X,60X	0.13, 0.3, 0.45. 0.6, 0.7	1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5	3.3, 5, 10, 20, 50	Semi-apochromatism

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Type

Search Reset

	Availability	Reference Price (USD)
M Plan Apo NIR 20X Plan Apochromatic Objective NIR 20X, Numerical Aperture 0.42, Working Distance 20MM, Focal Length 10MM, Resolution 0.65um, Depth of Focus 1.56um	6-8 weeks	Request for quote
M Plan Apo NIR 50X Plan Apochromatic Objective NIR 50X, Numerical Aperture 0.55, Working Distance 13MM, Focal Length 4MM, Resolution 0.5um, Depth of Focus 0.91um	6-8 weeks	Request for quote
M Plan Apo HR NIR 20X Plan Apochromatic Objective High Resolution NIR 20X, Numerical Aperture 0.6, Working Distance 9.5MM, Focal Length 10MM, Resolution 0.46um, Depth of Focus 0.76um	6-8 weeks	Request for quote
i Plan Apo HR NIR 50X Plan Apochromatic Objective High Resolution NIR 50X, Numerical Aperture 0.67, Working Distance 10MM, Focal Length 4MM, Resolution 0.41um, Depth of Focus 0.61um	6-8 weeks	Request for quote
M Plan Apo HR NIR 50X Plan Apochromatic Objective High Resolution NIR 50X, Numerical Aperture 0.75, Working Distance 4MM, Focal Length 4MM, Resolution 0.37um, Depth of Focus 0.49um	6-8 weeks	Request for quote
LCD Plan Apo NIR 20X (t0) Liquid Crystal Display Plan Apochromatic Objective NIR 20X (t0), Numerical Aperture 0.4, Working Distance 20MM, Focal Length 10MM, Resolution 0.7um, Depth of Focus 1.7um	6-8 weeks	Request for quote
LCD Plan Apo NIR 20X (t0.7) Liquid Crystal Display Plan Apochromatic Objective NIR 20X (t0.7), Numerical Aperture 0.4, Working Distance 20MM, Focal Length 10MM, Resolution 0.7um, Depth of Focus 1.7um	6-8 weeks	Request for quote
LCD Plan Apo NIR 20X (t1.1) Liquid Crystal Display Plan Apochromatic Objective NIR 20X (t1.1), Numerical Aperture 0.4, Working Distance 20MM, Focal Length 10MM, Resolution 0.7um, Depth of Focus 1.7um	6-8 weeks	Request for quote
LCD Plan Apo NIR 50X (t0) Liquid Crystal Display Plan Apochromatic Objective NIR 50X (t0), Numerical Aperture 0.45, Working Distance 15MM, Focal Length 4MM, Resolution 0.6um, Depth of Focus 1.4um	6-8 weeks	Request for quote
LCD Plan Apo NIR 50X (t0.7) Liquid Crystal Display Plan Apochromatic Objective NIR 50X (t0.7), Numerical Aperture 0.45, Working Distance 15MM, Focal Length 4MM, Resolution 0.6um, Depth of Focus 1.4um	6-8 weeks	Request for quote
LCD Plan Apo NIR 50X (t1.1) Liquid Crystal Display Plan Apochromatic Objective NIR 50X (t1.1), Numerical Aperture 0.45, Working Distance 15MM, Focal Length 4MM, Resolutio =0.6um, Depth of Focus 1.4um	6-8 weeks	Request for quote
