Plan Apochromatic Objective (NUV)
LCD Plan Apo NUV M Plan Apo NUV / NUV HR Related Products Order Now!

Liquid Crystal Display Plan Apochromatic Objective NUV

LCD Plan Apo NUV(Liquid Crystal Display Plan Apochromatic Objective NUV) is long working distance objective with an infinite conjugate parfocal distance of 95mm. The thickness of the corresponding cover glass is t=0, t=0.7, t=1.1, which can be achieved by replacing the corresponding protective lens holder.It can be used for 355nm, 532nm laser processing.



Feature

• A long working distance objective with an infinite conjugate parfocal distance of 95mm

• Chromatic aberration of the visible spectrum is corrected, and the processing surface can be observed coaxially with the
  laser beam
• Can be used for 355nm, 532nm laser processing
• The thickness of the corresponding cover glass is t=0, t=0.7, t=1.1, which can be achieved by replacing the
  corresponding protective lens holder





Product Specifications and Brochures

Product Brochure Link:

Name NA WD(mm) F(mm) R(um) ±D.F(um) Angular Field of View Weight(g)
Φ24 Eyepiece 1''Camera
LCD Plan Apo NUV 20X (t0) 0.4 20 10 0.7 1.7 1.2 0.48×0.64 262
LCD Plan Apo NUV 20X (t0.7) 0.4 20 10 0.7 1.7 1.2 0.48×0.64 261
LCD Plan Apo NUV 20X (t1.1) 0.4 20 10 0.7 1.7 1.2 0.48×0.64 260
LCD Plan Apo NUV 50X (t0) 0.45 15 4 0.6 1.4 0.48 0.19×0.26 295
LCD Plan Apo NUV 50X (t0.7) 0.45 15 4 0.6 1.4 0.48 0.19×0.26 294
LCD Plan Apo NUV 50X (t1.1) 0.45 15 4 0.6 1.4 0.48 0.19×0.26 293

Note:The resolution and depth of focus of the objective are calculated from the reference wavelength(λ=550nm),NA=Numerical Aperture,WD=Working Distance, F=Focal Length, R=Resolution,±D.F =Depth of Focus



Transmittance/Wavelength

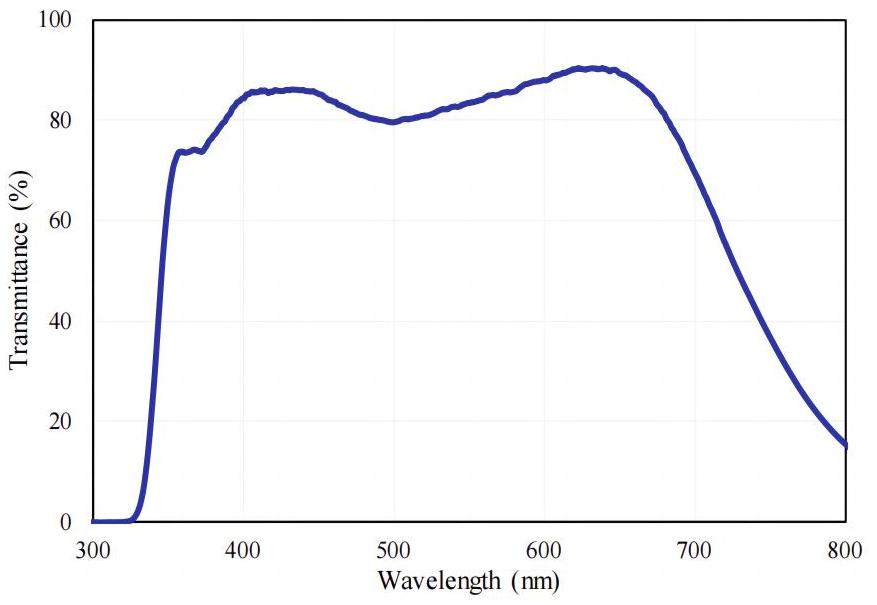

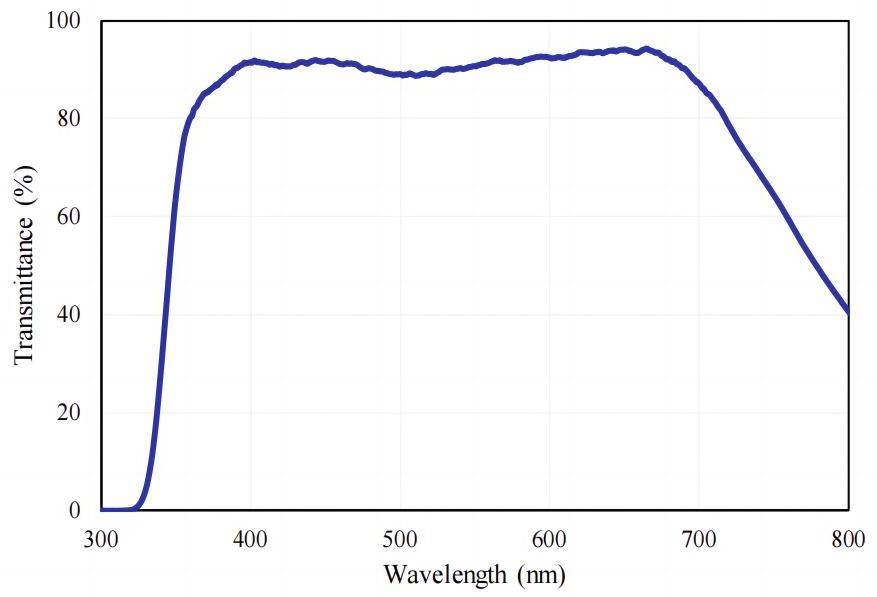

                                                                     LCD Plan Apo NUV 20X                                                                   LCD Plan Apo NUV 50X

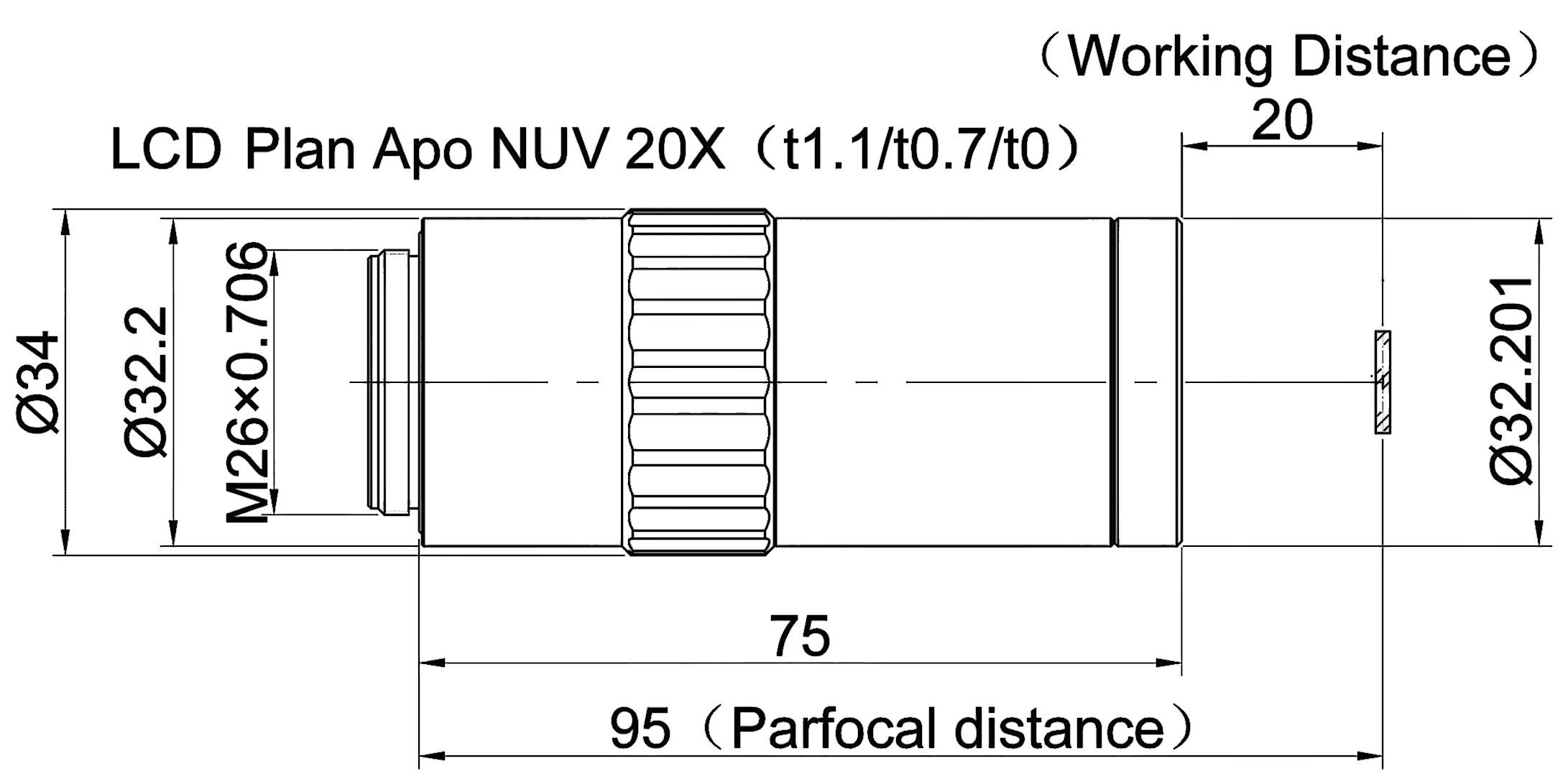

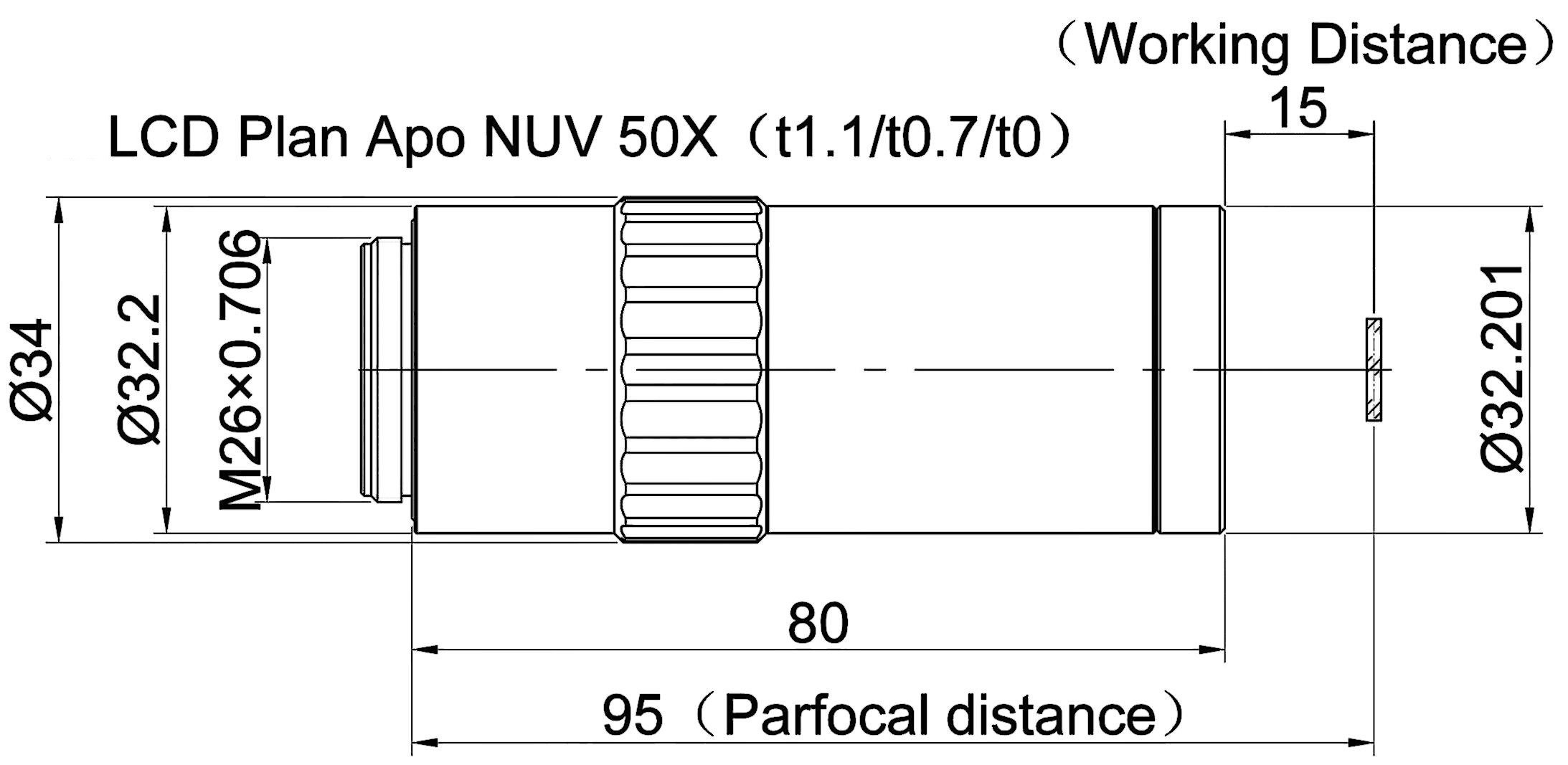

Drawings






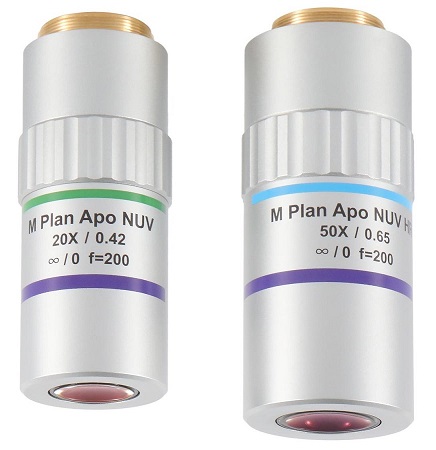

Plan Apochromatic Objective NUV /

Plan Apochromatic Objective NUV High Resolution

M Plan Apo NUV / M Plan Apo NUV HR(Plan Apochromatic Objective NUV / Plan Apochromatic Objective NUV High Resolution) are long working distance objective with an infinite conjugate parfocal distance of 95mm.It can be used for 355nm, 532nm laser processing.



Feature

• A long working distance objective with an infinite conjugate parfocal distance of 95mm
• Chromatic aberration of the visible spectrum is corrected, and the processing surface can be observed coaxially with the laser beam
• Can be used for 355nm, 532nm laser processing

• Good imaging performance at 365nm and 405nm





Product Specifications and Brochures

Product Brochure Link:

Name NA WD(mm) F(mm) R(um) ±D.F(um) Angular Field of View Weight(g)
Φ24 Eyepiece 1''Camera
M Plan Apo NUV 20X 0.42 17 10 0.65 1.56 1.2 0.48×0.64 268
M Plan Apo HR NUV 50X 0.65 10 4 0.42 0.65 0.48 0.19×0.26 405

Note:The resolution and depth of focus of the objective are calculated from the reference wavelength(λ=550nm),NA=Numerical Aperture,WD=Working Distance, F= Focal Length, R=Resolution,±D.F =Depth of Focus

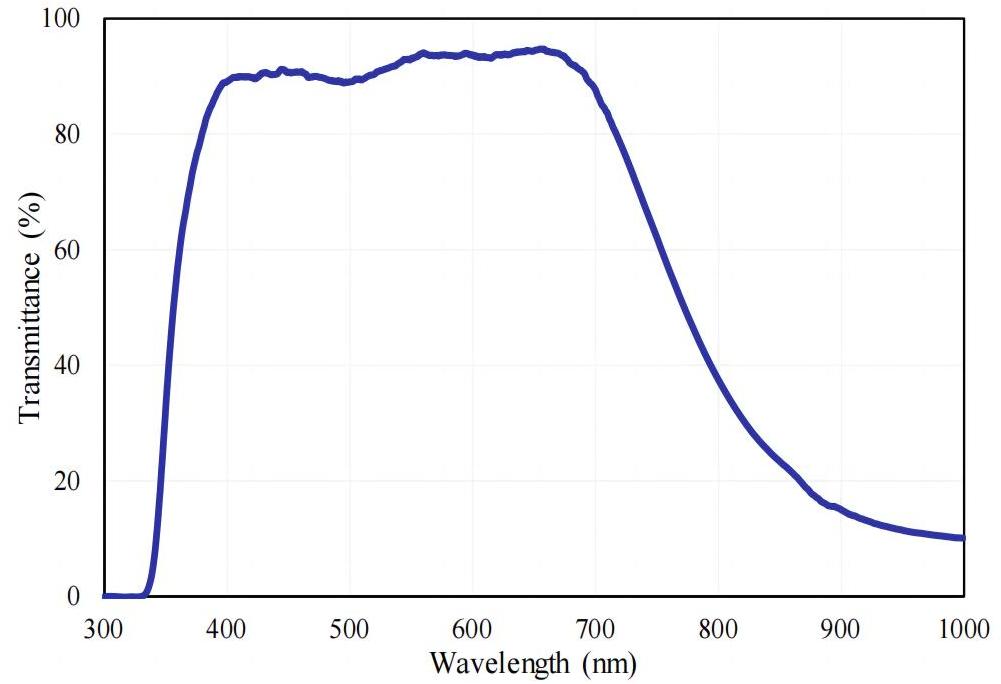

Transmittance/Wavelength

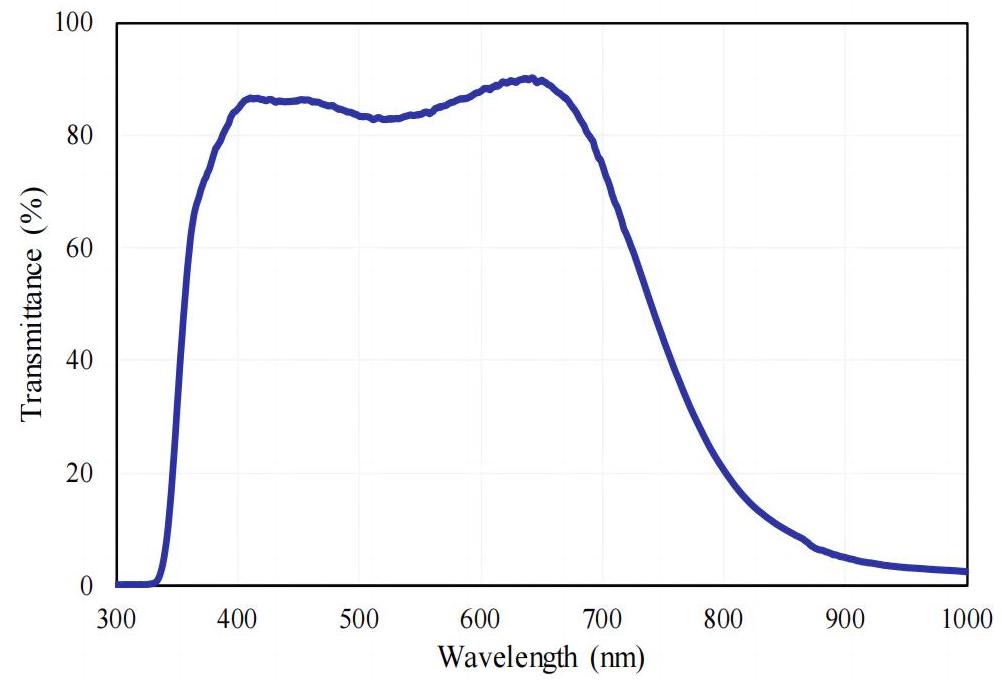

                                                               M Plan Apo NUV 20X                                                                              M Plan Apo HR NUV 50X

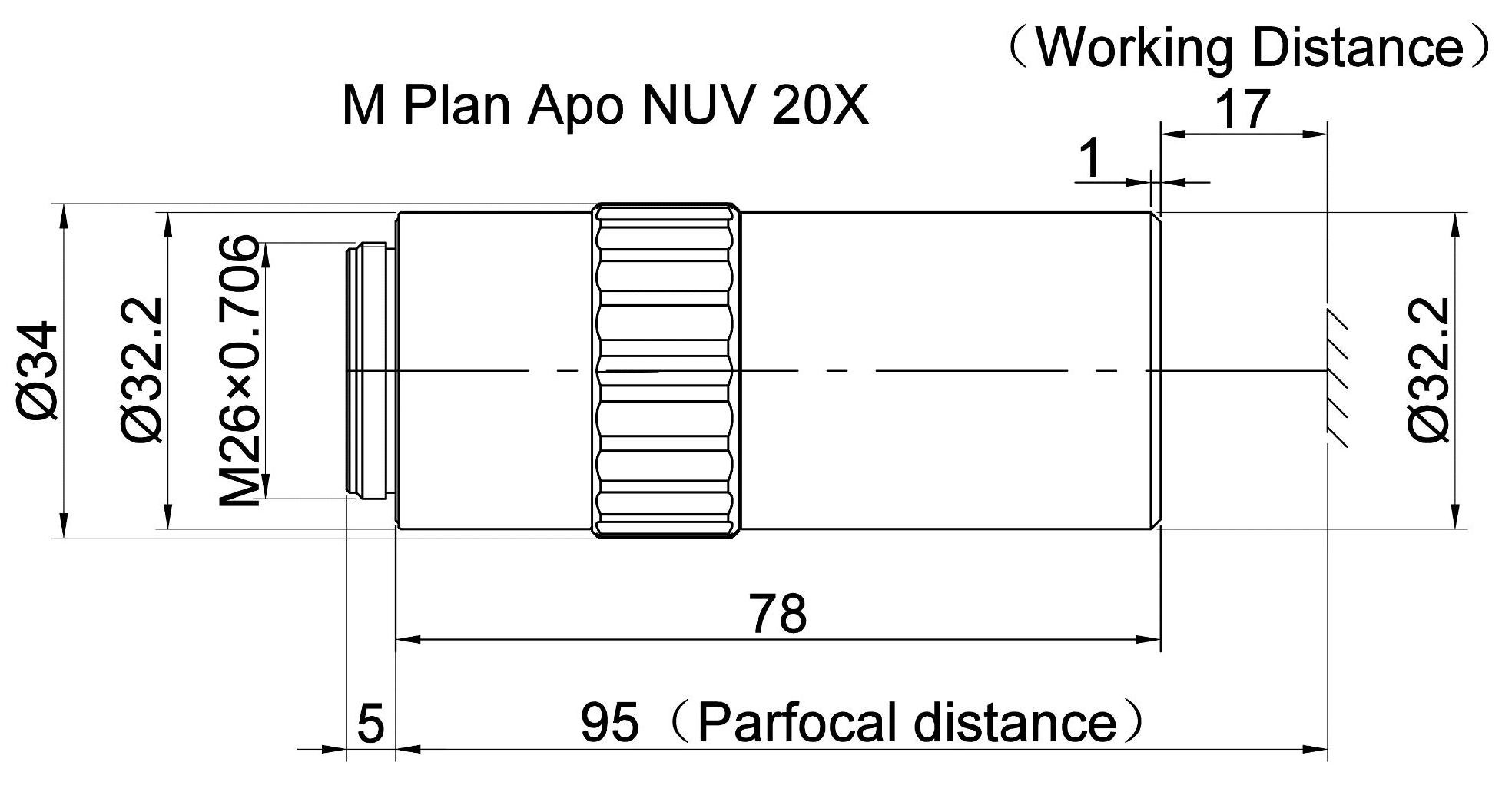

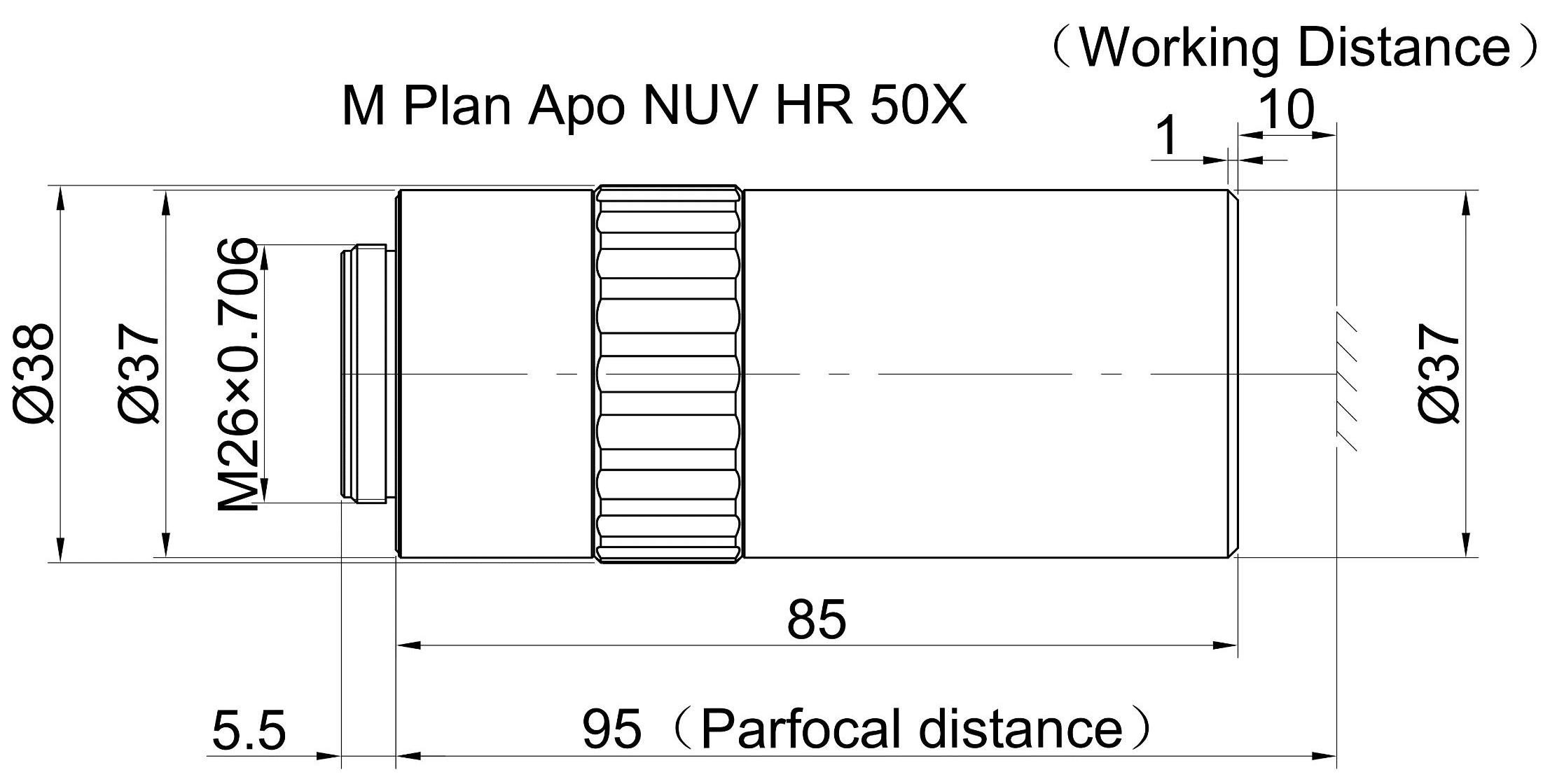

Drawings






Plan Apochromatic Objective

Name Wavelength Magnification NA WD(MM) F(MM) R(um)
Plan Apochromatic Objective VIS VIS 1X to 50X 0.025 to 0.55 13 to 41 4 to 200 0.5 to 11
Plan Apohromatic Objective High Resolution VIS VIS 5X,10X,20X,100X 0.21, 0.42, 0.6, 0.9 9.5, 14, 15, 25 2, 10, 20, 40 0.3, 0.5, 0.7, 13
Plan Apochromatic Objective Super Long Working Distance VIS VIS 20X,50X,100X 0.29, 0.42, 0.55 13, 20, 30 2, 4, 10 0.5, 0.7, 0.9
Plan Apochromatic Objective NIR NIR 20X,50X 0.42, 0.55 13, 20 4, 10 0.5, 0.65
Plan Apochromatic Objective High Resolution NIR NIR 20X,50X 0.6, 0.67, 0.75 0.4, 0.95, 10 4, 10 0.37, 0.41, 0.46
Liquid Crystal Display Plan Apochromatic Objective NIR NIR 20X,50X 0.4, 0.45 15, 20 4, 10 0.6, 0.7
Plan Apochromatic Objective NUV NUV 20X 0.42 17 10 0.65
Plan Apochromatic Objective NUV High Resolution NUV 50X 0.65 10 4 0.42
Liquid Crystal Display Plan Apochromatic Objective NUV NUV 20X,50X 0.4, 0.45 15, 20 4, 10 0.6, 0.7



Industrial Plan Objective

Name Observation Method Magnification NA WD(MM) F(MM) R(um)
Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field Bright Field 5X,10X,20X,100X 0.15, 0.3, 0.45, 0.8, 0.9 1, 3, 11, 20 2, 4, 10 ,20, 40 0.31, 0.34, 0.6, 0.9, 1.8
Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright Field Bright Field 20X,50X,100X 0.4, 0.5, 0.8 3.1, 10.4, 12 2, 4, 10 0.34, 0.55 ,0.7
Plan Objective Bright Field Bright Field 5X,10X,20X,100X 0.13, 0.3 ,0.4, 0.55, 0.8 2, 6.8, 8.2, 11.1, 11.5 2, 4, 10, 20, 40 0.34, 0.5, 0.7, 0.9, 2.1
Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field Bright and Dark Field 5X,10X,20X,100X 0.15, 0.3 ,0.45, 0.8, 0.9 1, 3, 11, 20 2, 4, 10, 20, 40 0.31, 0.34, 0.6, 0.9, 1.8
Long Working Distance Plan Fluorite Objective Episcopic Coaxial Illumination Bright and Dark Field Bright and Dark Field 20X,50X,100X 0.4, 0.5, 0.8 3.1, 10.4, 12 2, 4, 10 0.34, 0.55, 0.7
Plan Objective Bright and Dark Field Bright and Dark Field 5X,10X,20X,100X 0.13, 0.3, 0.46, 0.75, 0.9 1.4, 1.8, 3.6, 6, 11 2, 4, 10, 20, 40 0.31, 0.37, 0.6, 0.9, 2.1



Biology Plan Objective

Name Observation Method Magnification NA WD(MM) F(MM) Level of Chromatic Aberration Correction
Plan Apochromatic Objective Bright Filed / Fluorescence 2X,4X,10X,20X 0.1, 0.2, 0.45, 0.75 0.6, 4, 8.5, 20 10, 20, 50, 100 Apochromatism
Plan Fluorite Objective Bright Filed / Fluorescence 4X,10X,20X,40X,60X 0.13, 0.3, 0.45. 0.6, 0.7 1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5 3.3, 5, 10, 20, 50 Semi-apochromatism
Plan Fluorite Objective Phase-contrast Bright Field / Dark Field / Fluorescence 4X,10X,20X,40X,60X 0.13, 0.3, 0.45. 0.6, 0.7 1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5 3.3, 5, 10, 20, 50 Semi-apochromatism




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Type


Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
M Plan Apo NUV 20X
Plan Apochromatic Objective NUV 20X, Numerical Aperture 0.42, Working Distance 17MM, Focal Length 10MM, Resolution 0.65um, Depth of Focus 1.56um 		6-8 weeks Request for quote
M Plan Apo HR NUV 50X
Plan Apochromatic Objective NUV High Resolution 50X, Numerical Aperture 0.65, Working Distance 10MM, Focal Length 4MM, Resolution 0.42um, Depth of Focus 0.65um 		6-8 weeks Request for quote
LCD Plan Apo NUV 20X (t0)
Liquid Crystal Display Plan Apochromatic Objective NUV 20X (t0), Numerical Aperture 0.4, Working Distance 20MM, Focal Length 10MM, Resolution 0.7um, Depth of Focus 1.7um 		6-8 weeks Request for quote
LCD Plan Apo NUV 20X (t0.7)
Liquid Crystal Display Plan Apochromatic Objective NUV 20X (t0.7), Numerical Aperture 0.4, Working Distance 20MM, Focal Length 10MM, Resolution 0.7um, Depth of Focus 1.7um 		6-8 weeks Request for quote
LCD Plan Apo NUV 20X (t1.1)
Liquid Crystal Display Plan Apochromatic Objective NUV 20X (t1.1), Numerical Aperture 0.4, Working Distance 20MM, Focal Length 10MM, Resolution 0.7um, Depth of Focus 1.7um 		6-8 weeks Request for quote
LCD Plan Apo NUV 50X (t0)
Liquid Crystal Display Plan Apochromatic Objective NUV 50X (t0), Numerical Aperture 0.45, Working Distance 15MM, Focal Length 4MM, Resolution 0.6um, Depth of Focus 1.4um 		6-8 weeks Request for quote
LCD Plan Apo NUV 50X (t0.7)
Liquid Crystal Display Plan Apochromatic Objective NUV 50X (t0.7), Numerical Aperture 0.45, Working Distance 15MM, Focal Length 4MM, Resolution 0.6um, Depth of Focus 1.4um 		6-8 weeks Request for quote
LCD Plan Apo NUV 50X (t1.1)
Liquid Crystal Display Plan Apochromatic Objective NUV 50X (t1.1), Numerical Aperture 0.45, Working Distance 15MM, Focal Length 4MM, Resolution 0.6um, Depth of Focus 1.4um 		6-8 weeks Request for quote

LCD Plan Apo NUV 50X (t1.1) - Parameter

Type
LCD Plan Apo NUV

LCD Plan Apo NUV 50X (t0.7) - Parameter

Type
LCD Plan Apo NUV

LCD Plan Apo NUV 50X (t0) - Parameter

Type
LCD Plan Apo NUV

LCD Plan Apo NUV 20X (t1.1) - Parameter

Type
LCD Plan Apo NUV

LCD Plan Apo NUV 20X (t0.7) - Parameter

Type
LCD Plan Apo NUV

LCD Plan Apo NUV 20X (t0) - Parameter

Type
LCD Plan Apo NUV

M Plan Apo HR NUV 50X - Parameter

Type
M Plan Apo HR NUV

M Plan Apo NUV 20X - Parameter

Type
M Plan Apo NUV

LCD Plan Apo NUV 50X (t1.1) - Download

LCD Plan Apo NUV 50X (t0.7) - Download

LCD Plan Apo NUV 50X (t0) - Download

LCD Plan Apo NUV 20X (t1.1) - Download

LCD Plan Apo NUV 20X (t0.7) - Download

LCD Plan Apo NUV 20X (t0) - Download

M Plan Apo HR NUV 50X - Download

M Plan Apo NUV 20X - Download
