Multispectral Camera for Microscope
Multispectral Camera For Microscope


Multispectral cameras for Microscope are designed for demanding microscopy applications. They contain 4 CMOS cameras in a single box and powerful Windows multicamera software.The enclosure is CNC-machined from aluminum for strength and hard anodized for durability.2ndLook for Windows is included with each system to simplifysystem setup and use. Advanced users can create custom programs in Windows and Linux using the supplied SDK.




Techincal intruduction

The multisperctral camera system

The multisperctral camera system splits light from a single c-mount entrance port into 4 channels for simultaneous imaging. Eight (8) removable standard 1-inch filter holders are inserted at locations within the 4 beams. Use any camera as an internal trigger source or connect all four cameras to an external trigger source. Synchronize external devices using the sync signal. All cameras have global shutter to provide accurate high-speed images of moving objects in the field of view. USB3 Vision and GenICam-compliance makes system setup and use easy. The systems are expandable with up to 4 external c-mount cameras or detectors.


Multispectral Camera For Microscope

(Customization of multispectral camera for microscope is also available.If you need assistance in how to choose a system you need,please Click Here.)


Give an existing microscope new functionality by adding

a multispectral camera for microscope

2ndLook for Windows

Use Windows-based 2ndLook software to configure and capture images and video from mulitspectral camera systems through a single graphical interface. 2ndLook is included standard with each system purchase. External USB3 Vision, GiGE Vision, and Twain-compliant cameras can also be setup and used simultaneously. 2ndLook provides real-time synchronized video recording from multiple cameras to popular file formats. Easy to use interface with interactive help and user guides.

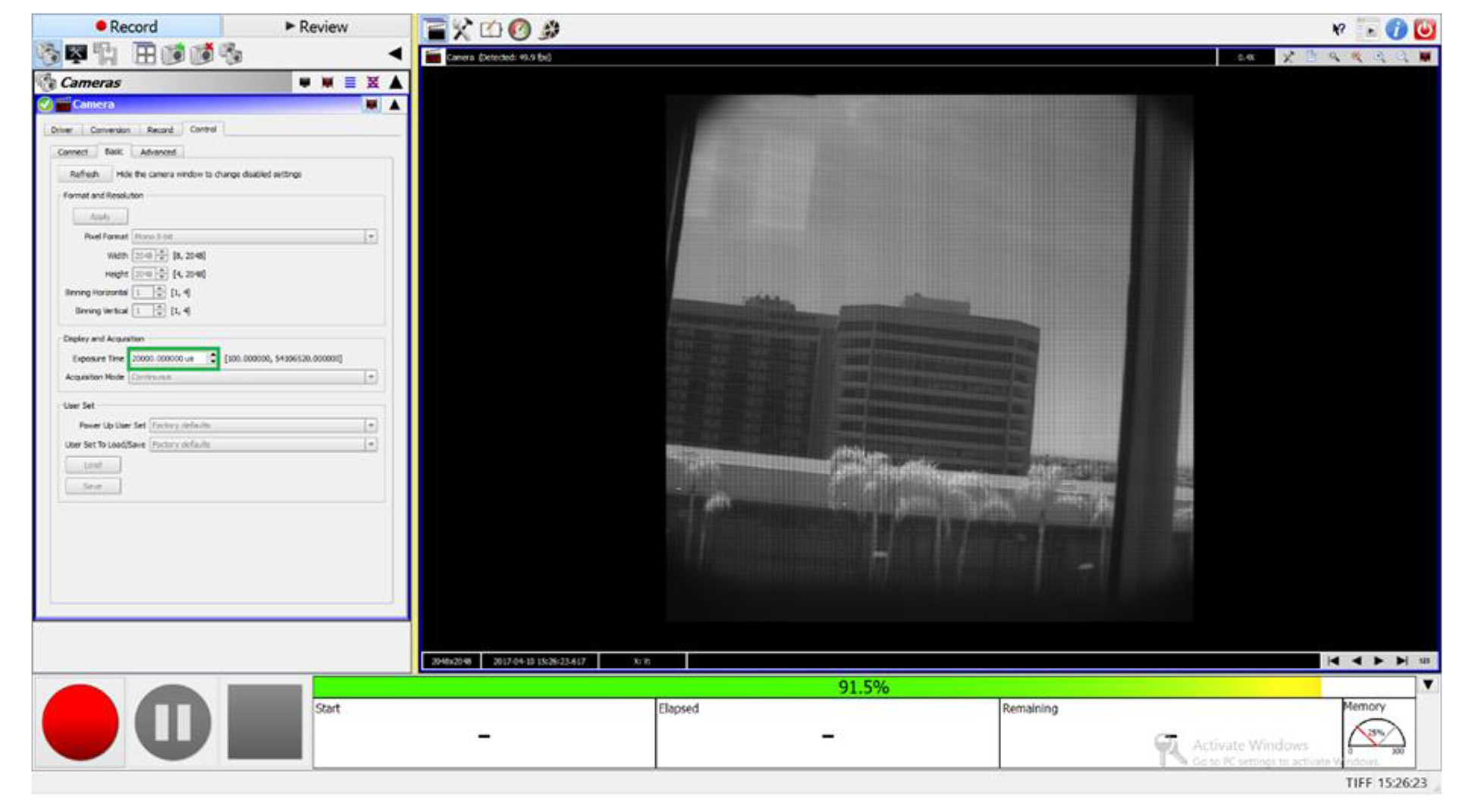

Real-time display of raw multispectral images

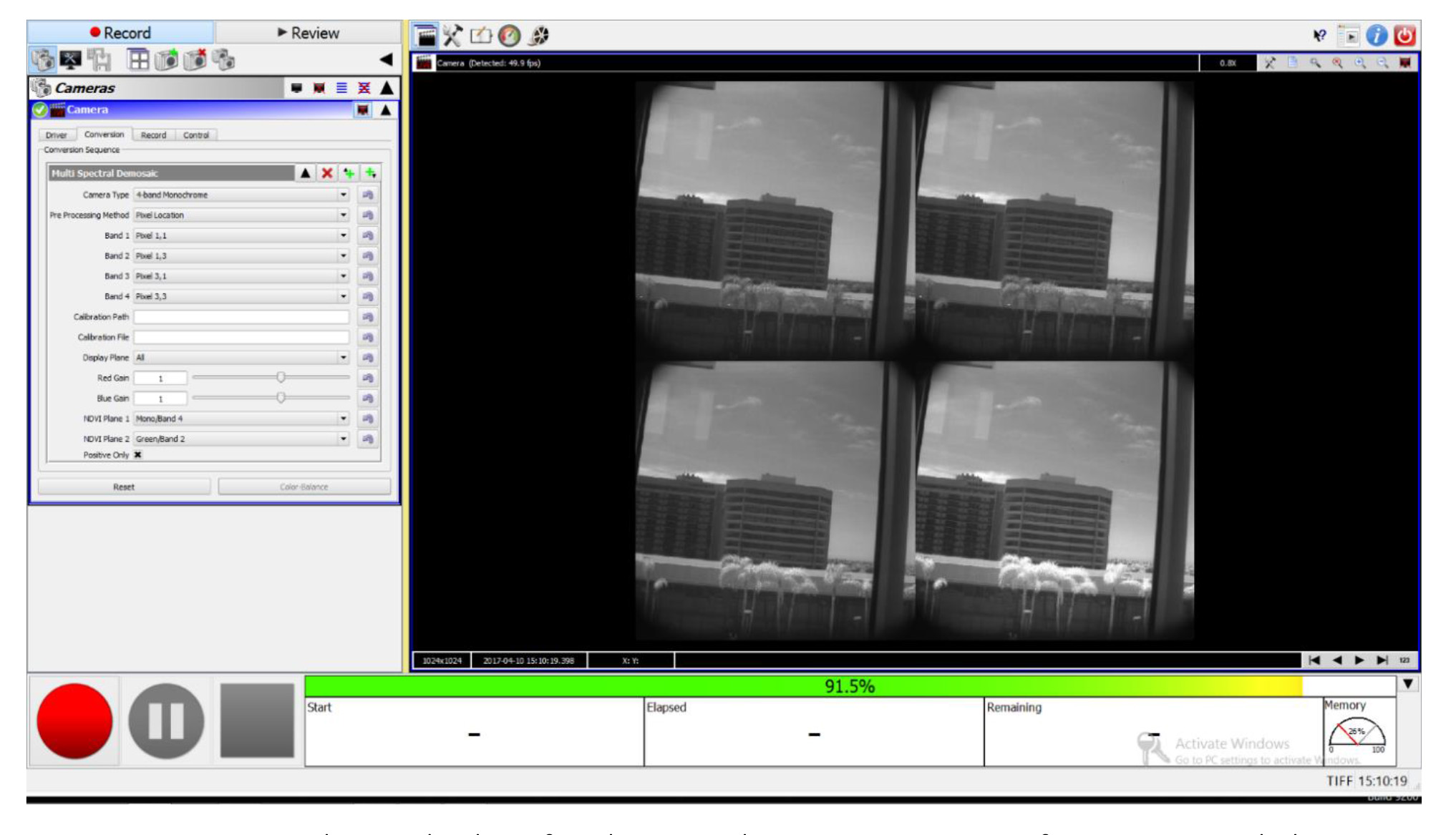

Real-time display of multispectral images in montage format. Example here collected with 4-band multispectral camera for agriculture

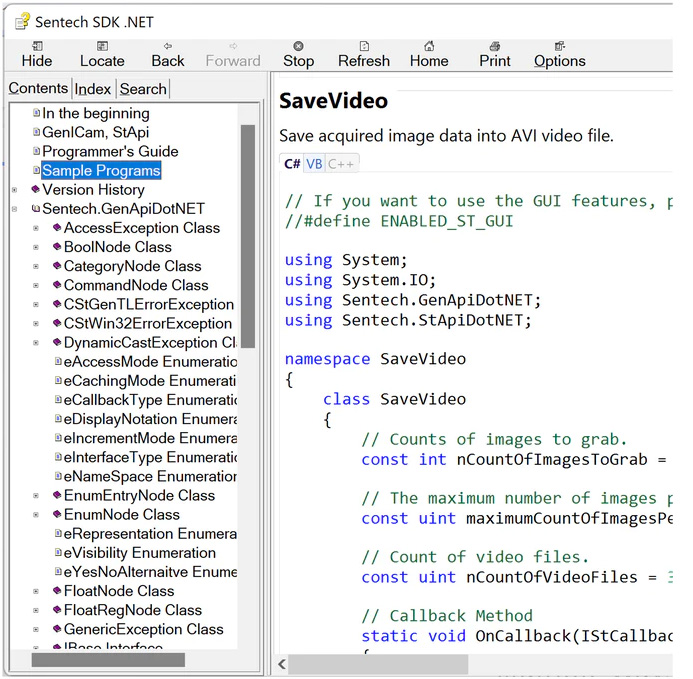

Professional SDK


Windows Software



Power users can write multicamera applications for the multispectral camera for microscope using the included SDK for Windows, Linux, MacOS, and Raspberry Pi. Support for the Python environment is included standard.

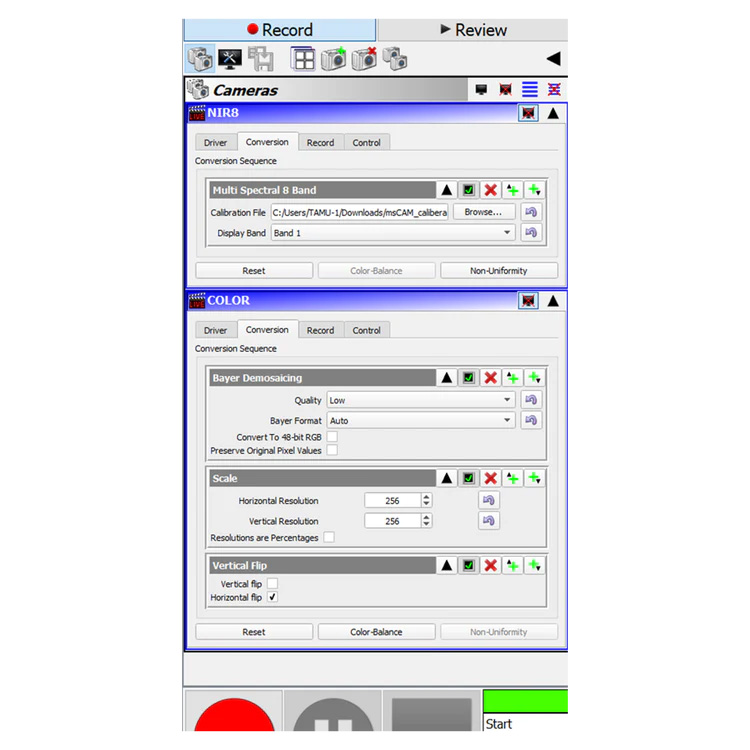

Easy to use Windows software is provided standard with each system. Configure each camera and capture images and video in real-time to popular file formats. Offers an intuitive interface with interactive help and user guides. Add-on USB3 Vision, GiGE Vision, and Twain-compliant cameras for even more complex multicamera experiments.


Feature comparision


2.3MP Microscopy Multicamera

-4 sensitive imaging sensors for fluorescence imaging

-With low noise

-Can detect fluorescence at short exposures

-Be capable of capturing very weak fluorescence signals

-Have been used for fluorescence video imaging of stained tissue at 20 FPS

5.1MP Microscopy Multicamera

- Four Sony IMX250 images sensors

- Have highest sensor resolution and smallest pixel size compared to our

 other microscopy multicamera systems

-With low noise and high dynamic range

-Generate high resolution images with largest field of view


4.2MP Microscopy Multicamera

-Four CMV4000 imaging sensors

-Large pixel size and very fast read out

-High frame rate and excellent sensitivity

 -Several thousand frames per second are achievable when using a region of

 interest


20.5MP Microscopy Multicamera

-Four Sony IMX183 imaging sensors

-Back-illuminated and excellent for fluorescence imaging

-Sensor has very low noise and can detect fluorescence at short exposure times




Construction Introductuion


System layout

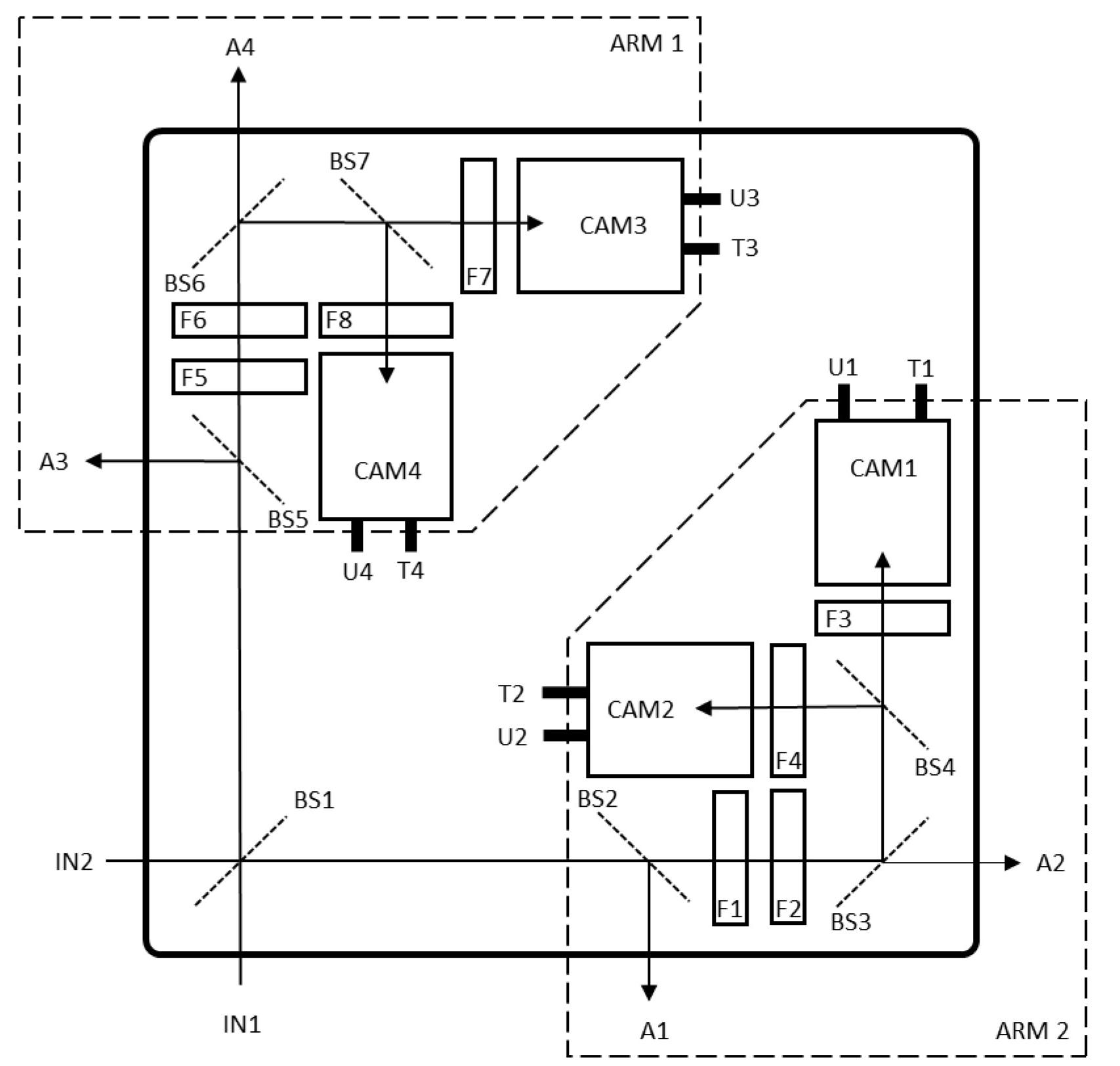

Drawing shows a schematic of the internals of the multispectral cameral microscopy system.The drawing illustrates the layout of the cameras (CAM*) with respect to the beam splitters (BS*) and filters (F*). Each camera has a USB3 data connection (U*) and a trigger input/output (T*). One camera can act as a master and trigger the others. Alternatively, the four cameras can be triggered with an external signal through a BNC connection on the side of the unit. The trigger signal is available as a signal output on a BNC connector on the side of the unit.


Image and dimension

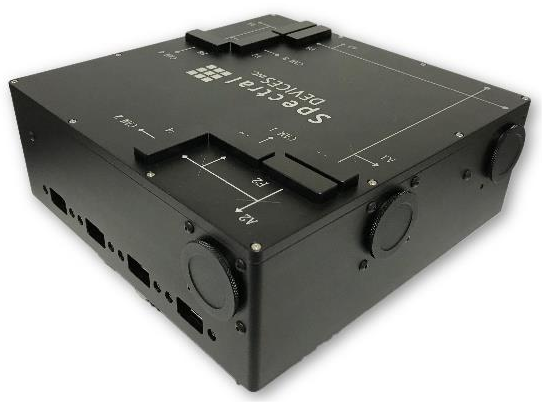

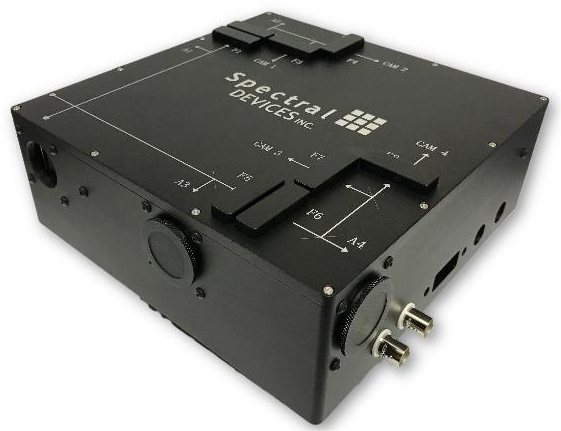

Image of the multispectral cameral microscopy system

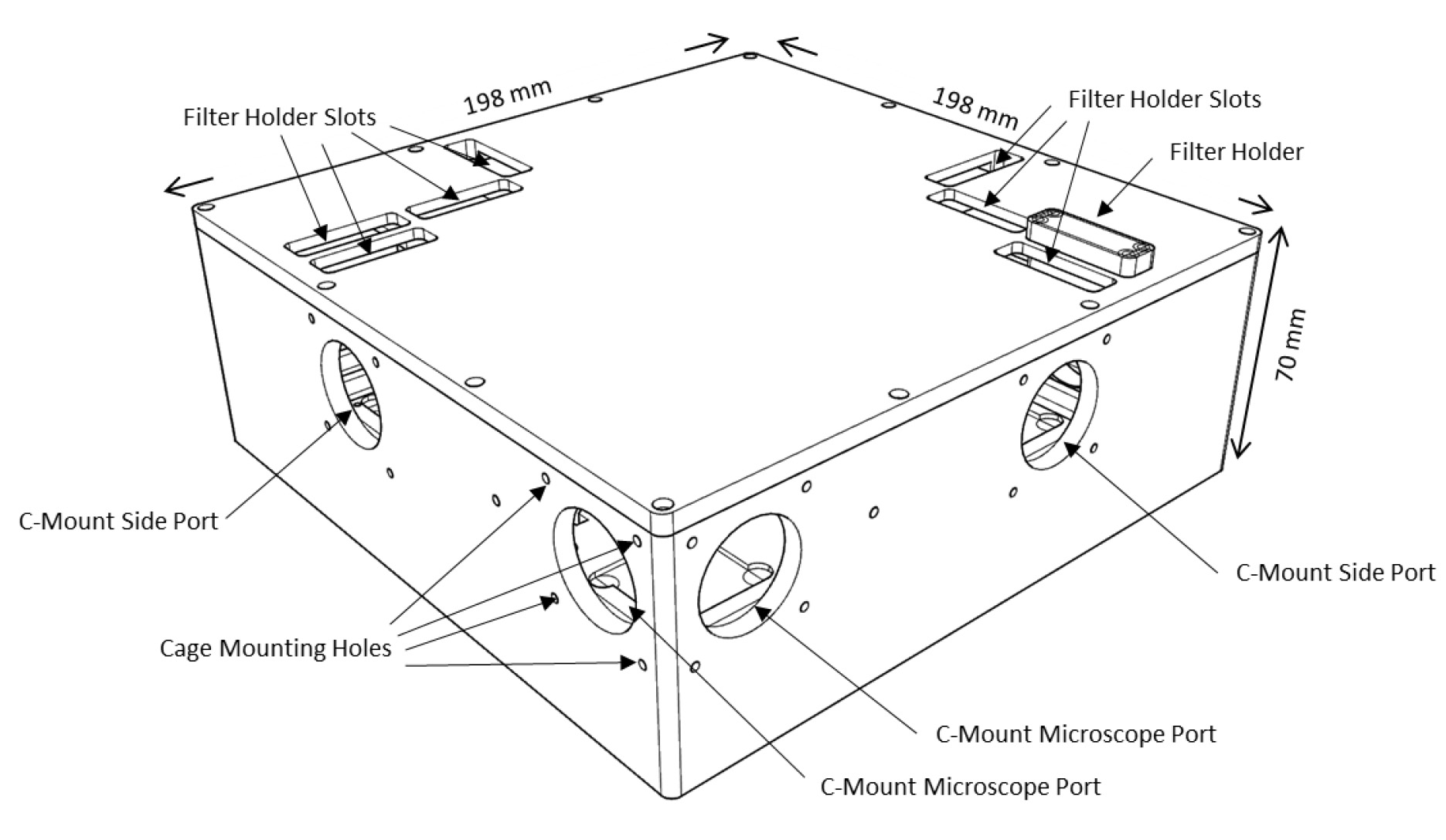

Dimension

Front

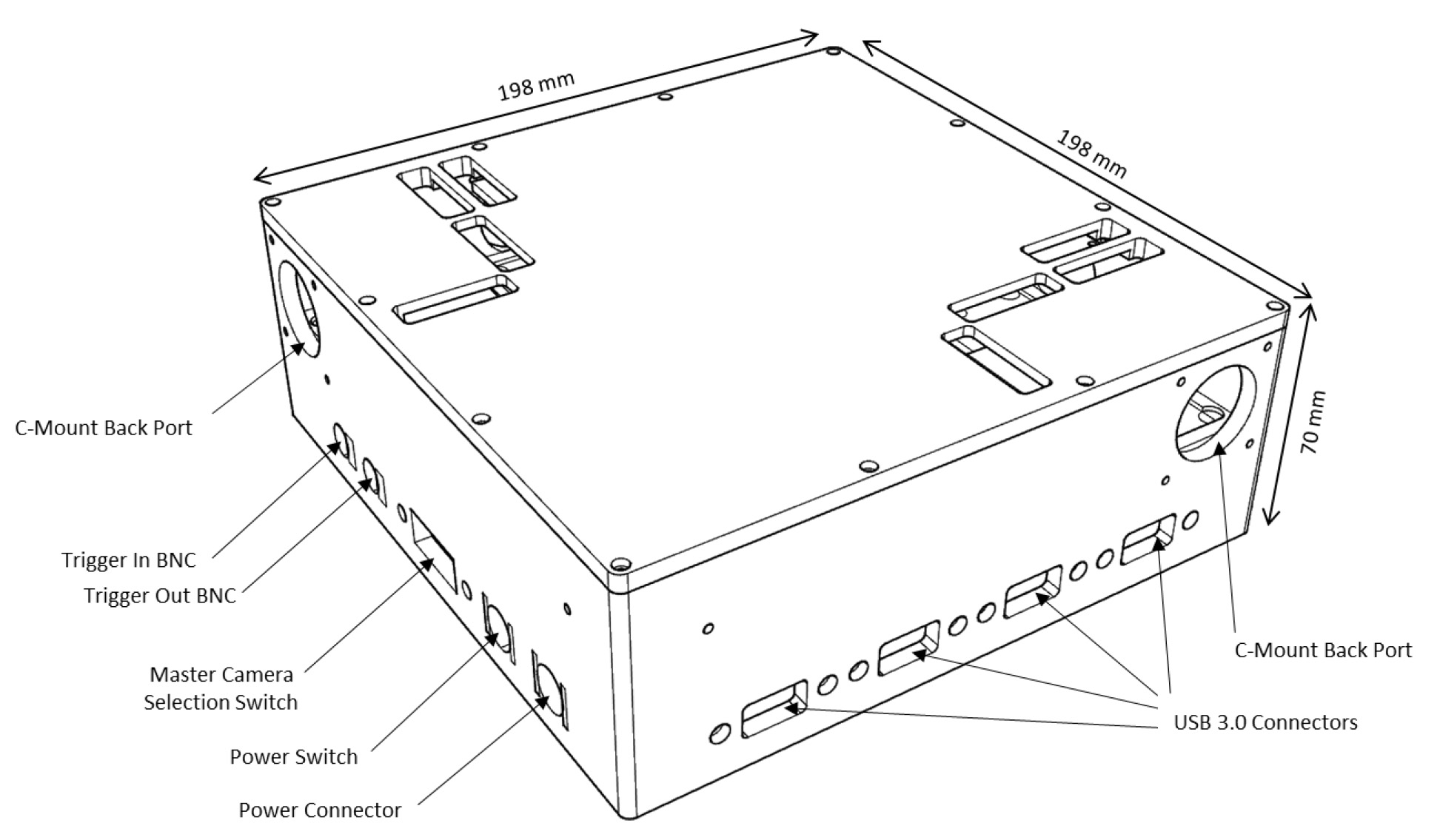

Back



Construction  integration

Add new functionality


User-configurable


Give an existing microscope new functionality by adding a multispectral cameral microscopy system. Perform brightfield, fluorescence, and polarization imaging with a single equipment addon.
Users can insert standard 1-inch optics into the light path of each camera to configure the multispectral cameral microscopy system for a variety of microscopy applications. Switch between applications in munutes by using the removable optic holders.

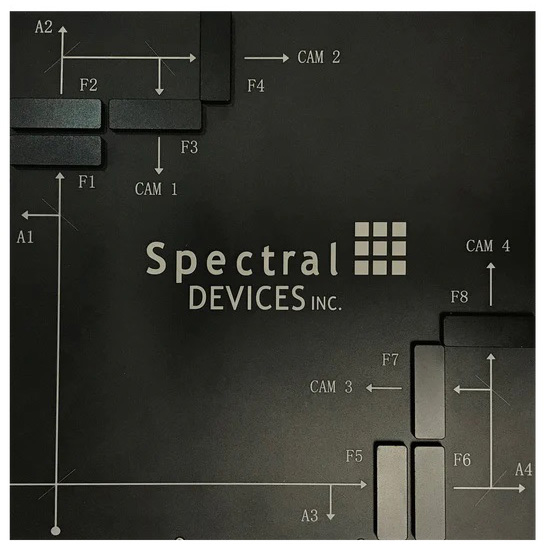

Expandable

Each system has externally accessible C-Mount ports to expand the system by 4 optical channels. Users can attach cameras, spectrometers, and detectors to these external ports.



Product specifications and Brochures

Product Brochure Link:

Customization of multispectral camera for microscope is also available.If you need assistance in how

to choose a system you need,please Click Here.

Parameters2.3MP Microscopy Multicamera4.2MP Microscopy Multicamera5.1MP Microscopy Multicamera20MP Microscopy Multicamera
Number of bands4
Band locationsInterchangeable filters
Pixels/Band1920 x 12002048 x 20482464 × 20565472 x 3648
Pixel size (µm)5.86 x 5.865.5 x 5.53.45 x 3.452.4 x 2.4
Sensor size1/1.2-inch1-inch2/3-inch1-inch
Sensor typeGlobal Shutter(four 2.3 MP IMX249 sensors )Global Shutter( four AMS CMV4000 monochrome imaging
sensors)
Global Shutter(four Sony IMX250 monochrome imaging
sensors)
Rolling Shutter(four Sony IMX183 imaging sensors)
Max. frame rate41 FPS89 FPS75 FPS18 FPS
IlluminationFront-illuminatedFront-illuminatedFront-illuminatedHigh sensitivity
back-illuminated
ApertureTwo C-Mount ports (left and right) available.
User must choose one entrance port at time of order.
Camera optionsMono/ColorMono/ColorMono/ColorMono/Color
Filter holders8 total. 4 per arm. Retaining rings included.
Rotation adjustment slot for polarizers.
Compatible filter sizes25 mm diameter, 25.4 mm diameter. ≤ 6 mm thickness.
Beam splitter typeCube
Beam splitter options50:50, 70:30; 90:10, dichroic
Optical distance between entrance port and sensor260 mm
External output portsTwo C-Mount ports on each arm. Each port with 4-40 screw holes for 30 mm cage optics.
External connectors1 x BNC Trigger in
1 x BNC Trigger out
1 x 5 VDC Power in
Tripod mounting4 x ¼-20 and 4 x M6 threaded holes on bottom near center
ConstructionCNC 6061 Aluminum with Stainless Steel hardware
Surface finishHard black anodization with laser etching
Dimensions (W x D x H) – not including feet198 mm x 198 mm x 70 mm
Foot adjustment20-40 mm vertically
Weight3 kg



 Available Lens for choice
Standard Lenses
Model   No.Focal LengthIris RangeMinimum Focus RangeFOVTemperature RangeFilter RingWeight
LENS-4-S4.7mmF2.4-F110.1mFOV (1m): 2.40m x 2.40m
FOV (10m): 24.0m x 24.0m
FOV (100m): 240m x 240m
-10°C ~ +50°CNot Available360g
LENS-6-S6mmF1.8-F110.1mFOV (1m): 1.88m x 1.88m
FOV (10m): 18.8m x 18.8m
FOV (100m): 188m x 188m
-10°C ~ +50°CNot Available215g
LENS-8-S8mmF1.4 - 160.1mFOV (1m): 1.41m x 1.41m
FOV (10m): 14.1m x 14.1m
FOV (100m): 141m x 141m
-10°C ~ +50°CM55x0.75205g
LENS-12-S12.5mmF1.4 - 160.1mFOV (1m): 0.901m x 0.901m
FOV (10m): 9.01m x 9.01m
FOV (100m): 90.1m x 90.1m
-10°C ~ +50°CM35.5x0.5160g
LENS-16-S16mmF1.4 - 160.1mFOV (1m): 0.704m x 0.704m
FOV (10m): 7.04m x 7.04m
FOV (100m): 70.4m x 70.4m
-10°C ~ +50°CM35.5x0.5150g
LENS-25-S25mmF1.4 - 160.3mFOV (1m): 0.450m x 0.450m
FOV (10m): 4.50m x 4.50m
FOV (100m): 45.0m x 45.0m
-10°C ~ +50°CM35.5x0.5135g
LENS-35-S35mmF1.4 - 160.3mFOV (1m): 0.322m x 0.322m
FOV (10m): 3.22m x 3.22m
FOV (100m): 32.2m x 32.2m
-10°C ~ +50°CM35.5x0.5135g
LENS-50-S50mmF1.4 - 160.5mFOV (1m): 0.225m x 0.225m
FOV (10m): 2.25m x 2.25m
FOV (100m): 22.5m x 22.5m
-10°C ~ +50°CM40.5x0.5210g
LENS-75-S75mmF1.8 - 161.0mFOV (1m): 0.150m x 0.150m
FOV (10m): 1.50m x 1.50m
FOV (100m): 15.0m x 15.0m
-10°C ~ +50°CM46x0.75195g


Low Distortion Lenses
Model   No.Focal LengthIris RangeMinimum Focus RangeFOVTemperature RangeFilter RingWeight
LENS-6-LD6.5mmF2.5 - 160.1mFOV (1m): 1.73m x 1.73m
FOV (10m): 17.3m x 17.3m
FOV (100m): 173m x 173m
-10°C ~ +50°CM82x0.75/
LENS-8-LD8.5mmF2.8 - 160.1mFOV (1m): 1.32m x 1.32m
FOV (10m): 13.2m x 13.2m
FOV (100m): 132m x 132m
-10°C ~ +50°CM62x0.75230g
LENS-16-LD16mmF1.8 - 160.1mFOV (1m): 0.704m x 0.704m
FOV (10m): 7.04m x 7.04m
FOV (100m): 70.4m x 70.4m
-10°C ~ +50°CM35.5x0.5200g
LENS-25-LD25mmF1.8 - 160.1mFOV (1m): 0.450m x 0.450m
FOV (10m): 4.50m x 4.50m
FOV (100m): 45.0m x 45.0m
-10°C ~ +50°CM35.5x0.5220g
LENS-35-LD35mmF1.8 - 160.2mFOV (1m): 0.322m x 0.322m
FOV (10m): 3.22m x 3.22m
FOV (100m): 32.2m x 32.2m
-10°C ~ +50°CM40.5x0.5205g
LENS-50-LD50mmF1.8 - 160.2mFOV (1m): 0.225m x 0.225m
FOV (10m): 2.25m x 2.25m
FOV (100m): 22.5m x 22.5m
-10°C ~ +50°CM40.5x0.5205g


Ruggedized Lenses
Model   No.Focal LengthIris RangeMinimum Focus RangeFOVTemperature RangeFilter RingWeight
LENS-8-R8mm

F1.4/F2.8

/F4/F8

0.1mFOV (1m): 1.41m x 1.41m
FOV (10m): 14.1m x 14.1m
FOV (100m): 141.0m x 141.0m
-10°C ~ +50°CM55x0.75183g
LENS-12-R12.5mm

F1.4/F2.8

/F4/F8

0.3mFOV (1m): 0.901m x 0.901m
FOV (10m): 9.01m x 9.01m
FOV (100m): 90.1m x 90.1m
-10°C ~ +50°CM35.5x0.5130g
LENS-16-R16mm

F1.4/F2.8

/F4/F8

0.3mFOV (1m): 0.704m x 0.704m
FOV (10m): 7.04m x 7.04m
FOV (100m): 70.4m x 70.4m
-10°C ~ +50°CM35.5x0.5120g
LENS-25-R25mm

F1.4/F2.8

/F4/F8

0.3mFOV (1m): 0.450m x 0.450m
FOV (10m): 4.50m x 4.50m
FOV (100m): 45.0m x 45.0m
-10°C ~ +50°CM35.5x0.5104g
LENS-35-R35mm

F1.4/F2.8

/F4/F8

0.3mFOV (1m): 0.322m x 0.322m
FOV (10m): 3.22m x 3.22m
FOV (100m): 32.2m x 32.2m
-10°C ~ +50°CM35.5x0.5133g
LENS-50-R50mm

F1.4/F2.8

/F4/F8

0.5mFOV (1m): 0.225m x 0.225m
FOV (10m): 2.25m x 2.25m
FOV (100m): 22.5m x 22.5m
-10°C ~ +50°CM40.5x0.5170g
