Anti-X-Talk™ technology works at the filter level and prevents light leakage between individual filters. Without Anti-X-Talk™ technology, stray light between spectral channels is significant, often exceeding the light leakage due to spectral overlap between adjacent filters. Without AntiX-Talk™ technology, images suffer from low contrast and spectral ambiguity. we invented Anti-X-Talk™ technology to overcome these problems. It works by blocking stray light between adjacent filters, so the pixel response is predictable and directly related to the actual spectral response of the overlying pixelated filter. The result is multispectral images with better spectral discrimination and higher contrast. Furthermore, high quality image data from the multispectral imaging system can be used as is without the need for proprietary post-processing algorithms and the camera can be used with a wide range of lens types, even at large apertures (e.g. f/2).

-Capture spectral images simultaneously(snapshot operation)

-High Frame Rate (up to 180 FPS at full frame)

-4MP Global Shutter CMOS Sensor

-USB3 Vision & GenICam Compliant

-High power pulsed LED light source

-Compact waterproof and dustproof camera head (IP67)

-All cable connections removable and waterproof (IP67)

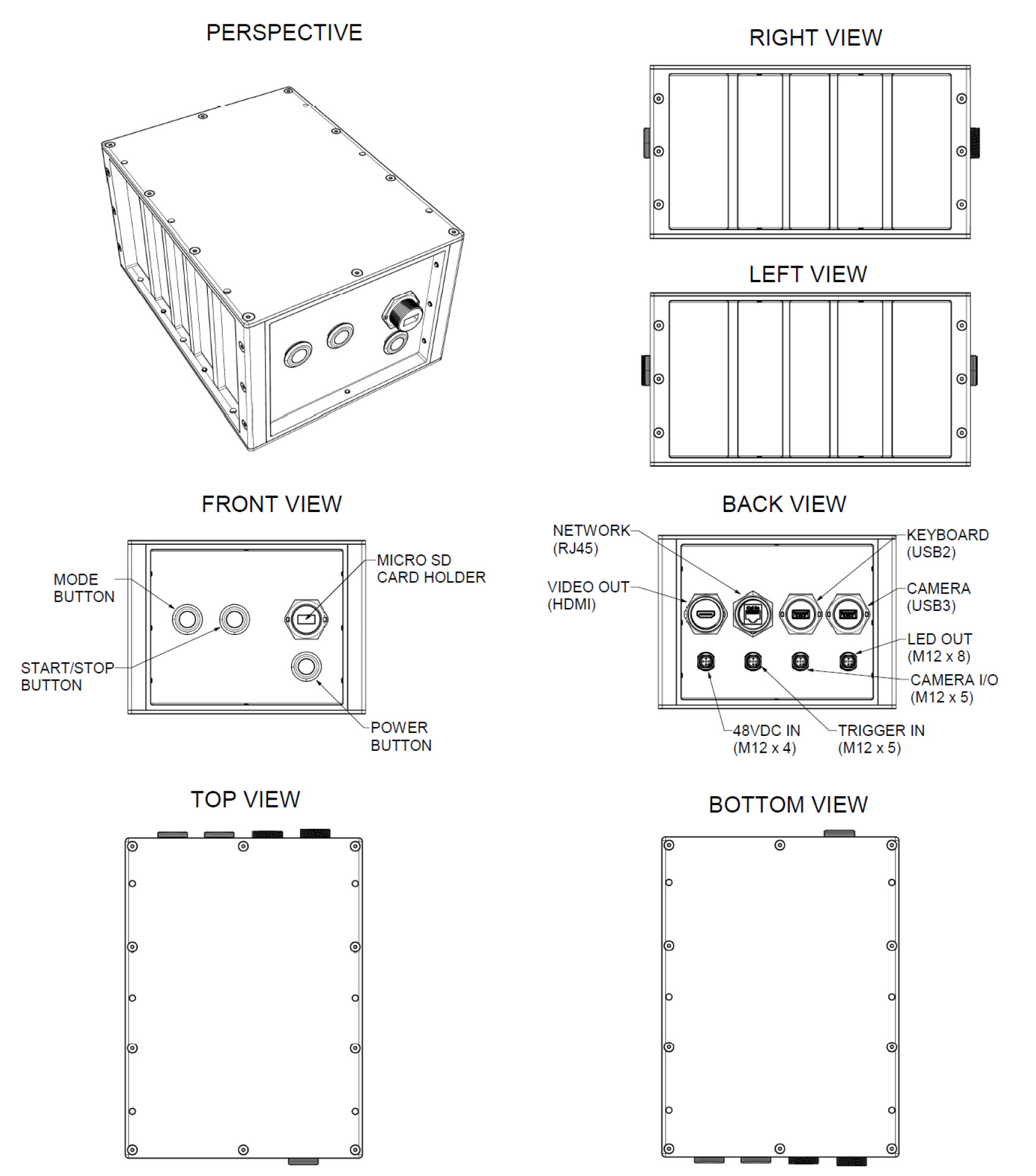

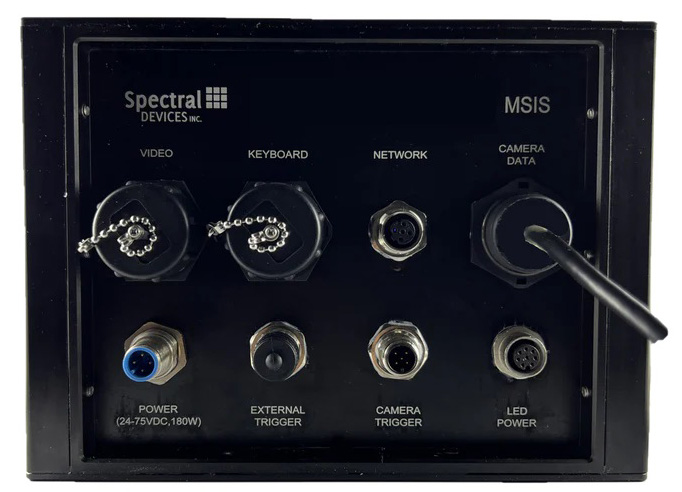

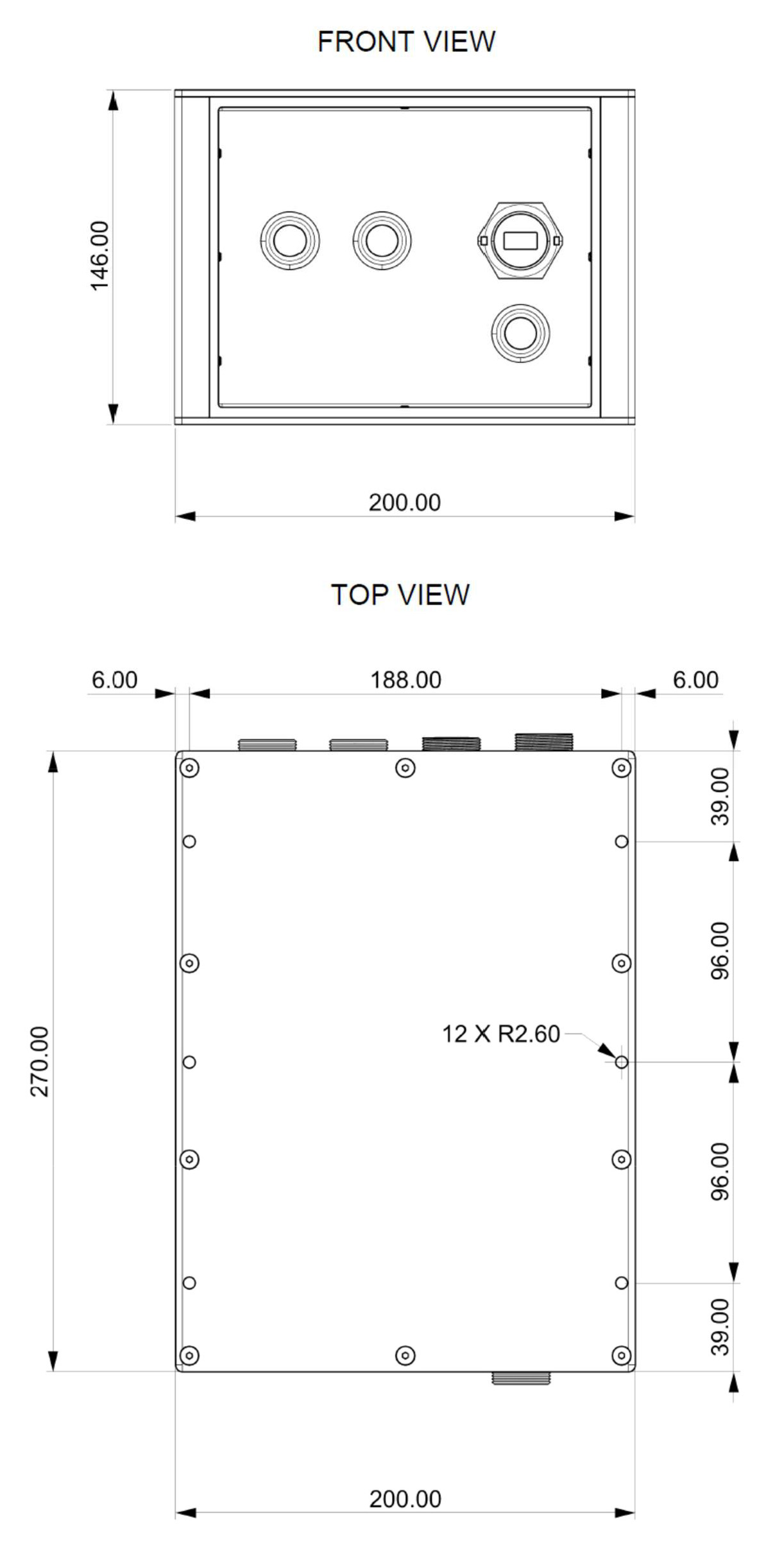

-Waterproof control module with computer and all software included

-Users can monitor video feed from camera in real-time over HDMI

-Enhances contrast and spectral performance(Anti-X-Talk™ Technology)

-Easy camera configuration using configuration file on SD card

-External ports for keyboard and monitor if direct access needed

-Headless operation (no keyboard or monitor required)

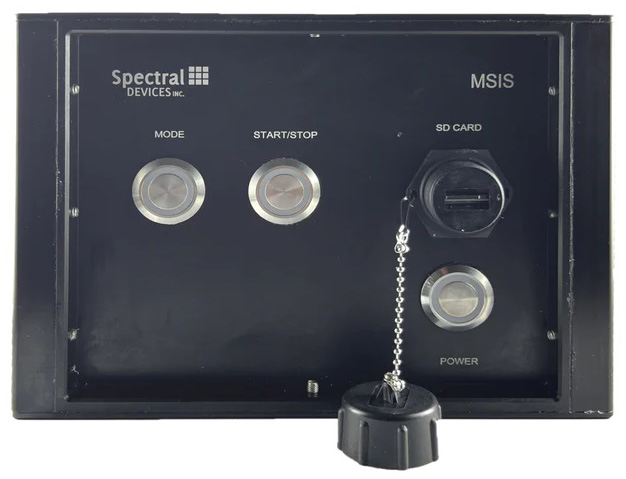

-Illuminated and color-coded buttons for instant feedback and control

-All necessary cables included

-Images saved to removable SD card and can also be retrieved over a network connection

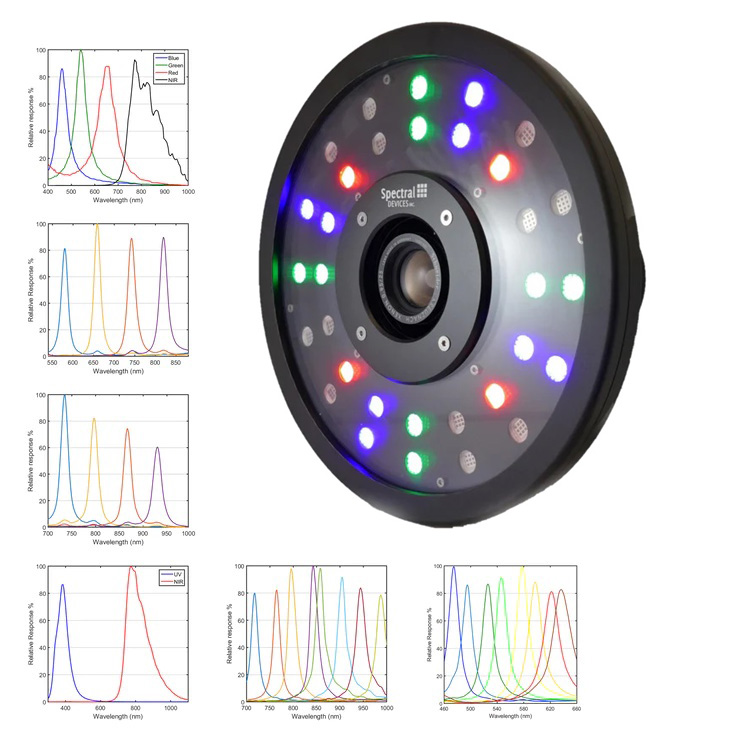

Camera Types

-With RGB and NIR bands ,includes an RGB-NIR multispectral amera with red, green, blue and NIR spectral bands

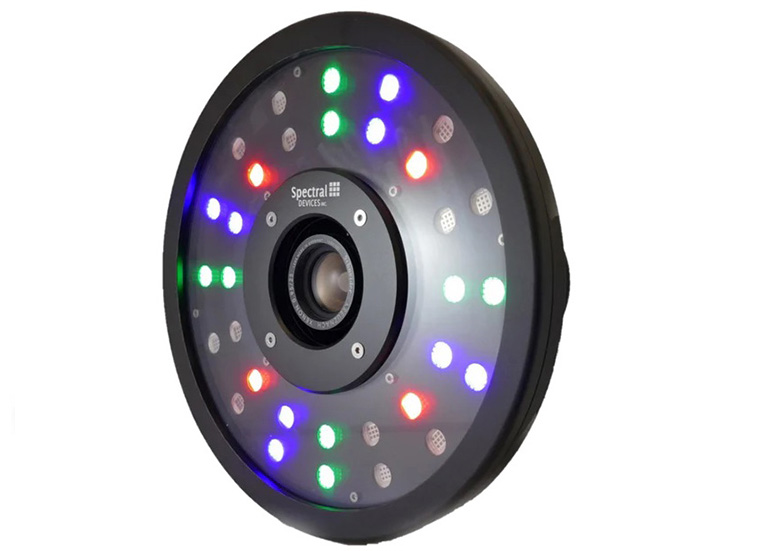

-The illuminator contains 4 channels of LEDs

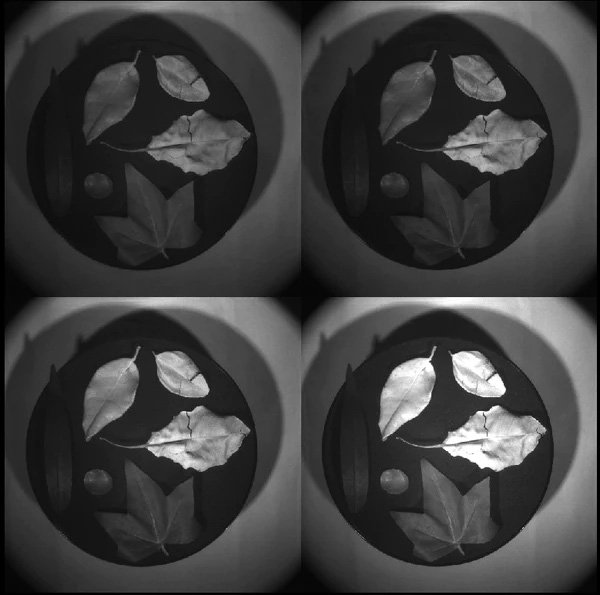

Agricultural Multispectral Imaging System

-Include agriculture multispectral camera with 4 bands

-The LED illuminator is equipped with 4 independent channels(live vegetation channel,NDVI red channel,'red edge' channel,NDVI NIR channel)

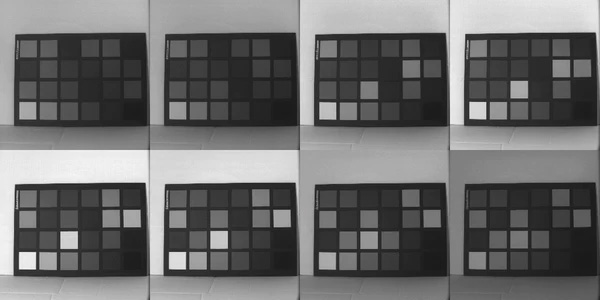

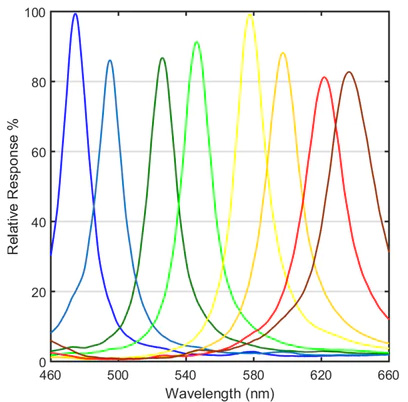

-Include an 8-Band visible multispectral camera offering nearly equally spaced bands across the visible spectral range

-The LED illuminator is equipped with 8 independent channels that are matched to camera

Compared to our 4-band systems, the 8-band visible camera offers 3-fold higher sensitivity

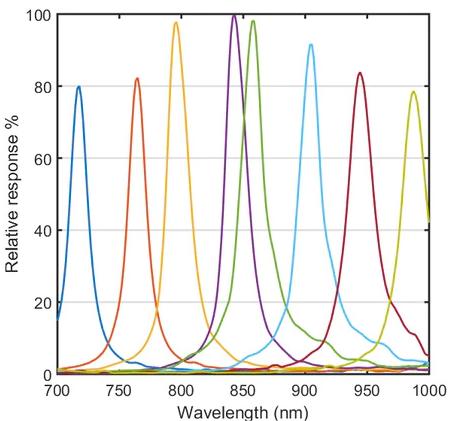

8-Band NIR Multispectral Imaging System

-Includes an 8-Band NIR multispectral Camera offering nearly equally spaced bands across the near-infrared spectral range

-The LED illuminator is equipped with 8 independent channels that are matched to camera

-Compared to our 4-band systems, the 8-band NIR camera offers 3-fold higher sensitivity

-Includes an biomedical multispectral camera with 4 bands

-The LED illuminator is equipped with 4 independent channels(separately sensitive to

deoxyhemoglobin,total hemoglobin,oxyhemoglobin, lipid)

UV-NIR Multispectral Imaging System

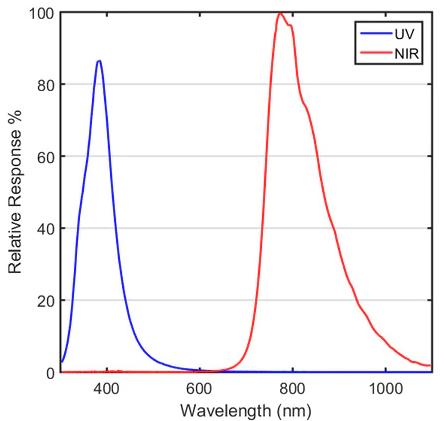

-Includes an UV-NIR multispectral camera with 2 bands of spectral discrimination

-The LED illuminator includes 2 independent LED channels(One channel is centered in the UV region and the other covers the near infrared region)

Multiple imaging modes

Systems can be configured for imaging reflectance, luminescence, or a combination of both methods.

Customizable

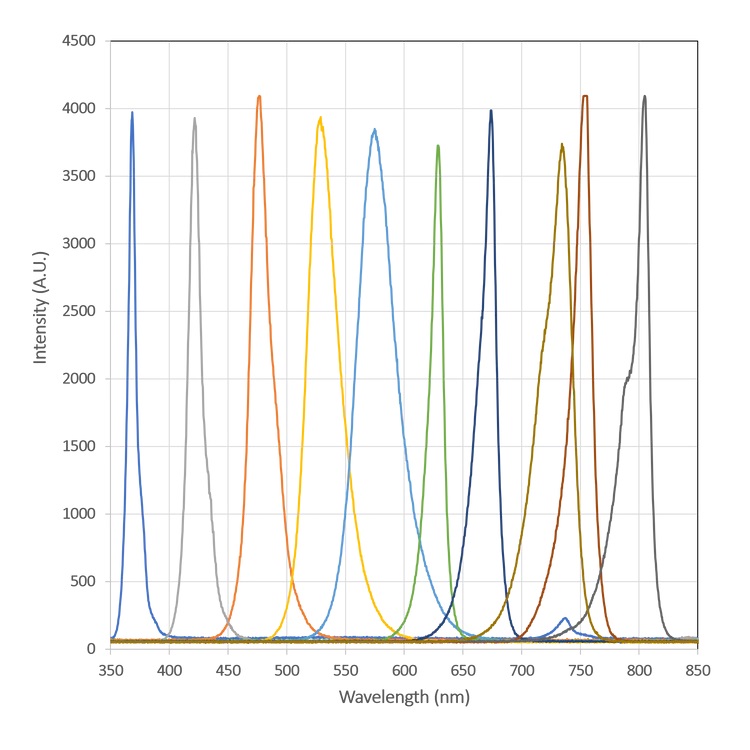

We can customize the LEDs and camera to meet specific application requirements.

Waterproof design

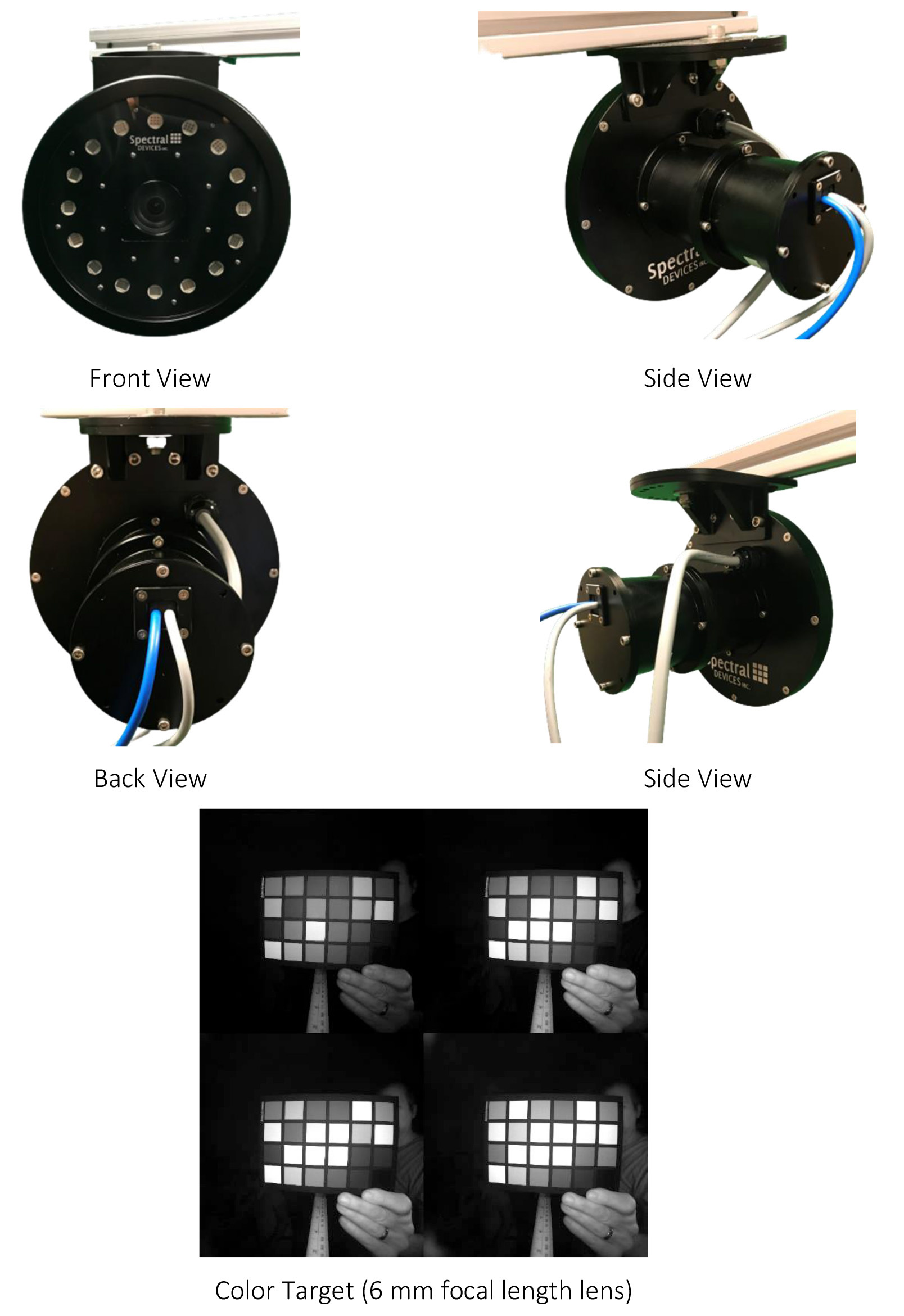

The system is built to last with high quality anodized aluminium and stainless steel materials. The camera head, controller and cabling are rated IP67 enabling the MSIS to operate in wet environments.

AC/DC operation

Designed to work with AC or DC power sources. Comes with a universal AC power adaptor. For portable applications, the MSIS can be powered with a wide range of battery voltages and draws less than 50W for the 4-channel version

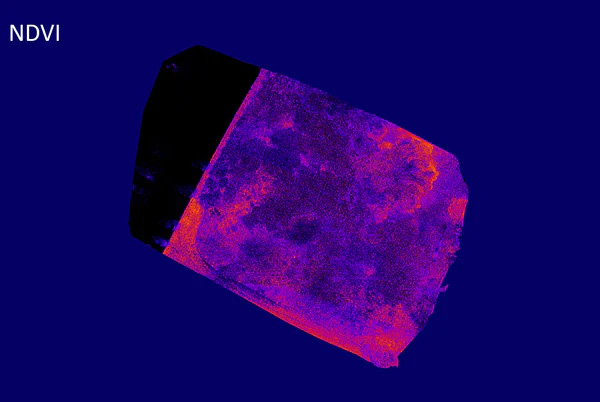

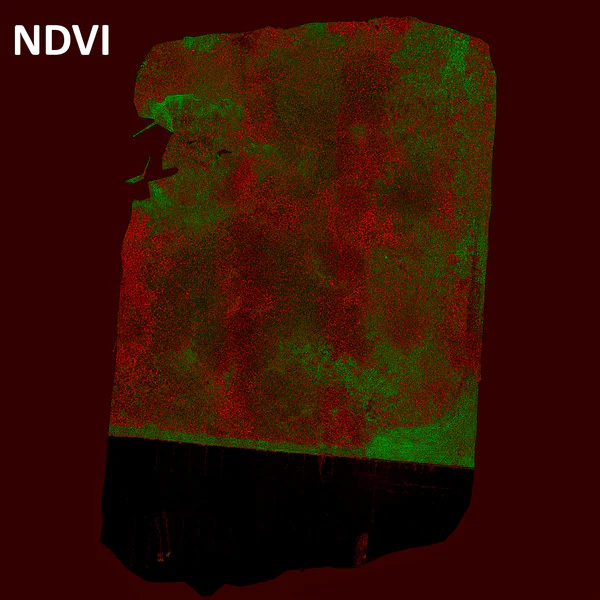

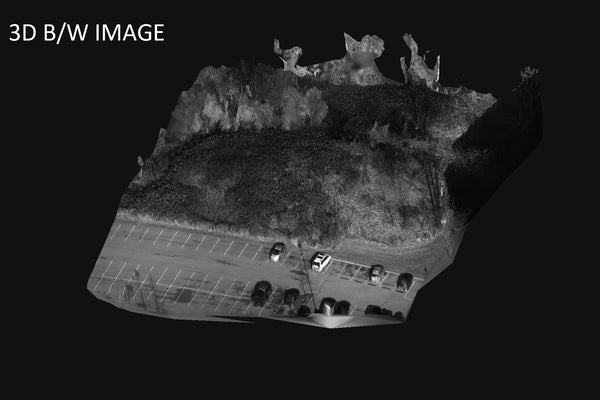

Example of a reconstructed image set collected with an multispectral agriculture drone camera.  The color and NDVI images represent composites reconstructed from 168 AGRI multispectral images.  In this case, a false color image was generated from the 580nm (green), 660nm (red), and 735nm (blue) bands (FALSE COLOR).  An NDVI image displayed with a fire look up table shows areas of chlorophyll-rich vegetation in red and vegetation with less chlorophyll in blue (NDVI).  NDVI was computed using the NIR (820nm) and Red (660nm) bands.  A black and white image computed using all 4 bands (B/W IMAGE).  These data were also reconstructed into a 3D model of the terrain with a variety of overlays (3D FALSE COLOR, 3D NDVI, and 3D B/W IMAGE).  These overlays highlight the precise co-registration of the various computed data sets.  Images were captured every 3m at a flight speed of 5m/s and altitude of 33m.  Exposure time was 2.8ms per frame.  The camera was fitted with a 16mm standard lens with an aperture setting of f/2.8. The field of view per frame was 23.23m x 23.23m with a ground pixel size of 4.5cm x 4.5cm (2.3cm x 2.3cm debayered).  Image processing was performed with Spectral Devices multispectral batch processing software and 3DF Zephyr Lite (3Dflow Srl).  All images were down-sampled for web viewing.

Example UV-NIR - Flower 2

Example UV-NIR - Flower 3

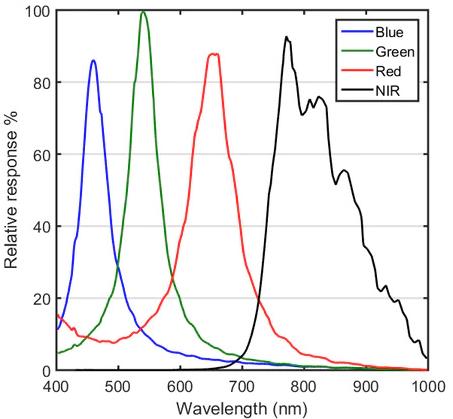

RGB-NIR Camera

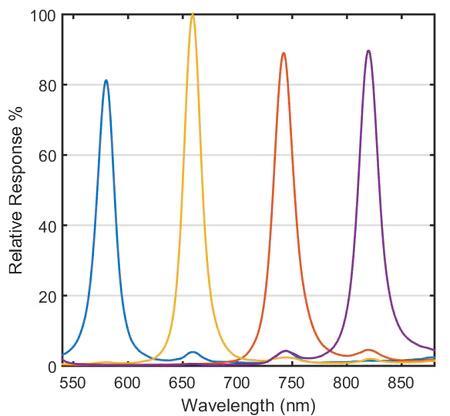

Agriculture Camera

   8-Band NIR Camera

 8-Band Visible Camera

Biomedical Camera

UV-NIR Camera

Customization of multispectral imaging system is also available.If you need assistance in howto choose

a system you need,please Click Here.

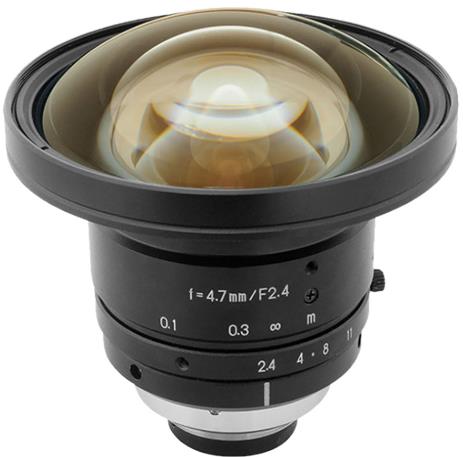

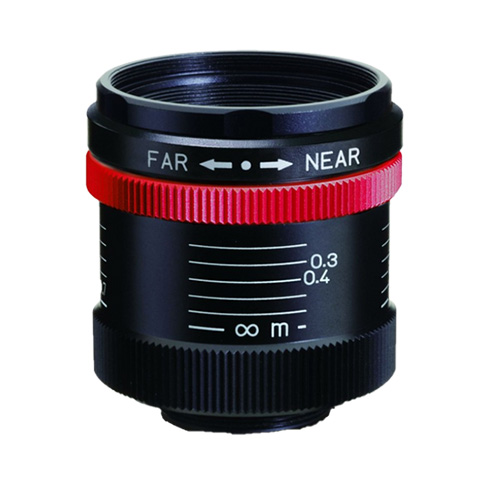

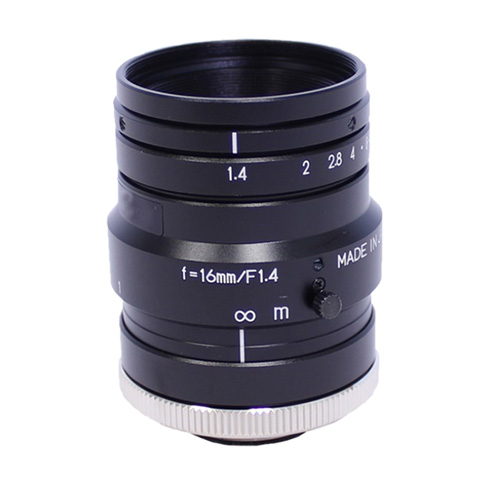

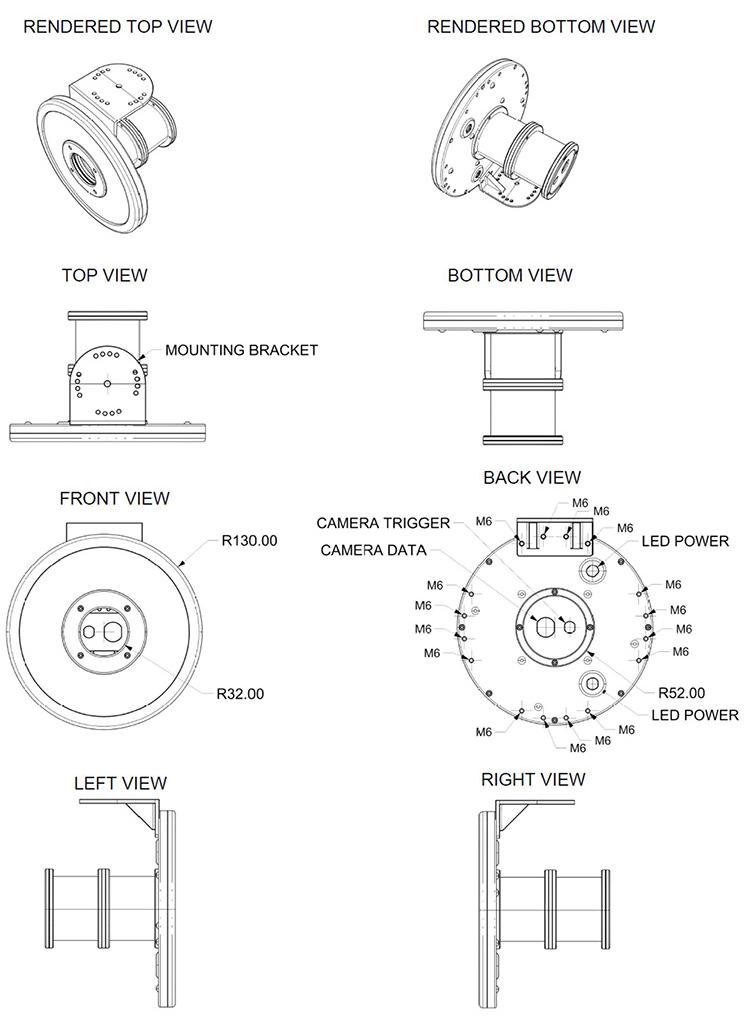

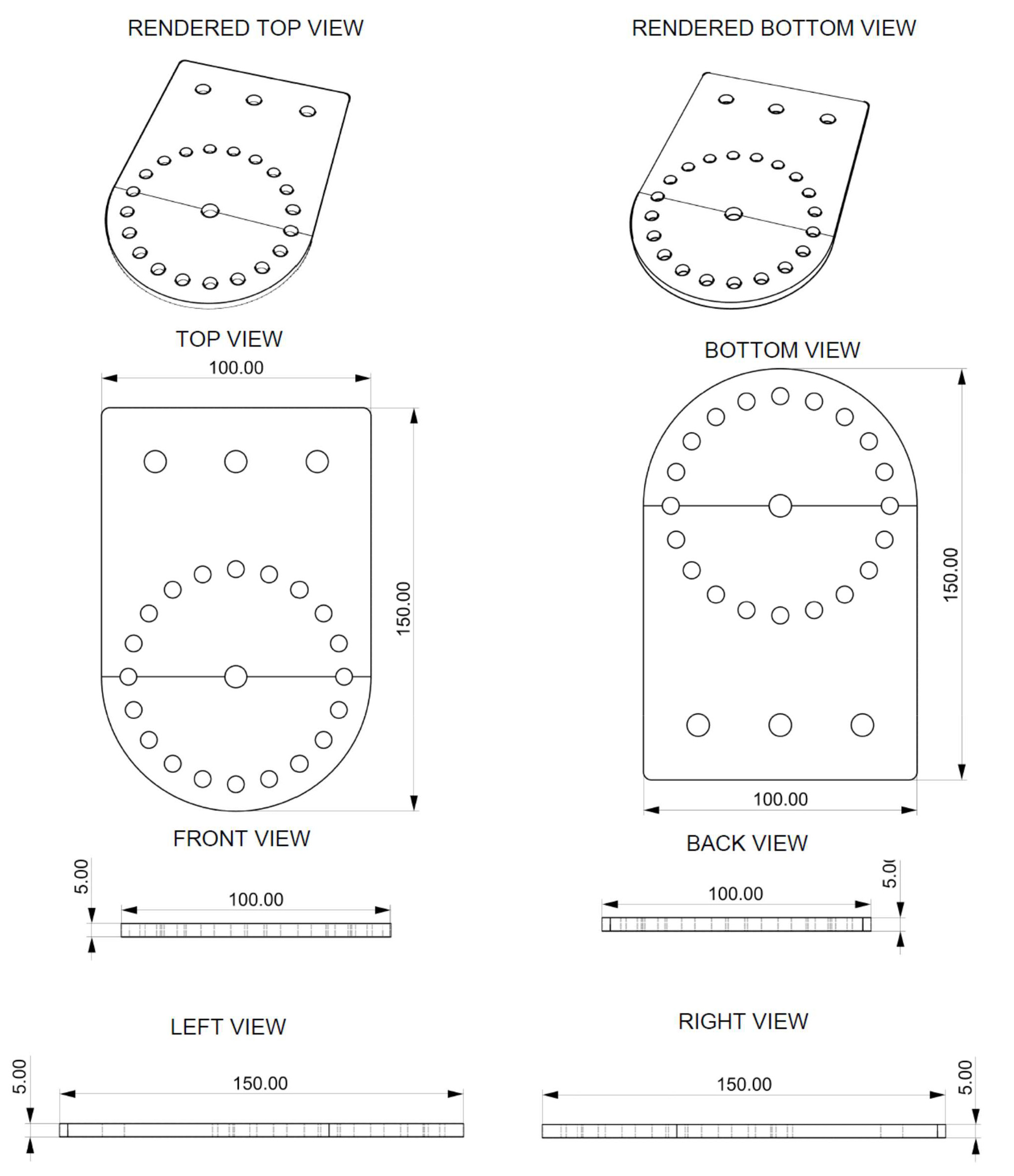

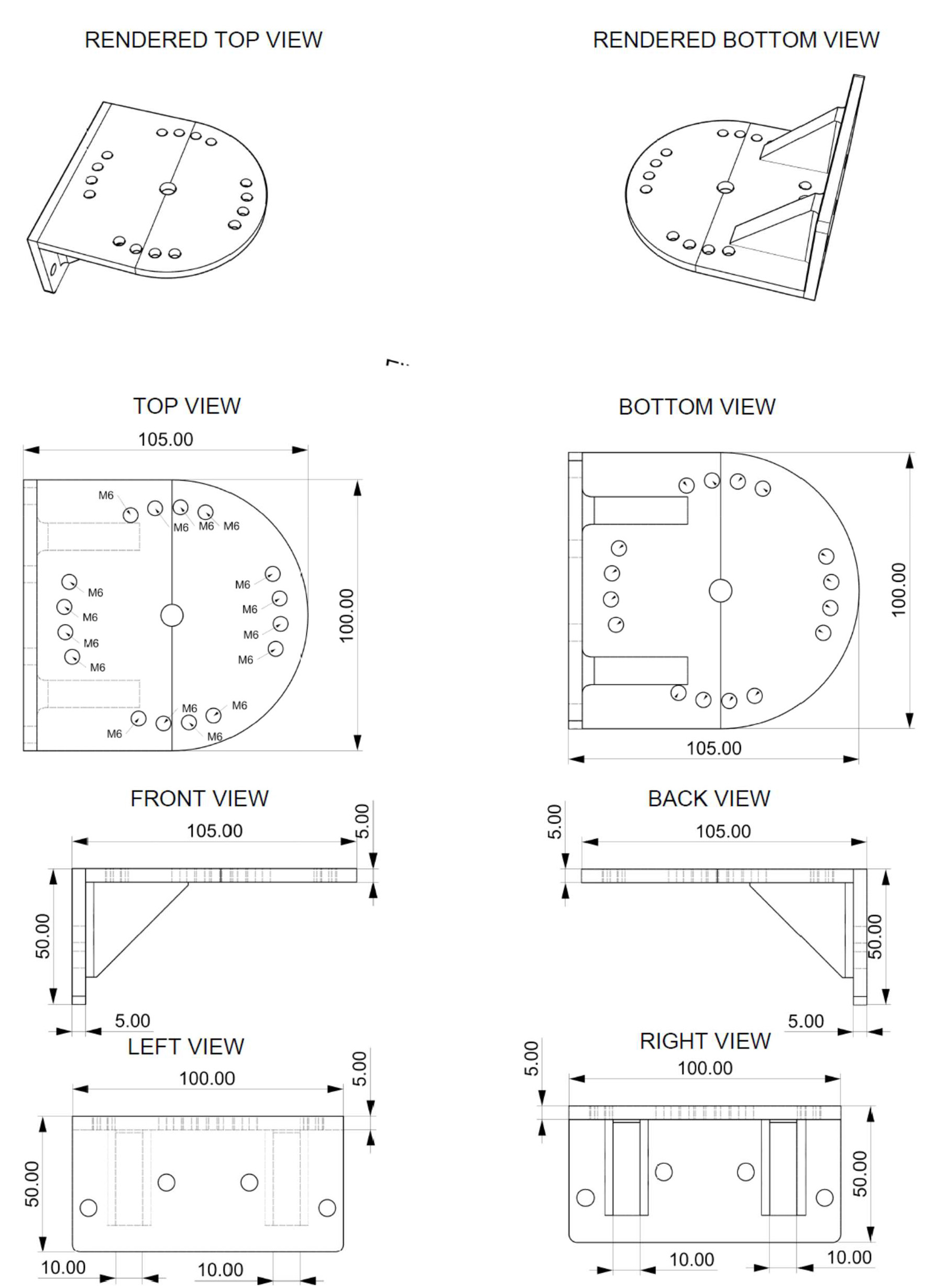

Mounting Bracket

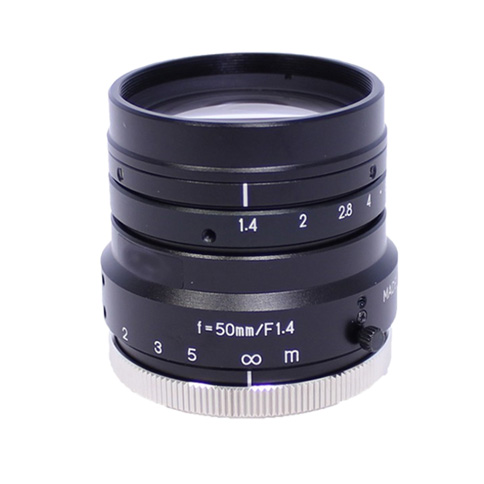

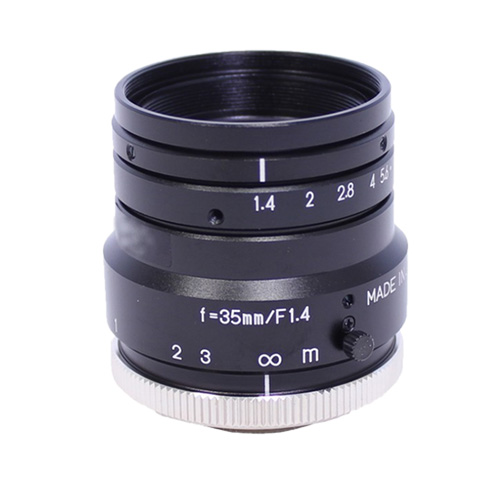

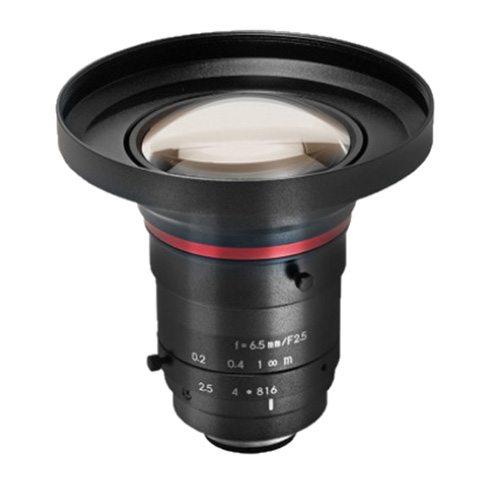

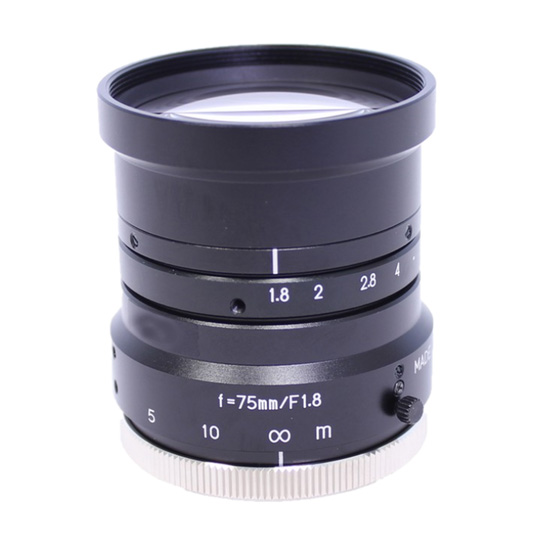

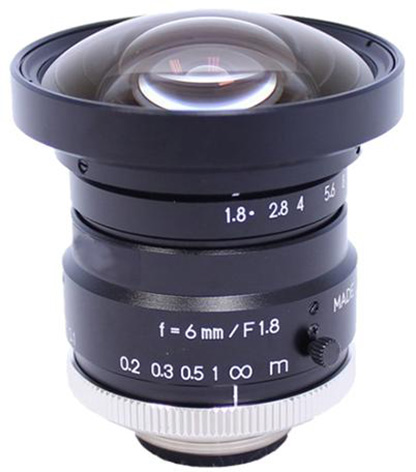

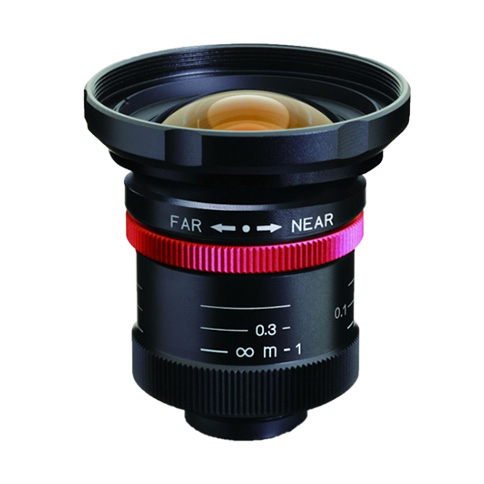

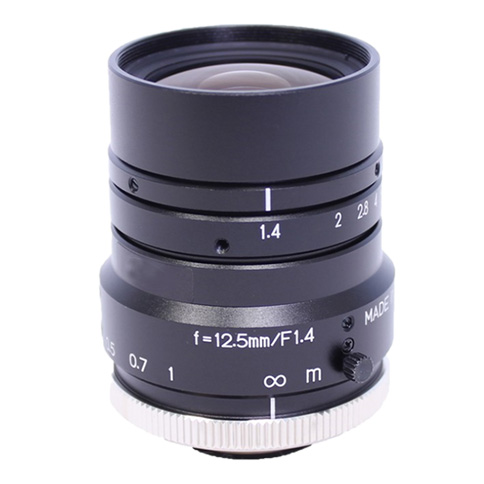

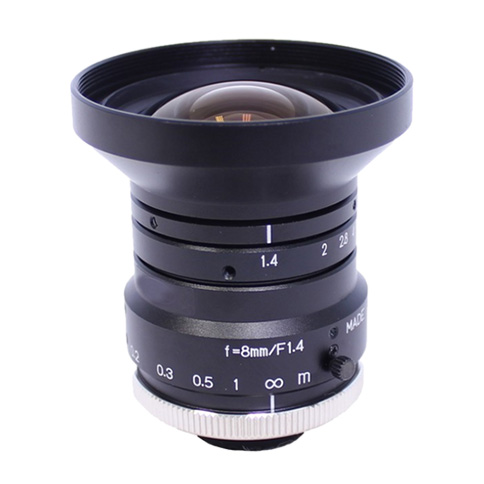

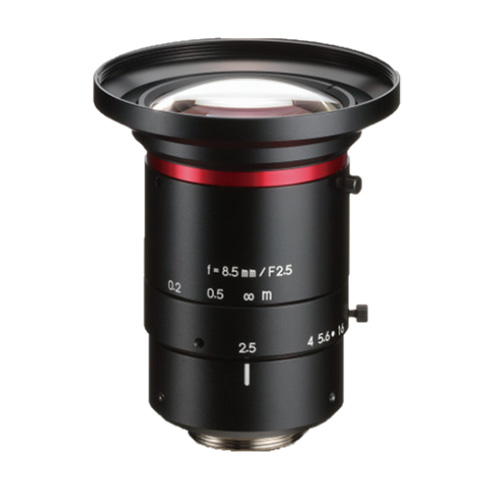

F1.4/F2.8

/F4/F8

F1.4/F2.8

/F4/F8

F1.4/F2.8

/F4/F8

F1.4/F2.8

/F4/F8

F1.4/F2.8

/F4/F8

F1.4/F2.8

/F4/F8
