CW Pigtailed butterfly Laser Diode (1270nm - 1653nm), Wavelength 1269.23-1318.35nm, wavelength resolution ±1nm, output power 10mW, PM fiber

4-6 Weeks

$590.00

SWLD-LWDM-1-10-SM
CW Pigtailed butterfly Laser Diode (1270nm - 1653nm), Wavelength 1269.23-1318.35nm, wavelength resolution ±1nm, output power 10mW, SM fiber

4-6 Weeks

$513.00

SWLD-DWDM-0.2-20-PM
CW Pigtailed butterfly Laser Diode (1270nm - 1653nm), Wavelength 1527.22-1611.79nm, wavelength resolution ±0.2nm, output power 20mW, PM fiber

4-6 Weeks

$718.00

SWLD-DWDM-0.2-10-PM
CW Pigtailed butterfly Laser Diode (1270nm - 1653nm), Wavelength 1527.22-1611.79nm, wavelength resolution ±0.2nm, output power 10mW, PM fiber

4-6 Weeks

$641.00

SWLD-DWDM-0.2-10-SM
CW Pigtailed butterfly Laser Diode (1270nm - 1653nm), Wavelength 1527.22-1611.79nm, wavelength resolution ±0.2nm, output power 10mW, SM fiber

4-6 Weeks

$564.00

SWLD-CWDM-2-20-PM
CW Pigtailed butterfly Laser Diode (1270nm - 1653nm), Wavelength 1270-1610nm, wavelength resolution ±2nm, output power 20mW, PM fiber

4-6 Weeks

$692.00

SWLD-CWDM-2-20-SM
CW Pigtailed butterfly Laser Diode (1270nm - 1653nm), Wavelength 1270-1610nm, wavelength resolution ±2nm, output power 20mW, SM fiber

4-6 Weeks

$615.00

SWLD-CWDM-2-10-PM
CW Pigtailed butterfly Laser Diode (1270nm - 1653nm), Wavelength 1270-1610nm, wavelength resolution ±2nm, output power 10mW, PM fiber

4-6 Weeks

$538.00

SWLD-CWDM-2-10-SM
CW Pigtailed butterfly Laser Diode (1270nm - 1653nm), Wavelength 1270-1610nm, wavelength resolution ±2nm, output power 10mW, SM fiber

4-6 Weeks

$487.00

Parameter	Symbol	Min.	Typ.	Max.	Unit
Center Wavelength	λc	LAN/M/C/DWDM ITU grid			nm
Optical Output Power	Po	10	-	-	mW
Threshold Current	ITH	-	7	25	mA
Operating Current	IOP	-	80	500	mA
Laser Reverse Voltage	VR	-	-	2	V
TEC Set Temperature	TS	15	-	35	℃
Laser Forward Voltage	VF	-	-	3	V
Optical Isolation	ISO	30	-	-	dB
Side-mode Suppression Ratio	SMSR	35	45	-	dB
Spectral Linewidth (FWHM)	LW	-	3	-	MHz
Bandwidth (@-3dB)	BW	-	2.5	-	GHz
PD Reverse Voltage	VRPD	-	5	10	V
PD Forward Current	IFPD	-	1.1	5	mA
PD Monitor Dark Current (Vr=-5V )	ID	-	0	0.1	μA
TEC Current	ITEC	-	-	1.5	A
TEC Voltage	VTEC	-	-	3.5	V
Thermisotr Rdsistance (25℃)	RTH	9.5	10	10.5	KΩ
Lead Soldering Time (<260℃)	-	-	-	10	Sec
Operating Temperature Range	-	-5	25	70	℃
Storage Temperature	TSTG	-40	-	85	℃

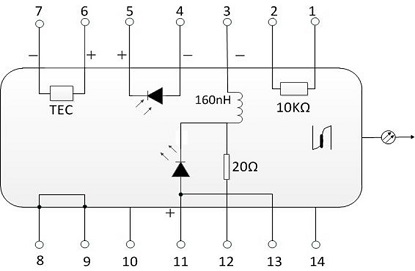

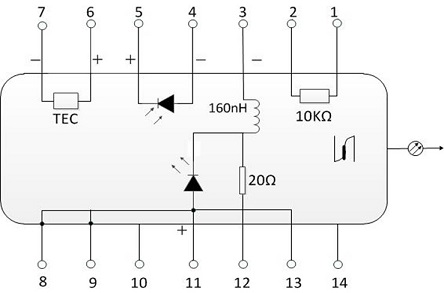

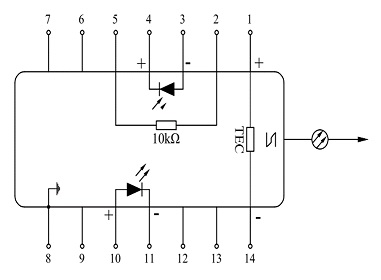

PIN	S-Type (LD Case Ground)	S-Type	P-Type (8 PIN Ground)
1	Thermistor	Thermistor	Thermoelectric Cooler (+)
2	Thermistor	Thermistor	Thermistor
3	Laser dc Bias (Cathode)(-)	Laser dc Bias (Cathode)(-)	Back-facet Monitor Anode (-）
4	Back-facet Monitor Anode (-)	Back-facet Monitor Anode (-)	Back-facet Monitor Cathode (+)
5	Back-facet Monitor Anode (+)	Back-facet Monitor Anode (+)	Thermistor
6	Thermoelectric Cooler (+)	Thermoelectric Cooler (+)	NC
7	Thermoelectric Cooler (-)	Thermoelectric Cooler (-)	NC
8	Case Ground	Case Ground	Case Ground
9	Case Ground	Case Ground	NC
10	NC	NC	Laser Anode (+)
11	Laser Anode (+), Case Ground	Laser Anode (+)	Laser Cathode (-)
12	Laser RF Cathode (-)	Laser RF Cathode (-)	NC
13	Laser Anode (+), Case Ground	Laser Anode (+), Case Ground	NC
14	NC	NC	Thermoelectric Cooler (-)

SWLD-	□ □ □ □	□ □	□	□	□	□
SWLD-	Wavelength	Power	Fiber type	Pigtail Type	Pigtail length	Connector
	1270: 1270nm	01:1mW	0: SMF-28e	0: 250μm bare fiber	1: 50cm	0: None
	… …	05:5mW	LPMF-1310	1:900μm loose tube	2: 100cm	1: FC/UPC
	1610: 161 Onm	10:10mW	2:PMF-1550	2:900μm tight tube	3: 150cm	2: FC/APC
	1273:1273.55nm	20:20mW	C: Customized	C: Customized	4: 200cm	3: SC/UPC
	… …	40:40mW			C: Customized	4: SC/APC
	1309: 1309.14nm	60:60mW				5: LC/UPC
	8610: 1610.92nm	80:80mW				6: LC/APC
		lH:100mW				C: Customized
	9630: 1527.22nm	CC: Customized
Example of Ordering Form: SWLD-1273100222-L1
SWLD-	1273	10	0	2	2	2
	1273.55nm	10 mW	SMF-28e	900 pm tight tube	100cm	FC/APC
