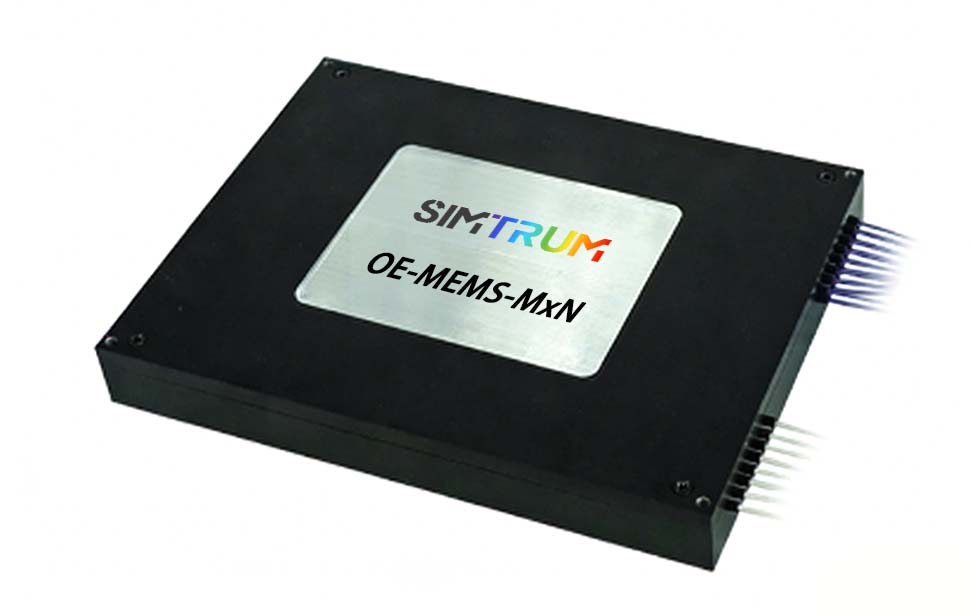

OE-MEMS-4x4-1550-SM-15
MxN Matrix Switch (4x4), Wavelength Range: 1527 ~ 1568 nm (C-band), Insertion Loss (IL): ≤ 1.5 dB (Typical, Max 16 dB), IL Uniformity: ≤ 1.5 dB, Return Loss (RL): ≥ 45 dB, Port Isolation: ≥ 40 dB, PDL: ≤ 0.5 dB, WDL: ≤ 0.5 dB, Repeatability: ≤ ±0.05 dB, Port Switching Time: ≤ 15 ms, Switching Feature: Hit-less, Control Interface: Integrated Electronic Control Unit, Power Consumption: ≤ 10 W, Max. Input Optical Power: +23 dBm (~200 mW), Operating Temp.: -5 ~ +60 °C, Storage Temp.: -40 ~ +85 °C, Dimension: 220 x 120 x 15 ±0.2 mm, Tube Type: 900 um, Fiber Length: 1 m, Connector: FC/PC
|
|
8-12 Weeks |
Request for quote |
|
|
|
|
OE-MEMS-8x16-1550-SM-15
MxN Matrix Switch (8x16), Wavelength Range: 1527 ~ 1568 nm (C-band), Insertion Loss (IL): ≤ 1.5 dB (Typical, Max 16 dB), IL Uniformity: ≤ 1.5 dB, Return Loss (RL): ≥ 45 dB, Port Isolation: ≥ 40 dB, PDL: ≤ 0.5 dB, WDL: ≤ 0.5 dB, Repeatability: ≤ ±0.05 dB, Port Switching Time: ≤ 15 ms, Switching Feature: Hit-less, Control Interface: Integrated Electronic Control Unit, Power Consumption: ≤ 10 W, Max. Input Optical Power: +23 dBm (~200 mW), Operating Temp.: -5 ~ +60 °C, Storage Temp.: -40 ~ +85 °C, Dimension: 220 x 120 x 15 ±0.2 mm, Tube Type: 900 um, Fiber Length: 1 m, Connector: FC/PC
|
|
8-12 Weeks |
Request for quote |
|
|
|
 |
OE-MEMS-1x8-1550-SM-20
1xN MEMS Switch (N=8), Wavelength Range: 1260 ~ 1650 nm, Insertion Loss (IL): Typical 0.6 dB, Max: 1.0 dB, Return Loss (RL): ≥ 40 dB, Port Isolation: ≥ 50 dB, PDL: ≤ 0.15 dB, WDL: ≤ 0.30 dB, Repeatability: ≤ ±0.05 dB, Port Switching Time: ≤ 20 ms, Max. Input Optical Power: ≤ 500 mW, Operating Temp.: -5 ~ +70 °C, Storage Temp.: -40 ~ +85 °C, Dimension: 39.1 x 24.7 x 11 ±0.2 mm, Tube Type: 900 um, Fiber Length: 1 m, Connector: FC/PC
|
|
8-12 Weeks |
Request for quote |
|
