SWIR Camera(900-2200nm) InGaAs CMOS
Overview 1.3MP ( 900-1700nm ) 0.33MP ( 900-1700nm ) 0.33MP ( 1000-2200nm ) Dimensions Elec.char. Software Order Now!
The SWIR 900-2200  nm series industrial cameras adopt InGaAs chips, covering a wide spectrum of 900-2200  nm.

They feature high sensitivity, global shutter, wide dynamic range, and high frame rate.

They support multiple high-speed interfaces such as USB3.0, GigE, and CameraLink, as well as platform SDKS. It is applicable to multiple high-end application scenarios such as material identification, food sorting, scientific research, and safety monitoring.

The main models are shown in the following table. You can choose the appropriate camera according to your specific needs.
Wavelenght Range Resolution Pixel Size Data interface cooling
900-1700nm 1.3MP(1280*1024) 15um*15um USB 3.0
GigE
10GigE
CameraLink		 *All the detectors in this series are cooled
0.33MP(640*512) 15um*15um
1000-1900nm 0.33MP(640*512) 15um*15um USB 3.0
1200-2200nm 0.33MP(640*512) 15um*15um


900-1700nm 1.3MP Series
1.3MP/ (1.5")/ 15um × 15um
Model IM-TP01-1.3MPD/USB3 IM-TP01-1.3MPD/10G IM-TP01-1.3MPD/CL
Sensor model InGaAs CMOS 1280*1024
Data interface USB3.0 10GigE CameraLink
cooling Built-in TEC cooling
spectral range 900nm - 1700nm
ADC 14 Bit
Frame rate & resolution 200fps@1280×1024(8bit)
Memory 512MByte
QE ≥70%@1.55μm
Conversion gain 1μV/e- (LG)，16μV/e- (MG)，53.3μV/e- (HG)
Dynamic range 70.59dB(LG)，67.96dB(MG)，47.98dB(HG) 69.2dB(LG)，63.2dB(MG)，57.4dB(HG)
Readout noise 586.82e(LG)，35.05e(MG)，68.44e(HG) 1.3DN(LG),2.7DN(MG),5.0DN(HG)
Full well charge 1.9Me - (LG)，118.75Ke - (MG)，33.75Ke - (HG)
Max. SNR 62.98dB(LG)，49.43dB(MG)，42.34dB(HG) 65.4dB(LG)，48.5dB(MG)，40.7dB(HG)
Dark current 30fa@0.1V&18℃
Exposure time range 16μs - 1s 25μs - 5s 16μs - 1s
Shutter mode Global shutter
Data interface USB3 10GigE CameraLink Full
Digital IO One optocoupler isolated input, one optocoupler isolated output,
and two non-isolated input and output ports		 1 channel of optocoupler isolated input
1 channel optocoupler isolated output
Data format Mono 8 / Mono 14 / Packet12 Mono 8 / Mono 14 Mono 14
Cooling temperature difference It's 40 degrees below room temperature
Power supply DC12V
Power consumption 8.4W（TEC OFF）/ <16W（TEC ON）
Temperature Operating temperature - 30~60℃，Storage temperature - 40~85℃
Humidity 20% - 80%，No condensation
Size/Weight 68mm×68mm×89.8mm/485g
Lens interface M42
Software A complete SDK development package/View Complete SDK development package/CLView software based on Delsa acquisition card
*LG(low gain) low-gain mode, with relatively low noise level; MG:(medium gain) Medium gain mode; HG:(high gain) High gain mode, while amplifying noise.

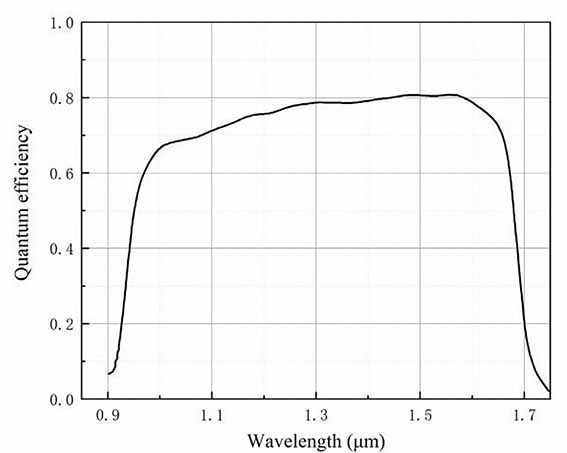

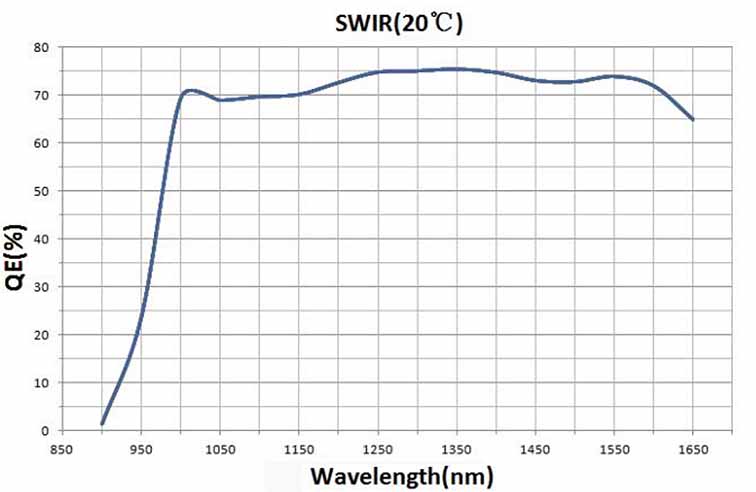

900-1700nm 1.3MP QE Curve

900-1700nm 0.33MP Series
0.33MP/ (3/4")/ 15um × 15um
Model IM-TP01-0.33MPD/CL1000 IM-TP01-0.33MPD/CL700 IM-TP01-0.33MPD/CL500 IM-TP01-0.33MPD/G125 IM-TP01-0.33MPD/G350
Data interface CameraLink GigE
Sensor InGaAs CMOS 640*512
Spectral Range 900nm - 1700nm
ADC 14 - bit
Frame rate & resolution 1000@640×512 724@640×512 517@640×512 8bit:125@640×512
14bit:125@640×512		 8bit:360@640×512
14bit:145@640×512
Memory 512MByte
QE 75%@1350nm
Conversion gain 970.01e - /DN(LG)，18.02e - /DN(MG)，3.31e - /DN (HG) 138.6e - /ADU(LG)，5.54e - /ADU(MG)，1.2e - /ADU (HG)
Dynamic range 69.2dB(LG)，63.2dB(MG)，57.4dB(HG) 70.59dB(LG)，67.96dB(MG)，47.98dB(HG)
Readout noise 1.3DN(LG)，2.7DN(MG)，5.0DN(HG) 586.82e(LG)，35.05e(MG)，68.44e(HG)
Full well charge 3.5Me(LG)，70Ke(MG)，12Ke(HG) 1986426.78e(LG)，87649.83Ke(MG)，17147.351e(HG)
Max.SNR 65.4dB(LG)，48.5dB(MG)，40.7dB(HG) 62.98dB(LG)，49.43dB(MG)，42.34dB(HG)
Dark current 30fa@0.1V&18℃
Exposure time 16μs - 1s 25μs - 5s
Shutter mode Global shutter
Data interface CameraLink Full GigE
Digital IO One optocoupler isolated input and one optocoupler isolated output One optocoupler isolated input, one optocoupler isolated output, and two non-isolated input and output ports
Data format Mono 12 / Mono 14 Mono 8 / Mono 14
Cooling temperature difference It's 40 degrees below room temperature
Power supply DC12V
Power consumption 8.4W（TEC OFF）/ <16W（TEC ON）
Temperature Operating temperature - 30~60℃，Storage temperature - 40 ~85℃
Humidity 20% - 80%，No condensation
Size/Weight 68mm×68mm×90.3mm/485g
Lens interface C interface
Software Complete SDK development package/
CLView software based on Delsa acquisition card		 Complete SDK development package/View
0.33MP/ (3/4")/ 15um × 15um
Model IM-TP01-0.33MPD/G700 IM-TP01-0.33MPD/10G IM-TP01-0.33MPD/USB3 IM-TP01-0.33MPD/UM IM-TP01-0.33MPD/GM
Data interface GigE 10 GigE USB3.0 GigE
Sensor InGaAs CMOS 640*512
Spectral Range 900nm - 1700nm
ADC 14 - bit
Frame rate &resolution 8bit:360@640×512
8bit:700@320×256
14bit:180@640×512		 8bit:724@640×512
14bit:724@640×512		 8bit:724@640x512
Packet12:724@640x512
14bit:579@640x512		 400@640x512 8 Bit:350@640 x 512
14 Bit:175@640 x 512
Memory 512MByte
QE 75%@1350nm
Conversion gain 138.6e - /ADU(LG)，5.54e - /ADU(MG)，1.2e - /ADU (HG)
Dynamic range 70.59dB(LG)，67.96dB(MG)，47.98dB(HG)
Readout noise 586.82e(LG)，35.05e(MG)，68.44e(HG)
Full well charge 1986426.78e(LG)，87649.83Ke(MG)，17147.351e(HG)
Max.SNR 62.98dB(LG)，49.43dB(MG)，42.34dB(HG)
Dark current 30fa@0.1V&18℃
Exposure time 25μs - 5s 16μs - 5s
Shutter mode Global shutter
Data interface GigE 10GigE USB3.0 GigE
Digital IO Global shutter
Data format Mono 8 / Mono 14 Mono 8 / Mono 14/Packet 12 Mono 8 / 14
Cooling temperature difference It's 40 degrees below room temperature
Power supply DC12V
Power consumption 8.4W（TEC OFF）/ <16W（TEC ON） / /
Temperature Operating temperature - 30~60℃，Storage temperature - 40 ~85℃
Humidity 20% - 80%，No condensation
Size/Weight 68mm×68mm×90.3mm/485g 45mm*45mm*50mm 33mm*33mm*46.7mm
Lens interface C interface
Software Complete SDK development package/View


900-1700nm 0.33MP QE curve



1000-2200nm 0.33MP Series
Model IM-TP01-0.33MP/U1019 IM-TP01-0.33MP/U1222
Sensor InGaAs
Shutter type Global shutter
Color type mono
Resolution 0.33MP (640×512)
Sensor size 9.60mm×7.68mm
Sensor diagonal 3/4”
Pixel size 15μm×15μm
Spectral Range 1000 - 1900nm 1200 - 2200nm
Frame rate 240fps@640×512
Depth of bit 8/12/14bit
GPIO One optocoupler isolated input and one optocoupler isolated output
Lens interface C interface
Data interface USB3
Power supply DC 12V
Size/Weight 68mm×68mm×58.5mm/485g 68mm×68mm×90.3mm/485g
Temperature Operating temperature：- 30℃~60℃
Storage temperature：- 40℃~85℃
Working/storage humidity 20% ~80%，No condensation
Operating system Win10/Win11/macOS/Linux/Android
Certification CE、FCC

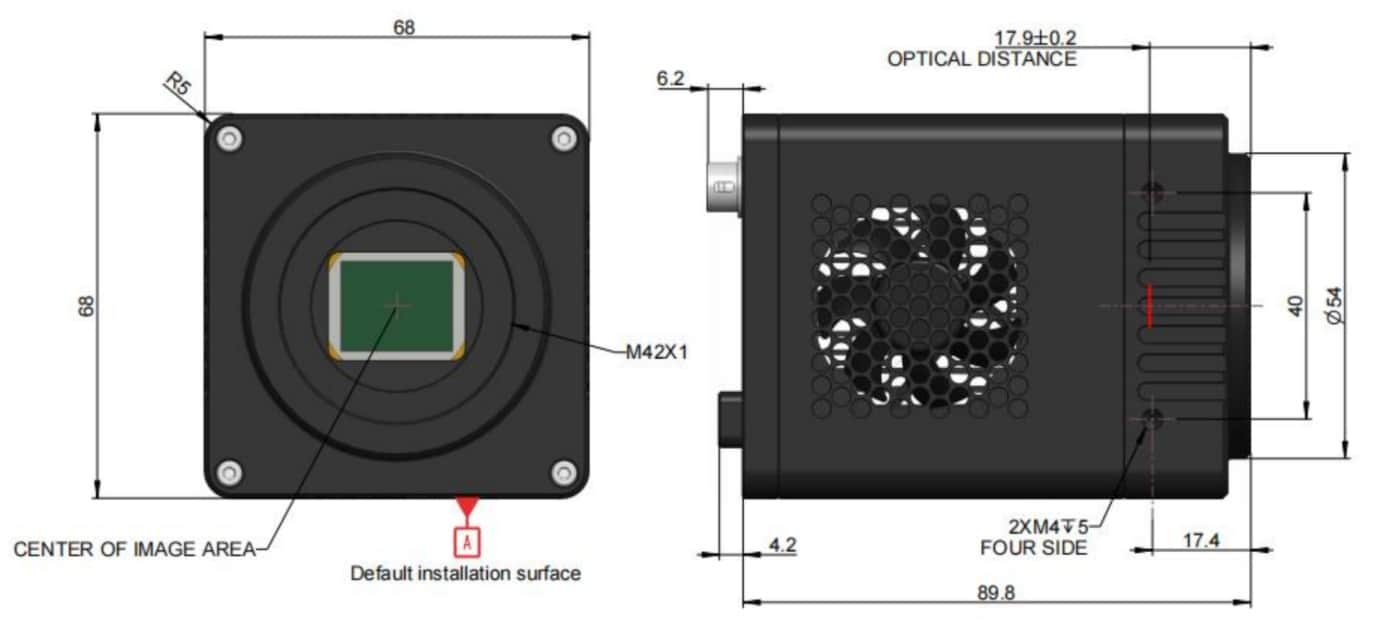

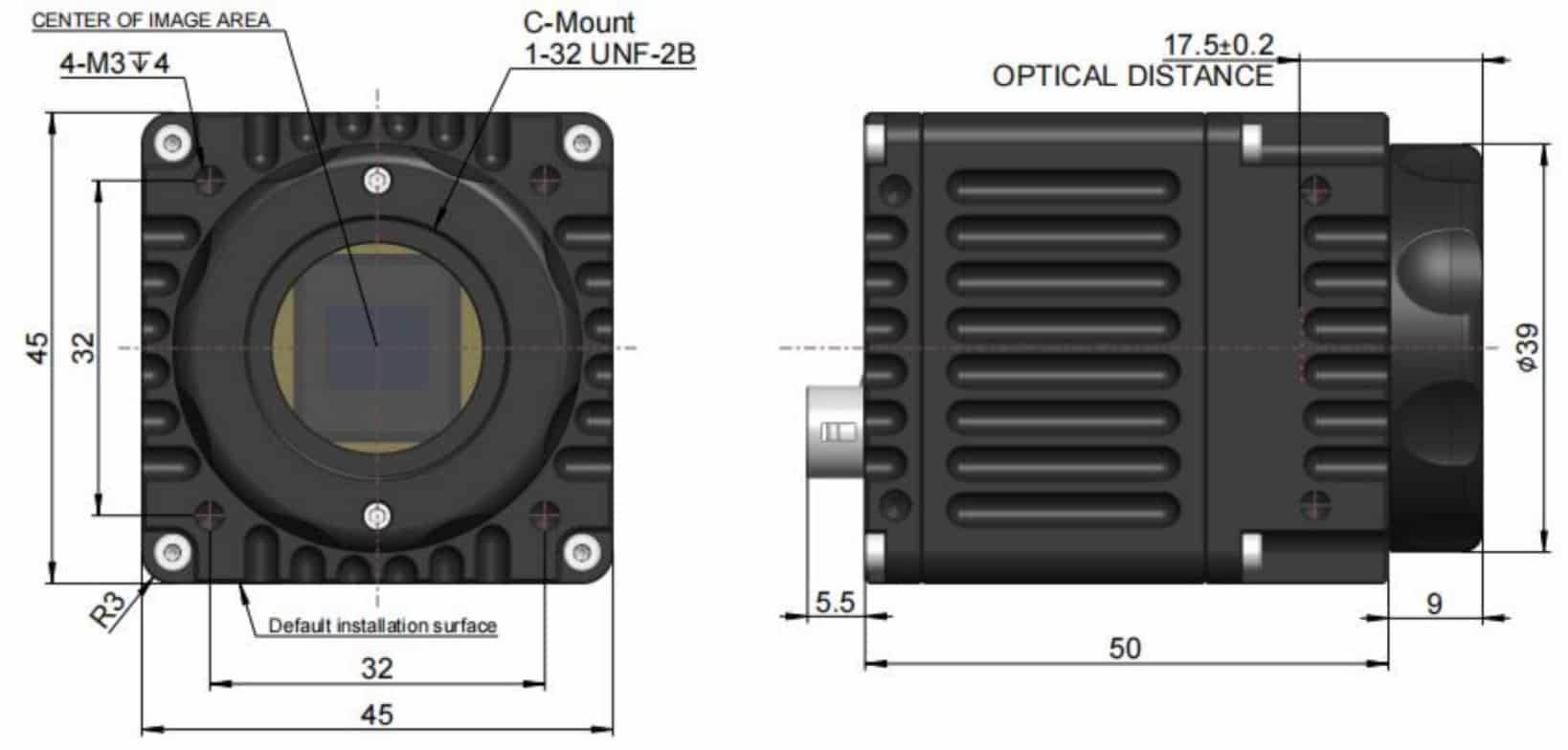

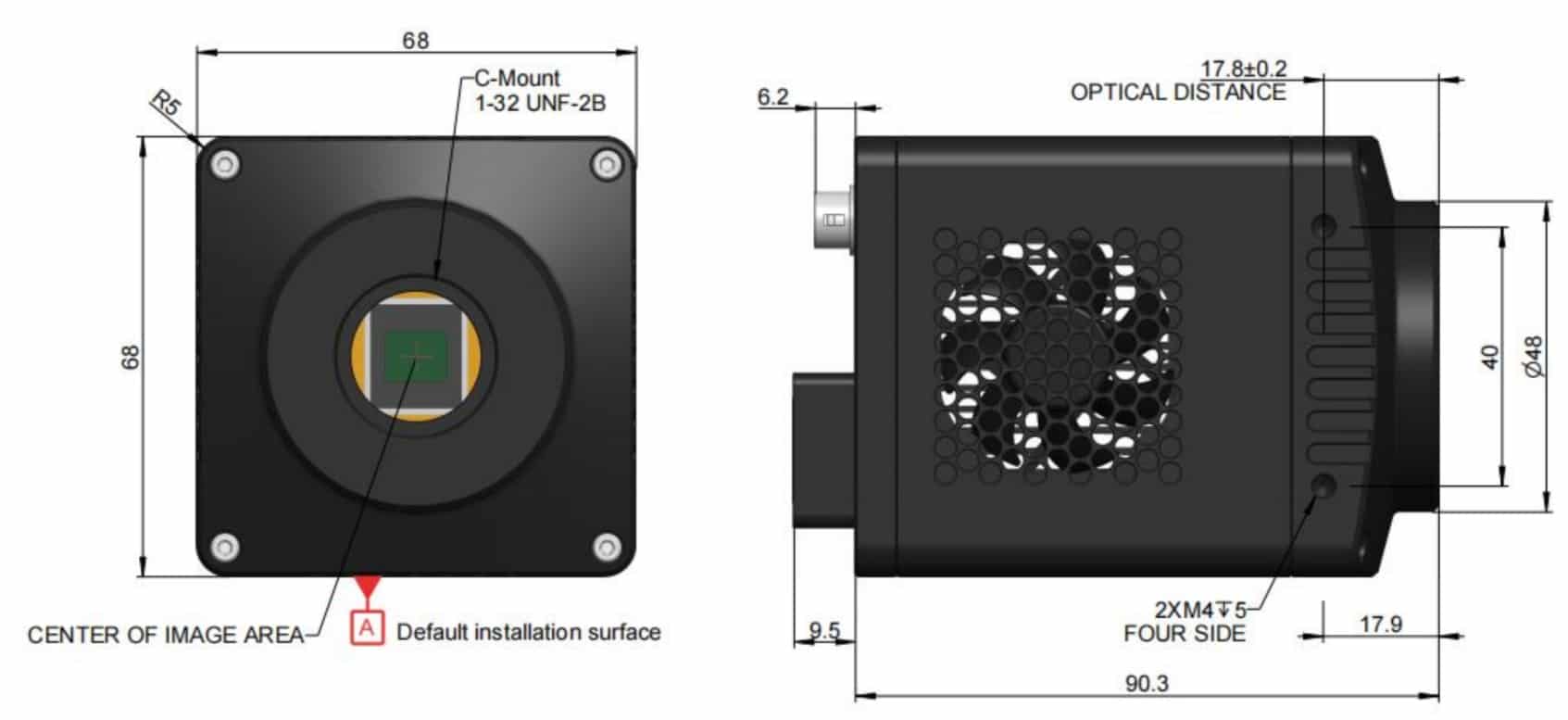

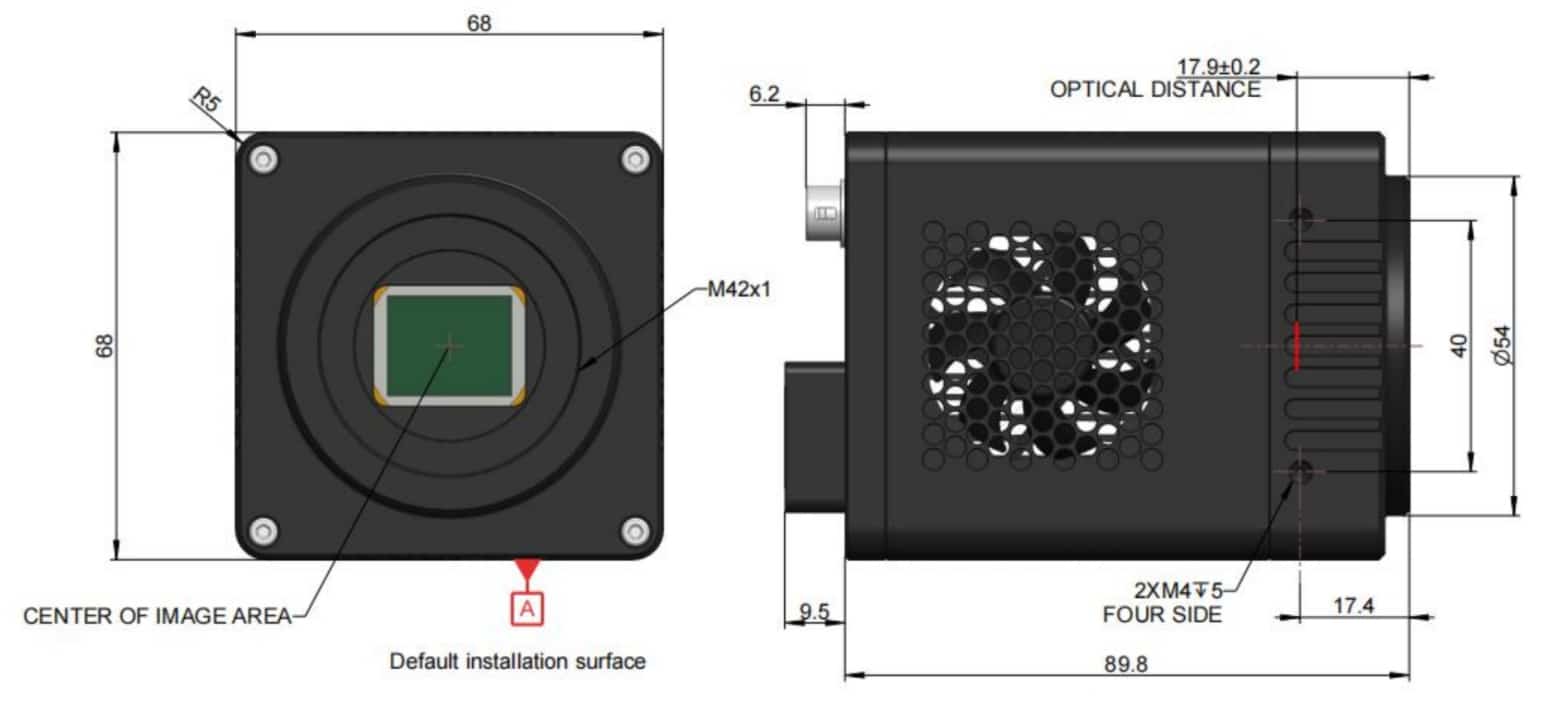

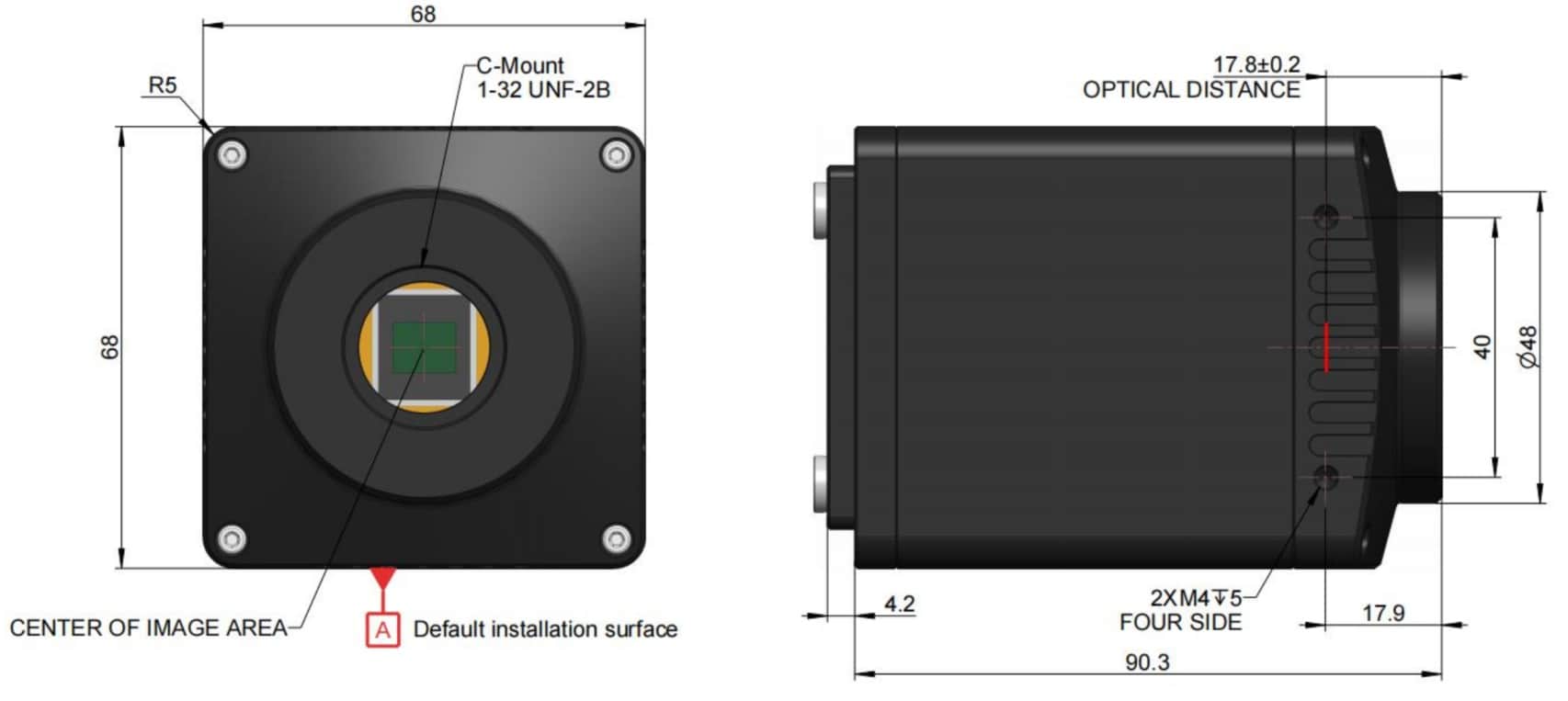

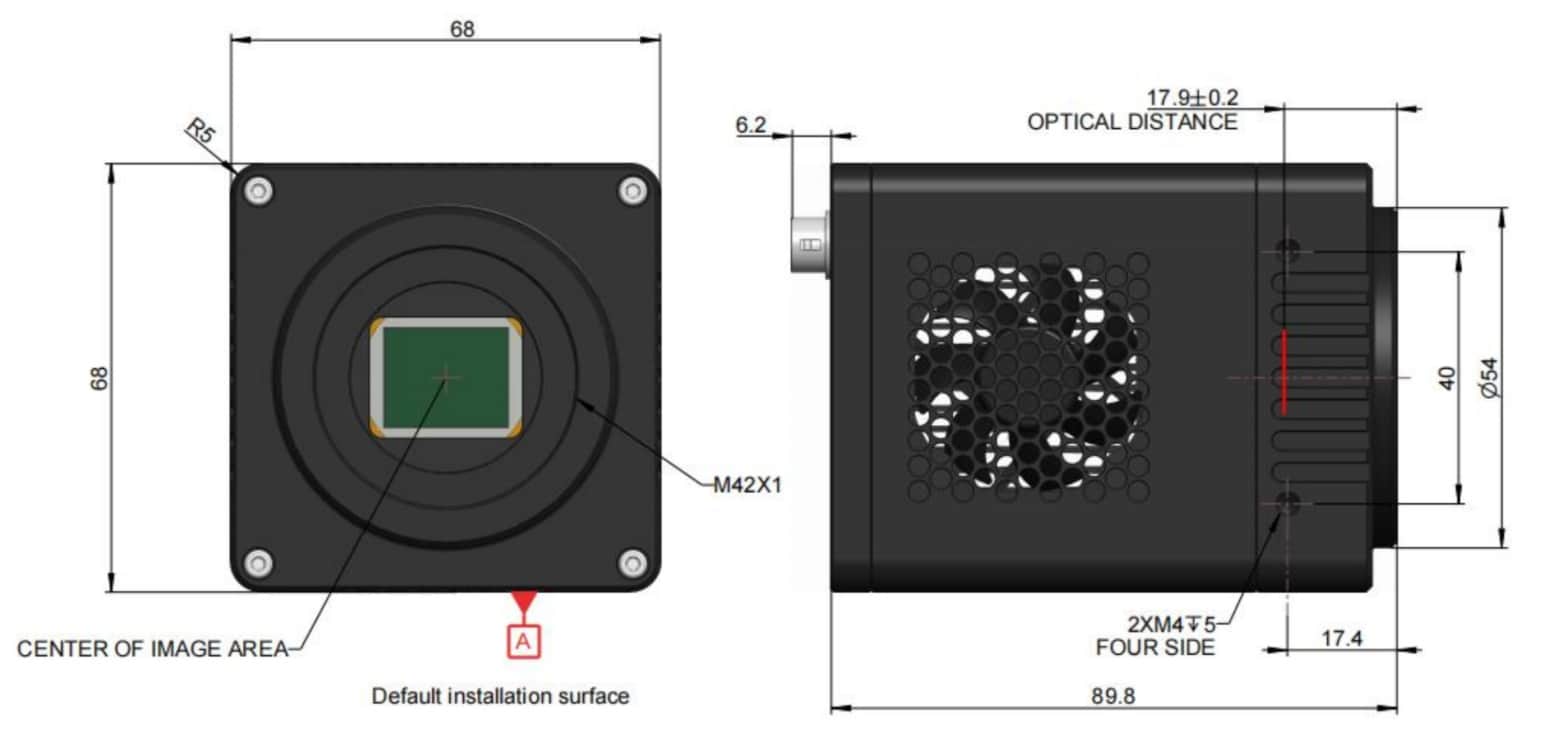

Dimensions and interfaces

900-1700nm 0.33MP GigE camera


900-1700nm 0.33MP USB camera


900-1700nm 0.33MP UM/GM camera


900-1700nm 1.3MP CamerLink camera


900-1700nm 1.3MP GigE camera

900-1700nm 1.3MP USB camera

Interface

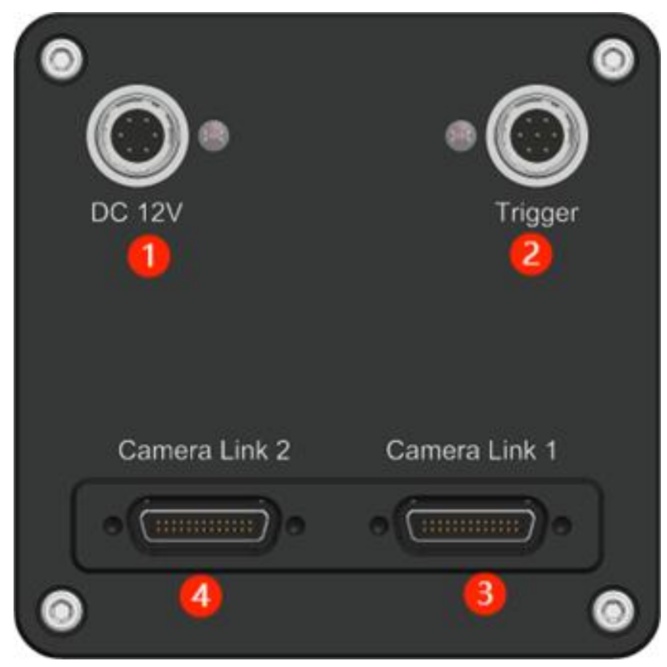

CameraLink camera interface specifications



Description

  1. 1,DC 12V power interface
  2. 2,External IO interface
  3. 3,CameraLink1
  4. 4,CameraLink2

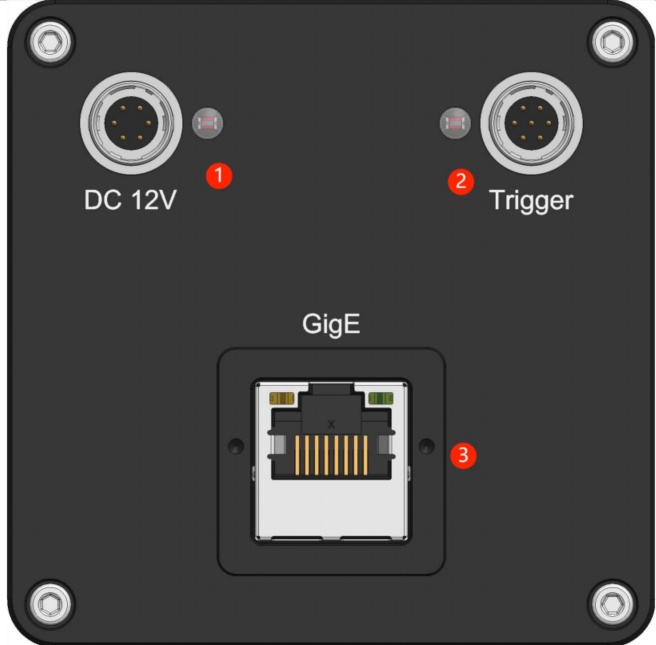

GigE camera interface specifications



Description

  1. 1,DC 12V power interface
  2. 2,External IO interface
  3. 3,GigE interface

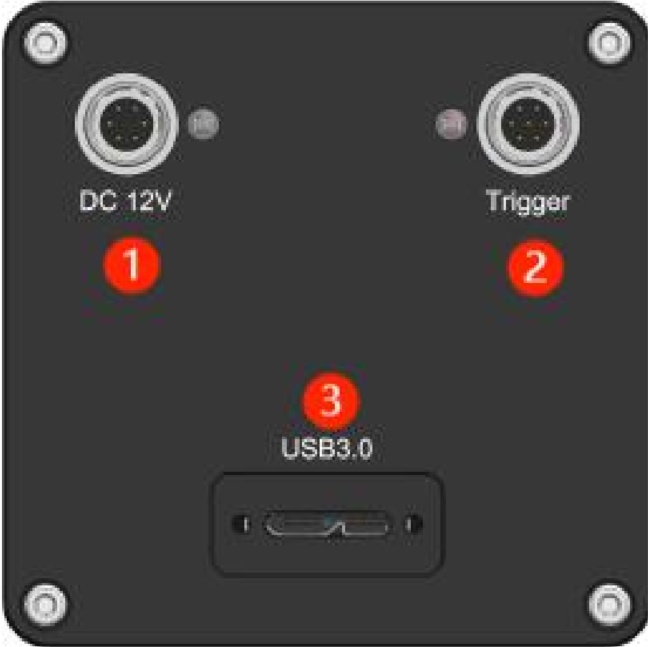

USB camera interface specifications



Description

  1. 1,DC 12V power interface
  2. 2,External IO interface
  3. 3,USB interface


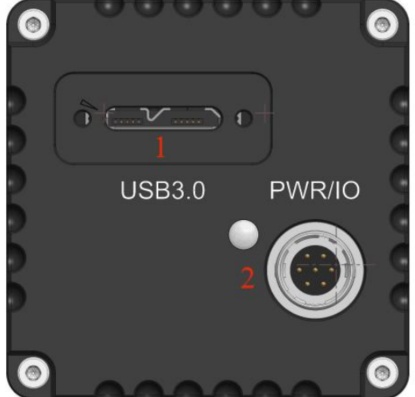

UM camera interface specifications



Description

  1. 1,USB interface
  2. 2,External IO interface

Packing list

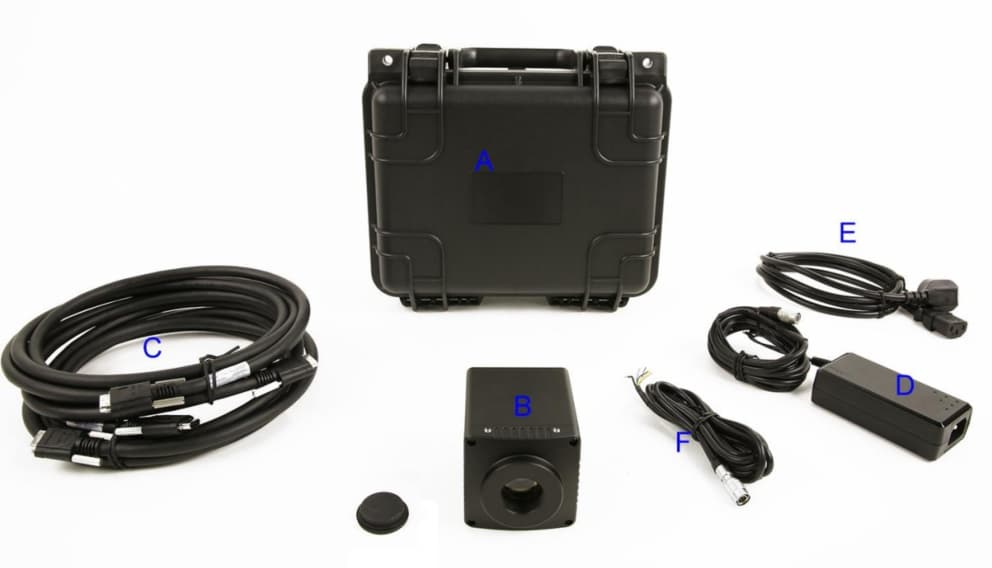

CameraLink interface camera packing list

Description

A. 3-A Instrument Safety Box: L: 28cm, W: 23.0cm, H: 15.5cm (1 piece, 2.8Kg per box)

B. 900 - 1700nm CameraLink interface camera

C. 2 CameraLink wires

D. 12V/3A 6-pin aviation power adapter

E. Power cord

F. One external trigger control line

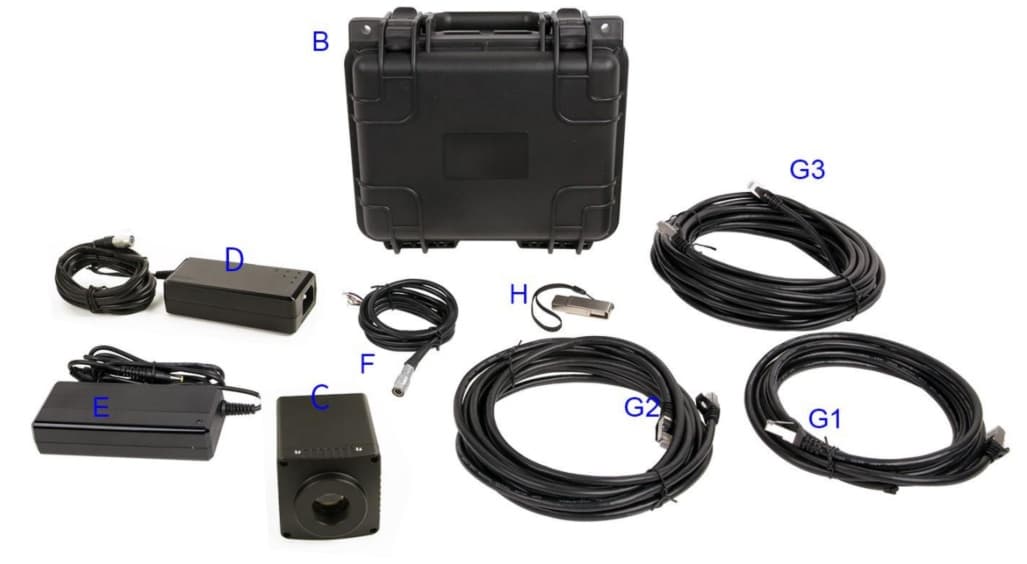

Packing list of GigE interface cameras

Description

A. Outer box B (not shown in the figure) dimensions of the outer packaging carton: L: 28.2cm, W: 25.2cm, H: 16.7cm

B. 3-A Instrument Safety Box: L: 28cm, W: 23.0cm, H: 15.5cm (1 piece, 2.8Kg per box)

C. 900 - 1700nm GigE interface camera

D. 12V/3A 6-pin aviation power adapter

E. Power cords are available in national standard, American standard, European standard and British standard (D1, D2, D3, D4, not shown in the figure).

F. One external trigger control line

G. Network cable: G1:3m, G2:5m, G3:10m (G4:50m is not shown in the figure)

H. Flash drive (includes driver and application software)

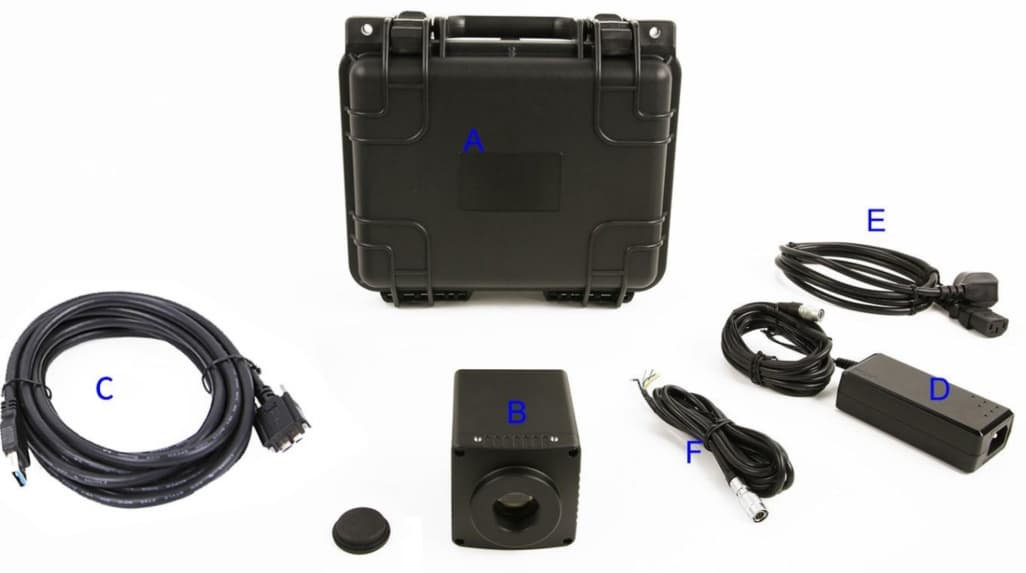

Packing list of USB interface cameras

Description

A. 3-A Instrument Safety Box: L: 28cm, W: 23.0cm, H: 15.5cm (1 piece, 2.8Kg per box)

B. 900 - 1700 USB interface camera

C. High-speed USB3 A male to B male gold-plated head data cable /1.5m

D. 12V/3A 6-pin aviation power adapter

E. Power cord

F. One external trigger control line

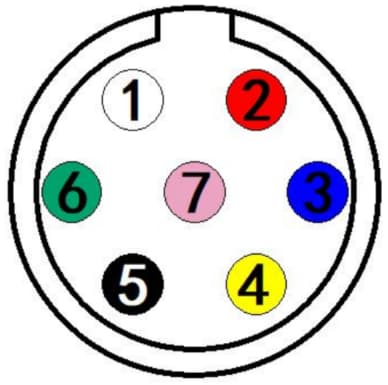

Pin definition

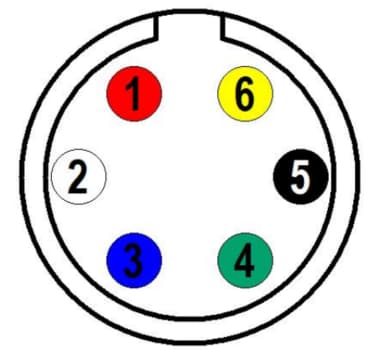

Tab1. Definition of DC12V pin signal
Color Pin Signal Description
red 1 12V 12V power supply positive
yellow 6
black 5
white 2 GND 12V power supply negative
blue 3
green 4

Tab 2. Definition of Trigger Pin Signal for CameraLink Interface
Color Pin Signal Description
blue 3 OPTO_GND The optocoupler isolates the signal ground
green 6 OPTO_IN Optocoupler isolated input signal (line0)
pink 7 OPTO_OUT Optocoupler isolated output signal (line1)

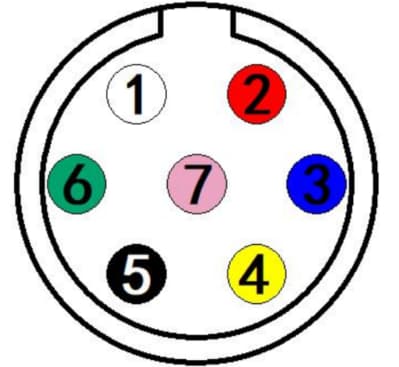

Tab 3. Definition of Trigger Pin Signals for GigE Interface and USB Interface
Color Pin Signal Description
white 1 GDN Non-isolated signal and power ground
red 2 12V 12VDC power input
blue 3 OPTO_GND The optocoupler isolates the signal ground
yellow 4 DIR_GPIO1 Non-isolated signal
(software-configurable input/output) (line2)
black 5 DIR_GPIO2 Non-isolated signal
(software-configurable input/output) (line3)
green 6 OPTO_IN Optocoupler isolated input signal (line0)
pink 7 OPTO_OUT Optocoupler isolated output signal (line1)



I/O electrical characteristics

1. Optocoupler isolated input circuit (line0）

In the I/O control of the camera, the optocoupler isolation input circuit is shown in the following figure.

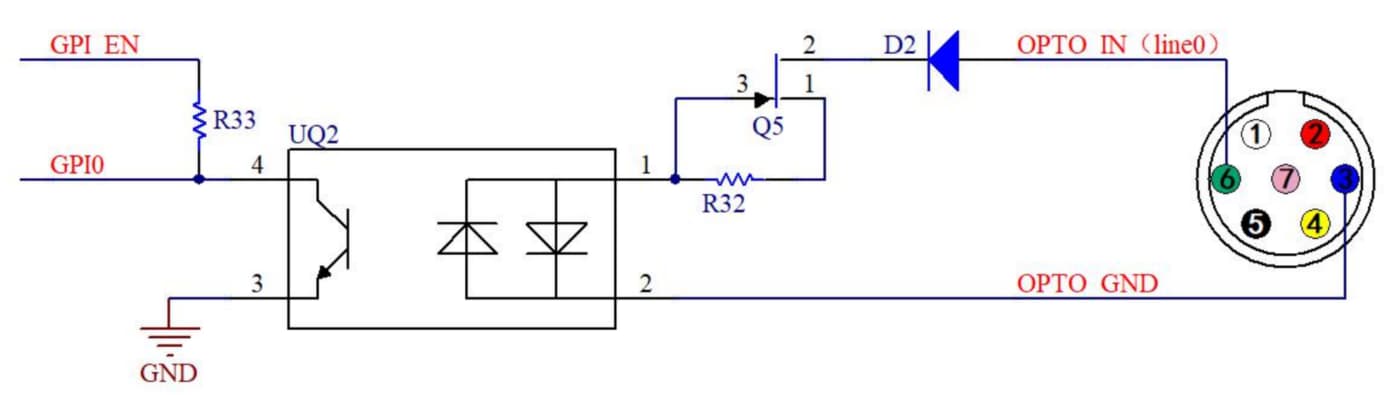

Fig 1.Optocoupler input circuit

Logic 0 input level: 0~2.2VDC(OPTO_IN pin)

Logic 1 input level: 3.3-24VDC(OPTO_IN pin)

Maximum input current: 30mA

The circuit operation state is unstable when the input level is between 2.2 and 3.2V. Please try to avoid operating the input voltage within this range.

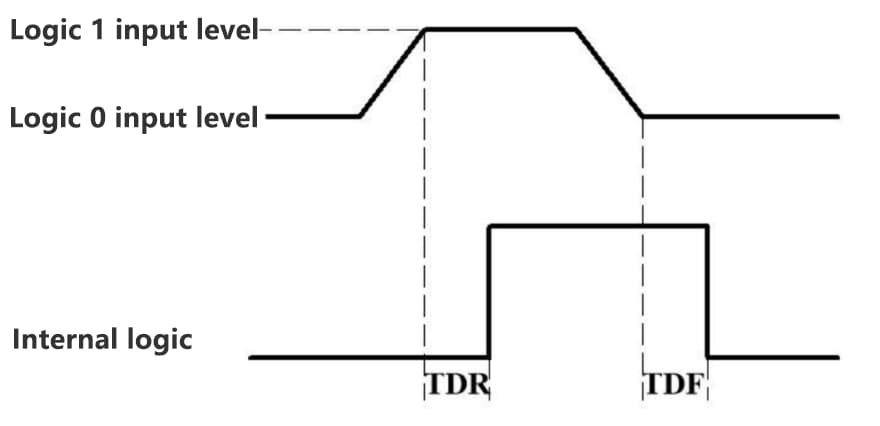

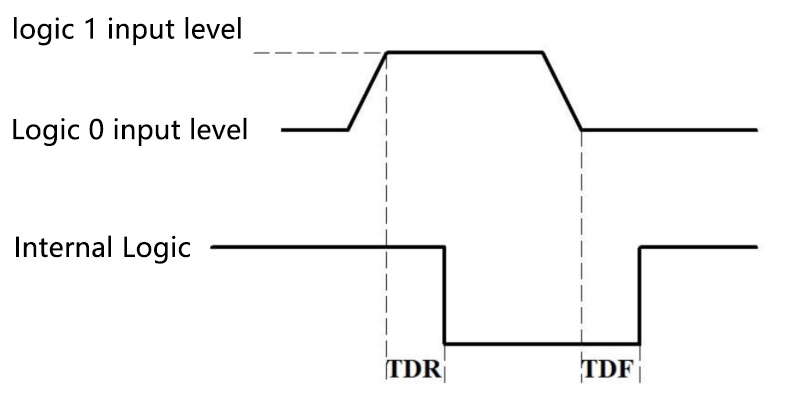

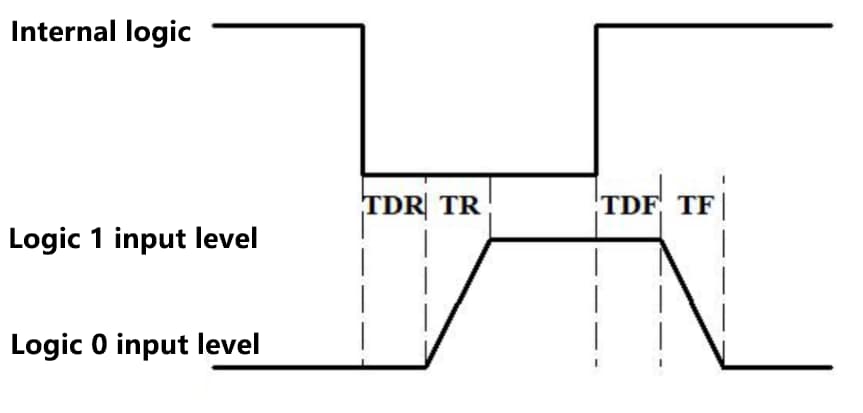

Fig 2.Input logic level

Input rise delay (TDR) : 6us

Input drop delay (TDF) : 6us





2.Optocoupler isolated output circuit (line1)

In the camera I/O control, the optocoupler isolated output circuit is shown in Figure 3.

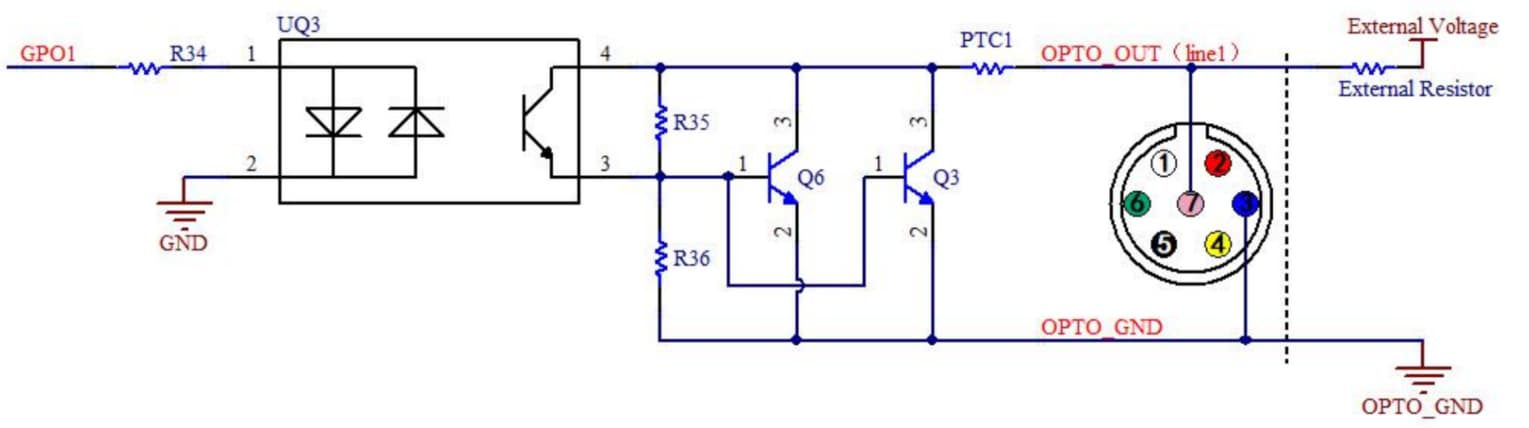

Fig3.optocoupler isolated output circuit

The maximum output current of the optocoupler isolation is 30mA.

Fig 4.Output logic level



The electrical characteristics of the isolated output of the optocoupler (external voltage 5V, external resistance 1K) are shown in Table 3 below.

Tab 3.Electrical characteristics of optocoupler isolated output

Parameter Symbol Value
Output logic low level VL 742mV
Output logic high level VH 4.134V
Output rise time TR 4us
Output drop time TF 1.8us
Output rise delay TDR 12us
Output drop delay TDF 2us



The corresponding current and logic low-level parameters of the optocoupler isolated output when different voltages and resistors are used externally are shown in Table 4.

Tab 4.The optocoupler isolates the output logic low-level parameters

External voltage External resistance VL Output current
3.3V 1KΩ 510mV 2.82mA
5V 1KΩ 742mV 4.31mA
12V 2.4KΩ 795mV 4.68mA
24V 4.7KΩ 850mV 4.97mA





3. Input/Output I/O circuits (line2/line3)

The non-isolated configurable input/output I/O circuit is shown in Figure 5/6.

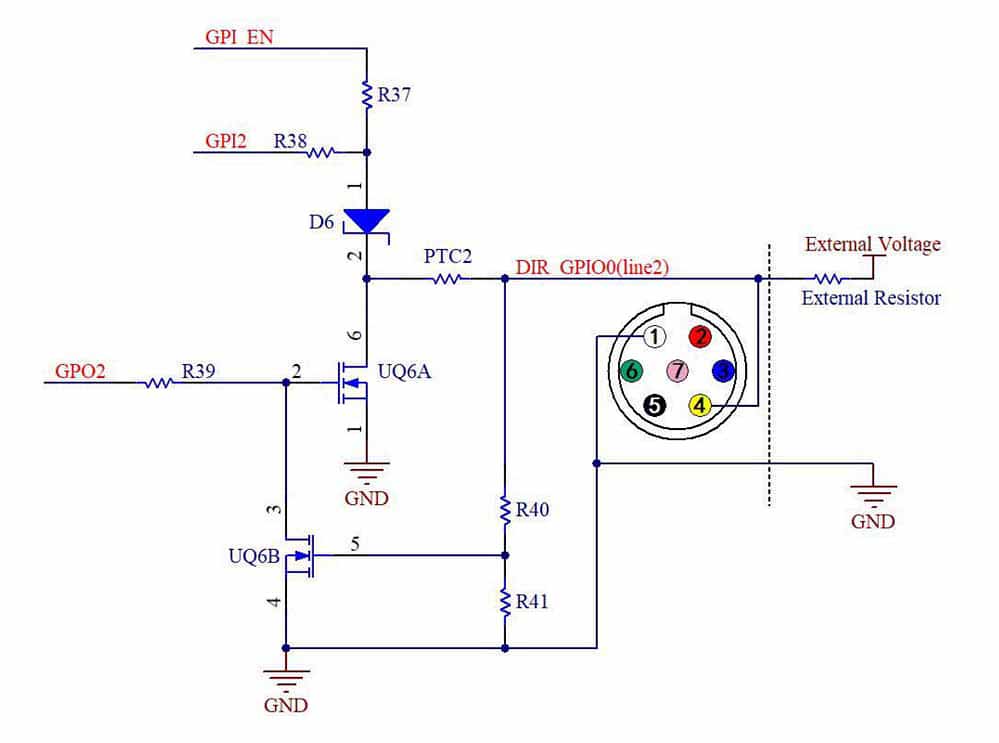

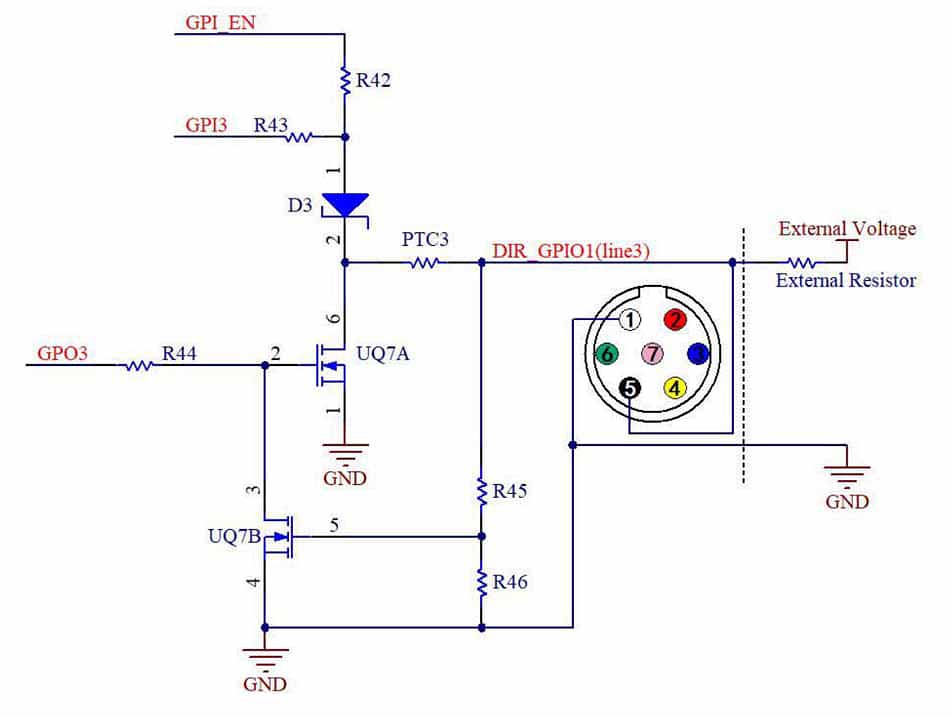

Fig 5. Non-isolated Configurable Input/Output I/O Circuit (line2)

Fig 6. Non-isolated Configurable Input/Output I/O Circuit (line3)

• Line2/line3 set as input pins:

Logic 0 input level: 0 to 0.6VDC(pins DIR_GPIO1/DIR_GPIO2)

Logic 1 input level: 2.0-24VDC(DIR_GPIO1/DIR_GPIO2 pins)

Maximum input current: 25mA

The circuit operation state is unstable when the input level is between 0.6 and 2.0V. Please try to avoid operating the input voltage within this range.

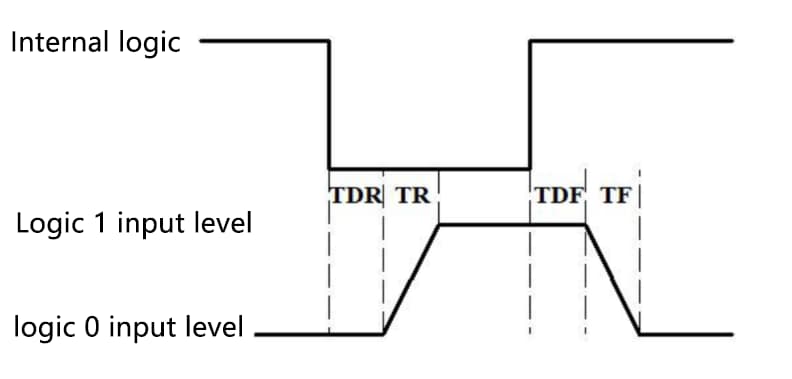

Fig 7.Input logic level

To prevent damage to the GPIO pins, please connect the pin GND first, and then input voltage to the Line2 pin.

Input rise delay (TDR) : 0.02us

Input drop delay (TDF) : 0.02us



• Set Line2/line3 as output pins:

The maximum current allowed through this pin is 25mA.

The external temperature is 25 ° C, and the relationship between external voltage, resistance and output low level is shown in Table 5 below.

Tab 5.Non-isolated output logic low-level parameters

External voltage External resistance VL (GPIO)
3.3V 1KΩ 0.11V
5V 1KΩ 0.167V
12V 2.4KΩ 0.184V
24V 4.7KΩ 0.385V



The external pull-up voltage is 5V and the pull-up resistor is 1KΩ. The GPIO configuration sets the output logic level and electrical characteristics as shown in Figure 8.

Fig 8.Output logic level



Tab 6.Non-isolated output electrical characteristics

Parameter Symbol Value
Output rise time TR 0.08us
Output drop time TF 0.02us
Output rise delay TDR 0.1us
Output drop delay TDF 0.04us






You can log in to our official website to obtain the latest software installation package. This series can be used together with ASCOM and DirectShow SDKS. If the third-party software is compatible with these SDKS, you can also download the driver from our website and install it in the third-party software.

This software is a professional one integrating functions such as camera control, image acquisition and processing, image browsing and analysis. It has the following characteristics:

  • x86: XP SP3 and above; The CPU supports SSE2 and above
  • x64: Windows 7 and above
  • Supports video mode and trigger mode (Raw format or RGB format)
  • Automatic capture and quick recording function
  • Supports multiple languages
  • Hardware ROI and digital binning functions
  • Rich image processing functions, such as image stitching, real-time overlay, flat field correction, dark field correction, etc
  •

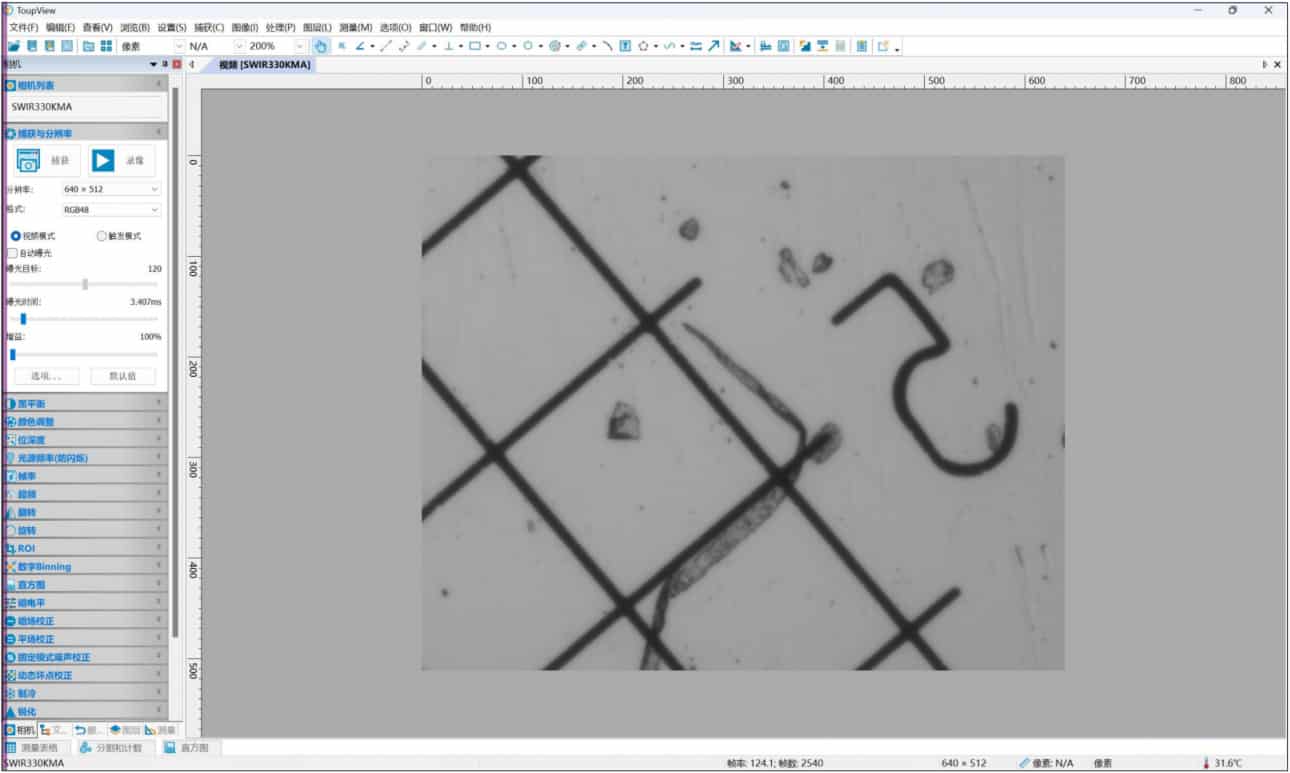

Software interface



Introduction to the functions of the camera control panel

Function Description
Capture and resolution Set real-time and static capture, snapshot images or video recording
Exposure and Gain Automatic exposure (preset exposure target value), manual exposure (exposure time can be manually entered and set with a slider); The gain is up to 5 times
White balance Advanced one-click intelligent white balance setting, and you can also manually adjust the white balance by setting the color temperature and color
Color adjustment Initial high-speed adjustment function for color, saturation, brightness, contrast and gamma value
Frame rate control For different computers and USB performance, super compatibility with cameras can be achieved by adjusting the frame rate
Flip Selecting "horizontal" or "vertical" can adjust the sample direction to ensure it is consistent with the visual system direction
Sampling Neighborhood averaging can improve the signal-to-noise ratio of video streams. The sampling extraction mode can ensure the sharpness of the video stream. Support histogram expansion of video streams, switching between negative and positive images, grayscale calibration, and calculation of clarity factors to facilitate video focusing
Bit depth 8. 12-bit switching, with 8-bit being the basic Windows image format. 12-bit has higher image quality, but it will reduce the frame rate
ROI The ROI, Region of interest function can set the ROI value of the video window. After the ROI group is expanded, a rectangular box will appear in the middle of the video window, through which the ROI can be changed. The size of the ROI can be adjusted with the mouse. If there is no issue with the ROI, click "Apply" to set the video to the ROI size. The default value will be restored to the original size
Dark field correction To Enable dark field correction, you should first capture the narrow-field image and then click Enable. Selecting "Enable" will enable dark field correction. Not selecting it will disable dark field correction
cooling Set the TEC target temperature and the fan on/off
Parameter saving Load, save, overwrite, load, export custom camera panel control (including calibration information, exposure parameters and color setting information, etc.


Introduction to Image processing functions
Function Description
Video function A variety of professional video processing functions: video broadcasting, timed capture, video recording, video watermarking, watermark movement alignment, watermark rotation alignment, video grid overlay, video measurement, video calibration, grayscale calibration, video high dynamic range (HDR), video depth of field expansion, video image stitching, video scale, date, etc. overlay
Image processing and enhancement Image contrast control and adjustment, image denoising, various image filtering algorithms, image mathematical morphology algorithms, image rotation, image scaling and image printing, etc

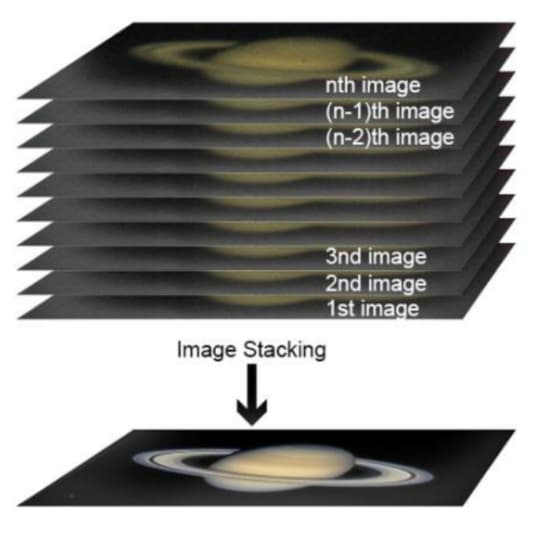

Image superposition The TPView image overlay denoising function introduces advanced image matching technology. Users only need to record a short video of the image they want to overlay, and they can overlay and output high-fidelity images even when there are displacement, rotation, and magnification changes among multiple frames of the video. It is simple and easy to use

Example of image overlay denoising function



*For more instructions on the use and configuration of the software, please refer to the user manual.


We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
IM-TP01-1.3MPD/USB3
Resolution：1280*1024(1.3MP)，Frame:200fps@1280×1024，Dynamic Range:70.59dB(LG)/67.96dB(MG)/47.98dB(HG) ，QE:≥70%@1.55μm，Data Interface:USB3.0 		4-6 Weeks Request for quote
IM-TP01-1.3MPD/10G
Resolution：1280*1024(1.4MP)，Frame:200fps@1280×1024，Dynamic Range:69.2dB(LG)/63.2dB(MG)/57.4dB(HG)，QE:≥70%@1.55μm，Data Interface:10GigE 		4-6 Weeks Request for quote
IM-TP01-1.3MPD/CL
Resolution：1280*1024(1.5MP)，Frame:200fps@1280×1024，Dynamic Range:69.2dB(LG)/63.2dB(MG)/57.4dB(HG)，QE:≥70%@1.55μm，Data Interface:CameraLink 		4-6 Weeks Request for quote
IM-TP01-0.33MPD/CL1000
Resolution：640*512(0.33MP)，Frame:1000fps@640×512，Dynamic Range:69.2dB(LG)/63.2dB(MG)/57.4dB(HG)，QE:75%@1350nm，Data Interface:CameraLink 		4-6 Weeks Request for quote
IM-TP01-0.33MPD/CL700
Resolution：640*512(0.33MP)，Frame:724fps@640×512，Dynamic Range:69.2dB(LG)/63.2dB(MG)/57.4dB(HG)，QE:75%@1350nm，Data Interface:CameraLink 		4-6 Weeks Request for quote
IM-TP01-0.33MPD/CL500
Resolution：640*512(0.33MP)，Frame:517fps@640×512，Dynamic Range:69.2dB(LG)/63.2dB(MG)/57.4dB(HG)，QE:75%@1350nm，Data Interface:CameraLink 		4-6 Weeks Request for quote
IM-TP01-0.33MPD/G125
Resolution：640*512(0.33MP)，Frame:125fps@640×512，Dynamic Range:70.59dB(LG)/67.96dB(MG)/47.98dB(HG) ，QE:75%@1350nm，Data Interface:GigE 		4-6 Weeks Request for quote
IM-TP01-0.33MPD/G350
Resolution: 640*512(0.33MP), Frame: 360fps@640×512, Dynamic Range: 70.59dB(LG)/67.96dB(MG)/47.98dB(HG), QE: 75%@1350nm, Data Interface: GigE 		4-6 Weeks Request for quote
IM-TP01-0.33MPD/G700
Resolution: 640*512(0.33MP), Frame: 360fps@640×512, Dynamic Range: 70.59dB(LG)/67.96dB(MG)/47.98dB(HG), QE: 75%@1350nm, Data Interface: GigE 		4-6 Weeks Request for quote
IM-TP01-0.33MPD/10G
Resolution: 640*512(0.33MP), Frame: 724fps@640×512, Dynamic Range: 70.59dB(LG)/67.96dB(MG)/47.98dB(HG), QE: 75%@1350nm, Data Interface: 10GigE 		4-6 Weeks Request for quote
IM-TP01-0.33MPD/USB3
Resolution: 640*512(0.33MP), Frame: 724fps@640x512, Dynamic Range: 70.59dB(LG)/67.96dB(MG)/47.98dB(HG), QE: 75%@1350nm, Data Interface: USB3.0 		4-6 Weeks Request for quote
IM-TP01-0.33MPD/UM
Resolution: 640*512(0.33MP), Frame: 400fps@640x512, Dynamic Range: 70.59dB(LG)/67.96dB(MG)/47.98dB(HG), QE: 75%@1350nm, Data Interface: USB3.0 		4-6 Weeks Request for quote
IM-TP01-0.33MPD/GM
Resolution: 640*512(0.33MP), Frame: 350fps@640 x 512, Dynamic Range: 70.59dB(LG)/67.96dB(MG)/47.98dB(HG), QE: 75%@1350nm, Data Interface: GigE 		4-6 Weeks Request for quote
IM-TP01-0.33MP/U1019
Resolution: 640*512(0.33MP), Frame: 240fps@640×512, Wavelength range: 1000 - 1900nm, Data Interface: USB3.0 		4-6 Weeks Request for quote
IM-TP01-0.33MP/U1222
Resolution: 640*512(0.33MP), Frame: 240fps@640×512, Wavelength range: 1200 - 2200nm, Data Interface: USB3.0 		4-6 Weeks Request for quote

IM-TP01-0.33MP/U1222 - Parameter

IM-TP01-0.33MP/U1019 - Parameter

IM-TP01-0.33MPD/GM - Parameter

IM-TP01-0.33MPD/UM - Parameter

IM-TP01-0.33MPD/USB3 - Parameter

IM-TP01-0.33MPD/10G - Parameter

IM-TP01-0.33MPD/G700 - Parameter

IM-TP01-0.33MPD/G350 - Parameter

IM-TP01-0.33MPD/G125 - Parameter

IM-TP01-0.33MPD/CL500 - Parameter

IM-TP01-0.33MPD/CL700 - Parameter

IM-TP01-0.33MPD/CL1000 - Parameter

IM-TP01-1.3MPD/CL - Parameter

IM-TP01-1.3MPD/10G - Parameter

IM-TP01-1.3MPD/USB3 - Parameter

IM-TP01-0.33MP/U1222 - Download

IM-TP01-0.33MP/U1019 - Download

IM-TP01-0.33MPD/GM - Download

IM-TP01-0.33MPD/UM - Download

IM-TP01-0.33MPD/USB3 - Download

IM-TP01-0.33MPD/10G - Download

IM-TP01-0.33MPD/G700 - Download

IM-TP01-0.33MPD/G350 - Download

IM-TP01-0.33MPD/G125 - Download

IM-TP01-0.33MPD/CL500 - Download

IM-TP01-0.33MPD/CL700 - Download

IM-TP01-0.33MPD/CL1000 - Download

IM-TP01-1.3MPD/CL - Download

IM-TP01-1.3MPD/10G - Download

IM-TP01-1.3MPD/USB3 - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
