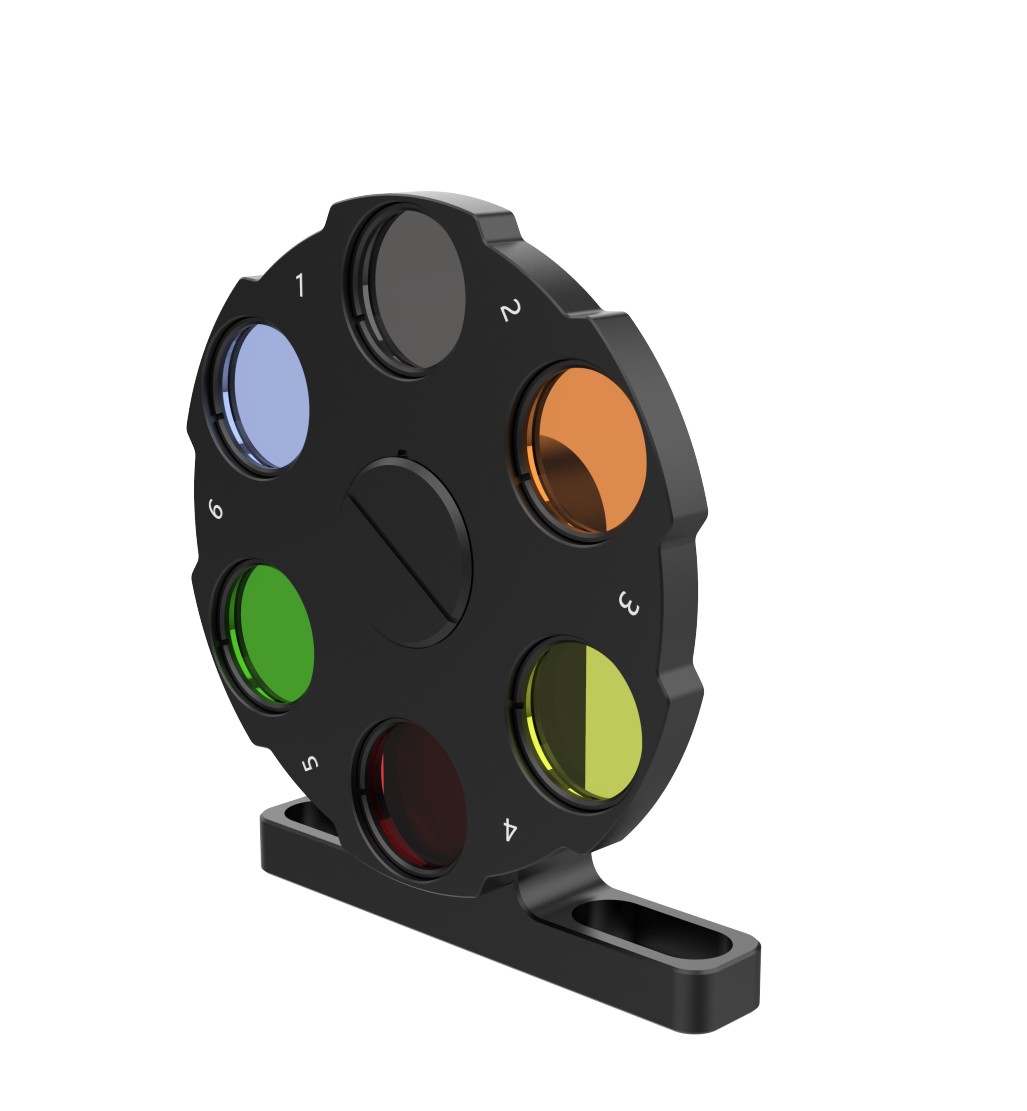

Manual Mount Filter Wheel

The SIM-MAFWM series offers both single-wheel and dual-wheel configurations as its main models. Under these primary types, various sub-models are available to accommodate 6, 8, or 10 filter trays.Each filter wheel is equipped with SM1 internal threaded mounting holes, supporting optical components up to Ø25.4 mm (1") in diameter and 5 mm in thickness (6.35 mm for 8/10-slot models).

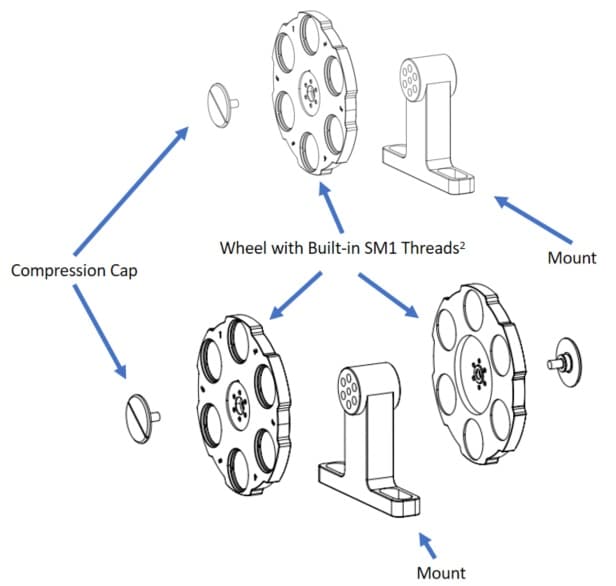

The SIM-MAFWM-D model features a dual-wheel design where both filter wheels can rotate independently, ensuring precise positioning through alignment pins.The base of the SIM-MAFWM series is designed with two M6 threaded mounting slots for solid fixation. It also supports installation using a bottom M6 threaded hole for compatibility with posts and mounting holders.

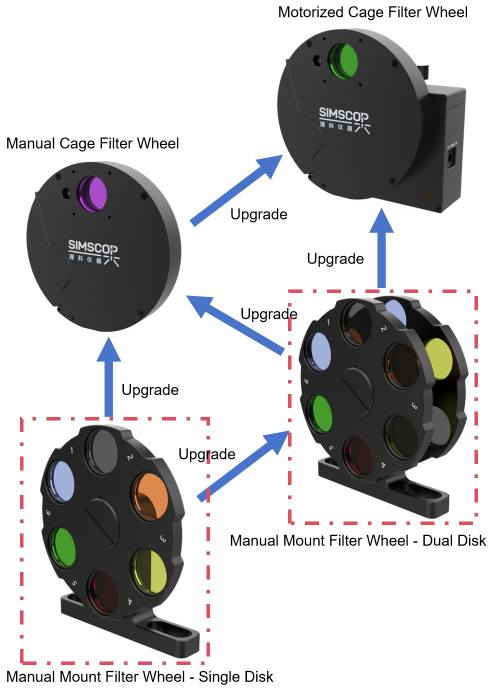

The SIM-FWM, SIM-MAFW, and SIM-MAFWM series were designed with the concept of interchangeable components across the product line. This allows users to easily upgrade, for example, from a SIM-MAFWM-S to a SIM-MAFWM-D, a SIM-MAFW, or even a SIM-FWM.

If you are an existing Simscop filter wheel user and interested in upgrading your system, please contact our sales team for a quotation. Simscop is committed to providing flexible and scalable solutions for all your optical filtering needs.

Features

Flexible Configuration Options: Offers both single-wheel (S) and dual-wheel (D) core models, with optional 6, 8, or 10 filter trays. This enables precise adaptation to diverse experimental needs, ranging from basic filtering to multi-channel composite imaging.
Broad Compatibility: Each filter wheel is equipped with SM1 internal threaded mounting holes, supporting standard filters up to Ø25.4 mm in diameter and 5 mm in thickness (6.35 mm for 8/10-position models). This ensures seamless integration with mainstream optical components.

Application

Optical Experimentation: Ideal for rapid prototyping and simplified experimental setups, the manual filter wheel enables quick integration into optical paths to validate their viability. It can be seamlessly incorporated into laser systems or other compact optical configurations, offering flexibility and ease of use for diverse experimental requirements.

Product Specifications

Parameter	Value
Configuration	Single Disk / Dual Disk
Number of Filter Slots1	6/8/10 PCS
Mounting Clearance Aperture	6 x SM1 Internal Threaded Mounting Holes (Retaining Rings Included)
Thread Type	Housing: 2 × SM1 internal threads; 4 × 4-40 UNC threaded holes (30 mm spacing) Base: 1 × M6 threaded hole
Filter Diameter	12.5/25.4 mm
Filter Thickness	≤6.35 mm

Denpending on the model ,6/8/10 filters can be installed

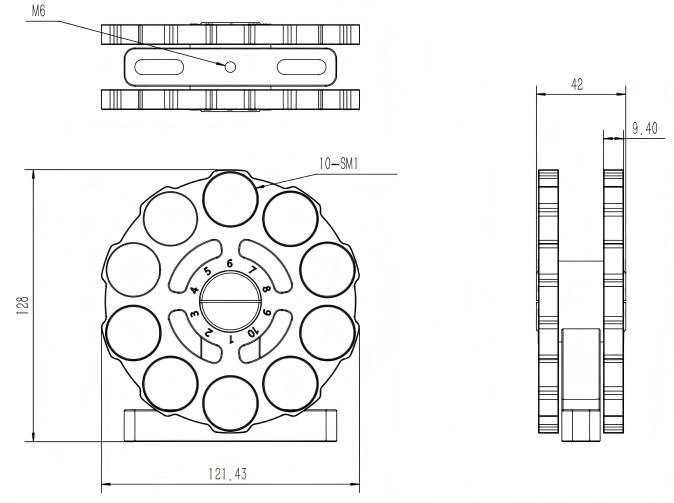

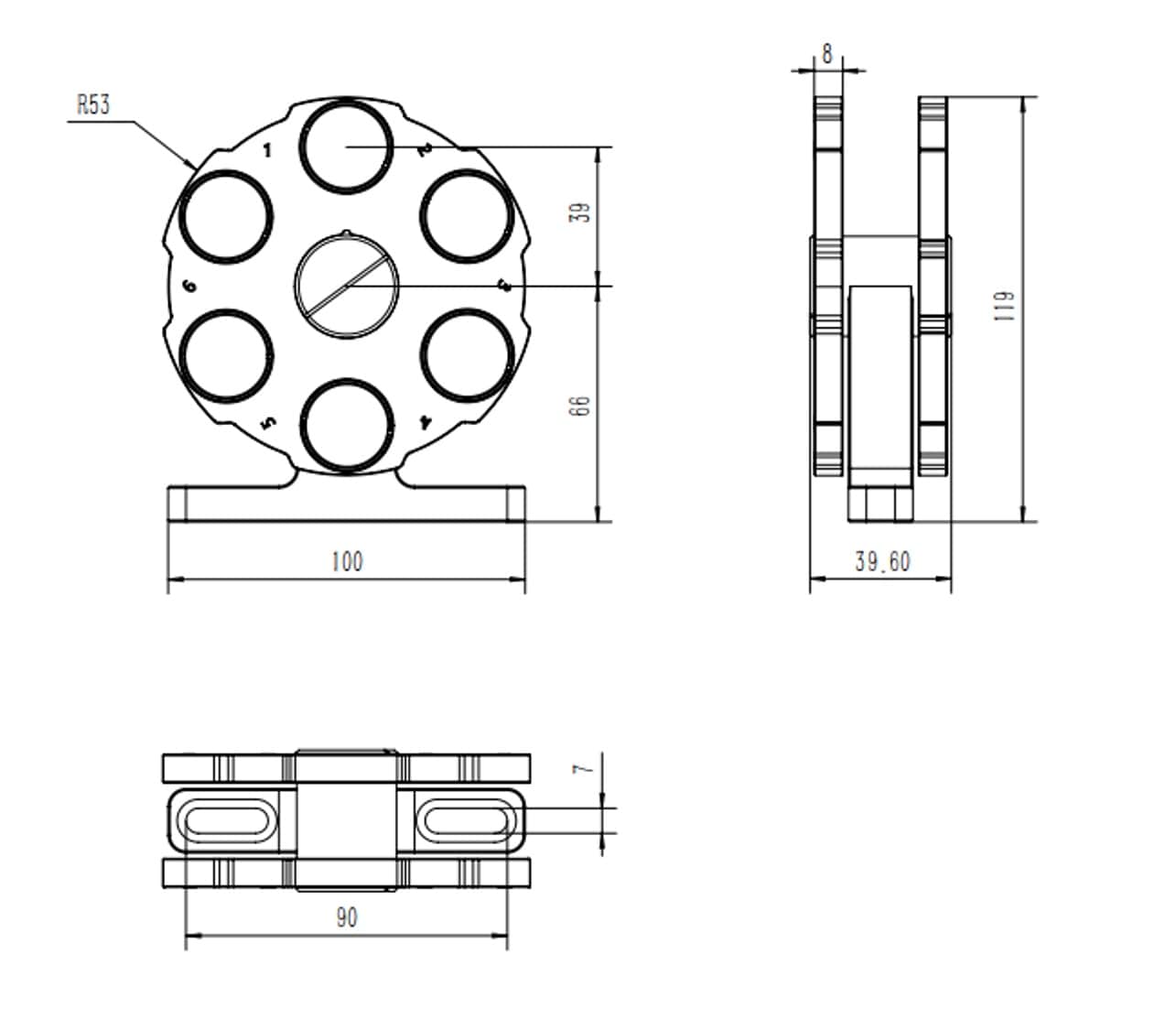

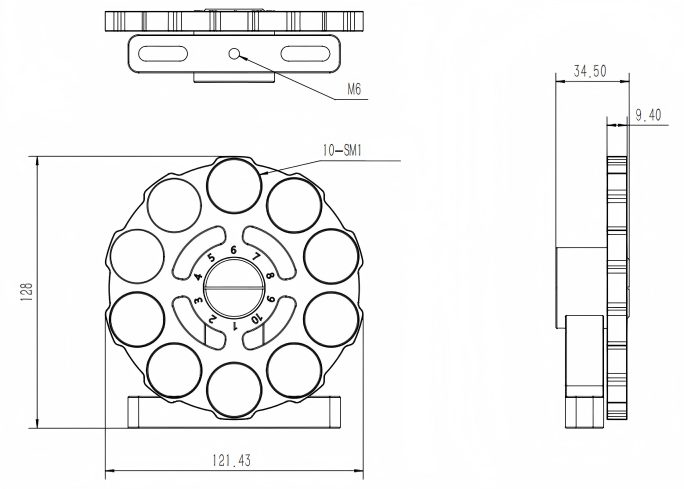

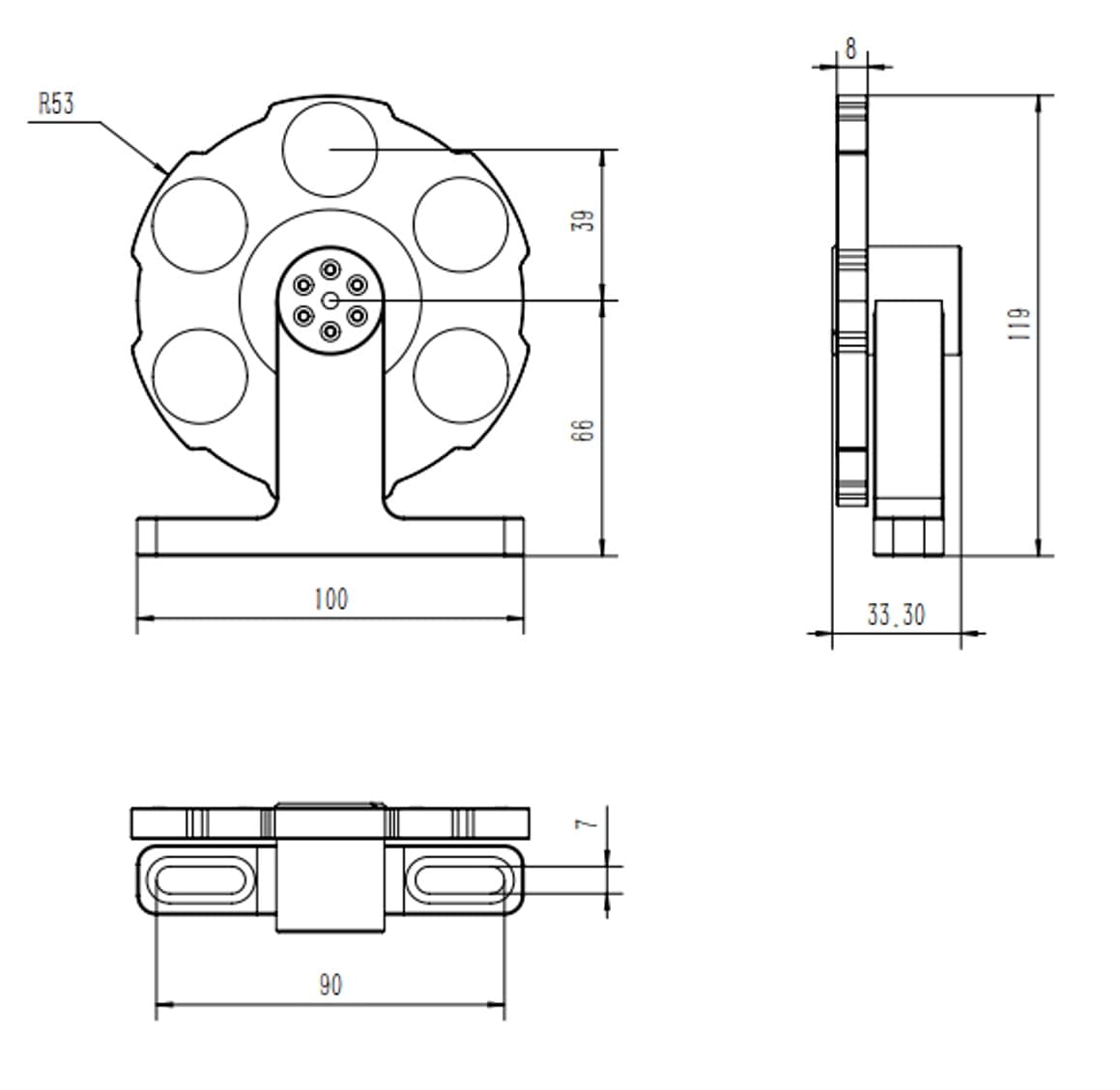

Mechanical Dimensions

(1) Compatible with 30 mm cage systems, an M6 threaded hole on the bottom for post mouting.

(2) Different models support holding varying quantities of filters.

(3) Compatible with 30 mm cage systems.

(4) Can be used with compatible optical posts and post holders for height adjustment.

(5) Filters are not included and must be purchased separately.

OE-SIM-MFW-S-06

OE-SIM-MFW-D-06

OE-SIM-MFW-S-08/10

OE-SIM-MFW-D-08/10

The SIMFWM2 series supports the installation of optical filters with a diameter of 25.4mm and a maximum thickness of ≤5mm. For 8/10-slot models：maximum filter thickness: 6.35 mm .

Simtrum offers one-stop shopping, providing a wide range of high-quality optical filters to meet avarious experimental requirements. On Simtrum’s paltform, you can accsss detailed filter specification such as transmittance, spectral range, and optical density(OD). For further assistance please contact our sales team or click the line below to browse avaiable options：

Fliters

SIMTRUM Provides different types of filters and filters sets. Filters in optics and photonics is a device or material that selectively transmits light of certain properties,while blocking other light. Filters are essential components in a wide range of optical systems and have various applications across multiple fields. Filters can more precise control over the light that reaches the detector, sensor, or eye, thus enhancing the outcome or information gained from optical systems.

Click to navigate

Indicators	Single-band > Multi-band bandpass	Long Pass & Short Pass	Notch	Dichroic mirrors
Transmittance	93 - 99%	95 - 99%	95 - 99%	94 - 98%
Cut-off Depth / Reflectivity	OD6 - 8+	OD6 - 8+	OD6+	Reflectance > 98%
Spectral range	200 - 3000 nm	200 - 3000 nm	300 - 3000 nm	200 - 3000 nm
Spectral steepness	< 1%	< 0.25%	< 1%	< 2%
Environmental and physical durability	ISO 9022-2-11-03; ISO 9022-2-11-06; MIL-C-48497A 4.5.4.1; ISO 9022-2-12-06; ISO 9211-4-04-08
Tolerance range	400 degrees / -200 degrees

Technical Support Available: Contact us | You can download our full Product Line Card Click Here

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
OM-SIM-MAFWM-S-06 6-Position Manual Filter Wheel, single wheel, no housing, accepts 25.4 mm filters (max. thickness: 5 mm)	4 - 6 Weeks	Request for quote
OM-SIM-MAFWM-D-06 6-Position Manual Filter Wheel, dual wheels, no housing, accepts 25.4 mm filters (max. thickness: 5 mm)	4 - 6 Weeks	Request for quote
OM-SIM-MAFWM-S-08 8-Position Manual Filter Wheel, single wheel, no housing, accepts 25.4 mm filters (max. thickness: 6.35 mm)	In Stock	Request for quote
OM-SIM-MAFWM-D-08 8-Position Manual Filter Wheel, dual wheels, no housing, accepts 25.4 mm filters (max. thickness: 6.35 mm)	4 - 6 Weeks	Request for quote
OM-SIM-MAFWM-S-10 10-Position Manual Filter Wheel, single wheel, no housing, accepts 25.4 mm filters (max. thickness: 5 mm)	4 - 6 Weeks	Request for quote
OM-SIM-MAFWM-D-10 10-Position Manual Filter Wheel, dual wheels, no housing, , accepts 25.4 mm filters (max. thickness: 5 mm)	4 - 6 Weeks	Request for quote
One pcs +12.5mm Size Upgrade One pcs, accepts 12.5 & 25.4 mm filters	In Stock	$26.00
