THz time domain spectrometer
SIMTRUM provide different types of THz time domain spectrometer, including Integrated THz time domain spectrometer, Separate THz time domain spectrometer, THz 3D tomographic detector, Modular THz time-domain spectrometer, below table is a summary of devices specification.
|
|
|
| Integrated THz time domain spectrometer |
Spectrum range: 0.1~5 THz; Spectral resolution: better than 5 GHz; Scanning range: ≥500 ps; Dynamic range: better than 90dB; Focus spot diameter: ≤1mm(signal attenuation of 50%) |
| Separate THz time domain spectrometer |
Spectrum range: 0.1~5 THz; Spectral resolution: better than 5 GHz; Scanning range: ≥500 ps; Dynamic range: Better than 90dB |

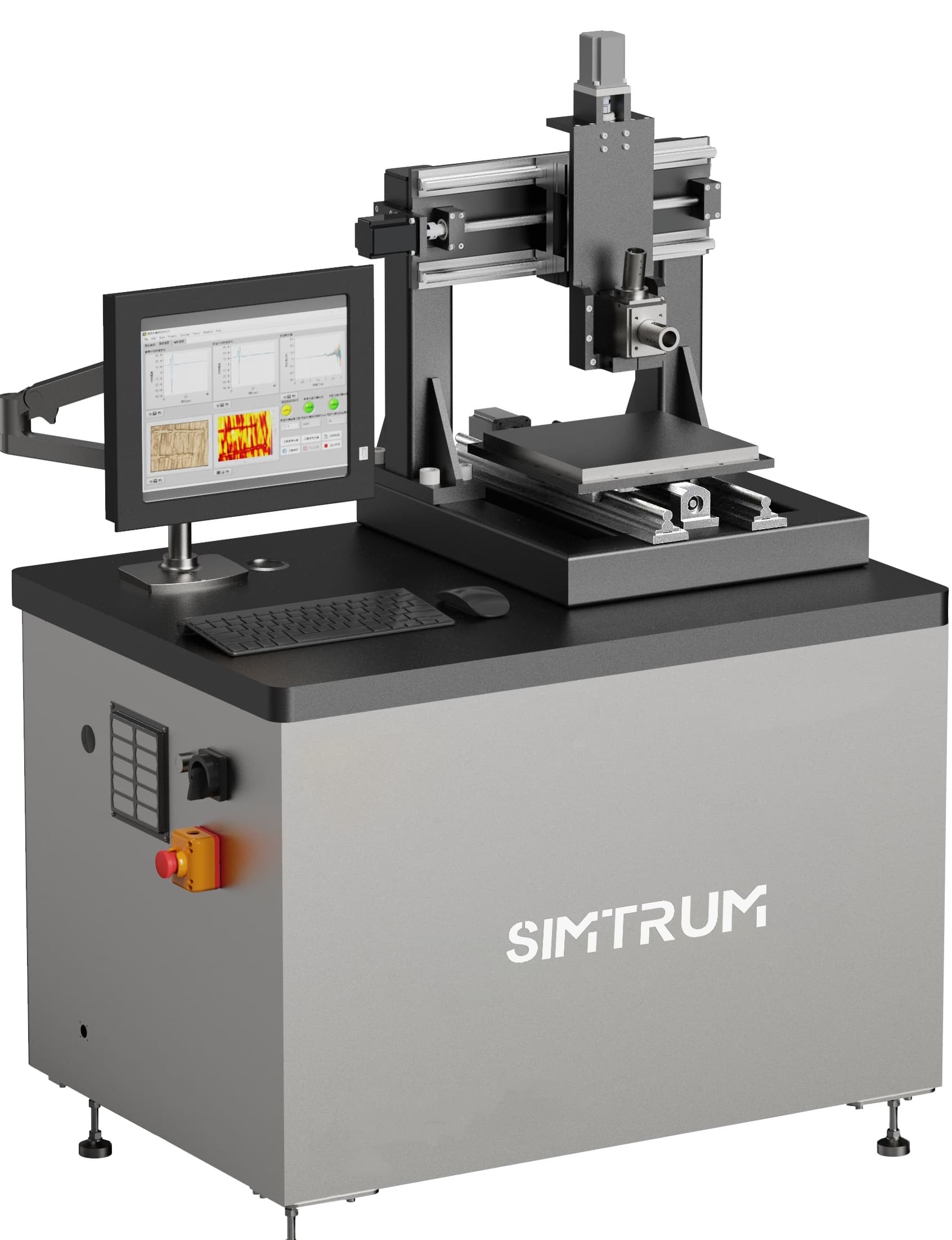

| THz 3D tomographic detector |
Scanning range: ≥500ps; Dynamic range: better than 90dB; Imaging range: 500*500mm^2; Imaging resolution: ±30μm(depth); 1mm(surface); Scanning step size: 50μm;Repeated positioning accuracy: ≤20μm |

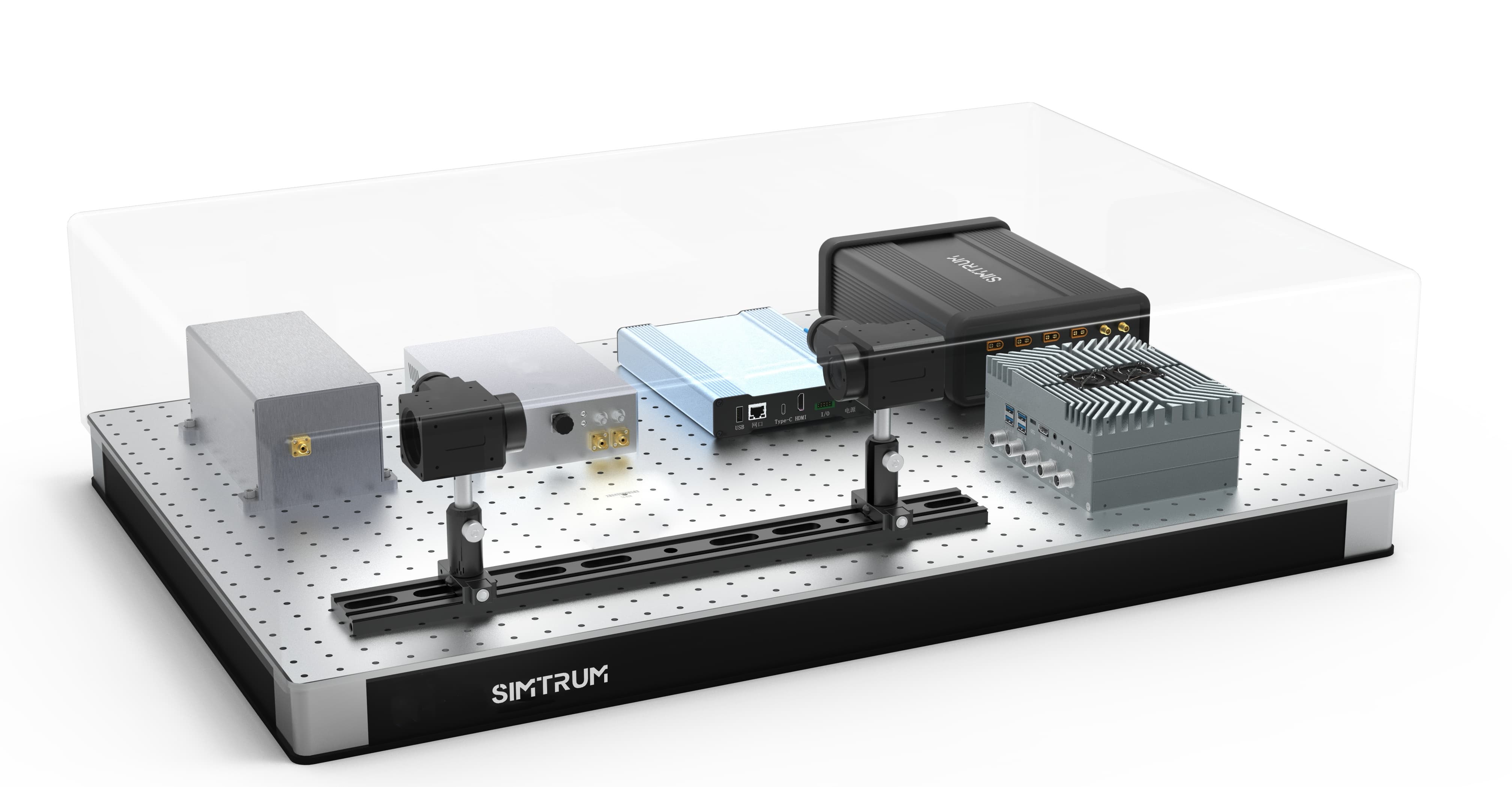

| Modular THz time-domain spectrometer |
It is composed of transparent quick-disconnecting chassis and fiber femtosecond laser, voice coil motor fiber delay line, THz low noise signal acquisition module, THz power module, probe module and so on |
