Short-pulse OPA (650 - 2600nm)

STAR-H is a Hybrid Optical Parametric Amplifier (OPA) that combines the short pulse duration produced by a non-collinear OPA (NOPA) with the broad tuning range provided by a collinear OPA. This gives it unique performance advantages, allowing its signal light to be tuned in the range of 650-900nm, while the idler light can be tuned in the range of 1200-2500nm, and pulse compression down to 50-100 fs pulse duration can be achieved with dispersion compensation.

STAR-H is compatible with a variety of market-standard fiber and solid-state Yb ultrafast lasers, and supports one-click precise tuning, allowing customers to easily obtain the desired central wavelength output without the need for complex manual adjustments. This not only greatly facilitates customers but also enhances their work efficiency.



Features

  • Compatible with 80W, 10-500uJ pump input
  • Tuning range from 210nm to 10μm
  • Supports pulse widths as short as <50fs
  • High output stability
  • CEP stability options
  • Electro-mechanical integrated design

Applications

  • Transient absorption spectroscopy
  • Nonlinear optics
  • Two-dimensional infrared spectroscopy
  • Fluorescence spectroscopy
  • Sum-frequency spectroscopy
  • Stimulated raman scattering
  • High harmonics and X-ray sources
  • Attosecond science



Product Specifications and Brochures

Product Brochure Link:



Model STAR-H STAR-H-HP STAR-H-HE
 Tuning Range 650 – 900 nm (Signal ligh)
1200 – 2600 nm (Idler light)
 Maximum Pump Power 80 W
 Maximum Pump Energy 10 – 20µJ 20-200μJ 200-2000μJ
 Peak Conversion Efficiency > 10% (Signal ligh+Idler light)
 Second Harmonic (515 nm) Conversion Efficiency > 40 %
 Spectral Bandwidth 200 – 750 cm-1 @ 650 – 900 nm
 Compressed Pulse Width < 55 fs @ 800 – 900 nm
< 70 fs @ 650 – 800 nm
< 100 fs @ 1200 – 2000 nm
 Compressor Transmission Efficiency > 65% @ 650 – 900 nm
> 80% @ 1200 – 2000 nm
 Long-Term Power Stability < 1.5% @ 750 nm@ 8h

 Pulse Energy Stability

< 1.5% @ 750 nm

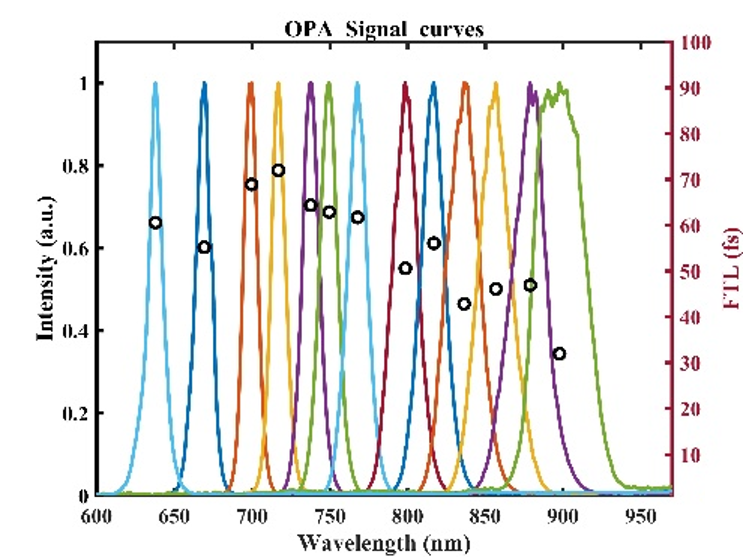

Spectral Bandwidth of Signal and Idler Light Recorded during STAR-H In-Field Testing

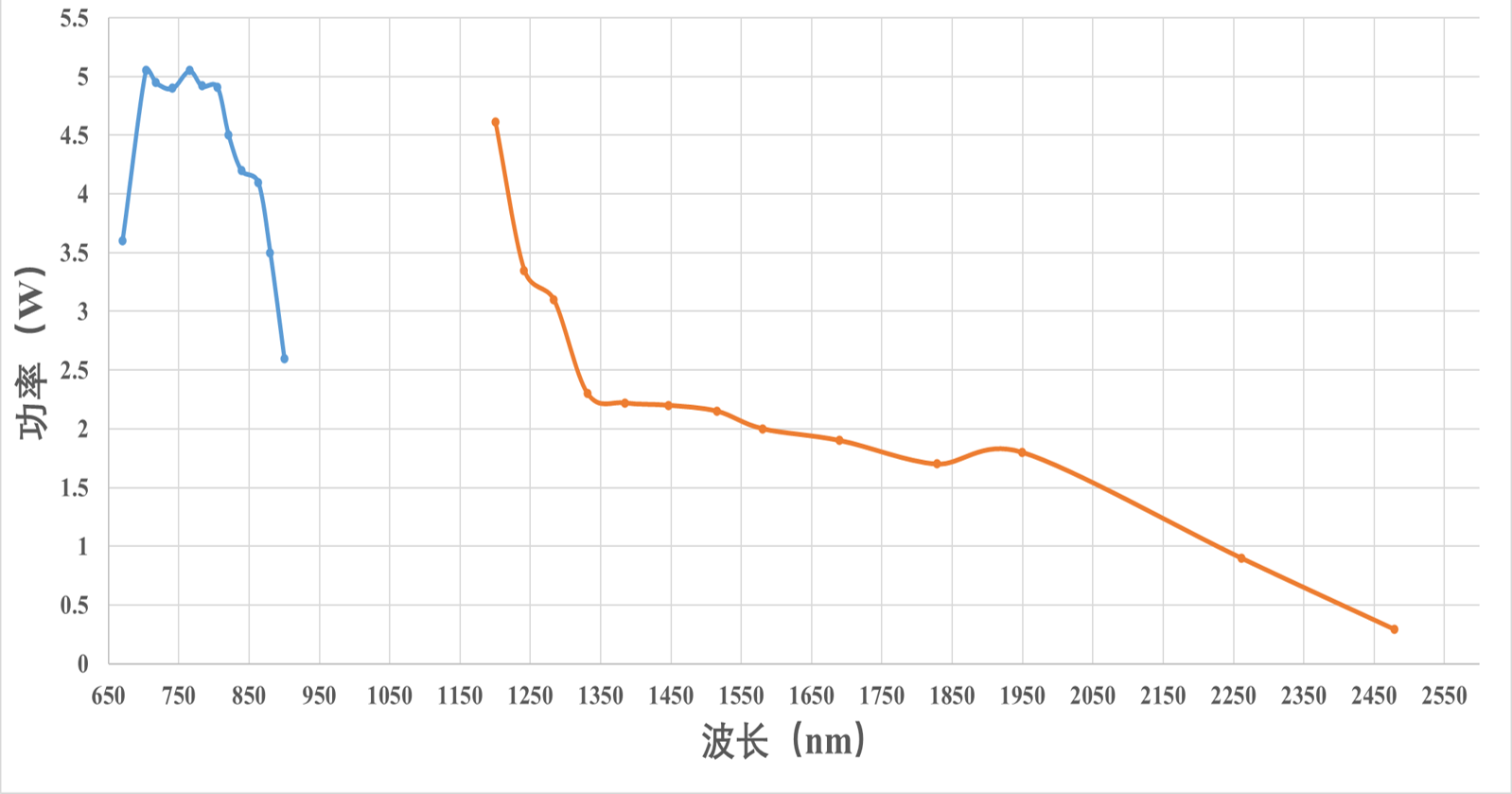

OPA Output Power @1MHz (Output power in the 850-900nm and 1200-1300nm wavelength ranges is for reference only.)

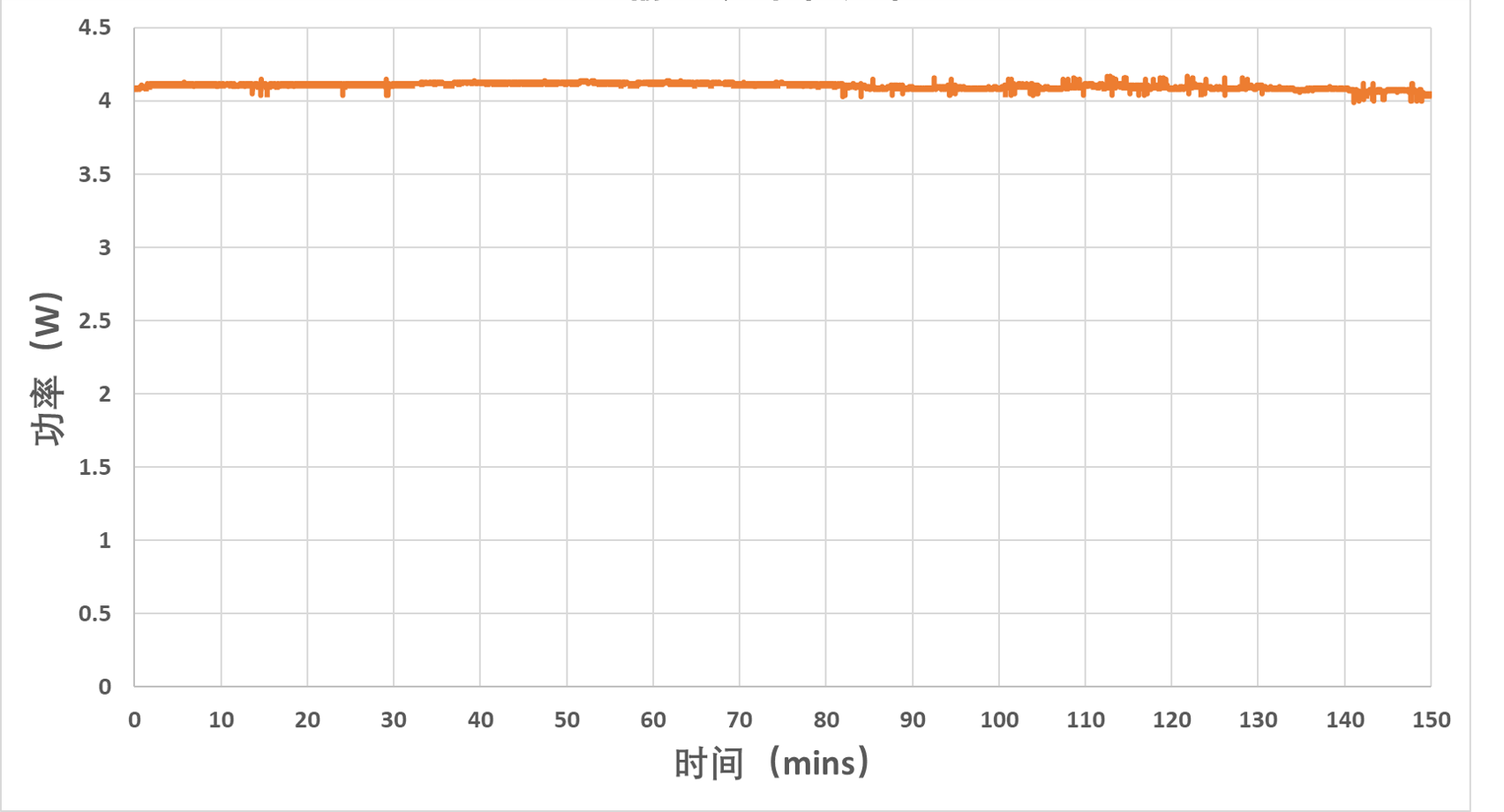

OPA Output Power Stability (780nm @150mins) RMS=0.16% between 30-80 minutes, with power fluctuations attributed to laser beam pointing jitter.

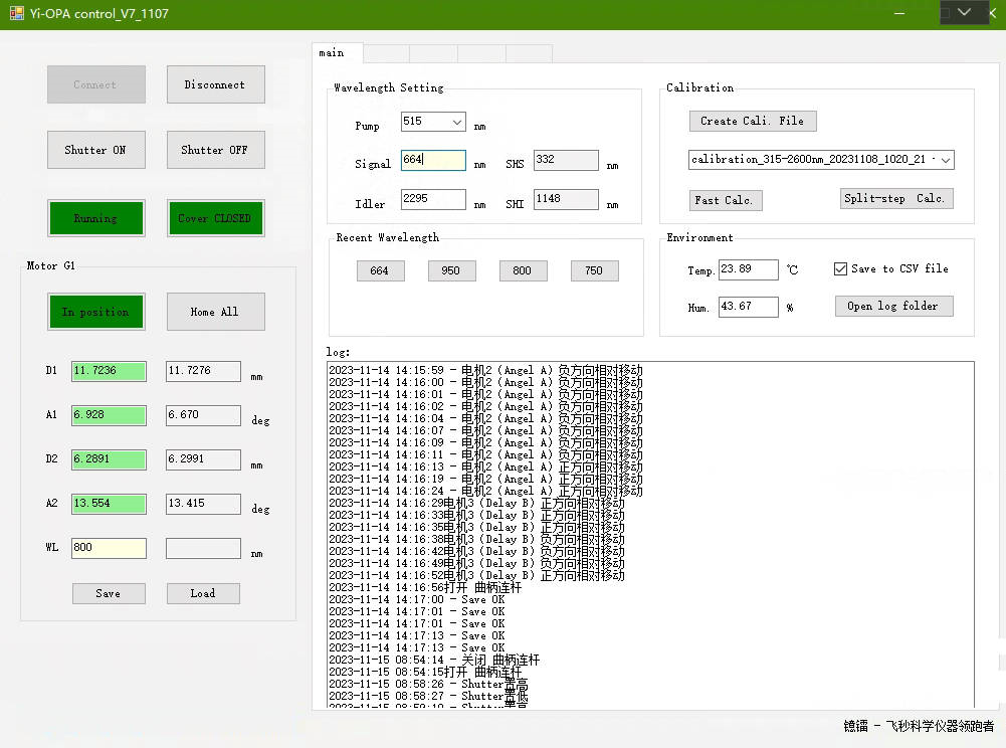

Beam Quality STAR-H Software Interface (Wavelength Tuning Precision up to ±1nm)
