Manual Filter Wheel

Designed for applications requiring external light shielding, the SIM-MAFW series offers a manual cage-mounted filter wheel solution with a protective housing to block ambient light. This product is particularly suitable for sensitive measurement systems utilizing PMT detectors.Compact and robust, the filter wheel can be securely mounted on any standard optical table.

Depending on the model, it accommodates 6/8/10 filter slots and is fully compatible with 30 mm cage systems, meeting the demands of complex experimental and detection setups.The filter channel indexing provides clear tactile feedback. For effortless operation, the wheel edge features grooves to facilitate smooth manual rotation. Installation is straightforward, and once integrated into the optical system, users can instantly and precisely switch filters by manually rotating the wheel. Additionally, an indicator window on the housing allows quick identification of the current filter channel without opening the cover.

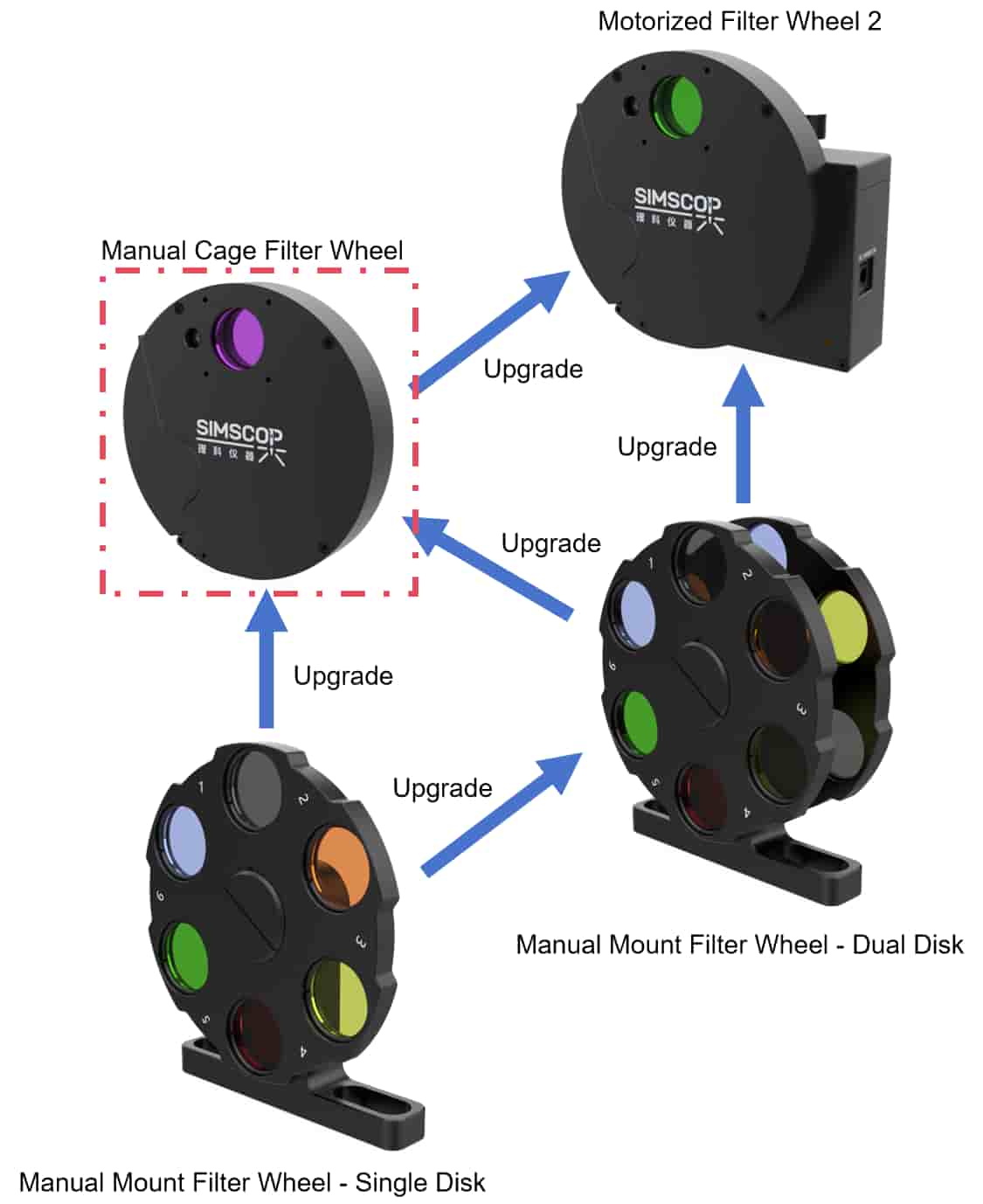

The SIM-FWM, SIM-MAFW, and SIM-MAFWM series were designed with the concept of interchangeable components across the product line. This allows users to easily upgrade, for example, from a SIM-MAFWM-S to a SIM-MAFWM-D, a SIM-MAFW, or even a SIM-FWM.

If you are an existing Simscop filter wheel user and interested in upgrading your system, please contact our sales team for a quotation. Simscop is committed to providing flexible and scalable solutions for all your optical filtering needs.

Features

• Ease of Use:  Simscop's manual cage-mounted filter wheel features a grooved edge on the rotating wheel for smooth and effortless filter selection. The integrated cover plate serves a dual purpose: enabling filter switching and providing direct access for filter replacement without the need for screws.

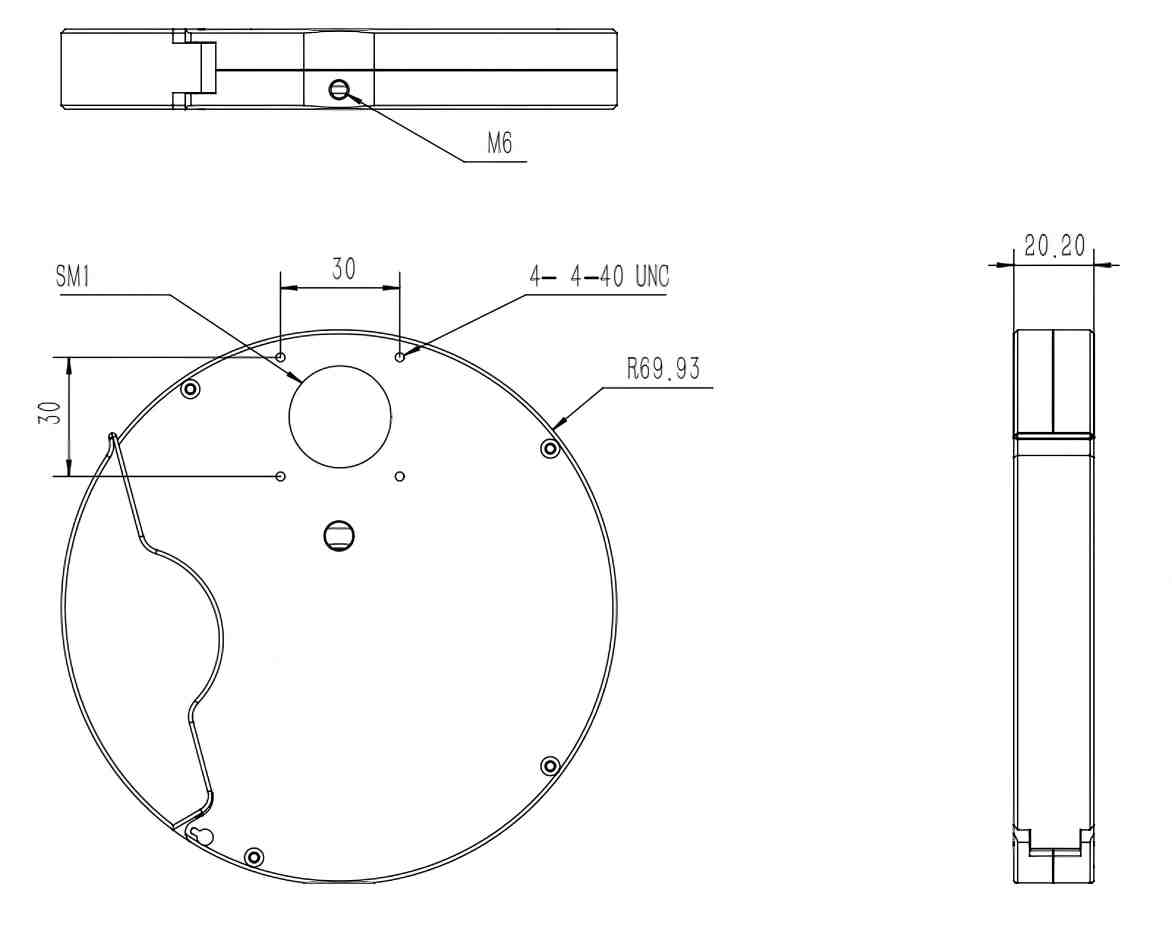

• Compatibility:  Equipped with SM1 internal threading, the filter wheel accepts Ø25.4 mm filters (max. thickness: 5 mm; 6.35 mm for 8/10-slot versions). Compatible with 30 mm cage systems and M6 posts.
• Stability & Durability: Engineered for long-term reliability, Simscop’s manual filter wheel maintains precise positioning and repeatable performance even after tens of thousands of cycles.
• Easy Installation and Maintenance:  Designed for minimal downtime, the filter wheel allows quick installation and requires no complex adjustments or special tools, simplifying both setup and daily operation.

Application

• Optical Experimentation: In biomedical research, the manual cage-mounted filter wheel effectively shields against stray light interference, enabling precise wavelength isolation in fluorescence applications while minimizing installation-induced optical drift. Its compatibility with 30 mm cage systems significantly enhances experimental flexibility and scalability.
• Microscope Upgrade: This manual filter wheel offers an economical upgrade path for conventional bright-field microscopes, enabling basic fluorescence observation. For studies with limited sample volume, its built-in light-blocking capability provides a cost-effective solution for enhancing optical performance.

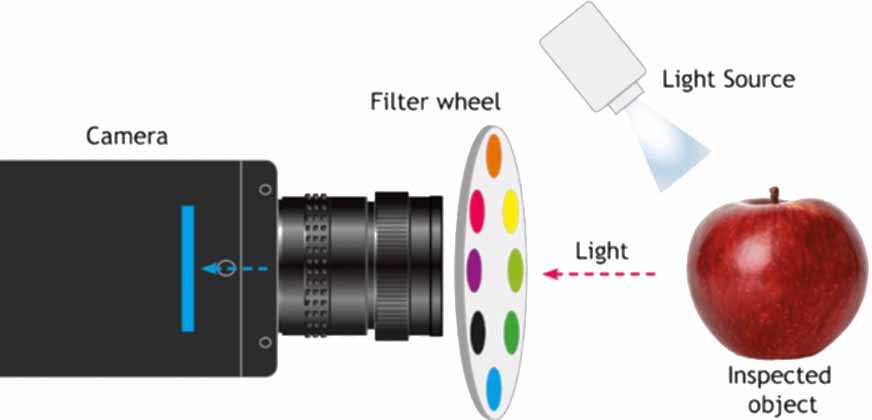

• Industrial Vision Inspection: During preliminary validations and offline sampling in industrial vision systems—such as detecting surface scratches—the filter wheel helps eliminate interference from ambient light in production environments. It allows operators to systematically evaluate the effect of different filter combinations on image clarity without automated switching hardware.
•

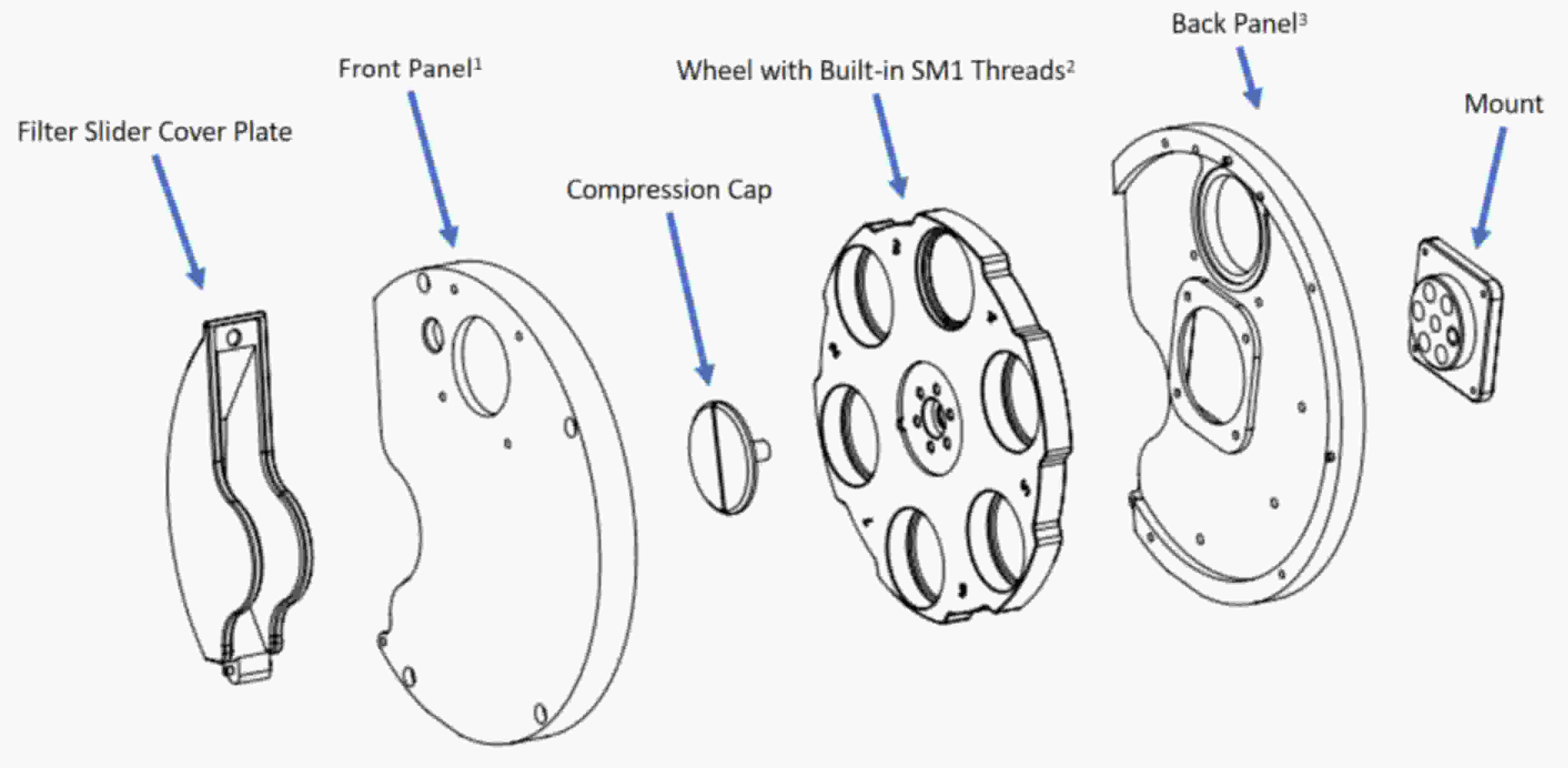

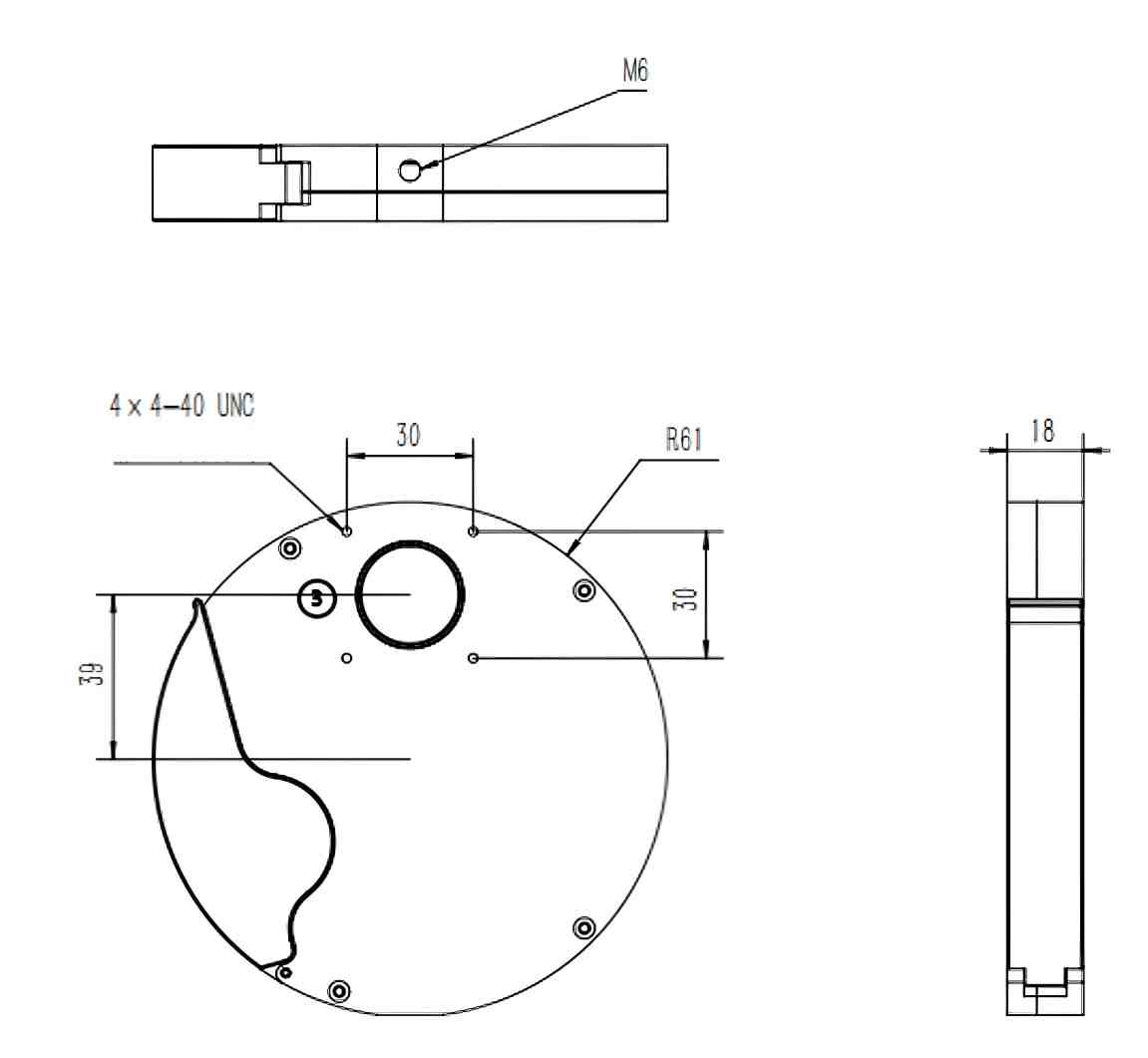

(1) Compatible with 30 mm cage systems, an M6 threaded hole on the bottom for post mouting.

(2) Different models support holding varying quantities of filters.

(3)  Compatible with 30 mm cage systems.

(4) Can be used with compatible optical posts and post holders for height adjustment.

(5) Filters are not included and must be purchased separately.
