SPD-303

Products / Light Analysis /Photodetectors /Infrared Single Photon Detector(SPD) /NIR Single Photon Detector SPAD Duel Channel (900-1700nm) / SPD-303 /

Near-infrared Single Photon Detector 900-1700nm, external trigger frequency 0.1-100MHz, internal trigger frequency 1-100MHz any integer, trigger delay adjustment 0-20ns, 10ps step, single photon detect efficiency 10%, 20% for option.

MODEL:SPD-303

4-6 Weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
SPD-304
Near-infrared Single Photon Detector 900-1700nm, DUAL-channel, external trigger frequency 0.1-100MHz, internal trigger frequency 1-100MHz any integer, trigger delay adjustment 0-20ns, 10ps step, single photon detect efficiency 10%, 20% for option. 		4-6 Weeks Request for quote

Compatible

Compare Model Drawings & Specs Availability Reference Price

Product specifications and Brochures

Product Brochure Link:


General Specification
Detection wavelength900~1700nm
External trigger freq.0.1-100MHz
Internal trigger freq.1-100MHz any integer
Trigger delay adjustment0~20ns, 10ps step
Internal trigger phase  adjustment0~1us, 0.2ns step
Gating width1ns typ.
single photon detect   efficiency [1]10%,20% for option
Dark count rate≤2e-6/gate @10% SPDE
After pulse probability≤3% @10% SPDE
Dead time adjustment0-100us, 10ns step
Cooling time≤5min
Operating  temperature0~35 ℃
Power supply100-240VAC 50/60Hz
Power dissipation<75W
Dimensions (WxDxH)300 x 388.2 x 146.3 mm
Net weight8.5Kg


Note:

[1] SPDE calibrated at room temperature 25℃ and 1550nm wavelength

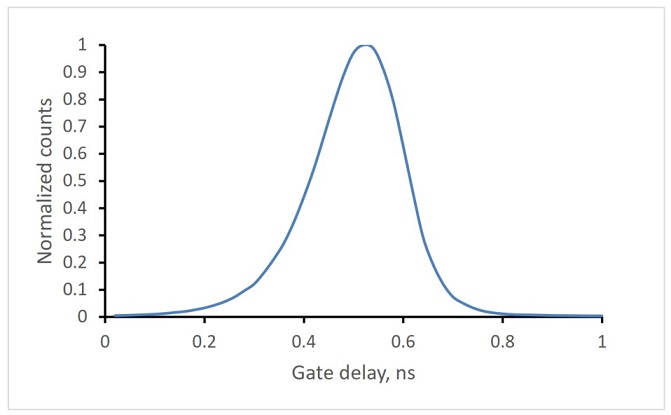

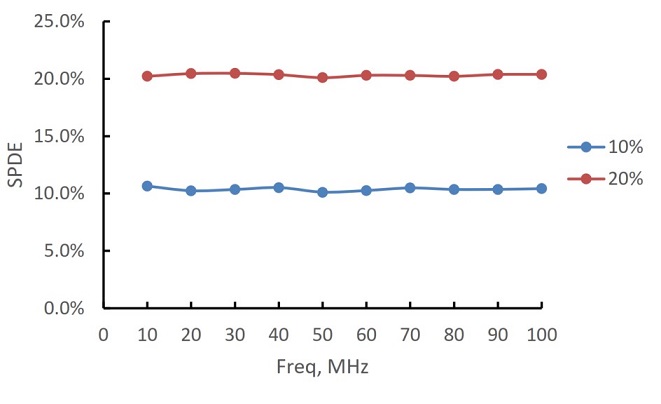

Active Gate Width (Gate width = 1ns)SPDE vs Gate Frequency (SPDE=10%, 20% @1550nm)

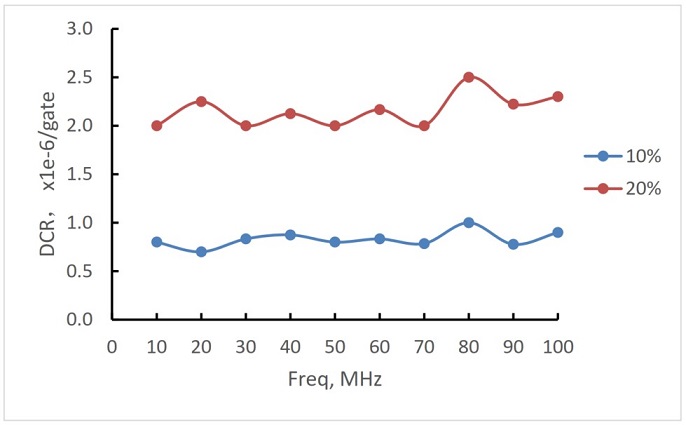

DCR vs Gate Frequency (SPDE=10%, 20% @1550nm)

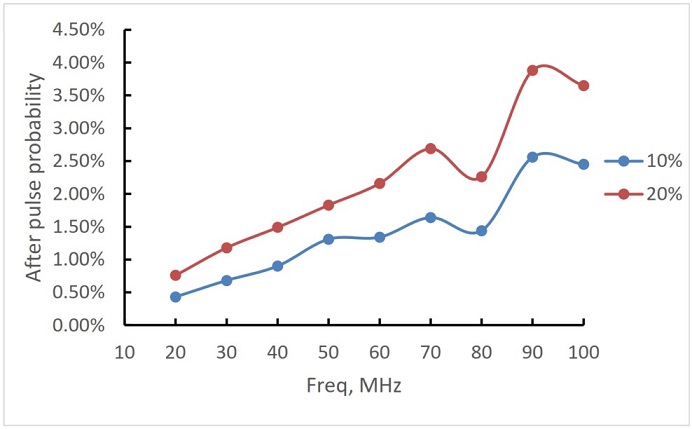

After Pulse Probability vs Gate Frequency (SPDE=10%, 20% @1550nm)
