Products / Microscopes /High-end Microscopes / MIC-PL(XXX) /

Fluorescence/Photoluminescence Microscope (System), Detector Hamamatsu area array back-illuminated CCD, cooling temperature -15 °C 6M Camera ,3072x2048, pixel size 2.4um. Spot size up to the diffraction limit (1um @50x objective lens @532nm). 3D dynamic scanning or 2D dynamic scanning optional.

MODEL:MIC-PL(XXX)

4-6weeks Drawings

Compare

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page

Related Products Detailed Introduction

	Availability	Reference Price
Industry Line Scan Confocal Microscope Industry Line Scan Confocal Microscope,Standart wavelength：405nm±5nm,Output way：Single-mode polarization-maintaining fiber coupling (TEM00),Single wavelength output power：＞20mW,Power stability：<1%,Spectrum Linewidth＜3nm	In Stock	Request for quote

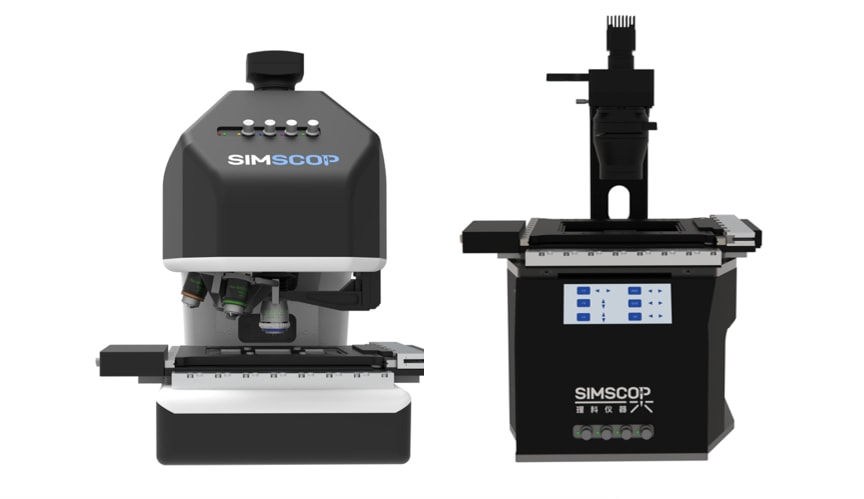

Automated Fluorescence Microscope Automatic fluorescence microscope，can be selected as an upright or inverted microscope, customer-customized	In Stock	Request for quote
SIMSCOP Raman S2 SIMSCOP Confocal/PL Raman Microscope , Multi-channel laser up to 5 channels, wavelengths 405nm/532nm/638nm/785nm/1064nm, Laser power 100mW, linewidth 0.001nm, Near-infrared spectrum support, Raman range typical 150~3200cm-1, Confocal image resolution ~200nm @100x objective, Electric continuously variable speed pinhole mode, spot size ~1um@50x, Compatible with upright/inverted microscopes, Compatible with standard stretching stages, high/low-temperature stages, in-situ stages, and vacuum stages	6-8 weeks	Request for quote
SIMSCOP Raman S1 SIMSCOP Confocal/PL Raman Microscope , Single-channel laser, wavelengths 532nm/638nm/785nm optional, Laser power 100mW, linewidth 0.003nm, Raman range typical 150~3200cm-1, Confocal image resolution ~200nm @100x objective, manual pinhole mode, spot size ~1um@50x, Compatible with upright/inverted microscopes,Compatible with standard stretching stages, high/low-temperature stages, in-situ stages, and vacuum stages	6-8 weeks	Request for quote
DermDive Wideband Handheld Confocal Raman Skin Analyzer, Detection Range: FP: 450 – 1750cm-1; HW: 2800-3750cm-1, Axial Resolution: 10um~20um, Sensitivity: 60dB, Scanning Time: 2-10s/depth	6-8 Weeks	Request for quote
SpinDisk SIM Structured Illumination Microscope, SIM Basic, Image frame rate 13fps@1024x1024, Resolution ~100nm, image depth <50um, No. of Laser - 4, Wavelength choice 405/445/470/520/528/555/640nm, sCMOS Camera detectors, Inverted or upright microscope, XYZ motorized stages, Motorized filter electronics system, high image contrast, upgrade to SpinDisk SIM 100nm resolution	6-10 Weeks	Request for quote
SIM Basic Structured Illumination Microscope, SIM Basic, Image frame rate 13fps@1024x1024, Resolution ~100nm, image depth <50um, No. of Laser - 4, Wavelength choice 405/445/470/520/528/555/640nm, sCMOS Camera detectors, Inverted or upright microscope, XYZ motorized stages, Motorized filter electronics system, high image contrast, upgrade to SpinDisk SIM 100nm resolution	6-10 Weeks	Request for quote
SpinDisk Advance Spinning Disk Confocal Microscope, SpinDisk Advance Series, Image frame rate 100fps@2048x2048, Resolution ~230nm, image depth <200um, No. of Laser - 4, Wavelength choice 405/445/470/520/528/555/640nm, Dual sCMOS Camera detectors (single sCOMS optional), Inverted or upright microscope, XYZ motorized stages, Motorized filter electronics system, high image contrast, upgrade to SpinDisk SIM 100nm resolution, customized option	6-10 Weeks	Request for quote
SpinDisk Basic Spinning Disk Confocal Microscope Spinning Disk Confocal Microscope, SpinDisk Basic Series, Image frame rate 100fps@2048x2048, Resolution ~230nm, image depth <200um, No. of Laser - 4, Wavelength choice 405/445/488/525/561/640nm, sCMOS Camera detectors, Inverted or upright microscope, XYZ motorized stages, high image contrast, customized option	6-10 Weeks	Request for quote
Research Line Scan Confocal Microscope L Series Research Line Scan Confocal Microscope L Series,Standard wavelength 405±5nm/488nm±5nm/561nm±1nm/640nm±5nm,Laser power adjust accuracy：0.1%， Multi-wavelength AOTF adjustment power,Single wavelength output power：＞20mW,Power stability：<1%,Spectrum Linewidth＜3nm	6-10 Weeks	Request for quote
SIMSCOP P Series Laser Scanning Confocal Microscope, Standard Wavelength 405/488/561/640nm(638nm), dual-axis XY high-speed optical scanning galvanometer, field of view 15x15mm, scanning pixels 512x512 ~4096x4096, scan speed up to 4fps, stroke: X-110mm, Y-75mm, Z-9mm	In Stock	Request for quote

Compatible

Compare	Model		Drawings & Specs	Availability	Reference Price

Product specifications and Brochures

Product Brochure Link:

Specification
Function	Photoluminescence / fluorescence / Micro Raman, etc
Laser wavelength	Optional (355 nm, 523 nm, 633 nm, 785 nm, 1064 nm, etc.)
Detector	Hamamatsu area array back-illuminated CCD, cooling temperature -15 °C 6M Camera ,3072x2048, pixel size 2.4um
Spot size	Up to the diffraction limit (1um @ 50x objective lens @ 532nm)
Scanning method	3D dynamic scanning or 2D dynamic scanning optional
Light shaping insert slot reserved	Yes
Software	Provide standard spectral data acquisition software, and provide customized services according to customer requirements
Customized service	Customizable
Others	Magnetism, electricity, high and low temperature, etc.

Software Interface

A Main function interface - realize various hardware quick control.

B Camera interface – used for camera exposure, colour adjustment and image acquisition etc.

C Spectral acquisition and observation interface – for spectral observation and analysis.

D Motion Control Interface – Controls the motion of the stage

E Spectrum and Lens Selection Screen – Spectrometer Selection
