Products / Imaging /Industrial Machine Vision Camera /High Speed Line Scan Camera /4K Multi-line Scan Camera / STL4KCL-68KC /

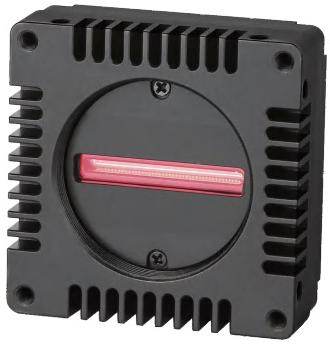

4K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Color, Optical Size 28.67MM, Resolution 4096 * 2, Pixel Size 7μm * 7μm, Max Line Rate 68 kHz, Bit Depth 8/10/12 Bit, Dynamic Range ≥63.5 dB, Data Rate 840 MB/s

MODEL:STL4KCL-68KC

6-8 weeks Drawings

Compare

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page

Related Products Detailed Introduction

	Availability	Reference Price

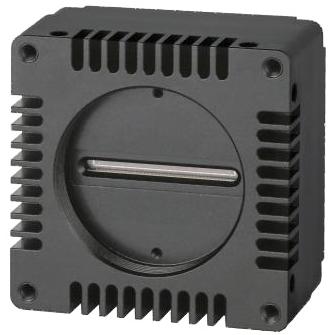

STL4KCL-200KT 4K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 28.67MM, Resolution 4096 * 2, Pixel Size 7μm * 7μm, Max Line Rate 200 kHz, Bit Depth 8/10/12 Bit, Dynamic Range ≥66.2dB, Data Rate 819 MB/s	6-8 weeks	Request for quote
STL4KGV-68KT 4K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 28.67MM, Resolution 4096 * 2, Pixel Size 7μm * 7μm, Max Line Rate 30kHz（68kHz with SAccel™), Bit Depth 8/10/12 Bit, Dynamic Range ≥63.5 dB, Data Rate 124 MB/s	6-8 weeks	Request for quote

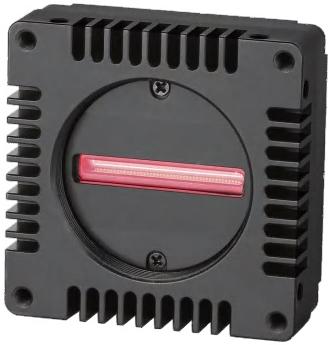

STL4KGV-30KC 4K Multi-line Scan Camera, Sensor Global Shutter CMOS, Image Mode Color, Optical Size 28.67MM, Resolution 40962, Pixel Size 7μm 7μm, Max Line Rate 10kHz (30kHz with SAccel™), Bit Depth 8/10/12 Bit, Dynamic Range ≥63.5 dB, Data Rate 124 MB/s	6-8 weeks	Request for quote

Compatible

Compare	Model		Drawings & Specs	Availability	Reference Price

Specifications

Model	STL4KGV-30KC	STL4KGV-68KT	STL4KCL-68KC	STL4KCL-200KT
Sensor	Global shutter CMOS
Image Mode	Color	Mono	Color	Mono
Optical Size	28.67 mm	28.67 mm	28.67 mm	28.67 mm
Resolution	4096*2	4096 * 2	4096 * 2	4096 * 2
Pixel Size	7μm * 7μm	7μm * 7μm	7μm * 7μm	7μm * 7μm
Max Line Rate	10kHz (30kHz with SAccel^TM)	30kHz（68kHz with SAccel^TM）	68 kHz	200 kHz
Bit Depth	8/10/12 bit	8/10/12 bit	8/10/12 bit	8/10/12 bit
Dynamic Range	≥63.5 dB	≥63.5 dB	≥63.5 dB	≥66.2dB
Data Rate	124 MB/s	124 MB/s	840 MB/s	819 MB/s
Trigger Mode	Free-run/line trigger control/frame trigger control		Free-run/external pulse/external PWM
Exposure Control	Pulse width/program
ExposureTime	6μs - 10s（step：1μs）	6μs - 10s（step：0.1μs）	2μs - 10s（step：0.1μs）	2μs - 10s（step：0.1μs）
Analog Gain	1/2/3/4x	1/2/5/10x	1/2/3/4x	1/2/5/10x
Digital Gain	0.004-8.000x	0.004-8.000x	0.01-8.00x	0.01-8.00x
Data Interface	Gige vision	Gige vision	Camera link	Camera link
Lens Interface	M42 * 1	M42 * 1	M42 * 1	M42 * 1
Power Interface	HD15（Female）		Hirose HR10A-7R-6PB(Male)
Power Supply	DC12-24V(±10%) 1A	DC12-24V(±10%) 1A	DC5-24V(±10%) 1A	DC5-24V(±10%) 1A
Power Dissipation	4.9 W	5.0 W	5.2 W	5.3 W
Dimensions (WHD)(mm)	62.0x62.0x37.4	62.0x62.0x37.4	62.0x 62.0x37.0	62.0x62.0x37.0
Operating Temperature	0-65℃
Storage Temperature	-20-75℃
