	Availability	Reference Price
STPM-50UC20M-H STPM-50UC20M-H,Sensor Size 1.1"(17.6mm),Focal Range 50 mm,Wavelength 420-1000nm，lris Range F2.8-F22,Back Focal Length (in Air) 21.3 mm	4-6 Weeks	Request for quote
STPM-25UC20M-H STPM-25UC20M-H,Sensor Size 1.1"(17.6mm),Focal Range 25 mm,Wavelength 420-1000nm，lris Range F2.8-F22,Back Focal Length (in Air) 12.6 mm	4-6 Weeks	Request for quote
STPM-16UC20M-H STPM-16UC20M-H,Sensor Size 1.1"(17.6mm),Focal Range 16 mm,Wavelength 420-1000nm，lris Range F2.8-F22,Back Focal Length (in Air) 11.2 mm	4-6 Weeks	Request for quote
STPM-12UC20M-H STPM-12UC20M-H,Sensor Size 1.1"(17.6mm),Focal Range 12 mm,Wavelength 420-1000nm，lris Range F2.8-F22,Back Focal Length (in Air) 10.6mm	4-6 Weeks	Request for quote
STPM-50UC20M STPM-50UC20M,Sensor Size 1.1",Focal Range 50 mm,lris Range F2.8,Resolution 20MP	4-6 Weeks	Request for quote
STPM-25UC20M STPM-25UC20M,Sensor Size 1.1",Focal Range 25 mm,lris Range F2.8,Resolution 20MP	4-6 Weeks	Request for quote
STPM-16UC20M STPM-16UC20M,Sensor Size 1.1",Focal Range 16 mm,lris Range F2.8,Resolution 20MP	4-6 Weeks	Request for quote
STPM-12UC20M STPM-12UC20M,Sensor Size 1.1",Focal Range 12mm,lris Range F2.8~16,Resolution 20MP	4-6 Weeks	Request for quote

Parameter		STPM-12UC20M-H	STPM-16UC20M-H	STPM-25UC20M-H	STPM-35UC20M-H	STPM-50UC20M-H
Sensor Size		1.1"(17.6mm)
Wavelength		420-1000nm
Focal Range		12mm	16mm	25mm	35mm	50mm
lris Range		F2.8-F22
Optical Back Focal Length (in Air)		10.6mm	11.2mm	12.6mm	12.9mm	21.3mm
FOV (Diagonal,Horizontal, Vertical)	1.1”	70.6°x59.2°x45.4°	58.6°x46.88°x35.16°	39.46°x31.56°x23.6	28.18°x22.54°x16.9°	19.96°x15.96°x11.96°
	1"	67.6°x56.7°x43.5°	53.94°x43.92°x33.45°	36.21°x29.08°x21.86°	26.10x20.83”x15.72°	18.38°x14.70°x10.98°
	1/2"	37.0°x29.4°x22.0°	28.23°x22.62°x16.97°	18.45°x14.72°x11.08°	13.28°x10.65°x7.94°	9.34°x7.42°x5.5°
	1/3"	27.6°x22.1°x16.8°	21.24°x16.98°x12.94°	13.81°x11.08°x8.34°	9.92°x7.92°x6.00°	6.96°x5.53x4.16°
Object Size (At theclosest focusingdistance) mm	1.1”	166.4x133.1x99.8	124,8x99.84x74.88	101.76x81.4x61.1	88.72x70.96x53.24	79.3x63.44x47.58
	1"	150.3x119.0x88.4	112.75x89.28x66.33	92.4x73.3x54.6	81.10x64.88x48,66	72.50x57.94x43.34
	1/2"	73.45x58.64x43.7	55.09x43.96x32.82	45.5x36.4x27.2	40.52x32.42x24.31	36.18x28.76x21.66
	1/3"	54.9x44.4x32.77	41.19x33.32x24.58	34.2x27.3x20.5	30.42x24.34x18.25	27.26x21.74x16.34
Operation Method	FoCus	Manual
Operation Method	lris	Manual
Distortion (mm)	1.1”	-0.85%@y=8.8	-0.73%@y=8.8	-0.59%@y=8.8	0.37%@y=8.8	-0.06%@y=8.8
	1"	-0.80%@y=8.0	-0.7%@y=8.0	-0.49%@y=8.0	0.28%@y=8.0	-0.013%@y=8.0
	1/2"	-0.6%@y=4.0	-0.24%@y=4.0	-0.12%@y=4.0	0.07%@y=4.0	0.010%@y=4.0
	1/3"	-0.4%@y=3.0	-0.14%@y=3.0	-0.06%@y=3.0	0.04%@y=3.0	0.008%@y=3.0
Mount		C-Mount
Filter Size		M37.5xP0.5	M34xP0.5	M30.5xP0.5	M30.5xP0.5	M37xP0.5
Focus Range		0.1m~∞	0.1m~∞	0.15m~∞	0.2m~∞	0.25m~∞
Work Temperature		-20°C~+60°C
Weight			100.2g	72.2g	68.35g	103.1g

Sign In

Register

Retrieve password

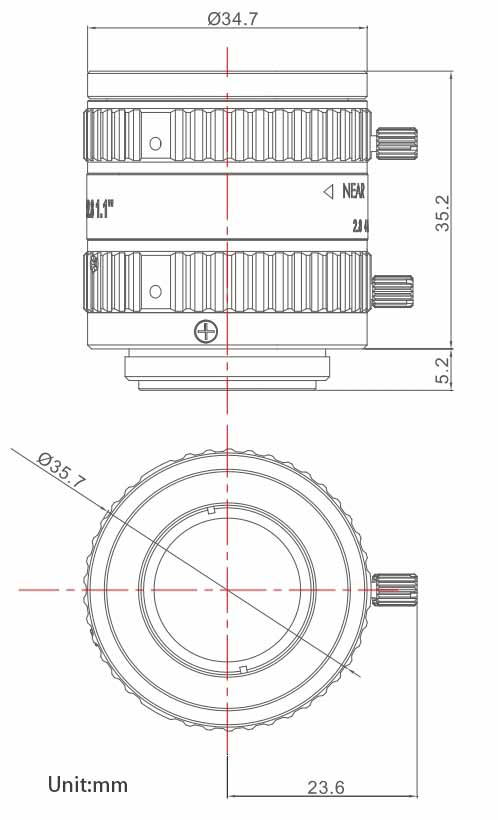

STPM-35UC20M-H

STPM-35UC20M-H,Sensor Size 1.1"(17.6mm),Focal Range 35 mm,Wavelength 420-1000nm，lris Range F2.8-F22,Back Focal Length (in Air) 12.9 mm

MODEL:STPM-35UC20M-H
