Single Axis Motorized Piezo Stage

Overview Related Products

• 360° continuous motorized rotation

• Can be used for a number of applications, including positioning wave

plates and polarizers

• Can be controlled by nanomotor drivers C-NID and C-FCCC ( must be

used with handle controller C-HC)

Mirrors

Gimbal Mirror Mounts

Search Reset

	Availability	Reference Price (USD)

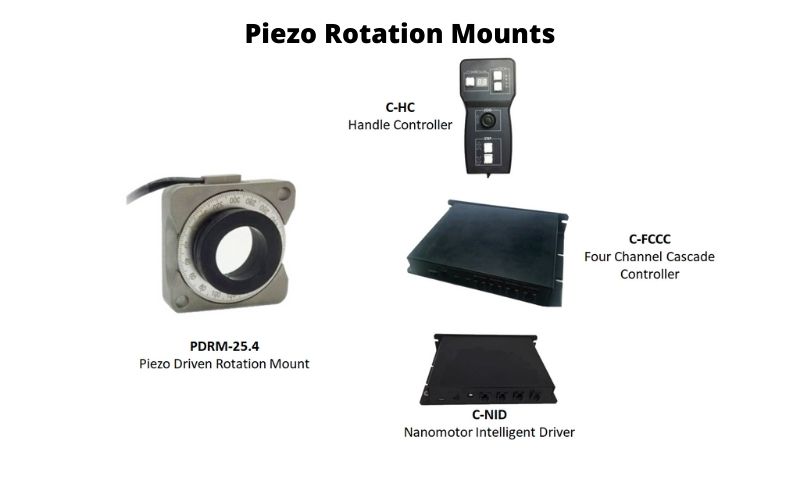

PDRM-25.4 Piezo Driven Rotation Mount, Optic Diameter=25.4mm	4-6 Weeks	$1321.67
C-NID Nanomotor Intelligent Driver	4-6 Weeks	$836.67
C-FCCC Four channel cascade controller	4-6 Weeks	$836.67
C-HC Handle Controller	4-6 Weeks	$641.67
ST-LS1-0310 Linear Piezo Stage, Stroke 10mm, Driver Piezoelectric Motor, Maximum Load Capacity 0.3KG, Maximum Speed 100 (Open Loop) mm/s, Minimum Step Size 300 nm, Repeatability +/-500 nm	6-8 weeks	Request for quote
ST-LS2-0513S Linear Piezo Stage, Stroke 13mm, Driver Piezoelectric Motor, Maximum Load Capacity 1KG, Maximum Speed 100 mm/s, Minimum Step Size 50 nm(Display Position Feedback), Repeatability +/-200 nm	6-8 weeks	Request for quote
ST-LS2-0618S Linear Piezo Stage, Stroke 18mm, Driver Piezoelectric Motor, Maximum Load Capacity 05KG, Maximum Speed 100 mm/s, Minimum Step Size 50 nm(Display Position Feedback), Repeatability +/-200 nm	6-8 weeks	Request for quote
ST-LS2-0620R Linear Piezo Stage, Stroke 20mm, Driver Piezoelectric Motor, Maximum Load Capacity 1KG, Maximum Speed 100 mm/s, Minimum Step Size 3 um, Repeatability +/-5 um	6-8 weeks	Request for quote
ST-LS2-0825S Linear Piezo Stage, Stroke 25mm, Driver Piezoelectric Motor, Maximum Load Capacity 2KG, Maximum Speed 100 mm/s, Minimum Step Size 50nm(Display Grating Feedback), Repeatability +/-200nm	6-8 weeks	Request for quote
ST-LS3-1060 Linear Piezo Stage, Stroke 60mm, Piezoelectric Motor(304) Maximum Load Capacity 5KG, Maximum Speed 100 mm/s, Minimum Step Size 20(50, 100nm for Option), Repeatability +/-200nm	6-8 weeks	Request for quote
ST-LS3-90T Linear Piezo Stage, Stroke +/-45mm, Piezoelectric Motor, Maximum Load Capacity 2KG, Maximum Speed 100 mm/s, Minimum Step Size 50nm(Displaying Position Feedback), Repeatability +/-200nm	6-8 weeks	Request for quote
ST-LSHK-200 Linear Piezo Stage, Stroke 200mm, Drive M308, Maximum Load Capacity 10KG, Maximum Speed 50 mm/s, Minimum Step Size 50nm, Repeatability +/-200nm	6-8 weeks	Request for quote
ST-LS6-200 Linear Piezo Stage, Stroke 200mm, Drive Piezoelectric Motor(316), Maximum Load Capacity 20KG, Maximum Speed 50 mm/s, Minimum Step Size 100nm, Repeatability +/-200nm	6-8 weeks	Request for quote
ST-VS-0805 Vertical Piezo Stage, Stroke ±2.5mm, Driver Piezoelectric Motor, Maximum Load Capacity 1.5KG, Maximum Speed 50mm/s, Minimum Step Size 50nm, Repeatability +/-200nm	6-8 weeks	Request for quote
ST-VS-0606 Vertical Piezo Stage, Stroke 6mm, Driver Piezoelectric Motor, Maximum Load Capacity 0.5KG, Maximum Speed 100mm/s, Minimum Step Size 50(Displaying Grating Feedback), Repeatability +/-200nm	6-8 weeks	Request for quote
ST-VS-0812 Vertical Piezo Stage, Stroke±6mm, Driver Piezoelectric Motor, Maximum Load Capacity 1.5KG, Maximum Speed 50mm/s, Minimum Step Size 50nm, Repeatability +/-200nm	6-8 weeks	Request for quote
ST-VS-0825C Vertical Piezo Stage, Stroke ±12.5mm, Driver Piezoelectric Motor, Maximum Load Capacity 2KG, Maximum Speed 100mm/s, Minimum Step Size 50nm, Repeatability +/-100nm	6-8 weeks	Request for quote
ST-VS4-1025 Vertical Piezo Stage, Stroke ±12.5mm, Driver Piezoelectric Motor, Maximum Load Capacity 3KG, Maximum Speed 20mm/s, Minimum Step Size 50nm(Grating Feedback), Repeatability +/-100nm	6-8 weeks	Request for quote
ST-RS-60C Rotation Piezo Stage, Diameter 60mm, Stroke 90°，180°，360° (For Option), Driver Piezoelectric Motor, Maximum Load Capacity 1.5KG, Maximum Speed 30°/s, Minimum Step Size 0.001°, Repeatability +/-0.002°	In Stock	Request for quote
ST-RS-80C Rotation Piezo Stage, Diameter 80mm, Stroke 360°, Driver Piezoelectric Motor, Maximum Load Capacity 3KG, Maximum Speed 30°/s, Minimum Step Size 0.0005°, Repeatability +/-0.002°	In Stock	Request for quote
ST-RS-100C Rotation Piezo Stage, Diameter 100mm, Stroke 360°, Driver Piezoelectric Motor, Maximum Load Capacity 5KG, Maximum Speed 60°/s, Minimum Step Size 0.0005°, Repeatability +/-0.002°	In Stock	Request for quote
ST-RS-150C Rotation Piezo Stage, Diameter 150mm, Stroke 90° ,180° ,360° (For Option), Driver Piezoelectric Motor, Maximum Load Capacity 3KG, Maximum Speed 360(Open Loop)°/s, Minimum Step Size 0.0005°, Repeatability +/-0.002°	In Stock	Request for quote
ST-GS60-50 Peizo Pitch and Yaw Platform, Height of Rotation Center 50±0.2mm, Swing Precision of Rotation Center <0.01mm, Stroke ±7Deg, Maximum Horizontal Load Capacity 2KG, Maximum Speed ＞20Deg/s, Minimum Step Size ＜0.0001Deg, Repeatability +/-0.0005Deg	6-8 weeks	Request for quote
ST-GS60-75 Peizo Pitch and Yaw Platform, Height of Rotation Center 75±0.2mm, Swing Precision of Rotation Center <0.01mm, Stroke ±7Deg, Maximum Horizontal Load Capacity 2KG, Maximum Speed ＞20Deg/s, Minimum Step Size ＜0.0001Deg, Repeatability +/-0.0005Deg	6-8 weeks	Request for quote
ST-GS60- 100 Peizo Pitch and Yaw Platform, Height of Rotation Center 100±0.2mm, Swing Precision of Rotation Center <0.01mm, Stroke ±5Deg, Maximum Horizontal Load Capacity 2KG, Maximum Speed ＞20Deg/s, Minimum Step Size ＜0.0001Deg, Repeatability +/-0.0005Deg	6-8 weeks	Request for quote
ST-GS60- 125 Peizo Pitch and Yaw Platform, Height of Rotation Center 125±0.2mm, Swing Precision of Rotation Center <0.01mm, Stroke ±5Deg, Maximum Horizontal Load Capacity 2KG, Maximum Speed ＞20Deg/s, Minimum Step Size ＜0.0001Deg, Repeatability +/-0.0005Deg	6-8 weeks	Request for quote
ST-LS2-0606Z Piezo Objective Scanner, Stroke 6mm, Driver Piezoelectric Motor, Maximum Fixed Load 0.5KG, Maximum Speed 100(Open Loop)mm/s, Minimum Step Size 50nm(Displaying Grating Feedback), Repeatability+/-200nm	In Stock	Request for quote
ST-LS2-0610Z Piezo Objective Scanner, Stroke 10mm, Driver Piezoelectric Motor(M304), Maximum Fixed Load 1.3KG, Maximum Speed >100mm/s, Minimum Step Size 50nm( Grating Feedback), Repeatability+/-200nm, Weight 0.35KG	In Stock	Request for quote
ST-LS2-0910Z Piezo Objective Scanner, Stroke 10mm, Driver Piezoelectric Motor(M304), Maximum Fixed Load 1.3KG, Maximum Speed >100mm/s, Minimum Step Size 50nm( Grating Feedback), Repeatability+/-200nm, Weight 0.52KG	In Stock	Request for quote
ST-LS3-1020Z Piezo Objective Scanner, Stroke 20(3)mm, Driver Piezoelectric Motor, Maximum Fixed Load 3.5(5)KG, Maximum Speed 50(Open Loop)mm/s, Minimum Step Size 50nm(Displaying Feedback), Repeatability+/-200nm	In Stock	Request for quote
