1570nm CW Single Mode Fiber Laser | SIMTRUM Photonics Store

1570nm CW Fiber-coupled Laser

SIMTRUM's 1570nm band single wavelength laser uses a high-performance butterfly-shaped semiconductor laser chip. Professionally designed drive and temperature control circuits ensure the safe operation of the laser, stable output power and spectrum. It is suitable as a pump laser source for thulium-doped fiber lasers or fiber amplifiers, and can be provided in desktop or modular packages.

793/808/915/976nm_High_Power_Laser

Features

  • SM/PM output
  • Power and spectrum stability

Applications

  • Thulium-doped fiber pumping
  • Fiber laser
  • Optical device testing

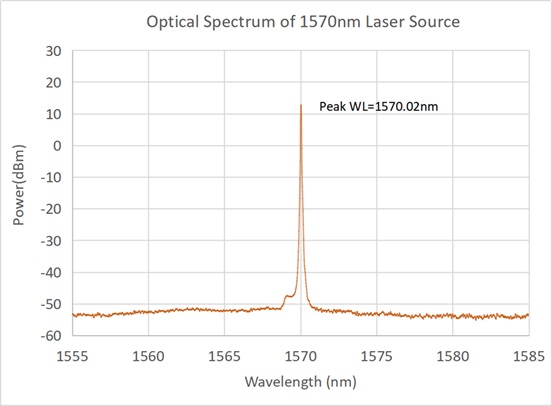

SIMTRUM_STFL1550_Optical_Spectrum



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF

Optical Parameters Unit Typical Value Remarks
Wavelength nm 1570;1590
Wavelength Accuracy nm ±1
Spectral Linewidth nm < 0.1
Side Mode Suppression Ratio dB ≥50
Laser Operation Mode - CW Continuous light
Output Power mW 10/20/50/100/200/400/500 Low optical power
dBm 30/33/35/37/40 High optical power
Instability(15min) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8h) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Polarization Extinction Ratio PER dB - >23
Optical Fiber - SMF-28 PM1550
Fiber connector   FC/APC FC/APC(slow axis alignment)



General Parameters Desktop Module
Control Function Touch screen/RS232 serial Communication RS232 serial Communication
Remote Control Port DB9 Female DB9 Female
Power Supply AC 100~240V,150W DC5V, 30W DC12V, 80W
Low Optical Power(mW) 100/200/300/400 500 100/200/300/400 500
Dimensions or Code*Note1 B1 B2 M20 M31
High Optical Power(dBm) 30/33/35 37/40 30/33/35 37/40
Dimensions or Code B2 B3 M31 M70
Working temperature and humidity -5~+35°C;0~70%



Ordering Information/Product Code
Series  Wavelength (nm) Output Power Fiber Packaging
FL 1570/1590 10/20/50/100/200/400/500 (mW) SM= SMF-28 M20/M31/M70=Module
FLH 30/33/35/37/40 (dBm) PM=PM1550 B1/B2/B3=Desktop

               *Note1:Code size correspondence

               B1:255(W)×285(D)×115(H)mm,B2:255(W)×322(D)×115(H)mm,376(W)×340(D)×112(H)mm

               M20:125(W)×150(D)×20(H)mm,M31:125(W)×150(D)×31.5(H)mm,M70:139(W)×235(D)×70(H)mm


Type Wavelength Spectral Linewidth Output Power
405-940 CW Single Mode Fiber Laser 405-940 nm - 5/25/30/40/50/80/90mW
793/808/878.6/915/940/976nm CW Multi Mode High Power Fiber Laser 793/808/878.6/915/940/976 nm 0.5/0.7/3/6nm 5/8/10/12/20/25/30W
974/976 CW Single Mode Fiber Pump Laser 974/ 976 nm - 200 - 1000mW
1030/1064 CW Single Mode Fiber Laser 1064 nm < 0.1nm 100mW - 10W
1120nm CW Single Mode Fiber Laser 1120nm  0.1nm 5/10W
1310 CW Single Mode Fiber Laser 1310 nm ≤ 3MHz 10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser 1425/1435/1455/1465/1480 nm 0.2nm 200 - 1000mW
1550 CW Single Mode Fiber Laser 1550 nm ≤0.1/≤0.5/≤1/≤ 3MHz 10mW - 20W
1570 CW Single Mode Fiber Laser 1570/1590 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
CW&Pulse 1927/1940nm High Power Fiber Laser 1927nm ≤2nm 10-200W
2000 High Power CW Fiber Laser 1900-2000 nm < 1nm  30/70 W
1940nm High Power QCW Thulium Fiber Laser (CW&Pulse) 1940nm <2nm

Max. average 70W

Max. peak 700W


We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STFL-1570-10-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 10mW, SMF-28
4-6 Weeks $1270.00
STFL-1570-20-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 10mW, SMF-28, Output Power 20mW, SMF-28
4-6 Weeks $1312.00
STFL-1570-50-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 10mW, SMF-28, Output Power 20mW, SMF-28, Output Power 50mW, SMF-28
4-6 Weeks $1735.00
STFL-1570-100-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm,Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 100mW, SMF-28
4-6 Weeks $2116.00
STFL-1570-200-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 200mW, SMF-28
4-6 Weeks $2328.00
STFL-1570-400-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 400mW, SMF-28
4-6 Weeks $2751.00
STFL-1570-500-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 500mW, SMF-28
4-6 Weeks $3429.00
STFL-1570-10-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 10mW, PM1550
4-6 Weeks $1429.00
STFL-1570-20-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 20mW, PM1550
4-6 Weeks $1508.00
STFL-1570-50-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm,Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 50mW, PM1550
4-6 Weeks $2116.00
STFL-1570-100-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 100mW, PM1550
4-6 Weeks $3386.00
STFL-1570-200-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 200mW, PM1550
4-6 Weeks $3810.00
STFL-1570-400-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 400mW, PM1550
4-6 Weeks $4444.00
STFL-1570-500-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1570 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth <0.1 nm, Output Power 500mW, PM1550
4-6 Weeks $5079.00
STFLH-1570-30-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 30dBm, SMF-28
4-6 Weeks $3746.00
STFLH-1570-33-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 33dBm, SMF-28
4-6 Weeks $4214.00
STFLH-1570-35-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 35dBm, SMF-28
4-6 Weeks $4448.00
STFLH-1570-37-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 37dBm, SMF-28
4-6 Weeks $5853.00
STFLH-1570-40-SM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 40dBm, SMF-28
4-6 Weeks $9293.00
STFLH-1570-30-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 30dBm, PM1550
4-6 Weeks $5385.00
STFLH-1570-33-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 33dBm, PM1550
4-6 Weeks $5853.00
STFLH-1570-35-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 35dBm, PM1550
4-6 Weeks $6789.00
STFLH-1570-37-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 37dBm, PM1550
4-6 Weeks $7960.00
STFLH-1570-40-PM-B
1570nm CW Single Mode Fiber Laser, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤0.1 nm, Output Power 40dBm, PM1550
4-6 Weeks $10589.00
