1450nm Raman Amplifier Pump Laser

The 1450nm Raman Amplifier Pump Laser Light Source with single-mode fiber output uses high-performance butterfly semiconductor lasers to ensure safe and stable laser operation using professionally designed drive circuits and TEC controls.  A pumped light source for fiber-optic Raman amplifiers, available in desktop or modular packages.  image.png


Characteristics

-High Output Power

-Power and Spectral Stability


Applications

-Fiber Laser Pumping

-Raman Amplifier Pumping

-Nonlinear Optical Research




General Specifications

Optical indicators

Unit

Typical value

Remark

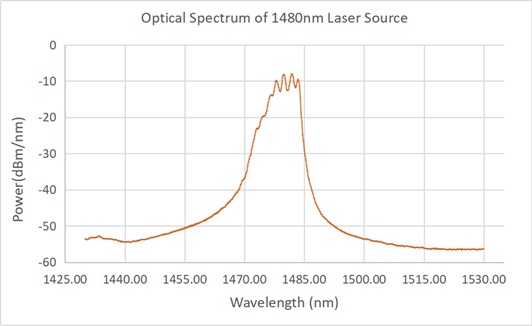

Working wavelength

nm

1480±10


Output power

mW

200/400/500


Short-term stability (15 minutes).

dB

≤ ±0.02


Long-term stability (8 hours).

dB

≤ ±0.05


Tail fiber type

-

SMF-28e single-mode fiber


Tail fiber connector type

-

FC/APC





Electrical and environmental   parameters

Desktop

Module

The way of control

keystroke

RS232 serial communication

The communication interface

:: Optional

DB9 Female

Power  supply

100~240V AC, <30W

5V DC, <15W

The size of the inch

260(W)×280(D)×120(H)mm

125(W)×150(D)×20(H)mm

Operating temperature range

-5~+55°C

Operating humidity range

0~70%



Order information / model number

FL

Working wavelength (nm).

Output   power (mW).

Output   tail fiber type

The   encapsulation form


1480

200/400/500

SM= SMF-28e

M - Module

B- Desktop






Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Technical Assistance and Email Quotations (Recommended for Custom Orders, inquiries)

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 3 working days.


Local Same Day Service

SINGAPORE: For same day service, please contact us at 6996 0391. Office Hours: 9am - 6pm (+8GMT)

For more contact information click here.


International Inquiries

SIMTRUM provides worldwide shipping and inquiry management. Please contact us for more information.




Search Reset

FL-1425-200-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
200

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1425

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1465-500-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
500

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1465

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1465-350-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
350

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1465

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1465-200-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
200

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1465

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1465-500-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
500

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1465

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1465-350-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
350

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1465

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1465-200-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
200

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1465

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

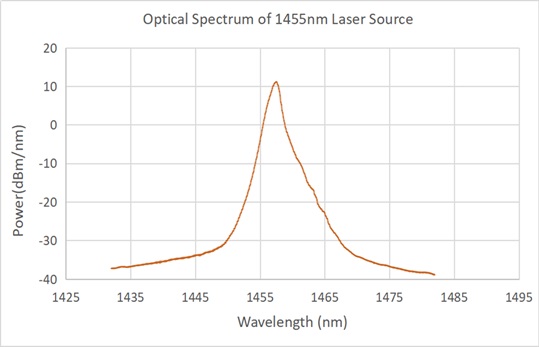

FL-1455-500-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
500

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1455

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1455-350-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
350

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1455

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1455-200-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
200

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1455

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1455-500-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
500

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1455

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1455-350-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
350

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1455

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1455-200-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
200

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1455

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1435-500-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
500

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1435

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1435-350-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
350

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1435

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1435-200-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
200

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1435

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1435-500-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
500

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1435

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1435-350-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
350

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1435

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1435-200-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
200

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
100V - 240V AC, < 30W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1435

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1425-500-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
500

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Power Supply
5V DC, < 15W

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1425

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1425-350-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
350

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1425

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1425-200-M - Parameter

Type
Module

Operating Temperature (°C)
-5 to 55

Output Power (mW)
200

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
RS232 Serial Communication

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1425

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1425-500-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
500

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1425

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1425-350-B - Parameter

Type
Desktop

Operating Temperature (°C)
-5 to 55

Output Power (mW)
350

Wavelength Accuracy (nm)
±3

Dimensions (mm)
260 x 280 x120

Tail Fiber Connector Type
FC/APC

Tail Fiber Type
SMF-28 Single-mode Fiber

Control Interface
Keystroke

Operating Humidity (%)
0 to 70

Working Wavelength (nm)
1425

Short-Term Stability 15mins (dB)
≤ ±0.02

Long-Term Stability 8 Hours (dB)
≤ ±0.05

FL-1425-200-B - Download

FL-1465-500-M - Download

FL-1465-350-M - Download

FL-1465-200-M - Download

FL-1465-500-B - Download

FL-1465-350-B - Download

FL-1465-200-B - Download

FL-1455-500-M - Download

FL-1455-350-M - Download

FL-1455-200-M - Download

FL-1455-500-B - Download

FL-1455-350-B - Download

FL-1455-200-B - Download

FL-1435-500-M - Download

FL-1435-350-M - Download

FL-1435-200-M - Download

FL-1435-500-B - Download

FL-1435-350-B - Download

FL-1435-200-B - Download

FL-1425-500-M - Download

FL-1425-350-M - Download

FL-1425-200-M - Download

FL-1425-500-B - Download

FL-1425-350-B - Download

Accessories

Motorized Actuator Adapters

Compare Model Drawings & Specs Availability Price
(USD)
