793/808/878.6/915/940/976nm CW High Power Fiber Laser

SIMTRUM's high-power laser light source is based on a high-performance semiconductor laser chip and has a 105/125μm fiber-coupled output. Professionally designed constant current drive and temperature control circuits ensure safe and stable operation of the laser. Some models have wavelength locking, and the spectrum stability can be better than ±3nm. It is suitable for medical research, fiber laser pumping and other production tests. It can provide desktop or modular packaging, and provide host computer monitoring software.

Features

Hight output power
High stability
Module or desktop package

Applications

Fiber laser pump
Biomedical science
Laser processing of materials

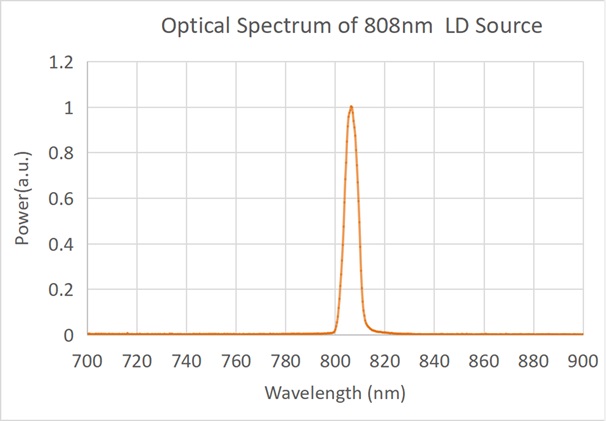

SIMTRUM_STMPHL_Optical_Spectrum

Product specifications and Brochures

Product Brochure Link:

Optical Parameters	Unit	Typical Value			Remarks
Wavelength	nm	793/808	976/878.6	915/940
Wavelength Accuracy	nm	±3/±3	±0.5/±1	±10/±5
Spectral Linewidth	nm	3/6	0.7/0.5	6/3
Laser Operation Mode	-	CW			Continuous light
Output Power	W	5/8/10/12/20/25/30			Customizable
Power adjustment range	-	10%~100%
Instability(15min)	dB	≤ ±0.02			Equivalent to ≤±0.5%
Instability(8h)	dB	≤ ±0.05			Equivalent to ≤±1.2%
Optical Fiber	-	105/125μm Multimode Fiber，NA= 0.22
Fiber connector	-	Bare Fiber			Optional fiber collimator

General Parameters	Desktop		Module
Control Function	Touch screen/ RS232 serial communication		RS232 serial communication
Remote control Port	DB9 Female		DB9 Female
Power Supply	AC 100~240V , <120W		DC 12V, 60W
Optical power(W)	5/8/10/12	20/25/30	5/8/10/12	25/30
Dimensions and codes	B2:255(W)×322(D)×115(H)mm B3：376(W)×340(D)×112(H)mm		M31:125(W)×150(D)×31.5(H)mm M70:139(W)×235(D)×70(H)mm
Working temperature and humidity range	-5~+35°C；0~70%

Ordering Information/Product Code
Series	Wavelength (nm)	Output Power (W)	Fiber	Packaging
STMHPL	793/808/878.6/915/940/976	5/8/10/12/20/25/30	MM = 105/125μm Multi-mode	M31/M70 - Module B2/B3 - Desktop

Type	Wavelength	Spectral Linewidth	Output Power
405-940 CW Single Mode Fiber Laser	405-940 nm	-	5/25/30/40/50/80/90mW
793/808/878.6/915/940/976nm CW Multi Mode High Power Fiber Laser	793/808/878.6/915/940/976 nm	0.5/0.7/3/6nm	5/8/10/12/20/25/30W
974/976 CW Single Mode Fiber Pump Laser	974/ 976 nm	-	200 - 1000mW
1030/1064 CW Single Mode Fiber Laser	1064 nm	< 0.1nm	100mW - 10W
1120nm CW Single Mode Fiber Laser	1120nm	≤ 0.1nm	5/10W
1310 CW Single Mode Fiber Laser	1310 nm	≤ 3MHz	10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser	1425/1435/1455/1465/1480 nm	0.2nm	200 - 1000mW
1550 CW Single Mode Fiber Laser	1550 nm	≤0.1/≤0.5/≤1/≤ 3MHz	10mW - 20W
1570 CW Single Mode Fiber Laser	1570/1590 nm	< 0.1nm	10/20/50/100/200/400/500 mW 30/33/35/37/40 dBm
CW&Pulse 1927/1940nm High Power Fiber Laser	1927nm	≤2nm	10-200W
2000 High Power CW Fiber Laser	1900-2000 nm	< 1nm	30/70 W
1940nm High Power QCW Thulium Fiber Laser (CW&Pulse)	1940nm	＜2nm	Max. average 70W Max. peak 700W

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
STMHPL-793-8-MM-B 793/808/915/976nm High Power Laser, Wavelength 793 nm, Wavelength Accuracy ±3 nm, Spectral Linewidth 3 nm, Output Power 8W	Contact Us	$2116.00
STMHPL-793-12-MM-B 793/808/915/976nm High Power Laser, Wavelength 793 nm, Wavelength Accuracy ±3 nm, Spectral Linewidth 3 nm, Output Power 12W	Contact Us	$2249.00
STMHPL-808-4-MM-B 793/808/915/976nm High Power Laser, Wavelength 808 nm, Wavelength Accuracy ±3 nm, Spectral Linewidth 3 nm, Output Power 4W	Contact Us	$1190.00
STMHPL-808-8-MM-B 793/808/915/976nm High Power Laser, Wavelength 808 nm, Wavelength Accuracy ±3 nm, Spectral Linewidth 3 nm, Output Power 8W	Contact Us	$1852.00
STMHPL-915-9-MM-B 793/808/915/976nm High Power Laser, Wavelength 915 nm, Wavelength Accuracy ±6 nm, Spectral Linewidth 6 nm, Output Power 9W	4-6 Weeks	$1153.00
STMHPL-915-25-MM-B 793/808/915/976nm High Power Laser, Wavelength 915 nm, Wavelength Accuracy ±6 nm, Spectral Linewidth 6 nm, Output Power 25W	4-6 Weeks	$1522.00
STMHPL-940-10-MM-B 793/808/915/976nm High Power Laser, Wavelength 940 nm, Wavelength Accuracy ±10 nm, Spectral Linewidth 6 nm, Output Power 10W	4-6 Weeks	$1190.00
STMHPL-940-20-MM-B 793/808/915/976nm High Power Laser, Wavelength 940 nm, Wavelength Accuracy ±10 nm, Spectral Linewidth 6 nm, Output Power 20W	4-6 Weeks	$1455.00
STMHPL-940-30-MM-B 793/808/915/976nm High Power Laser, Wavelength 940 nm, Wavelength Accuracy ±10 nm, Spectral Linewidth 6 nm, Output Power 30W	4-6 Weeks	$1720.00
STMHPL-976-9-MM-B 793/808/915/976nm High Power Laser, Wavelength 976 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth 6 nm, Output Power 9W, Wavelength locking	4-6 Weeks	$1323.00
STMHPL-976-25-MM-B 793/808/915/976nm High Power Laser, Wavelength 976 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth 6 nm, Output Power 25W, Wavelength locking	4-6 Weeks	$2566.00
