1120nm CW Single Mode Fiber Laser | SIMTRUM Photonics Store

Products / Lasers/Light /Fiber Lasers /CW Fiber Laser System (405nm - 2um) /1120nm CW Single Mode Fiber Laser /
1120nm CW Single Mode Fiber Laser
Overview & Specifications Related Products Order Now!

The 1120nm CW Single Mode​ Fiber Laser features a semiconductor laser chip, expertly engineered drive circuit, and TEC control, ensuring safe laser operation, consistent output power, and spectral stability.

Ideal as a seed laser for high-power applications, it also serves well in production testing of optical fiber devices in the 1120nm range. Available in both benchtop and modular formats, this laser provides a narrow spectral width and exceptional long-term stability, essential for precision and reliability in high-accuracy applications.

Features

  • High Output Power
  • Power And Spectral Stability
  • Single Mode Or Biased Output



Applications

  • High Power Laser
  • Fiber Lasers
  • Optical Fiber Device Testing







Product Specifications and Brochures

Product Brochure Link:

Laser Parameters
 Optical Parameters Unit Typical Value Remarks
 Wavelength nm 1120±1

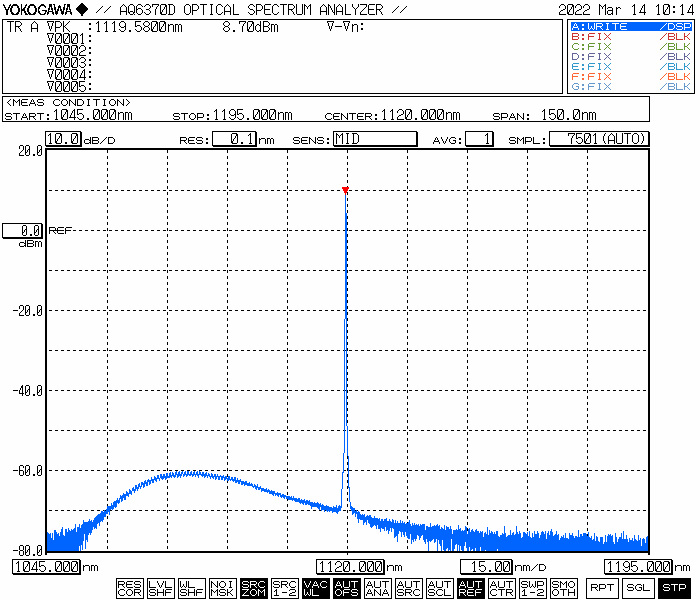

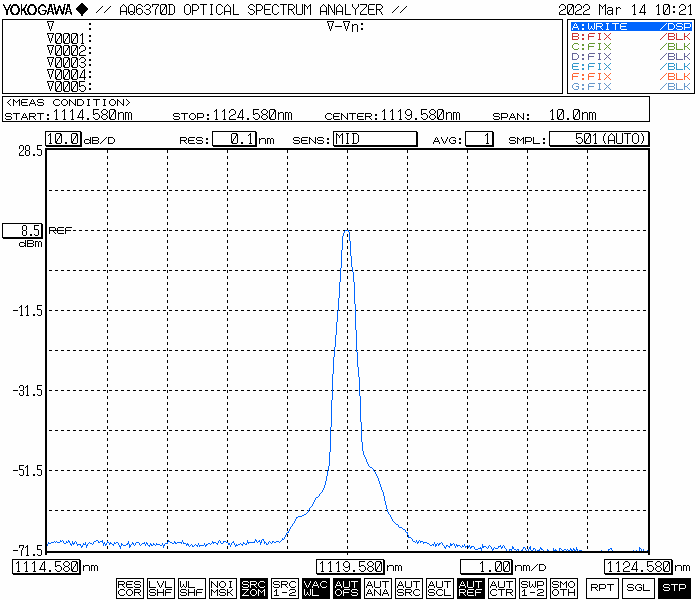

 Spectral Width nm ≤0.1 @3dB
 Output Power W 1/2/5

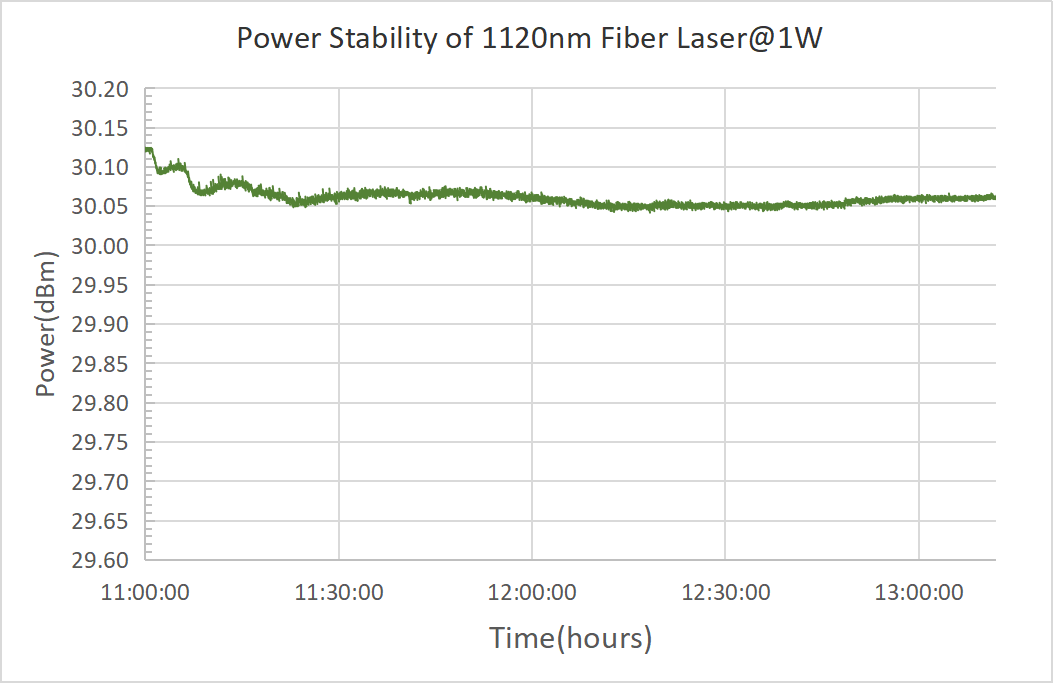

 Short-term Stability (15 minutes) dB ≤±0.02
 Long-term Stability (8 hours) dB ≤±0.05
 Pigtail Type — Hi1060 Single Mode PM980 Polarization-Maintaining Output Models Are Available
 Pigtail Connector Type — FC/APC





Electrical and Environmental Parameters
  Table Model Module
 Control Mode Keystroke RS232 Serial Port Communication
 Communication Interface * Optional DB9 Female
 Power Supply 100~240V AC, <30W 5V DC, <15W
 Size 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
 Operating Temperature Range -5~+55°C
 Operating Humidity Range 0~70%



Ordering Information/Model Number
Series Operating Wavelength (nm) Output Power (W) The PigtailType Is Displayed Encapsulation Form
STFLH 1120 1/2/5 SM= HI 1060 Single-Mode Fiber M=Module
B=Table Model
PM= PM 980 Polarization-Maintaining Fiber






Type Wavelength Wavelength Accuracy Spectral Linewidth Output Power
405-940 CW Single Mode Fiber Laser 405-940 nm ±5 nm - 5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser 793/ 808/ 915/ 976 nm ±3 nm / ±10 nm 3nm / 6nm 5/10/25W
974/976 CW Single Mode Fiber Pump Laser 974/ 976 nm ±1 nm - 200 - 1000mW
1030/1064 CW Single Mode Fiber Laser 1064 nm ±2 nm < 0.1nm 100mW - 10W
1120nm CW Single Mode Fiber Laser 1120±1 nm -  ≤ 0.1nm 1/2/5W
1310 CW Single Mode Fiber Laser 1310 nm ±2 nm ≤ 3nm 10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser 1425/ 1435/ 1455/ 1465/ 1480 nm ±3 nm / ±10 nm - 200 - 800mW
1550 CW Single Mode Fiber Laser 1550 nm ±0.5 nm ≤ 3nm 10mW - 20W
1570 CW Single Mode Fiber Laser 1570 nm ±1 ±0.5 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
2000 High Power CW Fiber Laser 1900-2050 nm - < 1nm  > 30 W




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STFLH-1120-1-B
1120nm CW Single Mode​ Fiber Laser,wavelength 1120±1nm,spectral width ≤0.1,output power 1w 		4-6 Weeks Request for quote
STFLH-1120-2-B
1120nm CW Single Mode​ Fiber Laser,wavelength 1120±1nm,spectral width ≤0.1,output power 2w 		4-6 Weeks Request for quote
STFLH-1120-5-B
1120nm CW Single Mode​ Fiber Laser,wavelength 1120±1nm,spectral width ≤0.1,output power 5w 		4-6 Weeks Request for quote

STFLH-1120-5-B - Parameter

STFLH-1120-2-B - Parameter

STFLH-1120-1-B - Parameter

STFLH-1120-5-B - Download

STFLH-1120-2-B - Download

STFLH-1120-1-B - Download
