1550nm CW Single Mode Fiber Laser | SIMTRUM Photonics Store

1550nm CW Fiber-coupled Laser

SIMTRUM's 1550nm band single-wavelength laser adopts high-stability semiconductor laser chip, single-mode fiber output, professionally designed drive and temperature control circuit control to ensure the safe and stable operation of the laser, and can provide desktop or modular packaging.

793/808/915/976nm_High_Power_Laser

Features

  • DFB cavity laser
  • Power and spectral stability
  • Output power is continuously adjustable

Applications

  • Fiber optic sensing
  • Optical fiber communication
  • Optical experiments

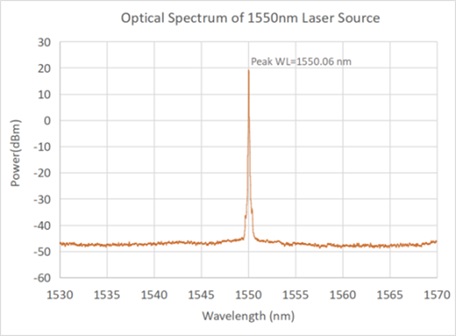

SIMTRUM_STFL1550_Optical_Spectrum

Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF

Optical Parameters Unit Typical Value Remarks
Wavelength nm 1550 1535 ~ 1565nm customizable
Wavelength Accuracy nm ±0.5
Spectral Linewidth nm ≤0.5/≤1/≤ 3
Side Mode Suppression Ratio dB > 50
Laser Operation Mode - CW Continuous light
Output Power mW 10/20/50/100/200/400/500
Accuracy Working - 10~100%
Instability(15min) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8h) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Polarization extinction ratio PER - - >23
Optical fiber and connectors - SMF-28 PM 1550 FC/APC



General Parameters Desktop Module
Control Function Touch screen/RS232 serial Communication RS232 serial Communication
Remote Control Port DB9 Female ZH1.5-3 PIN port DB9 Female
Power Supply AC 100~240V , 30W DC 5V, 15W
Optical Power(mW) 10/20/50/100/200/400 500 10/20/50/100 100/200 400/500
Dimensions or Code*Note1 B1 B2 M15 M20 M21 M31
Cooling method Built-in air cooling Contact cooling Air Cooling
Working temperature and humidity -5~+35°C;0~70%



Ordering Information/Product Code
Series Wavelength (nm) Output Power (mW) Fiber Packaging
STFL 1550 10/20/50/100/200/400/500 SM = SMF-28
PM = PM1550
M15/,20/M21/M31 - Module
B1/B2 - Desktop

                *Note1:Code size correspondence

              B1:255(W)×285(D)×115(H)mm,B2:255(W)×322(D)×115(H)mm

              M15:70(W)×90(D)×15(H)mm,M20:125(W)×150(D)×20(H)mm.M21:125(W)×150(D)×21.5(H)mm,M31: 125(W)×150(D)×31.5(H)mm


SIMTRUM's 1550nm laser uses a DFB seed laser and cooperates with a high-power gain optical path module to achieve single-mode fiber output of single-wavelength high-power laser. Professionally designed drive and temperature control circuit control ensures that the laser works safely and stably, and the spectrum and power remain stable for a long time. The desktop design is easy to operate, and the control interface is simple and intuitive, which is suitable for laboratory use by scientific research users.

793/808/915/976nm_High_Power_Laser

Features

  • 1~20W multiple power
  • SM fiber output
  • High stability

Applications

  • Fiber optic sensing
  • Optical fiber communication
  • Fiber Laser

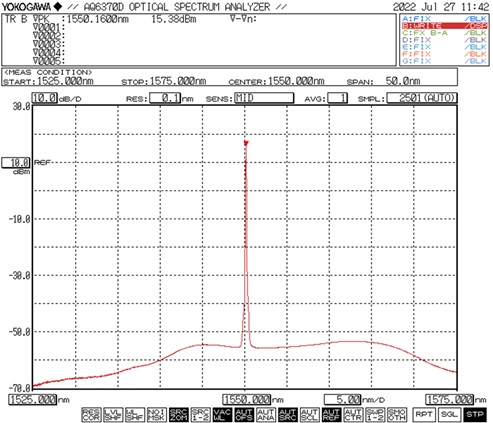

SIMTRUM_STFL1550_HP_Optical_Spectrum



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF

Optical Parameters Unit Typical Value Remarks
Wavelength nm 1550 1535~1565nm customizable
Wavelength Accuracy nm ±0.5
Spectral Linewidth nm ≤0.1
Side Mode Suppression Ratio dB ≥50
Laser Operation Mode - CW Continuous light
Output Power dBm 30/33/37/40/41/43 1~20W
Accuracy Working - 10%~100%
Instability(15min) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8h) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Polarization Extinction Ratio PER dB - >23
Optical Fiber - SMF-28 PM1550
Fiber connector   FC/APC FC/APC



General Parameters Desktop Module
Control Function Touch screen/RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply AC 100~240V,<150W DC12V,60W
Optical Power(dBm) 30/33 37/40/41/43 30/33 37/40
Dimensions or Code*Note1 B2 B3 M21 M31 M70
Cooling method Built-in air cooling Contact cooling Air Cooling Built-in air cooling
Working temperature and humidity -5~+35°C;0~70%



Ordering Information/Product Code
Series Wavelength (nm) Output Power (dBm) Fiber Packaging
STFLH 1550 30/33/37/40/41/43 SM = SMF-28 M21/M31/M70 - Module
PM = PM1550 B2/B3 - Desktop

                     *Note1:Code size correspondence:

                B2:255(W)×322(D)×115(H)mm,B3:376(W)×340(D)×112(H)mm

                M21:125(W)×150(D)×21.5(H)mm,M31: 125(W)×150(D)×31.5(H)mm,M70:139(W)×235(D)×70(H)mm


Type Wavelength Spectral Linewidth Output Power
405-940 CW Single Mode Fiber Laser 405-940 nm - 5/25/30/40/50/80/90mW
793/808/878.6/915/940/976nm CW Multi Mode High Power Fiber Laser 793/808/878.6/915/940/976 nm 0.5/0.7/3/6nm 5/8/10/12/20/25/30W
974/976 CW Single Mode Fiber Pump Laser 974/ 976 nm - 200 - 1000mW
1030/1064 CW Single Mode Fiber Laser 1064 nm < 0.1nm 100mW - 10W
1120nm CW Single Mode Fiber Laser 1120nm  0.1nm 5/10W
1310 CW Single Mode Fiber Laser 1310 nm ≤ 3MHz 10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser 1425/1435/1455/1465/1480 nm 0.2nm 200 - 1000mW
1550 CW Single Mode Fiber Laser 1550 nm ≤0.1/≤0.5/≤1/≤ 3MHz 10mW - 20W
1570 CW Single Mode Fiber Laser 1570/1590 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
CW&Pulse 1927/1940nm High Power Fiber Laser 1927nm ≤2nm 10-200W
2000 High Power CW Fiber Laser 1900-2000 nm < 1nm  30/70 W
1940nm High Power QCW Thulium Fiber Laser (CW&Pulse) 1940nm <2nm

Max. average 70W

Max. peak 700W


We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STFL-1550-10-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 10mW, SMF-28
4-6 Weeks $1041.00
STFL-1550-20-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 20mW, SMF-28
4-6 Weeks $1076.00
STFL-1550-50-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 50mW, SMF-28
4-6 Weeks $1423.00
STFL-1550-100-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 100mW, SMF-28
4-6 Weeks $1602.00
STFL-1550-200-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 200mW, SMF-28
4-6 Weeks $1762.00
STFL-1550-400-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 400mW, SMF-28
4-6 Weeks $2082.00
STFL-1550-500-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 500mW, SMF-28
4-6 Weeks $2595.00
STFL-1550-10-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 10mW, PM1550
4-6 Weeks $1171.00
STFL-1550-20-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 20mW, PM1550
4-6 Weeks $1236.00
STFL-1550-50-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 50mW, PM1550
4-6 Weeks $1602.00
STFL-1550-100-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 100mW, PM1550
4-6 Weeks $2563.00
STFL-1550-200-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 200mW, PM1550
4-6 Weeks $2883.00
STFL-1550-400-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 400mW, PM1550
4-6 Weeks $3364.00
STFL-1550-500-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 500mW, PM1550
4-6 Weeks $3844.00
STFLH-1550-30-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 30dBm, SMF-28
4-6 Weeks $2803.00
STFLH-1550-33-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 33dBm, SMF-28
4-6 Weeks $3203.00
STFLH-1550-35-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 35dBm, SMF-28
4-6 Weeks $3404.00
STFLH-1550-37-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 37dBm, SMF-28
4-6 Weeks $4605.00
STFLH-1550-40-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 40dBm, SMF-28
4-6 Weeks $7608.00
STFLH-1550-41-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 41dBm, SMF-28
4-6 Weeks $10812.00
STFLH-1550-43-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 43dBm, SMF-28
4-6 Weeks $15617.00
STFLH-1550-30-PM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 30dBm, PM1550
4-6 Weeks $4004.00
STFLH-1550-33-PM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 33dBm, PM1550
4-6 Weeks $4405.00
STFLH-1550-35-PM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 35dBm, PM1550
4-6 Weeks $5206.00
STFLH-1550-37-PM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 37dBm, PM1550
4-6 Weeks $6207.00
STFLH-1550-40-PM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 40dBm, PM1550
4-6 Weeks $9210.00
