SIMTRUM's STFL Series 1310nm CW Fiber Laser features a DFB semiconductor laser chip for precise single-mode output. Enhanced with a professionally designed driver and temperature control circuits, this laser ensures safe and stable operation. Available in both desktop and modular formats, it offers versatile deployment options for various applications.

Features

Narrow spectral linewidth
Excellent stability
Excellent stability of power

Applications

Fiber optic sensing
Fiber laser
Optics components testing

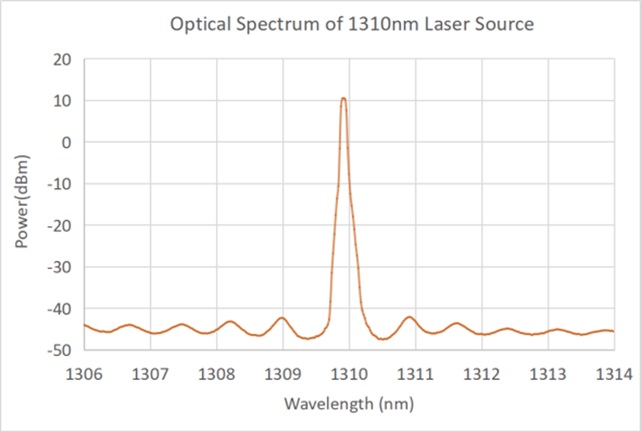

SIMTRUM_STFL_Optical_Spectrum

Product specifications and Brochures

Product Brochure Link:

Optical Parameters	Unit	Typical Value		Remarks
Wavelength	nm	1310
Wavelength Accuracy	nm	±2
Laser Operation Mode	-	CW		Continuous light
Spectral Linewidth	nm	≤ 3
Side Mode Suppression Ratio	dB	> 50
Output Power	mW	10/20/30/40
Accuracy Working	-	10~100%
Instability(15min.in)	dB	≤ ±0.02		Equivalent to ≤±0.5%
Instability(8 hr)	dB	≤ ±0.05		Equivalent to ≤±1.2%
Polarization State	-	Random	Linear polarization
Optical Fiber	-	G657A	PM1310
Fiber connector	-	FC/APC	FC/APC (slow axis alignment)

General Parameters	Desktop	Module
Control Function	Keystroke / RS232 serial Communication	RS232 serial Communication
Remote control Port	DB9 Female	DB9 Female
Power Supply	AC100~240V, <30W	DC5V, <15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operation Temperature	-5~+35°C
Operation Humidity	0~70%

Ordering Information/Product Code
Series	Wavelength (nm)	Output Power (mW)	Fiber	Packaging
STFL	1310	10/20/30/40	SM = G657A	M - Module
			PM = PM1310	B - Desktop

Type	Wavelength	Wavelength Accuracy	Spectral Linewidth	Output Power
405-940 CW Single Mode Fiber Laser	405-940 nm	±5 nm	-	5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser	793/ 808/ 915/ 976 nm	±3 nm / ±10 nm	3nm / 6nm	5/10/25W
974/976 CW Single Mode Fiber Pump Laser	974/ 976 nm	±1 nm	-	200 - 1000mW
1030/1064 CW Single Mode Fiber Laser	1064 nm	±2 nm	< 0.1nm	100mW - 10W
1120nm CW Single Mode Fiber Laser	1120±1 nm	-	≤ 0.1nm	1/2/5W
1310 CW Single Mode Fiber Laser	1310 nm	±2 nm	≤ 3nm	10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser	1425/ 1435/ 1455/ 1465/ 1480 nm	±3 nm / ±10 nm	-	200 - 800mW
1550 CW Single Mode Fiber Laser	1550 nm	±0.5 nm	≤ 3nm	10mW - 20W
1570 CW Single Mode Fiber Laser	1570 nm ±1	±0.5 nm	< 0.1nm	10/20/50/100/200/400/500 mW 30/33/35/37/40 dBm
2000 High Power CW Fiber Laser	1900-2050 nm	-	< 1nm	> 30 W

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
STFL-1310-10-SM-B 1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 10 mW, G657A	4-6 Weeks	$1041.00
STFL-1310-20-SM-B 1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 20 mW, G657A	4-6 Weeks	$1145.00
STFL-1310-30-SM-B 1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 30 mW, G657A	4-6 Weeks	$1475.00
STFL-1310-40-SM-B 1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 40 mW, G657A	4-6 Weeks	$1648.00
STFL-1310-10-PM-B 1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 10 mW, PM1310	4-6 Weeks	$1280.00
STFL-1310-20-PM-B 1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 20 mW, PM1310	4-6 Weeks	$1319.00
